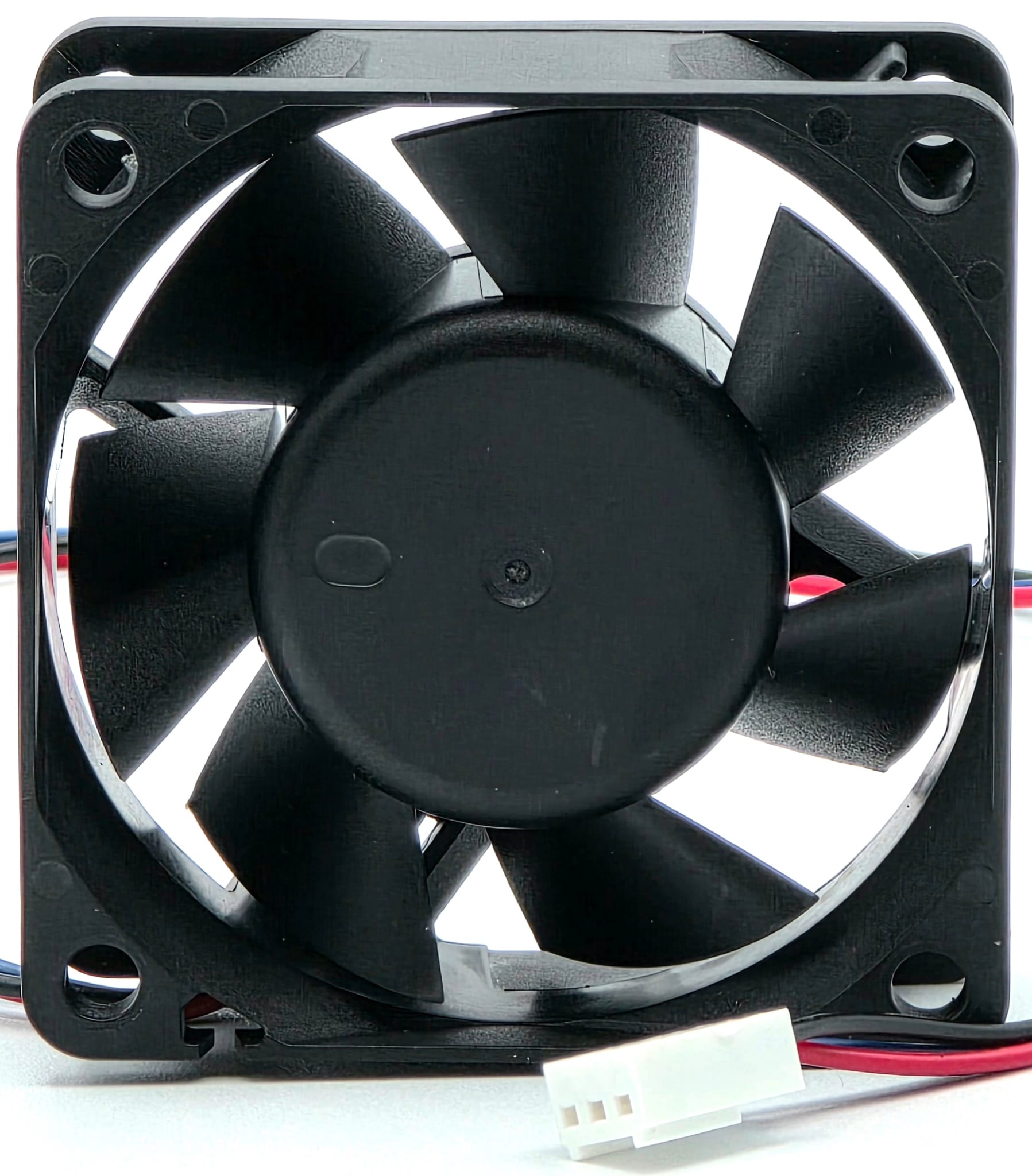

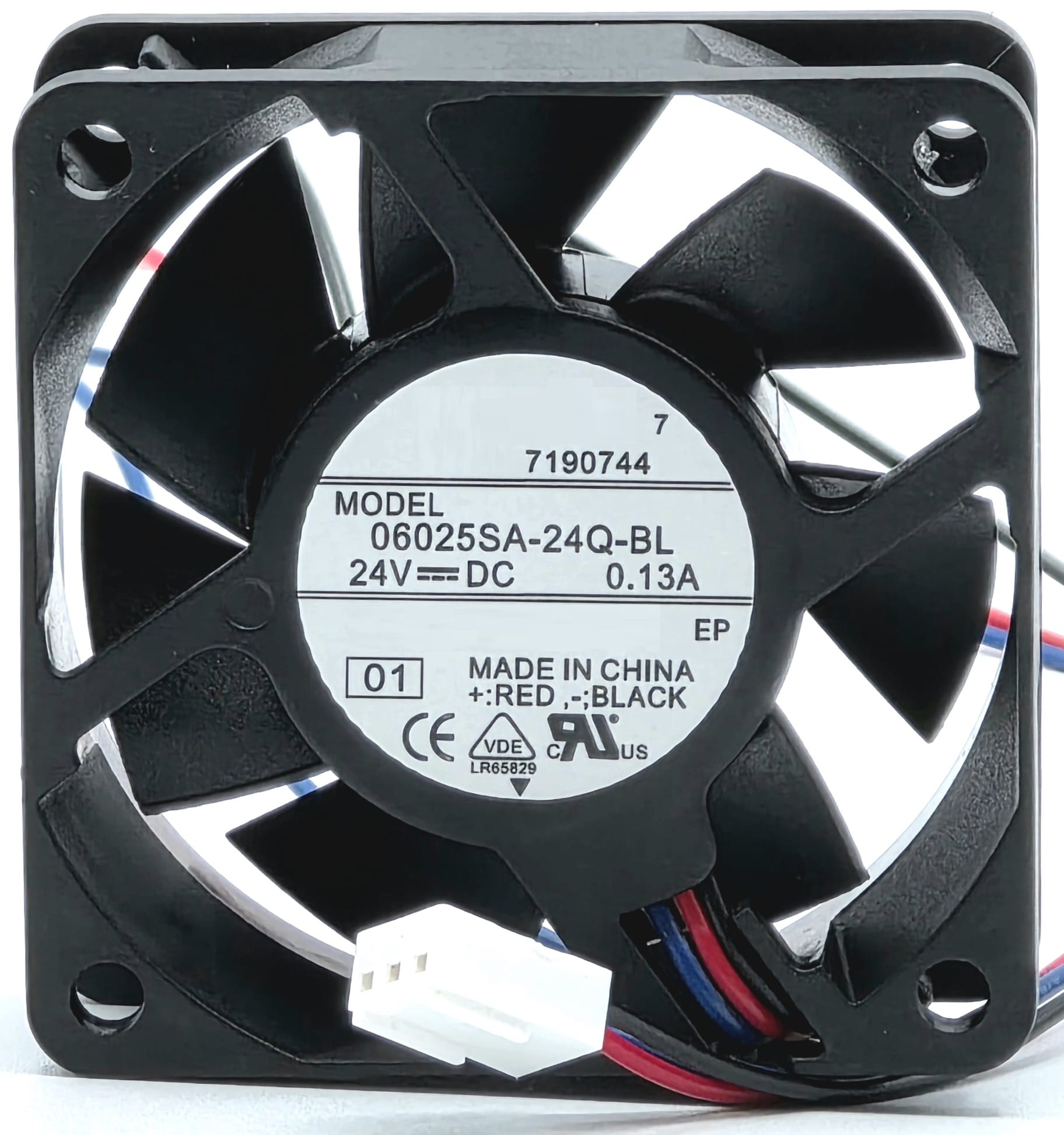

06025SA-24Q-BL - 60x60x25mm DC24V 0.13A 3-Wire Silent Inverter Cooling Fan
Description
Compact 60mm x 25mm DC brushless cooling fan designed for inverter and control-cabinet ventilation. Operates on 24V DC with a 3-wire lead for tachometer monitoring, providing stable airflow with a low-noise profile for continuous-duty environments.
Technical Specifications
- Dimensions: 60 x 60 x 25 mm
- Rated Voltage: 24V DC
- Rated Current: 0.13A
- Power: 3.12W (nominal)
- Interface: 3-wire (tachometer/speed sense +V/GND/Tach)
- Frame Style: 60mm square, 25mm thickness
- Rotation/Airflow Indicators: Arrows molded on housing
- Mounting Pattern: Standard 60mm fan hole spacing
Interchangeable / Replacement Part Numbers
✅ Confirmed Compatibility
Please note that the following list is not exhaustive. Compatibility depends on your system's specific configuration. It's essential to verify compatibility with your system or enclosure manufacturer prior to installation.
✔️ VFDs and industrial inverters
✔️ PLC and control panels
✔️ Power supplies and UPS enclosures
✔️ Embedded electronics and small equipment housings
☑️ Key Features
- ☑️ 24V DC operation for industrial panels and inverters
- ☑️ 3-wire tachometer lead for RPM monitoring
- ☑️ 25mm thickness supports higher static pressure in dense enclosures
- ☑️ Low-noise performance suitable for continuous duty
- ☑️ Standard 60mm mounting pattern for easy drop-in replacement
⚙️ Fit Notes
- Verify your device requires a 60 x 60 x 25 mm 24V DC 3-wire fan before ordering.
- Typical wiring convention: Red = +24V, Black = Ground, Yellow = Tach (confirm your controller’s pinout).
- Install with airflow and rotation matched to the arrows on the housing; keep intake/exhaust paths unobstructed.
- If replacing a 2-wire or 4-wire unit, ensure your controller supports a 3-wire tach configuration; PWM control is not provided.
