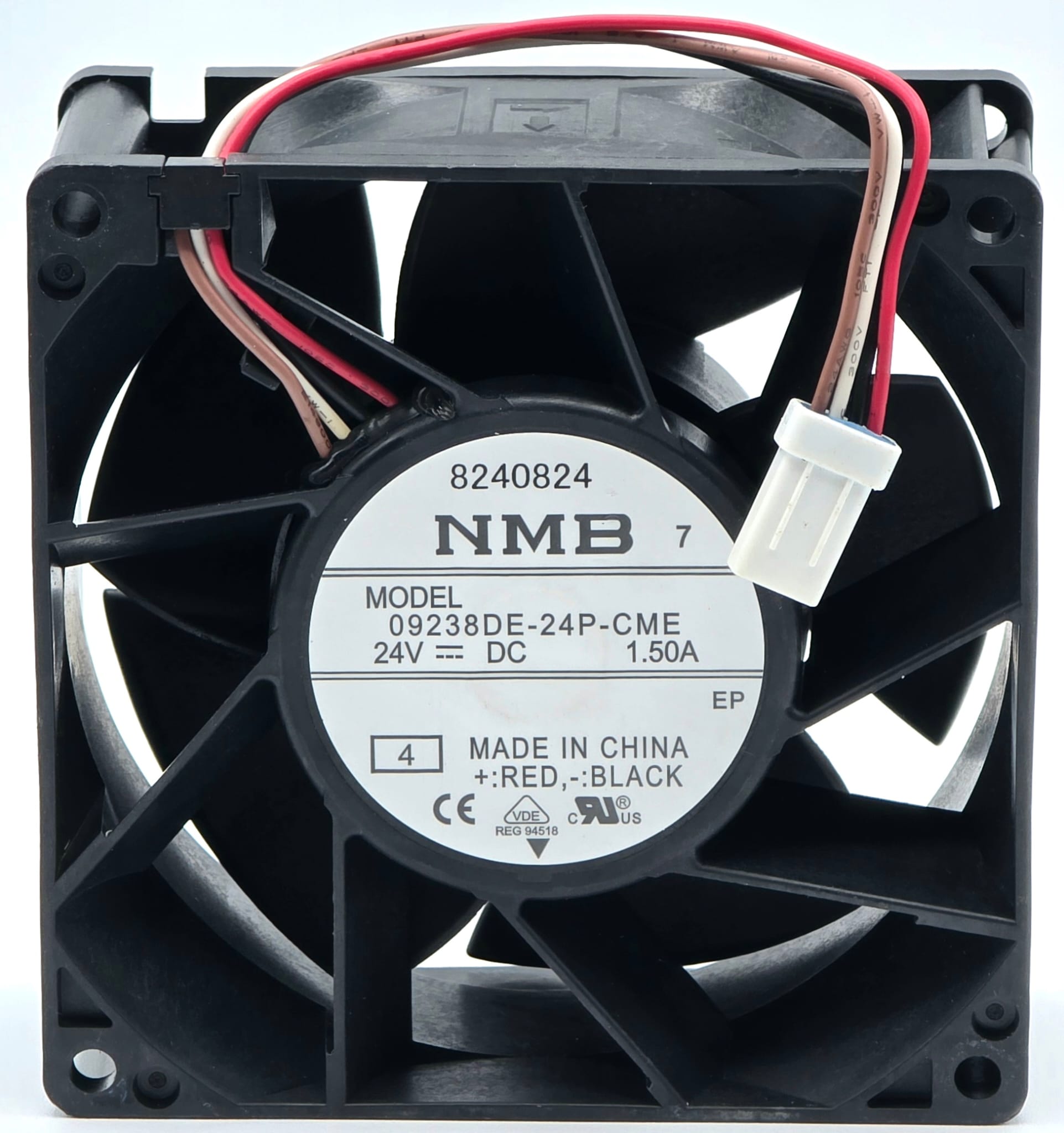

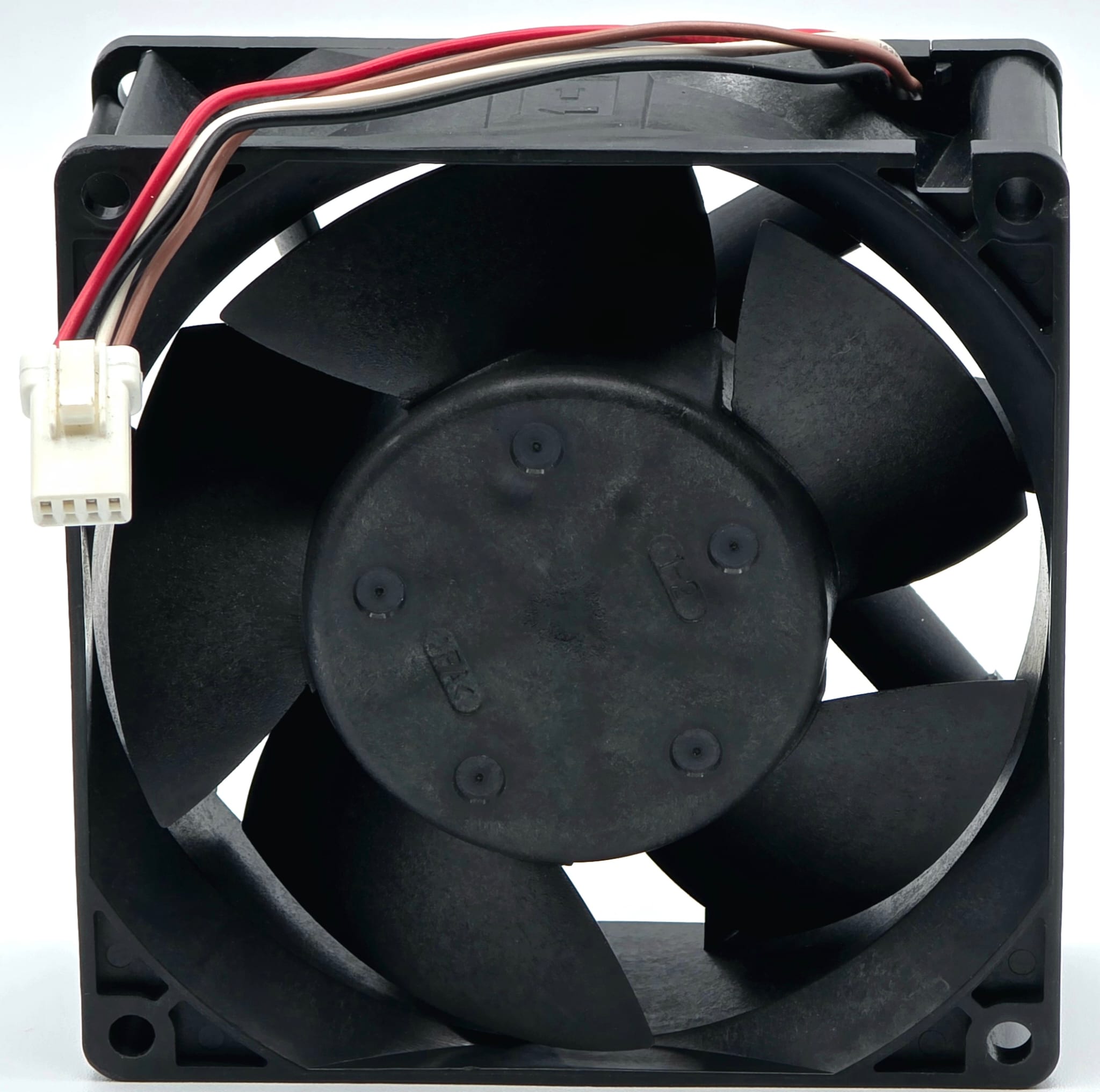

09238DE-24P-CME / 09238DE-24P-CUE - 92x92x38mm 9238 DC24V 1.50A 4-Pin PWM High Airflow Cooling Fan
Description
Heavy-duty 92mm x 38mm DC brushless cooling fan for industrial, server, and power equipment. This model uses a 4-pin PWM interface for speed control and monitoring in demanding, continuous-duty environments. The CME and CUE part numbers are fully compatible and interchangeable.
Technical Specifications
- Dimensions: 92 x 92 x 38 mm
- Rated Voltage: 24V DC
- Rated Current: 1.50A
- Interface: 4-pin PWM (4-wire: +V, GND, Tachometer, PWM control)
- Lead Length: Standard harness with 4-pin connector
- Bearing Type: Dual ball bearing
- Direction Indicators: Arrows on frame for airflow and rotation
- Frame/Impeller: High-strength, UL94V-0 class materials
- Application Class: Continuous-duty industrial/server cooling
Interchangeable / Replacement Part Numbers
- 09238DE-24P-CME
- 09238DE-24P-CUE
✅ Confirmed Compatibility
Please note that the following list is not exhaustive. Compatibility depends on your system's specific configuration. It's essential to verify compatibility with your system or enclosure manufacturer prior to installation.
✔ Server chassis cooling modules
✔ Industrial power supplies and rectifiers
✔ Network and telecom equipment racks
✔ CNC, VFD, and inverter control panels
✔ High-performance electronics enclosures
☑️ Key Features
- ☑️ 4-pin PWM control with tach feedback for precise RPM management
- ☑️ High-output 92x38mm form factor optimized for static pressure
- ☑️ Dual ball bearings for long life in continuous-duty use
- ☑️ Direct drop-in interchange between CME and CUE variants
- ☑️ Robust construction for harsh environments
⚙️ Fit Notes
- Confirm your device requires a 92x92x38mm 24V DC 4-pin PWM fan before ordering.
- Wire convention: Red = +24V, Black = GND, Yellow = Tachometer (sense), Blue = PWM control (typical). Always verify your system’s pinout.
- Align airflow and rotation using the molded arrows on the housing; mount with standard 92mm pattern hardware.
