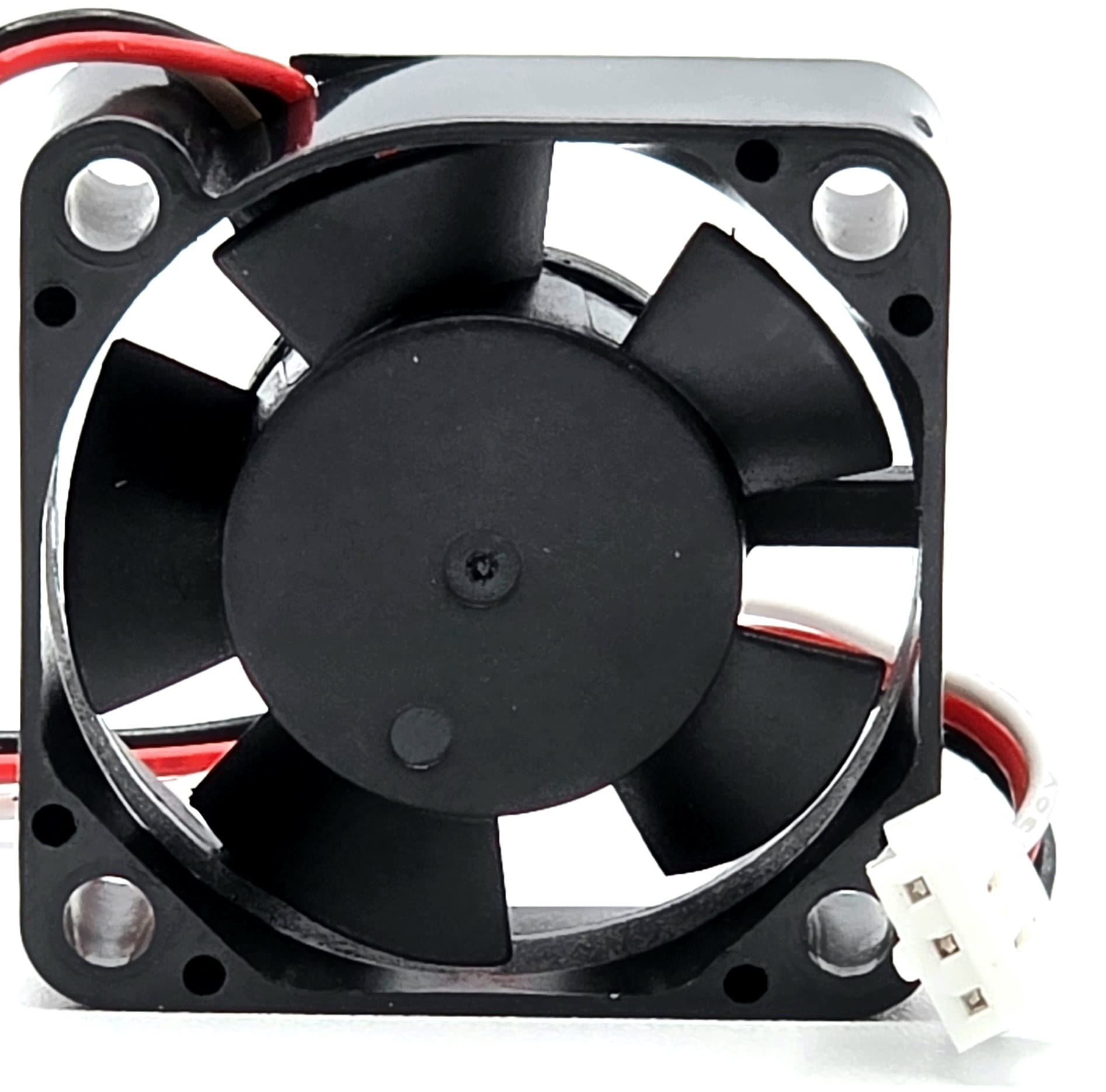

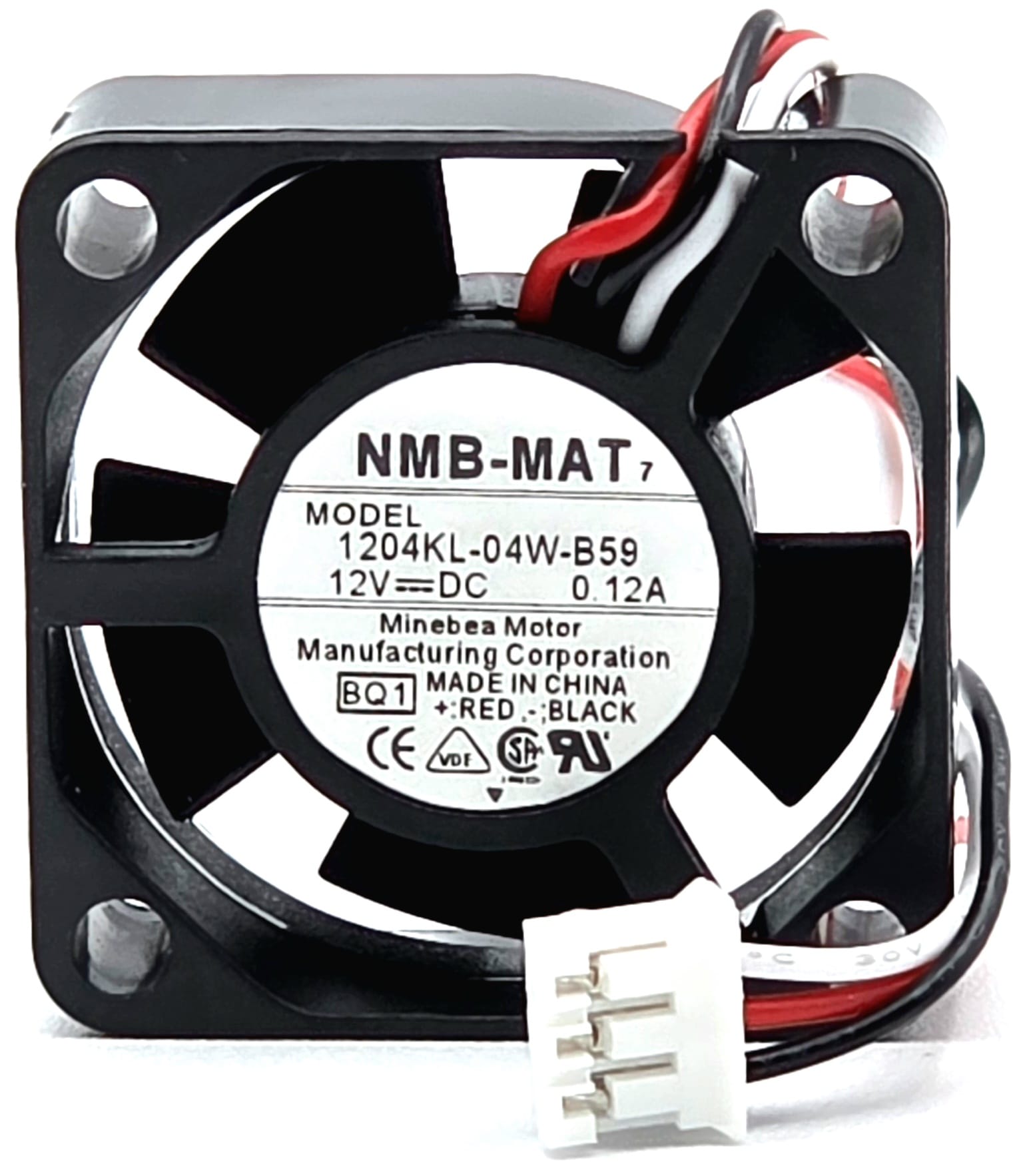

1204KL-04W-B59 - 30x30x10mm 3010 DC12V 0.12A 3-Pin Connector Router Cooling Fan Yaskawa Driver Fan
Description
Compact 30mm x 10mm DC brushless cooling fan designed for routers, Yaskawa driver modules, and other tight enclosures that need reliable spot cooling. Operates at 12V DC with a 3-pin connector and 3-wire lead set for simple installation and RPM monitoring.
Technical Specifications
- Dimensions: 30 x 30 x 10 mm 3010
- Rated Voltage: DC 12V
- Rated Current: 0.12A
- Approx. Rated Power: ~1.44W (derived from 12V x 0.12A)
- Interface: 3-pin connector, 3-wire lead (+V / GND / Tach)
- Fan Type: DC brushless axial
- Mounting: Standard 30mm square pattern
- Direction Indicators: Arrows molded on housing for airflow and rotation
Interchangeable / Replacement Part Numbers
✅ Confirmed Compatibility
Please note that the following list is not exhaustive. Compatibility depends on your system's specific configuration. It's essential to verify compatibility with your system or enclosure manufacturer prior to installation.
✔ Router cooling bays and small network devices
✔ Yaskawa driver and inverter modules requiring 30mm fans
✔ PLC and compact automation panels
✔ Embedded controllers and small equipment housings
☑️ Key Features
- ☑️ 30x30x10mm footprint for space-constrained installs
- ☑️ 12V DC operation with 3-pin connector and tach output
- ☑️ Brushless design for stable, continuous duty
- ☑️ Standard 30mm mounting for broad mechanical fit
- ☑️ Clear airflow and rotation markers for correct installation
⚙️ Fit Notes
- Verify your device requires a 30x30x10mm 12V DC 3-wire fan and that the connector type and pinout match your harness.
- Typical wiring convention: Red = +12V, Black = Ground, Yellow = Tach (always confirm on your controller).
- Align airflow and rotation with the molded arrows; keep intake and exhaust paths unobstructed.
- This 3-wire model provides tach feedback but no PWM control; it runs at native speed when powered.
