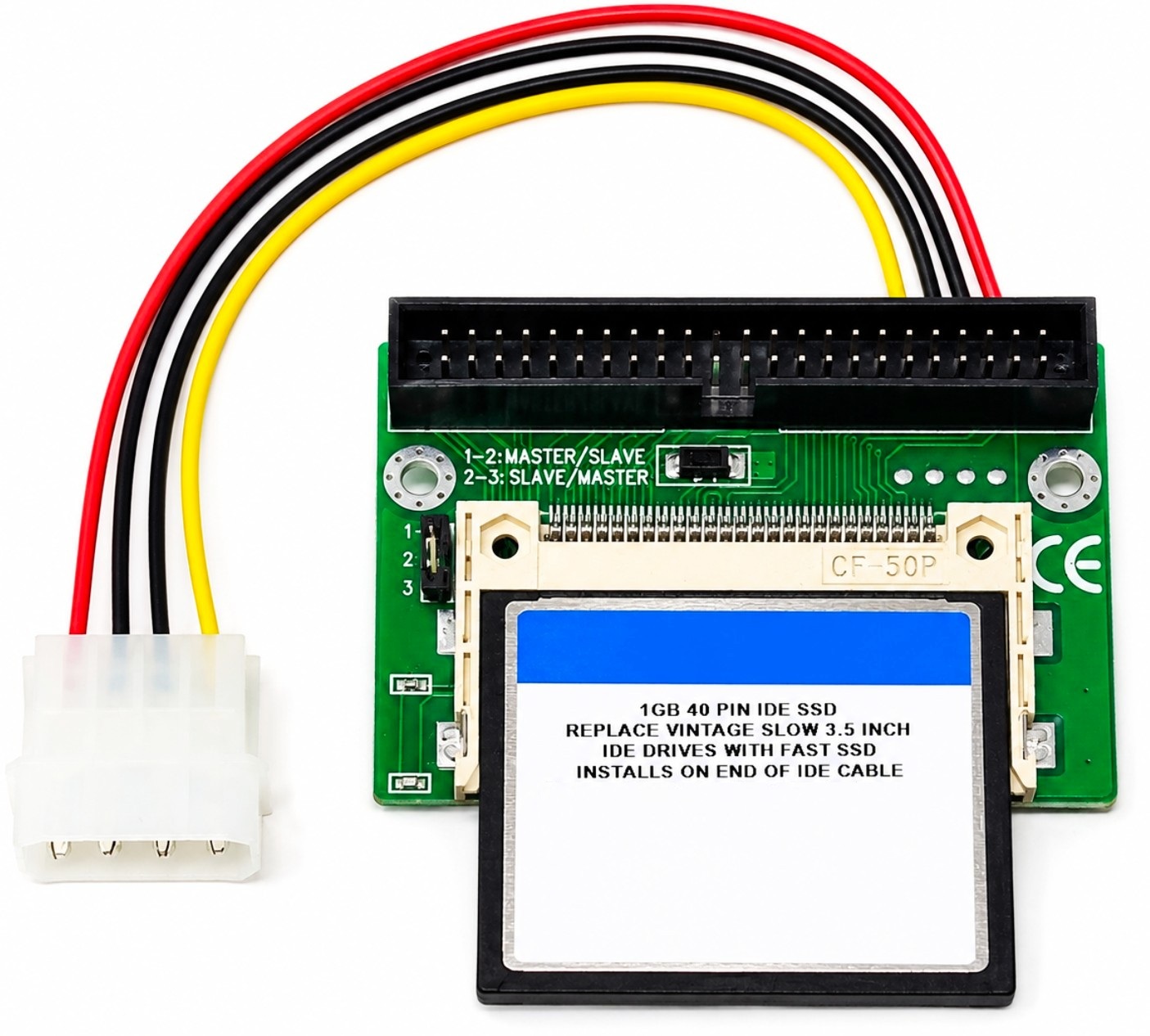

1GB 40-Pin IDE SSD Replacement for Vintage 3.5-inch IDE Hard Drives

Solid-state 1GB IDE / PATA replacement drive for vintage PCs, industrial controllers, arcade systems, CNC equipment, embedded computers, POS terminals, and other legacy machines originally designed for 3.5-inch 40-pin IDE hard drives. This solution uses a 1GB CompactFlash-style SSD card pre-mounted on a 40-pin IDE adapter, giving older systems quiet, low-power, no-moving-parts storage that can replace many small-capacity legacy IDE hard drives.

What’s Included

• 1x 1GB 40-Pin IDE SSD card
• 1x 40-pin IDE adapter board
• 1x 4-pin Molex power lead
• 1x Self-adhesive Velcro-style mounting patch

Technical Specifications

• Item Number: CM-1GB-IDE-SSD-VTG
• Capacity: 1GB
• Drive Type: Solid-state IDE replacement drive
• Interface: 40-pin IDE / PATA
• Storage Media: CompactFlash-style solid-state card
• Adapter Type: 40-pin IDE adapter board
• Power Connection: Standard 4-pin Molex power input
• Form Factor Application: Replaces select vintage 3.5-inch IDE hard drives
• Mounting Style: Mountable inside chassis or 3.5-inch bay area using included Velcro-style patch
• Master / Slave Support: Jumper-selectable Master / Slave configuration
• Default Geometry: 1950 Cylinders / 16 Heads / 63 Sectors
• Geometry Support: User-adjustable where supported by system BIOS
• Transfer Modes: PIO-4, Multi-Word DMA
• Typical Power Draw: Less than 1W read/write
• Noise Level: Silent operation
• Vibration: None
• Condition: New
• Formatting: Ships blank / unpartitioned / unformatted
• Recommended File Systems: FAT16, DOS partitions, Windows 3.x / Windows 9x-era formats, early Linux file systems, and other legacy system formats where supported
• Application Type: Vintage computer, industrial controller, arcade board, embedded system, and legacy IDE storage replacement

Interchangeable / Replacement Part Numbers

• CM-1GB-IDE-SSD-VTG
• 1GB IDE SSD
• 1GB 40-Pin IDE SSD
• 1GB PATA SSD
• 1GB CompactFlash IDE SSD
• 40-Pin IDE SSD Replacement
• 3.5-inch IDE Hard Drive Replacement
• Vintage 1GB IDE Hard Drive Replacement
• Solid-State Replacement for 3.5-inch IDE HDD

✅ Confirmed Compatibility

Please note that the following list is not exhaustive. Compatibility depends on your system’s specific configuration. It’s essential to verify compatibility with your system, BIOS, IDE controller, original hard drive geometry, and operating system prior to installation.

✔ Conner 3.5-inch IDE Hard Drive Replacements: CP30544, CFS540A, CFA540A, CFA810A, CFS850A, CFA850A
✔ Fujitsu 3.5-inch IDE Hard Drive Replacements: M2624T
✔ JTS 3.5-inch IDE Hard Drive Replacements: P1000-2AF
✔ Maxtor 3.5-inch IDE Hard Drive Replacements: MXT540A, LXT535A, 7540AV, 7541A, 7546AT
✔ NEC 3.5-inch IDE Hard Drive Replacements: D3717
✔ Quantum 3.5-inch IDE Hard Drive Replacements: MV540AT, FB540AT, LPS540AT, FB640AT, LT-730AT, TR840AT
✔ Samsung 3.5-inch IDE Hard Drive Replacements: PLS-30854A
✔ Seagate 3.5-inch IDE Hard Drive Replacements: ST3655A, ST3660A, ST3850A
✔ Vintage Desktop PCs: 386, 486, early Pentium, Pentium MMX, Pentium II, and other legacy desktop systems using standard 40-pin IDE / PATA hard drives
✔ Industrial Control Systems: Legacy industrial PCs, machine controllers, test equipment, automation computers, and embedded control systems using small-capacity 40-pin IDE hard drives
✔ Arcade / Amusement Systems: Arcade boards, jukebox systems, kiosk computers, and amusement equipment using 40-pin IDE storage
✔ POS / Embedded Systems: Point-of-sale terminals, cash register computers, embedded PCs, thin clients, and appliance-style systems originally configured with small IDE hard drives
✔ DOS / Windows Legacy Systems: DOS, Windows 3.x, Windows 95, Windows 98, Windows NT-era systems, and early Linux builds where the BIOS and IDE controller support the detected drive geometry

☑️ Key Features

☑️ 1GB solid-state replacement for vintage 3.5-inch IDE hard drives
☑️ No moving parts for improved reliability compared to aging mechanical drives
☑️ Silent operation with no motor noise or vibration
☑️ Very low power draw, typically under 1W during read/write activity
☑️ Direct 40-pin IDE / PATA connection for legacy systems
☑️ Includes Molex power lead for standard desktop-style power supplies
☑️ Jumper-selectable Master / Slave support for IDE cable configuration
☑️ Useful for replacing small-capacity Conner, Fujitsu, JTS, Maxtor, NEC, Quantum, Samsung, and Seagate IDE drives
☑️ Works well for DOS, Windows 3.x, Windows 9x, early Linux, and fixed-geometry BIOS environments
☑️ Ideal for retro PC builds, repair depots, schools, industrial equipment, and commercial legacy-system projects

⚙️ Fit Notes

• This is a 1GB 40-pin IDE / PATA solid-state replacement, not a SATA drive
• Designed for systems that use a standard 40-pin desktop IDE ribbon cable
• This is not a 44-pin 2.5-inch laptop IDE drive replacement
• Set the adapter jumper to Master or Slave based on your IDE cable position and system configuration
• Many vintage systems require the drive geometry to be entered manually in BIOS
• Default geometry is 1950 Cylinders / 16 Heads / 63 Sectors
• Drive ships blank and must be partitioned and formatted before use
• For DOS and many vintage systems, FAT16 is usually the preferred file system
• Operating system installation or disk cloning is required before the computer will boot from this drive
• Some older BIOS versions may have fixed drive tables or capacity limits; verify that a 1GB drive is supported
• Mount the adapter securely inside the chassis to avoid movement during operation
• This product replaces the storage function of a 3.5-inch IDE hard drive but does not have the same physical metal drive housing
• Not compatible with SATA, SCSI, SAS, M.2, mSATA, PCIe, or 44-pin laptop IDE connections without additional adapters

Bulk / Project Orders

Large-volume orders are welcome for schools, repair depots, retro PC restorations, arcade service companies, industrial maintenance projects, and commercial legacy-system deployments.
