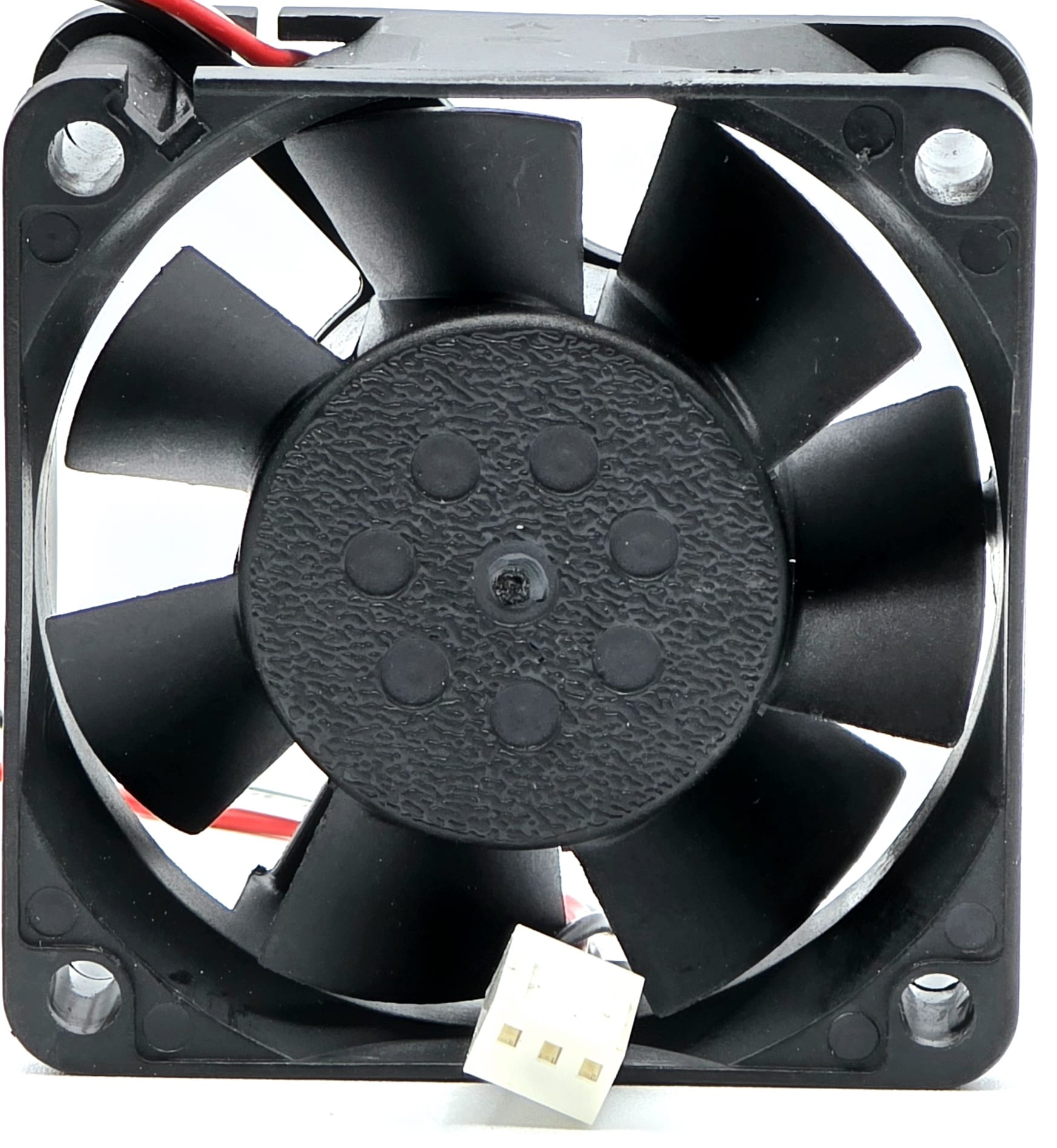

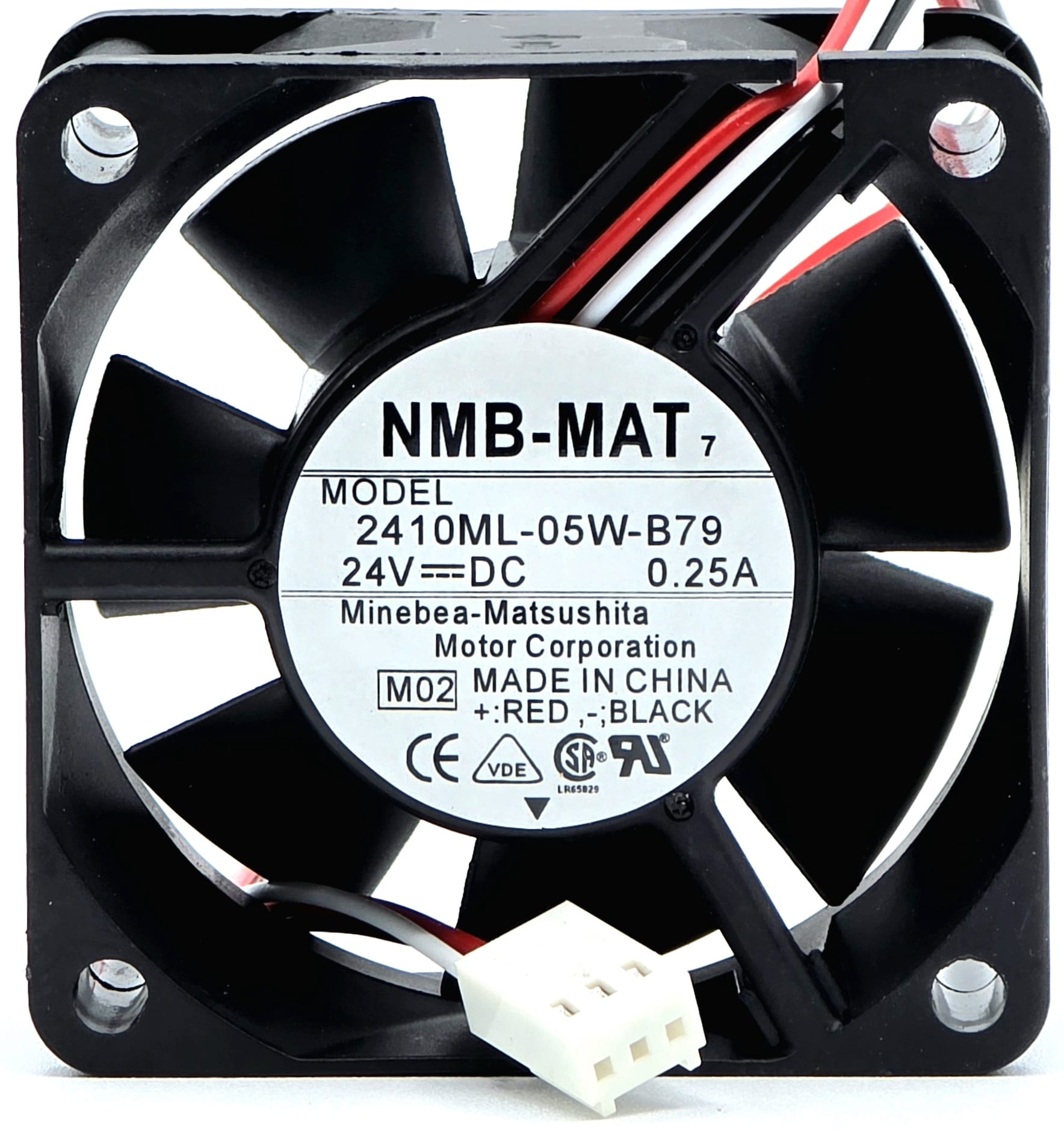

2410ML-05W-B79 - 60x60x25mm 6025 DC24V 0.25A 3-Pin Connector Axial Cooling Fan

High-performance 60mm x 25mm DC brushless axial fan for inverter bays, control panels, telecom gear, and dense industrial enclosures. Operates at 24V DC and features a 3-wire lead set terminated to a 3-pin connector. This B79 variant provides a locked-rotor alarm signal on the third lead for fault indication in monitoring systems.

Technical Specifications

• Dimensions: 60 x 60 x 25 mm 6025
• Nominal Voltage: 24V DC
• Voltage Range: 10.0–25.2V DC
• Rated Current: 0.25A max label current (typical draw ~0.19A)
• Input Power: ~4.56W typical
• Bearing Type: Ball bearing
• Speed: ~6800 RPM
• Airflow: up to 33.1 CFM
• Static Pressure: up to 0.50 in H2O (125 Pa)
• Acoustic Noise: ~45 dB
• Leads / Connector: 3-wire with 3-pin connector (+V, GND, alarm)
• Signal Function: Locked-rotor alarm output on third lead
• Materials: UL94V-0 frame and impeller
• Operating Temperature: -10°C to +70°C
• Expected Life: 100,000 hours L10 at 25°C
• Rotation / Flow Indicators: Arrows molded on housing
• Weight: ~65 g

Interchangeable / Replacement Part Numbers
2410ML-05W-B79, 2410ML-05W-B79-E00, 2410ML-05W-B79-E50, 2410ML-05W-B79-EQ2

✅ Confirmed Compatibility
Please note that the following list is not exhaustive. Compatibility depends on your system’s specific configuration. It’s essential to verify compatibility with your system or enclosure manufacturer prior to installation.
✔ Inverter cabinets and VFD enclosures
✔ PLC and automation control panels
✔ Industrial power supplies and rectifiers
✔ Telecom and networking racks
✔ Embedded and industrial controllers using 60mm 24V fans

☑️ Key Features

☑️ 24V DC 3-wire design with locked-rotor alarm for fault monitoring
☑️ High-output 6025 form factor delivers up to 33.1 CFM at ~6800 RPM
☑️ Dual ball bearings for long service life in continuous duty
☑️ UL94V-0 construction suitable for industrial panels
☑️ Standard 60mm mounting pattern for easy drop-in replacement

⚙️ Fit Notes

• Third lead is a locked-rotor alarm output, not a tachometer RPM signal. If your controller expects a tach pulse, verify compatibility before installing.
• Wire convention commonly used: Red = +24V, Black = Ground, White or Yellow = Alarm. Always confirm your harness pinout and connector keying against the photos.
• Some production variants of this model ship with bare 3-wire leads; this listing supplies a 3-pin connector as pictured.
• Align airflow and rotation with the molded arrows. Keep intake and exhaust paths clear for best performance.
