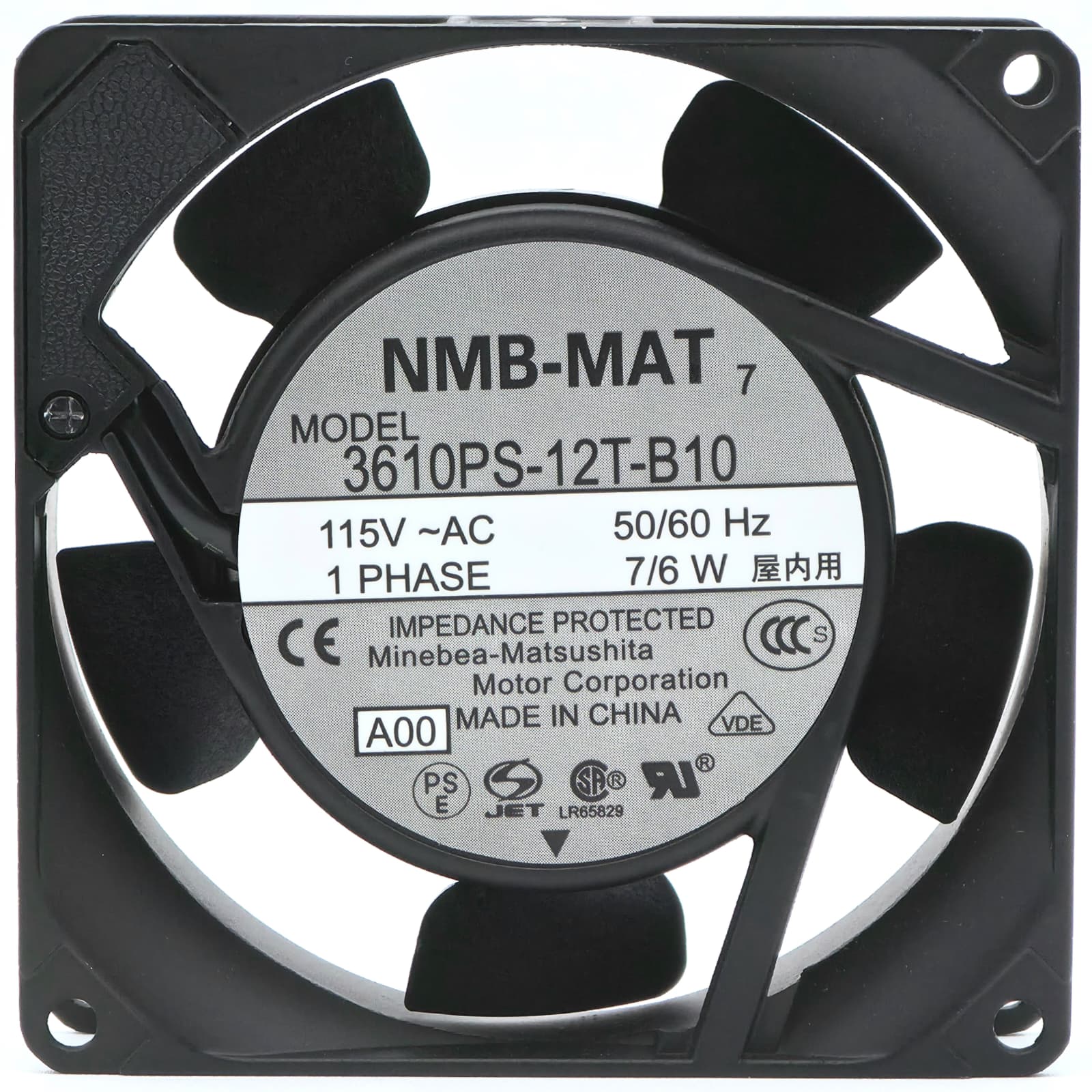

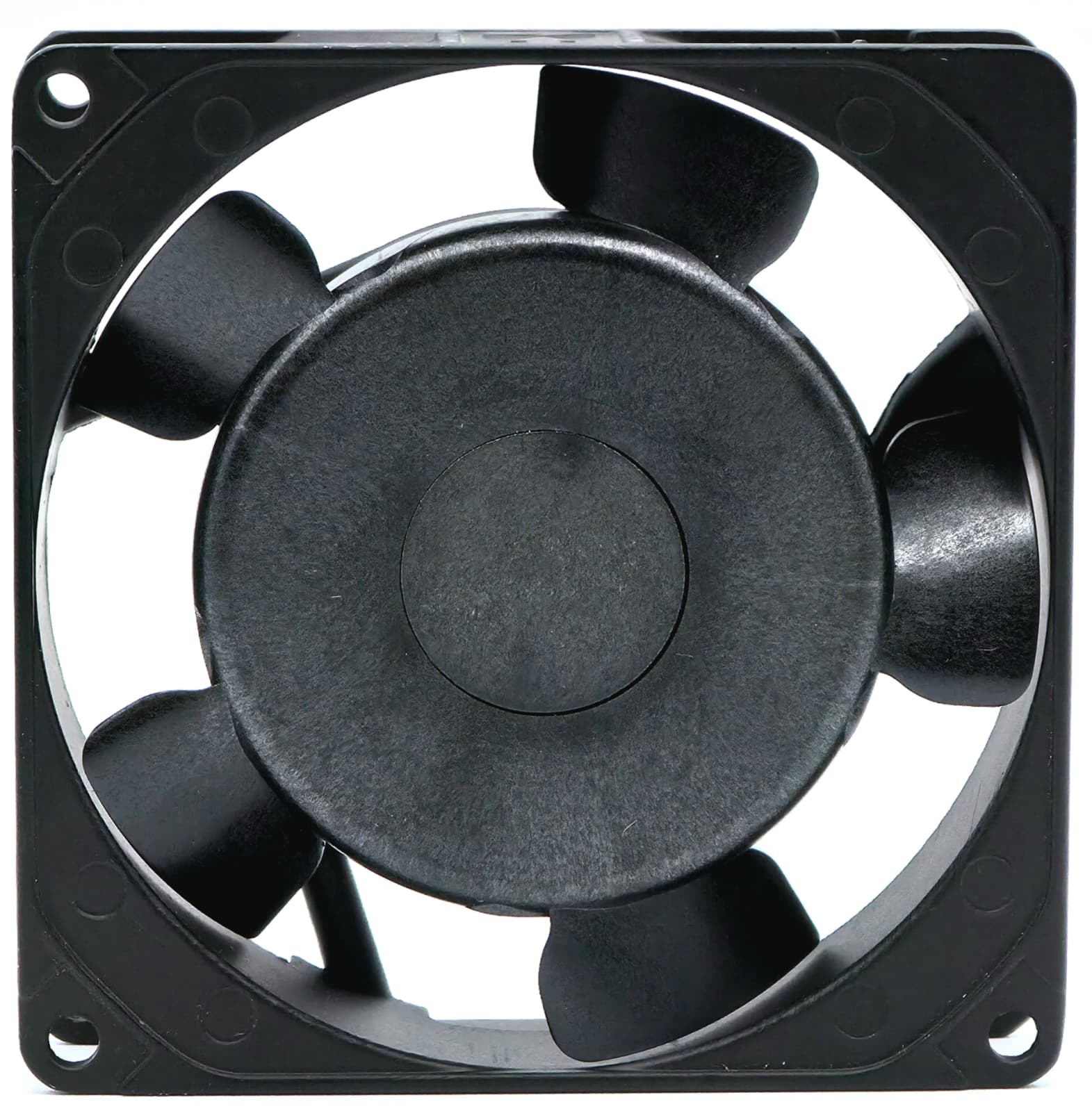

3610PS-12T-B10 - NMB 92mm 115V AC 0.08A 6W 1800RPM 20CFM 25dBA Ball Bearing 2-Terminal Cooling Fan

The NMB-MAT 3610PS-12T-B10 is a high-quality 92mm AC axial cooling fan designed for quiet operation and dependable airflow in industrial equipment, automation systems, and electronics cooling applications that use 115V AC fans. With a ball bearing design and low noise rating, it’s a strong choice when you want stable long-term performance and consistent cooling.

Technical Specifications

• Manufacturer: NMB-MAT (MinebeaMitsubishi)
• Model: 3610PS-12T-B10
• Alternate / Variant: 3610PS-12T-B10-A00
• Fan Size: 92 x 92 x 25 mm
• Voltage: 115V AC
• Frequency: 50/60 Hz
• Current: 0.08A
• Input Power: 6W
• Speed: 1800 RPM
• Air Flow: 20 CFM
• Noise: 25 dBA
• Bearing Type: Ball Bearing
• Termination: 2-Terminal (2-Wire)

Interchangeable / Replacement Part Numbers

• 3610PS-12T-B10-A00

✅ Confirmed Compatibility

Please note that the following list is not exhaustive. Compatibility depends on your system's specific configuration. It's essential to verify compatibility with your system or enclosure manufacturer prior to installation.

✔ Industrial / Automation / Robotics: Control cabinets, PLC enclosures, robotics automation equipment, CNC machines, 3D printers (AC fan applications), servo/stepper drive cabinets, VFD/inverter enclosures, HMI/industrial PC cabinets, power distribution panels, relay panels, motion control systems, pick-and-place systems, packaging machines, conveyor control boxes, and other equipment requiring a 92x92x25mm 115V AC axial fan with 2-terminal (2-wire) termination.

✔ Universal / General Electronics Cooling: Any device that supports a 92mm AC 115V fan with compatible mounting pattern, clearance, and wiring style.

☑️ Key Features

☑️ Quiet operation at 25 dBA for noise-sensitive environments
☑️ 20 CFM airflow for effective cabinet and electronics cooling
☑️ Ball bearing design for reliable service life in continuous-duty use
☑️ Standard 92mm square frame for common industrial mounting patterns
☑️ AC 115V input (50/60 Hz) ideal for equipment powered from mains AC

⚙️ Fit Notes

• This is an AC 115V fan (not a 12V/24V DC fan). Verify your equipment provides 115V AC to the fan before ordering.
• Confirm the termination style you need (2-terminal / 2-wire) and whether your system uses spade terminals, a pigtail lead, or a connector adapter.
• Check clearance for a 25mm-thick fan and confirm the mounting hole spacing matches your bracket/chassis.
• Airflow direction is indicated on the fan housing; install to match your system’s intake/exhaust path
