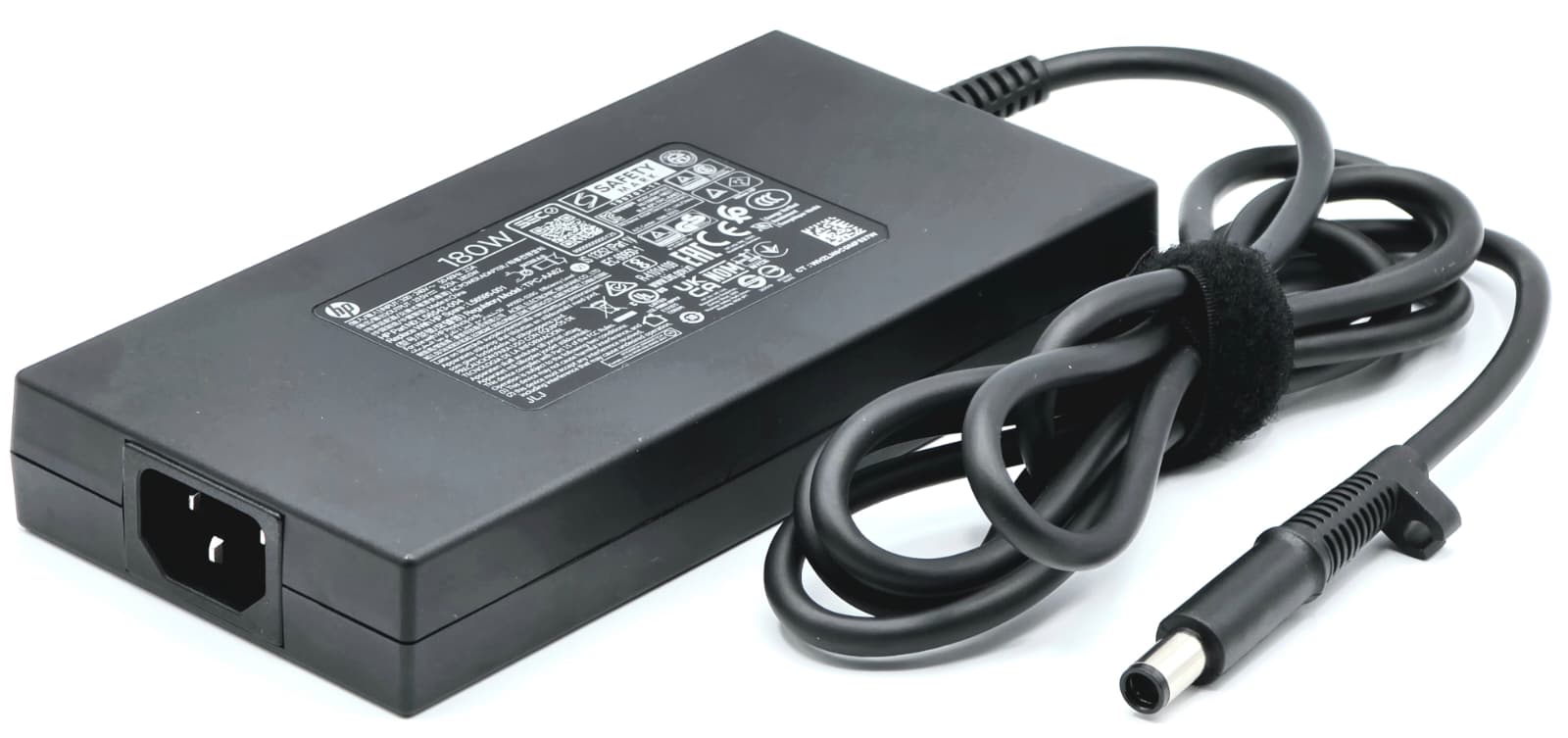

180W 19.5V 9.23A 7.4mm x 5.0mm Sraight Tip AC Adapter Charger for HP Pavilion 27-ca 24-ca EliteDesk 800 G8 Z2 G9 Mini

High-output 180W AC adapter for select all-in-one desktops, mini desktops, and workstation systems that require a 19.5V 9.23A power supply with the 7.4 x 5.0mm center-pin straight connector. This listing is specifically for the straight-tip version only and is not for right-angle connector revisions. This adapter belongs to a larger 180W smart-pin adapter family with multiple part numbers that are functionally equivalent when the wattage, voltage, amperage, connector size, and straight-tip orientation all match.

Technical Specifications

• Power Output: 180W
• Output Voltage: 19.5V DC
• Output Current: 9.23A
• Input Voltage: 100-240V AC
• Input Frequency: 50-60Hz
• Input Current: 2.5A
• Connector Size: 7.4 x 5.0mm
• Connector Style: Straight tip
• Center Pin: Yes
• Adapter Type: Smart pin AC adapter
• Package Includes: AC adapter and power cord

Interchangeable / Replacement Part Numbers

The following part numbers are commonly used for the same 180W 19.5V 9.23A 7.4 x 5.0mm center-pin straight tip adapter family and are considered functionally equivalent replacements when the electrical output and connector style match:

L56595-001, L56543-004, TPC-AA501, 901571-004, L56543-001, TPC-LA60, PA-1181-20HA, APB002-025H2, TPC-AA62, 463952-001, 463952-001, 397804-001, 600082-001, 5189-2784, 519334-001, 609944-001, 901571-004, 613766-001, TPC-AA501, 397748-001, 669265-001, 849653-004, 446038-001, 448160-001, 611485-001, 681059-001, 697318-001, L56595-001, 393948-002, 519334-002, HP-AQ181B43P

✅ Confirmed Compatibility

Please note that the following list is not exhaustive. Compatibility depends on your system's specific configuration. It's essential to verify compatibility with your system or enclosure manufacturer prior to installation.

✔️ HP Pavilion All-in-One 24-ca Series: 24-ca0235m, 24-ca1000la, 24-ca1023d, 24-ca1024d, 24-ca1025d, 24-ca1026d, 24-ca1027d, 24-ca1028d, 24-ca1786in, 24-ca1900la, 24-ca2000, 24-ca2000hk, 24-ca2001hk
✔️ HP Pavilion All-in-One 27-ca Series: 27-ca0255, 27-ca1000la, 27-ca1055t, 27-ca1066xt, 27-ca1900la, 27-ca2055t
✔️ HP ENVY 20 TouchSmart All-in-One Series: 20-d180jp, 20-d180jp/CT
✔️ HP ENVY 23 TouchSmart All-in-One Series: 23-d145ez, 23-d220ef
✔️ HP ENVY 27 TouchSmart All-in-One Series: 27-p000nj, 27-p000nv
✔️ HP Pavilion TouchSmart 23 Series: 23-f450z
✔️ HP EliteDesk Desktop Mini Series: EliteDesk 800 G8 Desktop Mini PC select 180W configurations
✔️ HP Elite Mini Desktop Series: Elite Mini 800 G9 Desktop PC select 180W configurations
✔️ HP Z2 Mini Workstation Series: Z2 G9 Mini Workstation Desktop PC select 180W configurations
✔️ and MANY more models that are not listed above!

☑️ Key Features

☑️ 180W output rated at 19.5V 9.23A for systems that require a high-wattage smart-pin adapter
☑️ 7.4 x 5.0mm center-pin straight tip connector matches the straight-plug version only
☑️ Multiple listed part numbers are functionally equivalent within the same straight-tip 180W adapter family
☑️ Suitable for select HP all-in-one desktops and mini systems that use the 180W smart adapter family
☑️ Includes power cord for a complete replacement setup

⚙️ Fit Notes

• This listing is for the straight connector version only
• Not compatible with right-angle 7.4 x 5.0mm connector versions
• Not compatible with 4.5mm blue tip, USB-C, or other slim-tip adapter types
• Functionally equivalent part numbers are interchangeable only when the wattage, voltage, amperage, connector size, and straight-tip orientation all match
• Not every model in the 24-ca, 27-ca, EliteDesk Mini, Elite Mini, or Z2 Mini families uses a 180W adapter
• Some systems in these same families use 120W, 150W, 200W, or 280W adapters instead
• Match your original part number, wattage, and connector orientation before ordering
