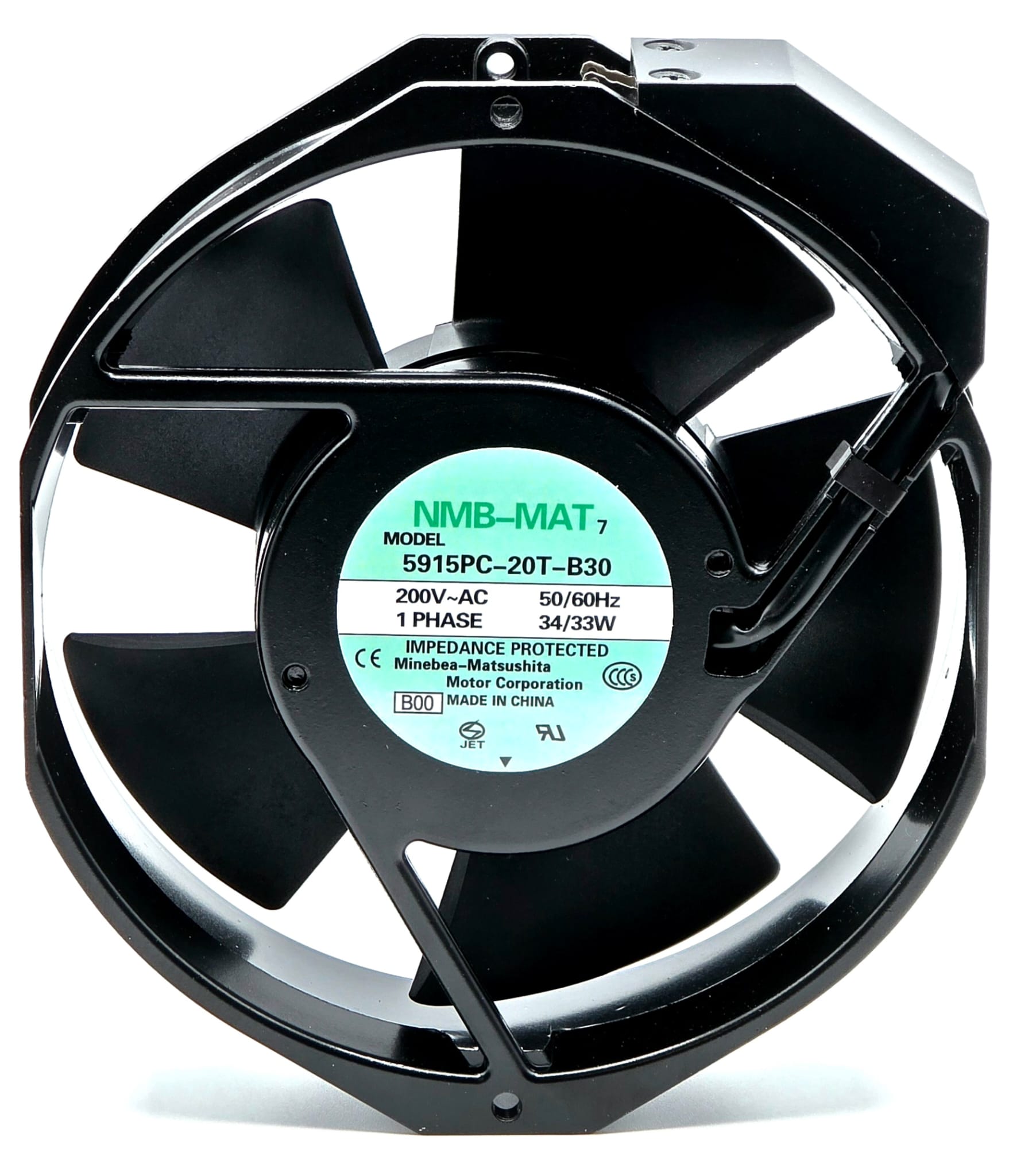

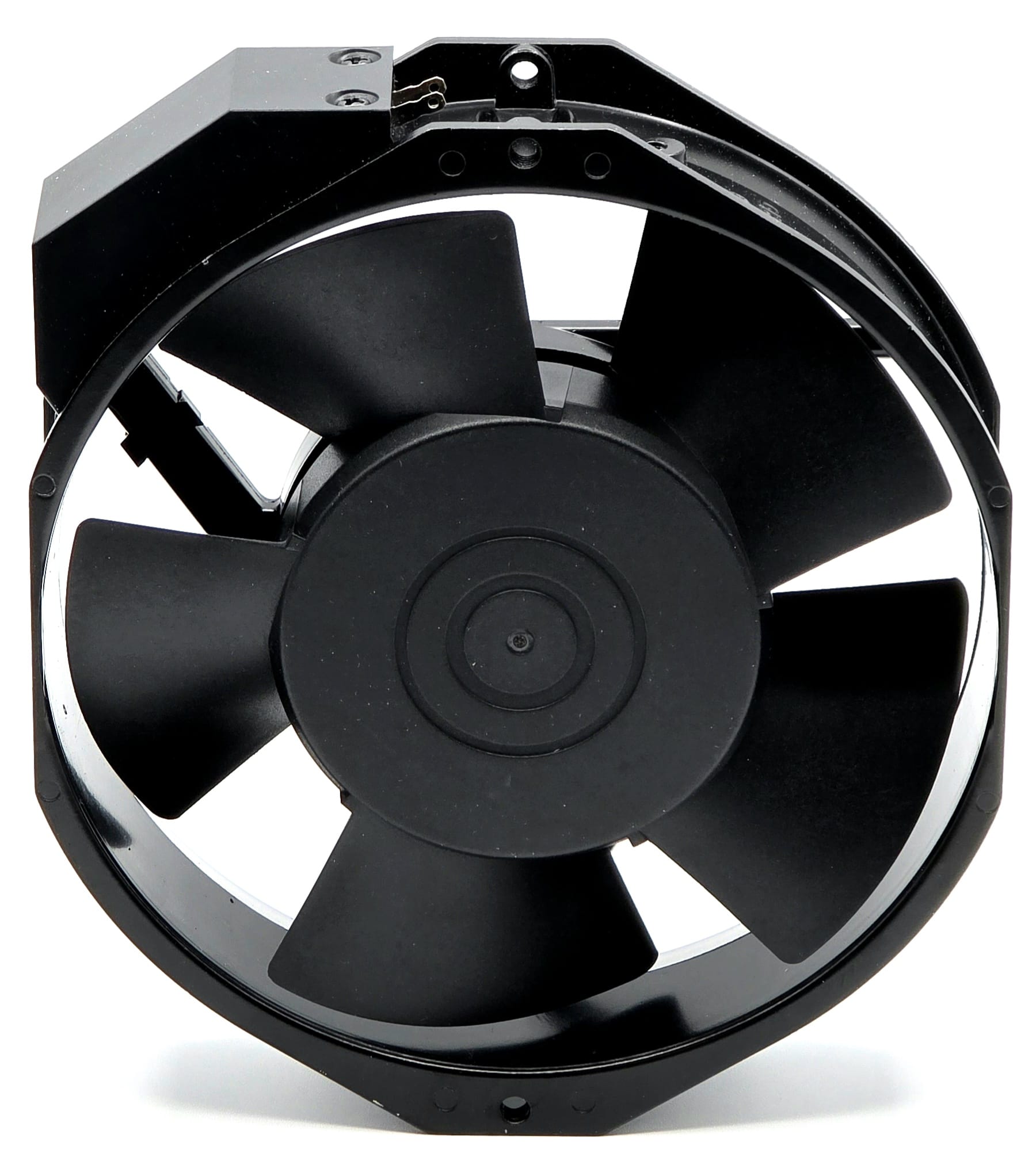

5915PC-20T-B30 - 172x150x38mm 200VAC Ball Bearing AC Axial Fan Control Cabinet Cooling
Description
High-performance 172×150×38 mm AC axial fan for industrial control cabinets, drives, and electronics enclosures. The 5915PC-20T-B30 uses a capacitor-run induction motor with ball bearings and a rugged metal frame for long life in continuous-duty environments. Terminal lugs make field replacement fast and clean.
Technical Specifications
- Part Number: 5915PC-20T-B30
- Frame Size (H × W × D): 172 × 150 × 38 mm
- Rated Voltage/Frequency: 200 VAC 50/60 Hz
- Performance @ 50 Hz: 2700 RPM, 176.5 CFM, 0.629 in H₂O, ~52 dB(A)
- Performance @ 60 Hz: ~3200 RPM, ~212 CFM, ~0.86 in H₂O, ~56 dB(A)
- Bearing Type: Ball bearing
- Motor: Capacitor-run induction motor with thermal or impedance protection
- Rotation: CCW viewed from label side; airflow out over struts
- Termination: 2 terminals (Faston #110 or equivalent)
- Materials: Aluminum frame, reinforced plastic impeller
- Expected Life: L10 100,000 hours at 25 °C
Interchangeable / Replacement Part Numbers
- 5915PC-20T-B30-B00
- 5915PC-20T-B30-BM0
- 5915PC-20T-B30-SM0
- (manufacturer suffix variants of the same core model; check termination and options before ordering)
✅ Confirmed Compatibility
Please note that the following list is not exhaustive. Compatibility depends on your system's specific configuration. It's essential to verify compatibility with your system or enclosure manufacturer prior to installation.
✔️ Standard 172×150×38 mm AC fan cutouts: Control panels, VFD cabinets, CNC and automation enclosures requiring a 200 VAC terminal-type axial fan
✔️ Retrofit use: Direct replacement where a 172×150×38 mm 200 VAC ball-bearing fan with terminal lugs is specified
☑️ Key Features
- Strong airflow and pressure for densely packed cabinets
- Ball bearings and protected motor for long service intervals
- Universal 50/60 Hz performance with consistent dimensions
- Quick terminal connection for fast drop-in swaps
- Durable aluminum frame and reinforced impeller for industrial duty
⚙️ Fit Notes
- Confirm cabinet cutout 172 × 150 mm and 38 mm depth clearance before purchase.
- Verify supply voltage is 200–230 VAC 50/60 Hz; do not substitute for low-voltage DC fans.
- Orient so airflow exits over the struts toward the label side.
- Use insulated 2.8 mm Faston (#110) receptacles and a proper finger guard per safety requirements.
