A05B-2255-C101 - iPendant Teach Pendant for Fanuc

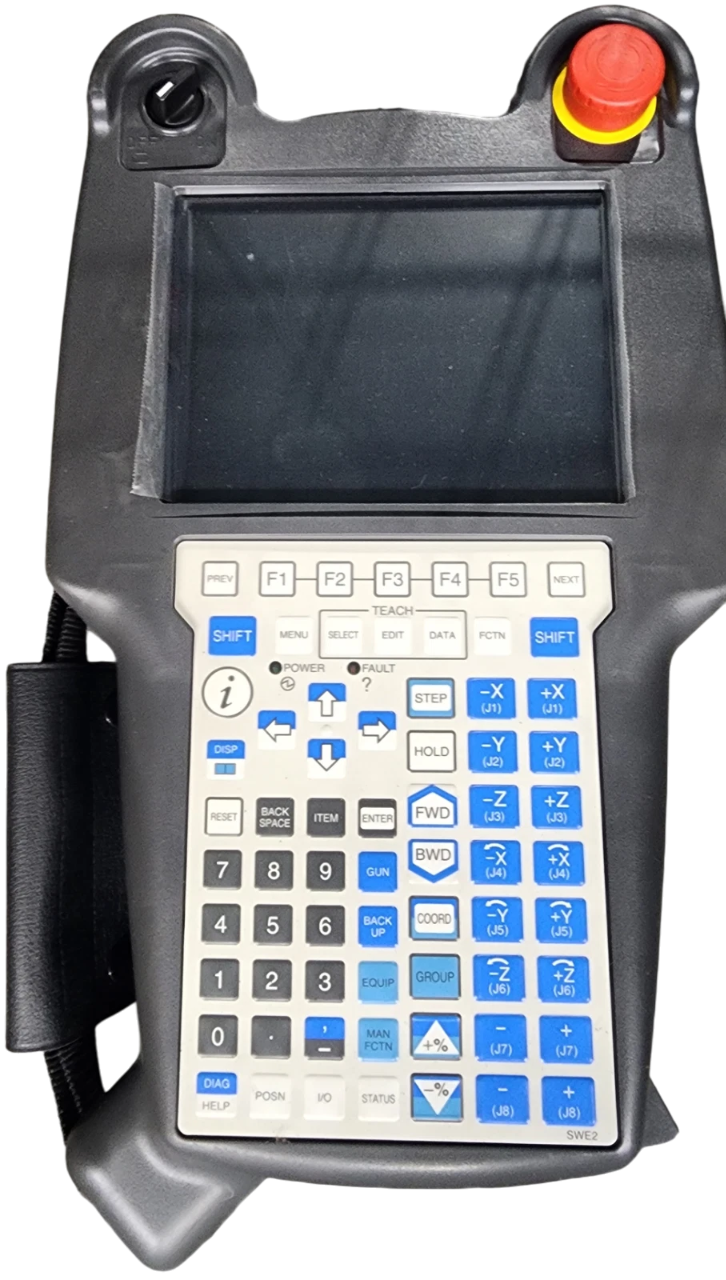

 FANUC A05B-2255-C101 iPendant Teach Pendant

 Product Overview

The A05B-2255-C101 iPendant is a touchscreen-enabled, next-generation teach pendant designed to control and program FANUC industrial robots. With intuitive navigation, ergonomic design, and rugged industrial construction, this pendant allows operators to manually guide robotic arms, configure motion paths, and manage robotic tasks with precision and ease. It is a vital tool in automation cells requiring fast setup, routine adjustments, and real-time control.

 Technical Specifications

• Part Number: A05B-2255-C101
• Display: Touchscreen LCD
• Dimensions: Approx. 15" x 8" x 2.5"
• Weight: Approx. 3.0 lbs
• Interface: Multipin FANUC connector
• Emergency Stop: Integrated dual-channel E-Stop button
• Enable Switch: 3-position deadman-style switch
• Housing: Industrial-grade plastic with side grip handle
• Mounting: Hook/hanger compatible

✅ Confirmed Compatibility

Please note that compatibility depends on the specific robot model and controller version. Always confirm with FANUC or your robot integrator.

✔ Compatible FANUC Controllers:
R-30iB

✔ Compatible FANUC Robot Series and Models:

Arc Mate Series:
Arc Mate 100iC, 100iC/7L, 100iC/8L, 100iC/12, 100iC/12S, 100iD,
Arc Mate 120iC, 120iC/10L, 120iC/12L, Arc Mate 50iD/7L

LR Mate Series:
LR Mate 200iD, LR Mate 200iD/7L

M-10iA Series:
M-10iA, M-10iA/7L, M-10iA/10M, M-10iA/10MS, M-10iA/12, M-10iA/12S

M-20iA Series:
M-20iA/12L, M-20iA/20M

M-710iC Series:
M-710iC/12L, 20L, 50, 50H, 70

R-1000iA Series:
R-1000iA/80F, 80H, 100F, 120F-7B, 130F

R-2000iB Series:
R-2000iB/100P, 125L, 165F, 165R, 175L, 185L, 210F, 250F

R-2000iC Series:
R-2000iC/125L, 165F, 165R, 210F, 210L, 210R, 270F

 Key Features

• ✅ Full touchscreen interface with advanced iPendant functionality
• ✅ Built-in emergency stop and 3-position enable switch for operator safety
• ✅ Comfortable ergonomic housing designed for daily use in production
• ✅ Rugged and sealed to endure harsh manufacturing environments
• ✅ Seamlessly compatible with FANUC R-30iB controlled robots

 What’s Included

• 1 x FANUC A05B-2255-C101 iPendant Teach Pendant
