A120A00CL - 120W 19.5V 6.15A 7.4mm x 5.0mm Right Angle Tip AC Adapter for HP Envy Pavilion AIO Touchsmart

120W 19.5V 6.15A 7.4mm x 5.0mm Right Angle Tip AC Adapter for HP Envy Pavilion AIO Touchsmart

Tech Specs

• Output: 19.5V ⎓ 6.15A (120W) — cross-compatible with 18.5V ⎓ 6.5A in the same family

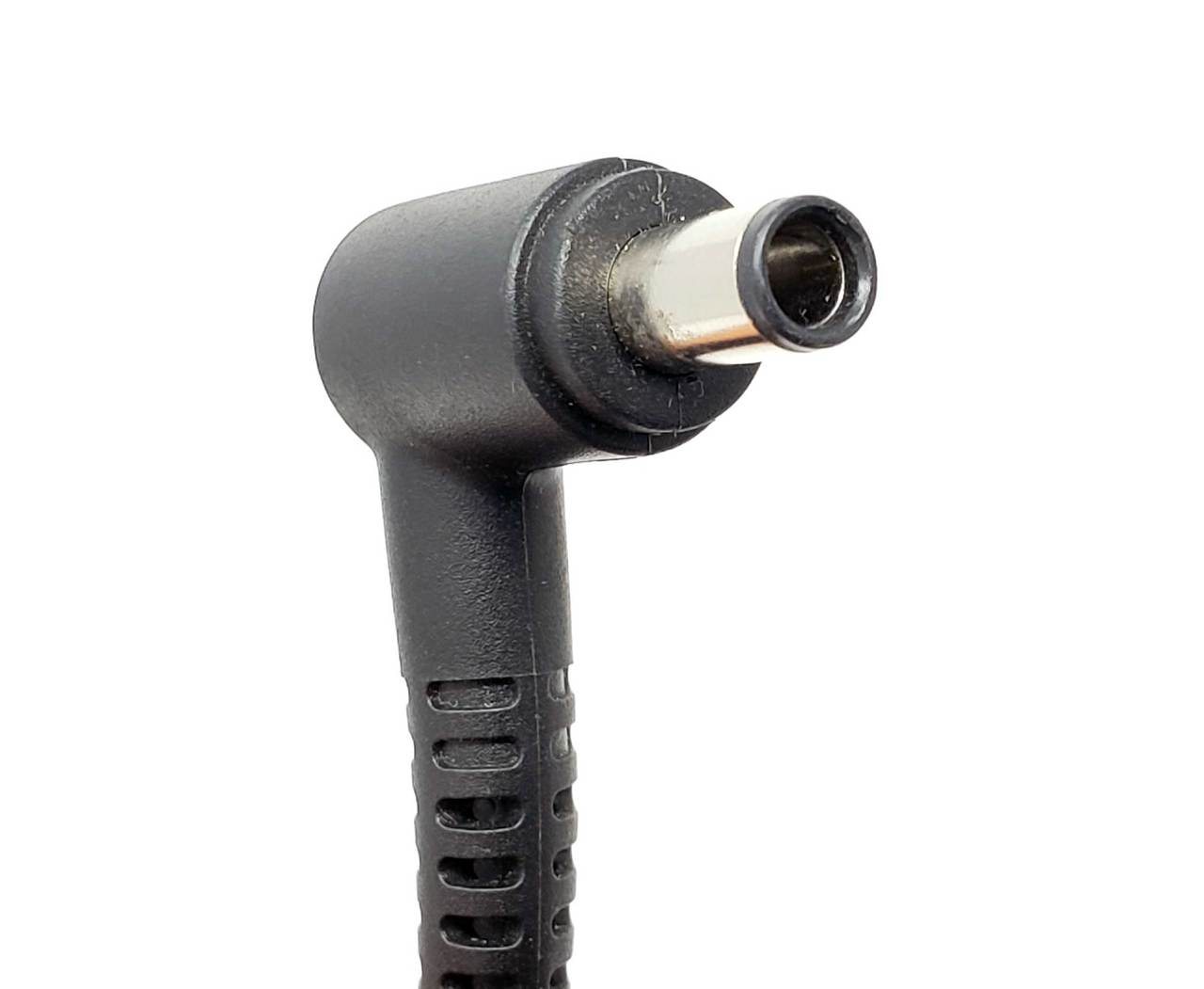

• Connector: 7.4mm x 5.0mm right-angle smart-pin barrel
• Input: 100–240V ~ 50/60Hz
• Protection: OVP / OCP / SCP
• Wall cord: C5 “mickey-mouse” (varies by kit)
• Orientation: Right-angle only — not compatible with straight-tip versions

Key Features

☑️ Right-angle plug for side-exit cable routing in tight bays and docks
☑️ Wide HP spare and kit coverage under one electrical spec (120W smart-tip)
☑️ Robust strain-relief and snug connector fit
☑️ Clear orientation labeling to prevent mix-ups with straight-tip adapters

✅ Confirmed Compatibility (not limited to)

✔️ HP notebooks, workstations, AIOs, and docking solutions that specify 120W 7.4mm right-angle input
✔️ Platforms originally bundled with PPP016H / right-angle 7.4mm kits
✔️ Systems where a side-exit connector is required for clearance or cable management

This listing is right-angle only. If your device uses a straight 7.4mm connector, purchase the straight-tip version instead.

Interchangeable Part Numbers (Right-angle connector family)

579799-001, 619484-001, 699935-001, 730982-001, 730982-002, 730982-003, 801637-001, 801637-002, 801637-003, PA-1121-62HB, PA-1121-62HC, PA-1121-62HP, PPP016L-E, PA-1121-42HS, A120A00CL, 740243-001 (right-angle build)

What’s Included

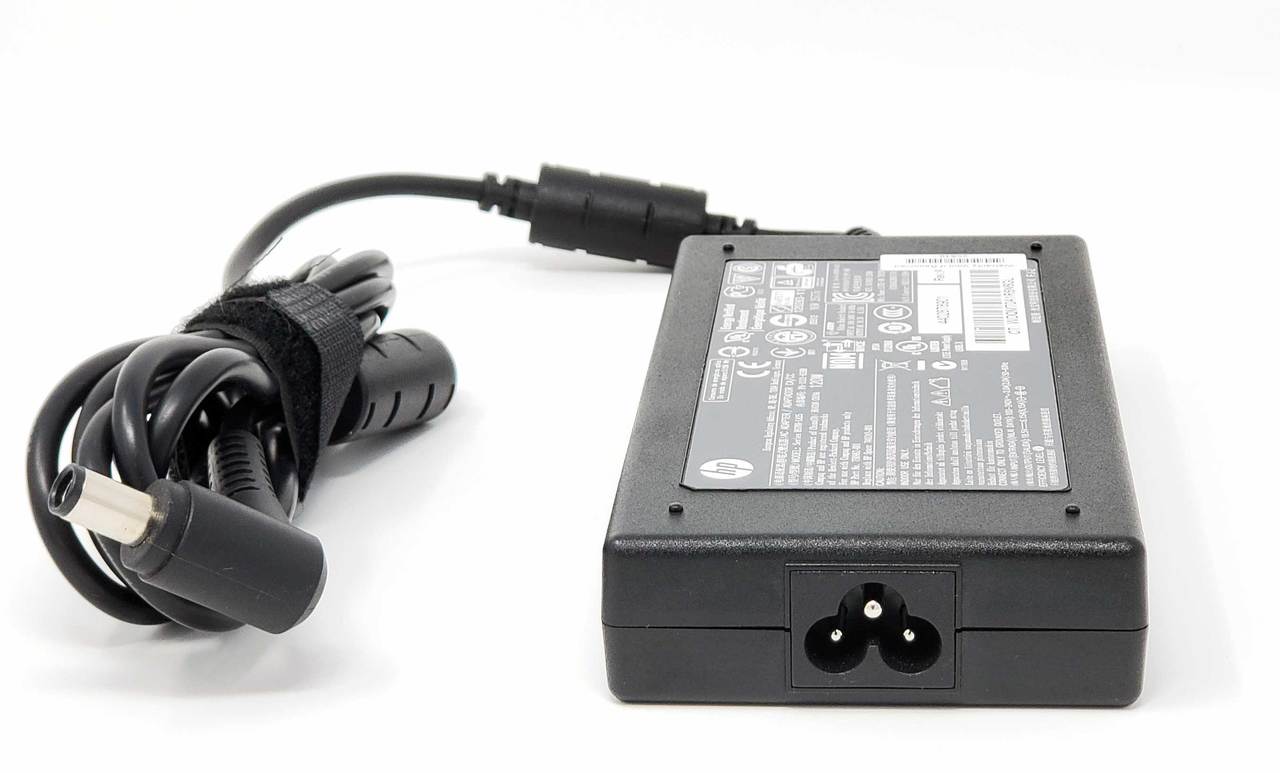

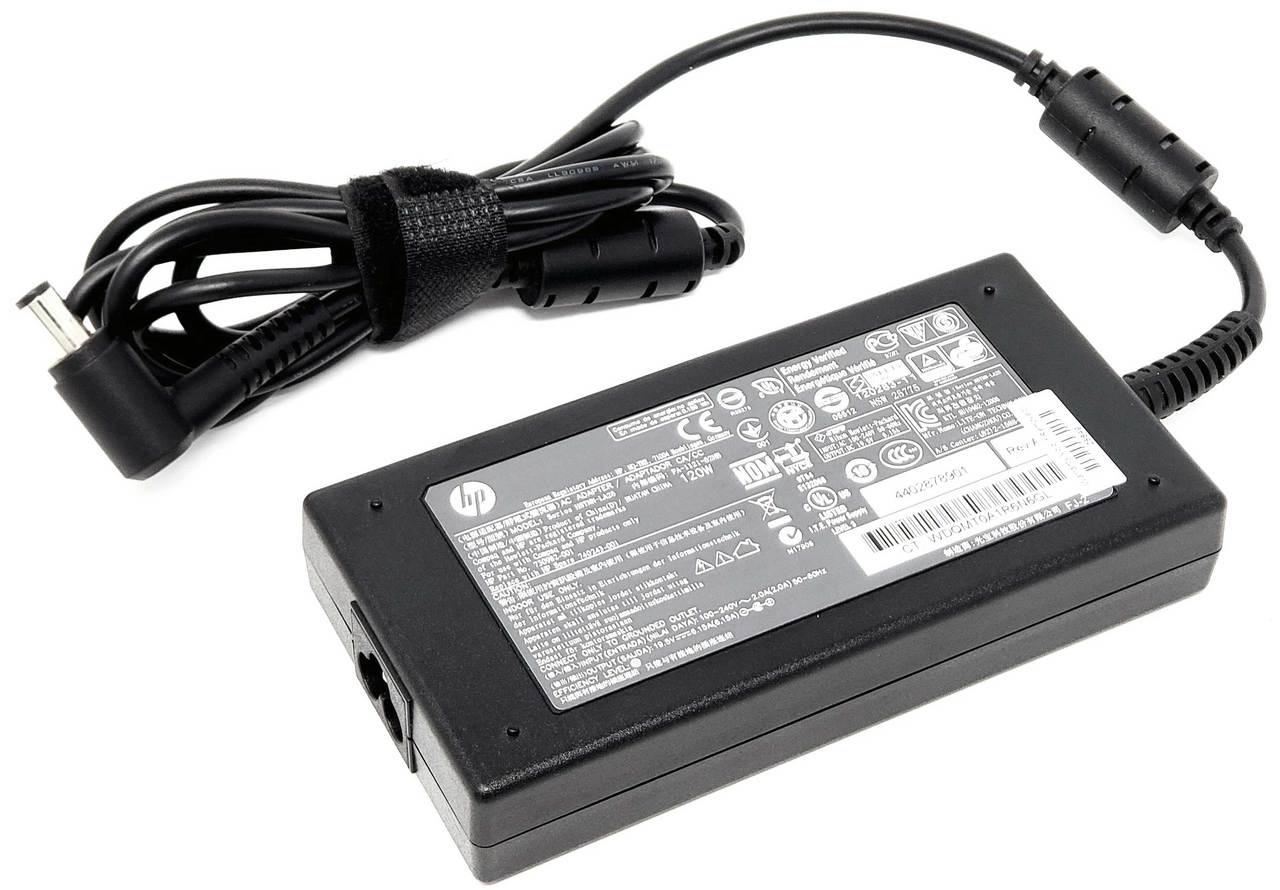

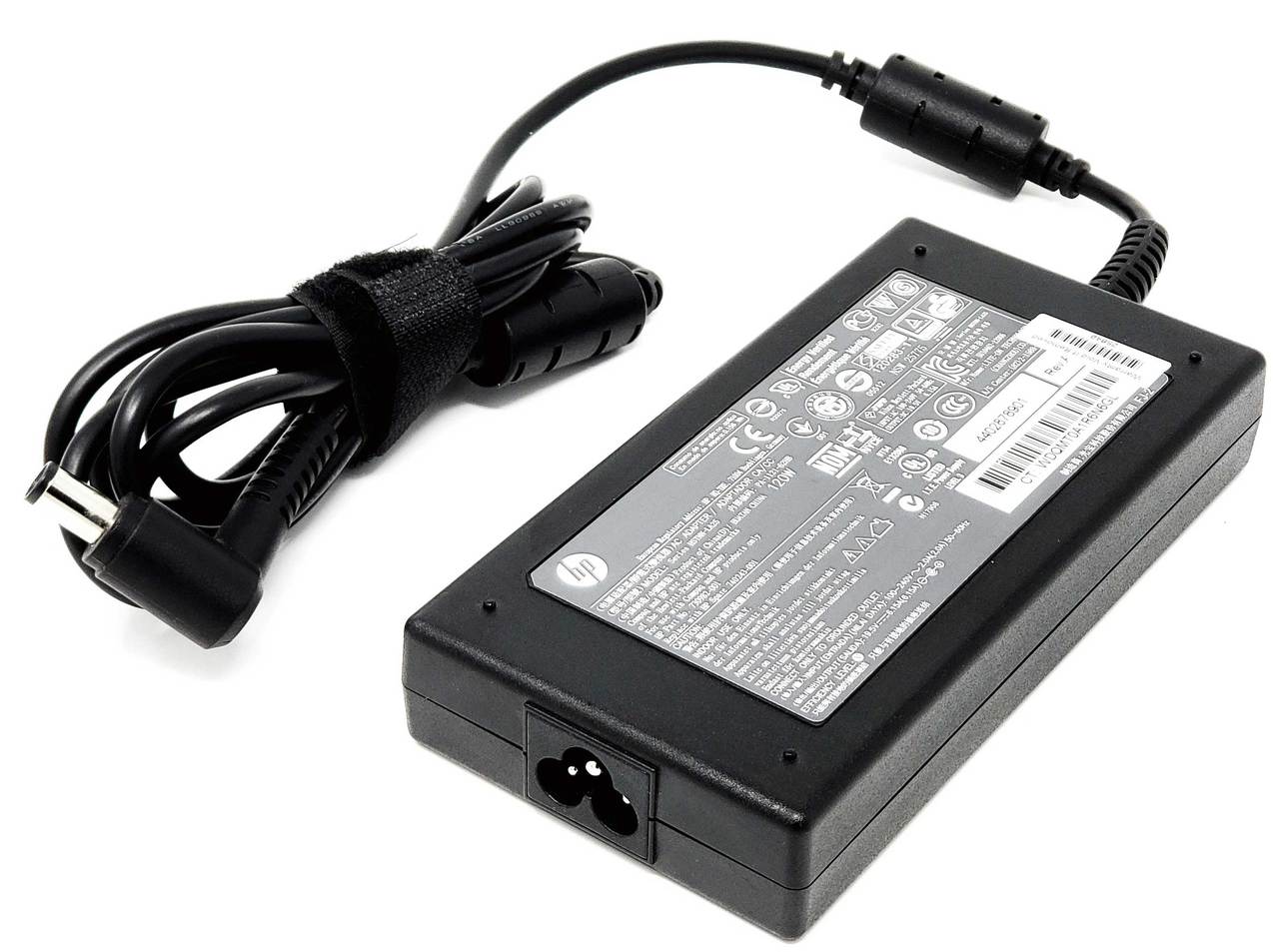

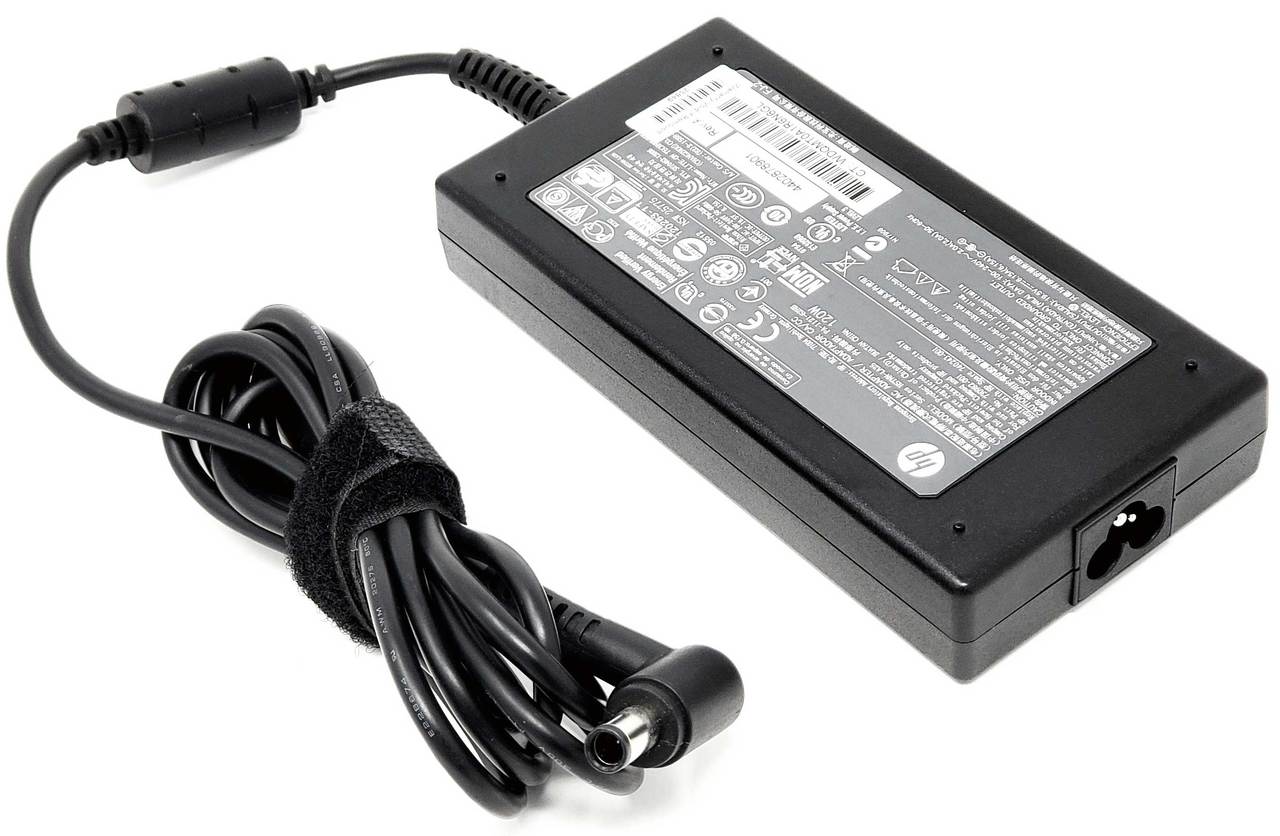

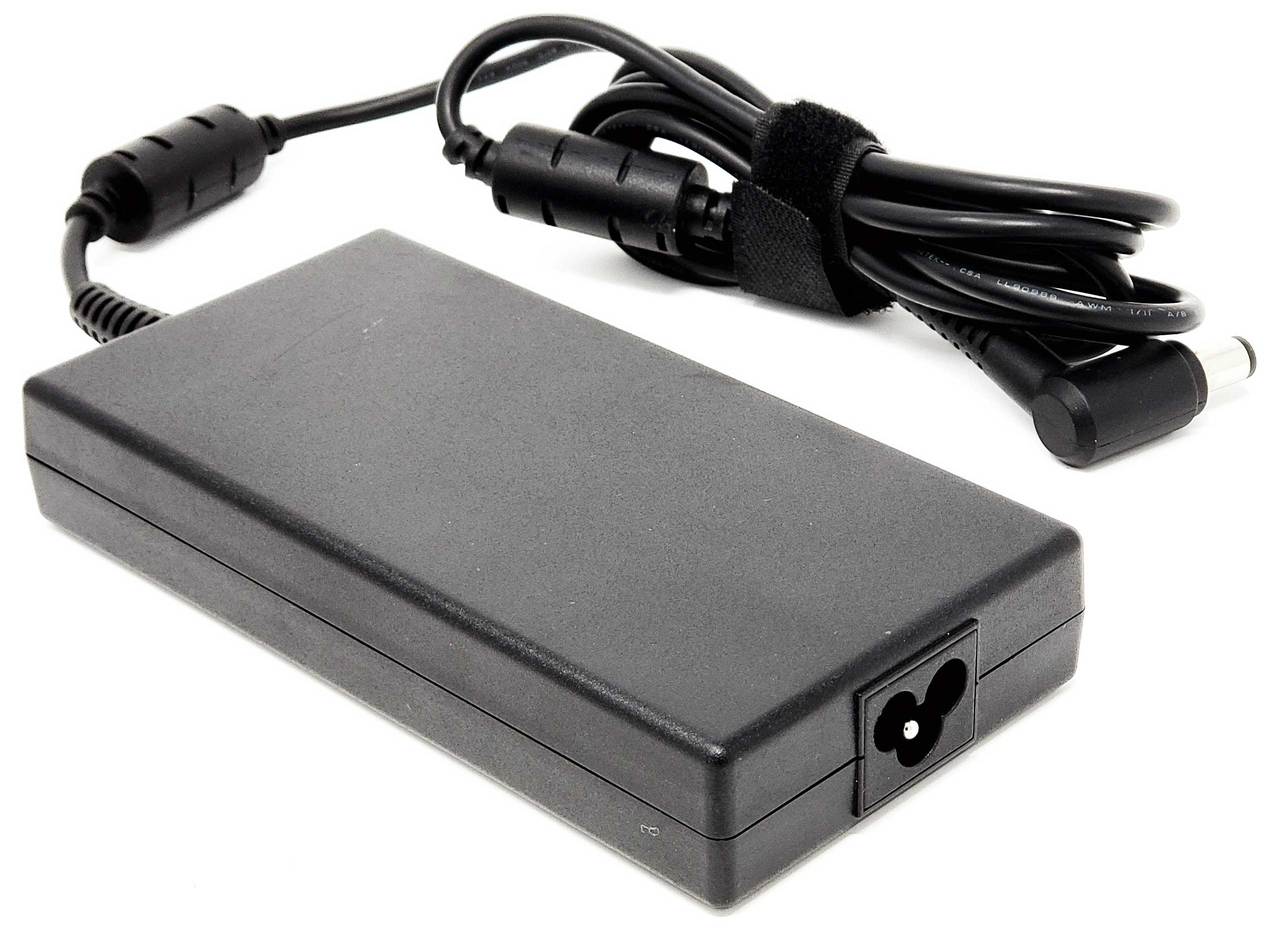

• 120W AC adapter with 7.4mm x 5.0mm right-angle smart-tip
• Power Cable
