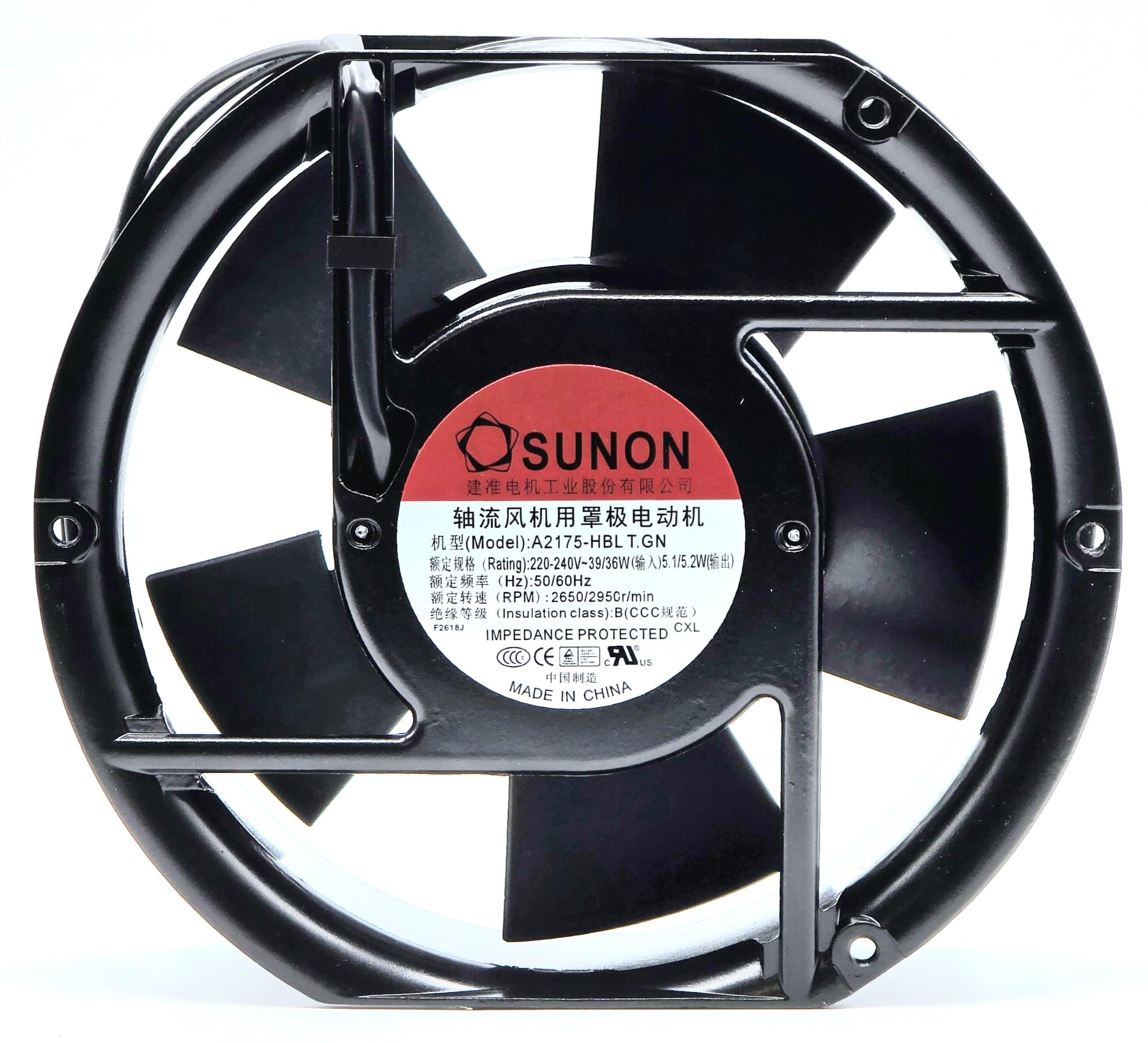

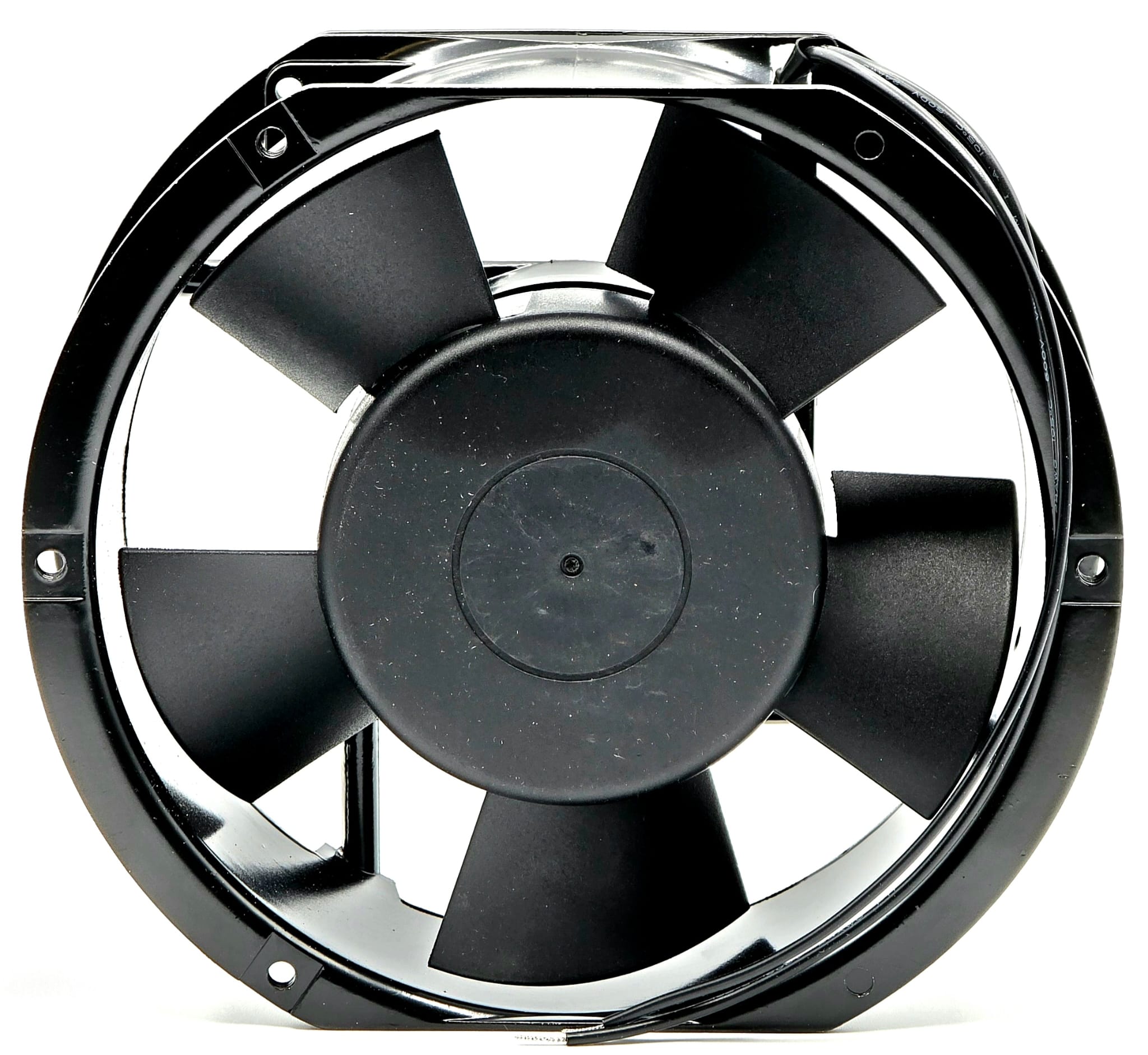

A2175-HBL - 171x151x51mm 220-240VAC 39/36W AC High-Speed Ball Bearing Axial Cooling Fan
Description
High-reliability 172×150 class AC axial fan for industrial cabinets, drives, and control enclosures. The A2175-HBL uses a shaded-pole motor with thermal protection and a die-cast aluminum frame for long service life. Ball bearings and a 51 mm profile deliver strong flow in tight spaces while keeping noise controlled for shop-floor environments.
Technical Specifications
- Part Number: A2175-HBL
- Frame Size & Thickness: 171 × 151 × 51 mm (172×150 class)
- Rated Voltage/Frequency: 220–240 VAC, 50/60 Hz
- Operating Voltage Range: 150–250 VAC
- Rated Speed (50/60 Hz): 2650 / 2950 RPM ±10%
- Airflow (50/60 Hz): 180 / 200 CFM
- Static Pressure (50/60 Hz): 0.48 / 0.38 in-H₂O
- Input Current (50/60 Hz): 0.28 / 0.24 A
- Input Power (50/60 Hz): 39 / 36 W
- Noise (50/60 Hz): 52 / 55 dB(A)
- Bearing System: Ball bearing
- Materials: Die-cast aluminum frame; PBT impeller (UL 94V-0)
- Lead Wires: UL1007, 18 AWG, black
- Rotation: Clockwise (viewed from front of blades)
- Airflow Direction: Toward label side
- Operating Temp: −10 °C to +70 °C
- Safety/Compliance: UL, cUR, TUV, CE, UKCA
- Approx. Weight: ~957 g
Interchangeable / Replacement Part Numbers
- A2175-HBL.T.GN (manufacturer format variant)
- A2175-HBL.TC.GN (manufacturer format variant)
- A2175HBL (dashless print variant used on some labels)
✅ Confirmed Compatibility
Please note that the following list is not exhaustive. Compatibility depends on your system's specific configuration. It's essential to verify compatibility with your system or enclosure manufacturer prior to installation.
✔️ Standard 172×150 mm AC Fan Cutout: Control panels, VFD cabinets, CNC/robotics enclosures, server/telecom racks using 220–240 VAC fans
✔️ Retrofit Use: Direct replacement where a 171×151×51 mm, 220–240 VAC, ball-bearing axial fan is specified
☑️ Key Features
- High-speed ball-bearing motor with thermal protection for long life
- Strong airflow in a compact 51 mm thickness profile
- Flame-retardant impeller (UL 94V-0) and rugged aluminum frame
- Wide operating voltage window (150–250 VAC) for global panels
- Lead-wire termination for simple field replacement
⚙️ Fit Notes
- Verify your panel’s cutout and hole pattern for the 172×150 mm class, 51 mm-thick frame.
- Confirm supply voltage is 220–240 VAC; do not substitute for low-voltage DC fans.
- Airflow is toward the label side—orient accordingly for intake/exhaust.
- If replacing a sleeve-bearing unit, this ball-bearing model offers improved longevity in warm, continuous-duty cabinets.
- Some labels print the code with suffixes (e.g., .T.GN or .TC.GN); these denote termination/feature options of the same core A2175-HBL model.
