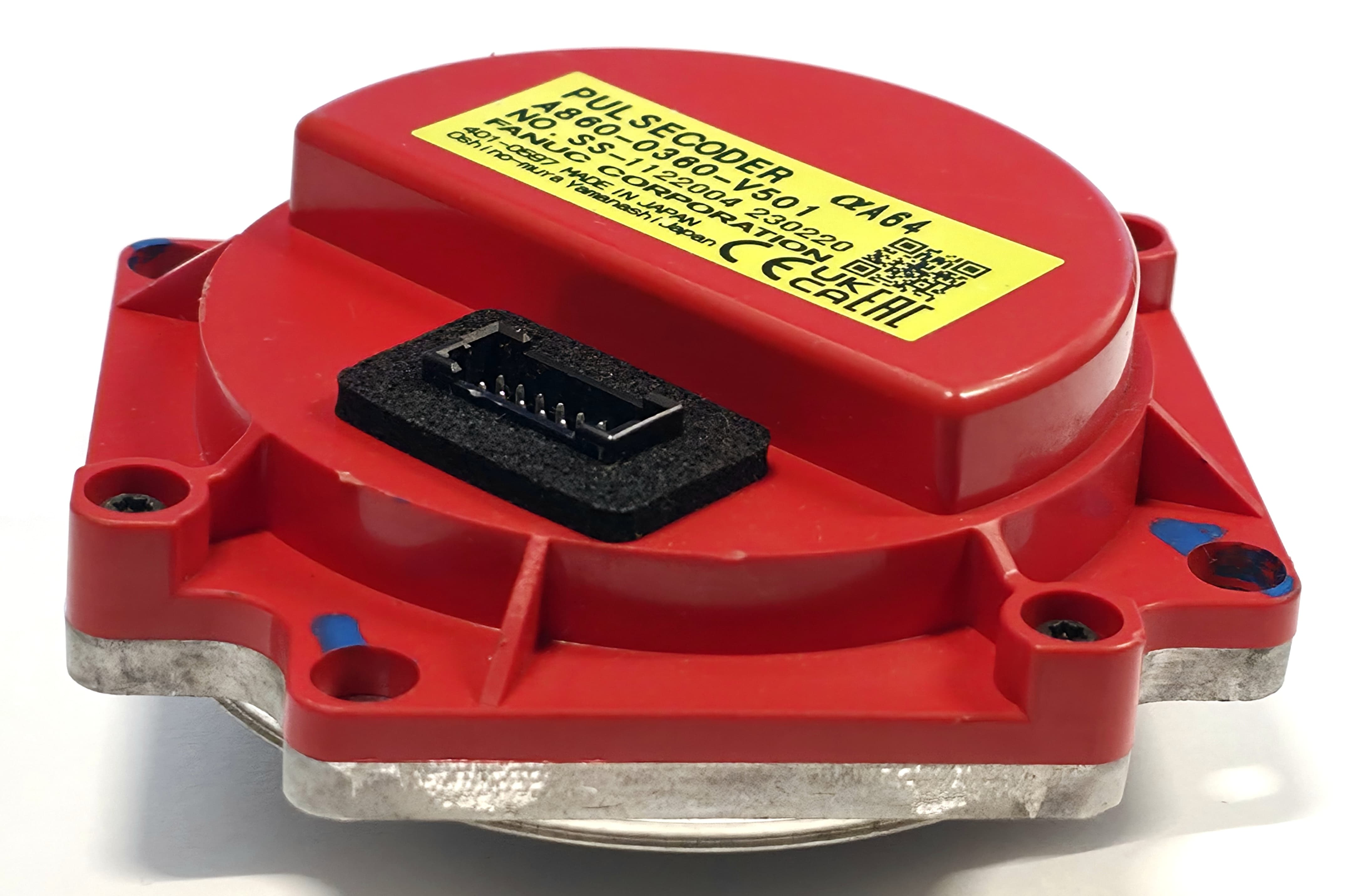

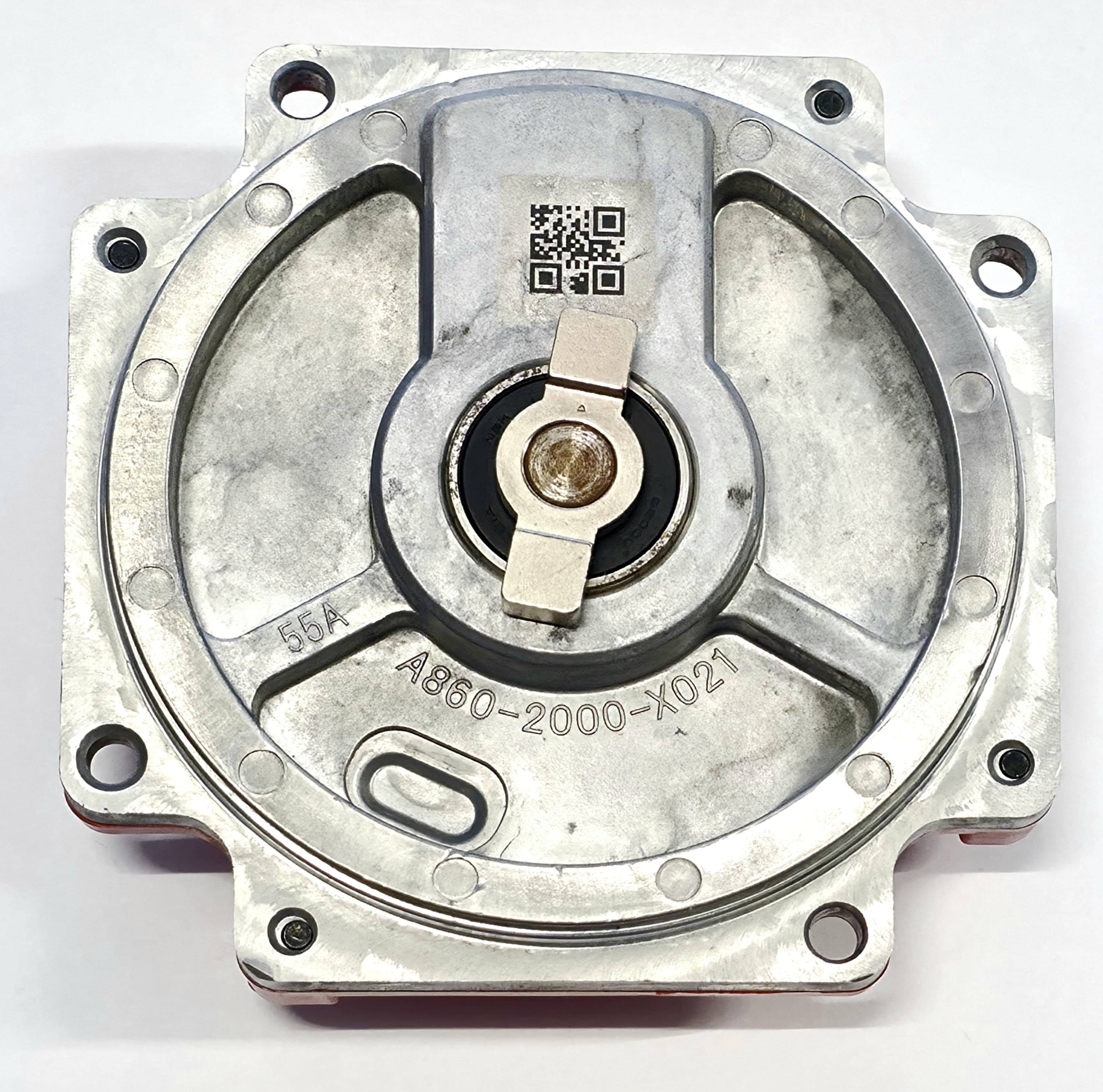

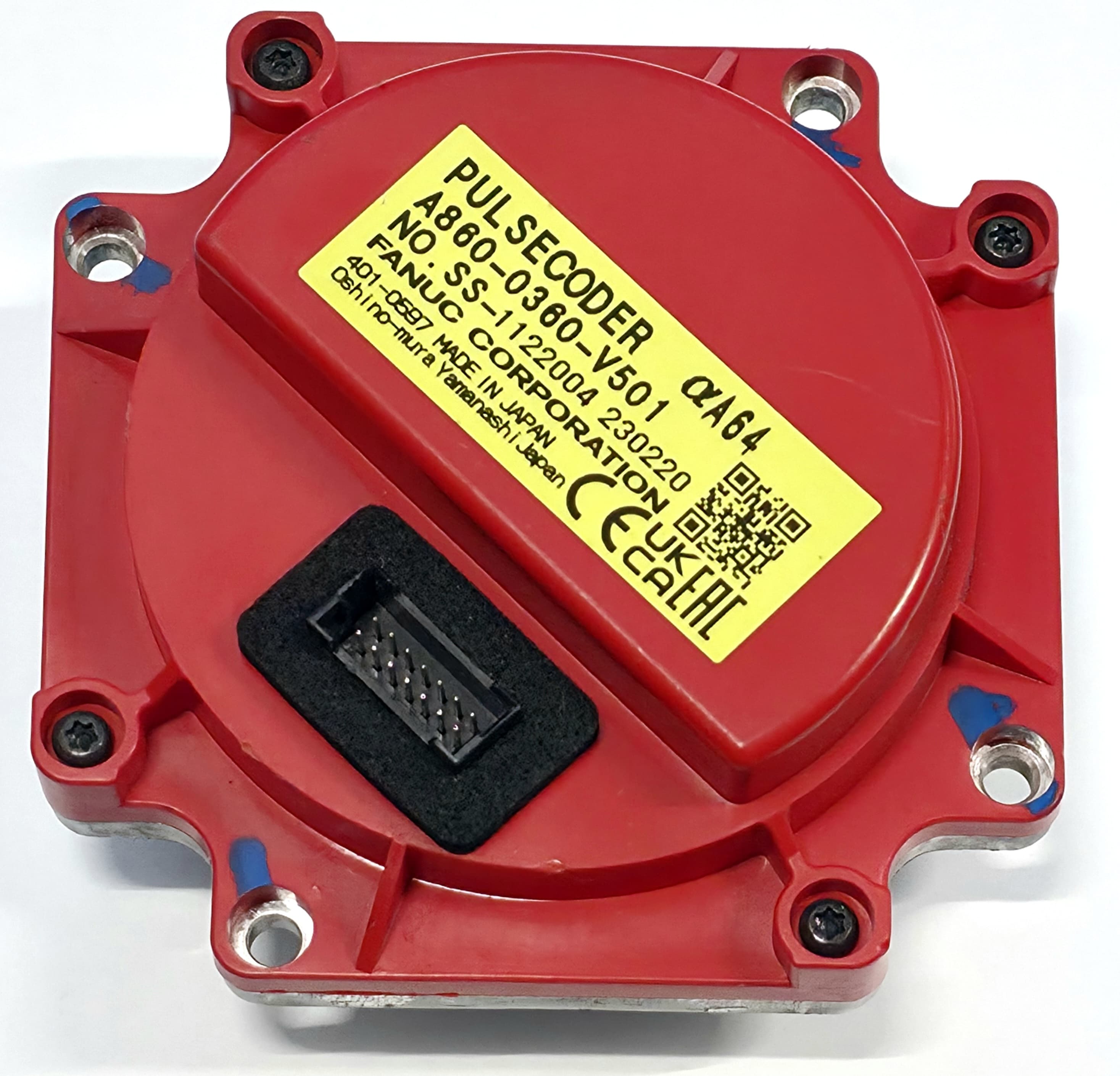

The Fanuc A860-0360-V501 Pulsecoder is a incremental rotary encoder designed for α-series AC servo motors and CNC axes. It generates high-resolution A/B/Z differential signals (64 k counts per revolution) for precise position feedback, ensuring micron-level accuracy in milling, turning, and robotic applications. The sealed aluminum housing, IP67 rating, and 15-pin quick-connect make it a durable, drop-in replacement for original Fanuc encoders.
| Parameter | Value |
|---|---|
| Fanuc Part Number | A860-0360-V501 |
| Encoder Type | Incremental rotary (Pulsecoder) |
| Resolution | 64 000 counts per revolution |
| Output Signals | Differential A, B, Z quadrature |
| Interface | 15-pin male circular connector |
| Supply Voltage | 5 V DC ± 10 % |
| Operating Temperature | -10 °C to +70 °C |
| Protection Rating | IP67 (sealed housing) |

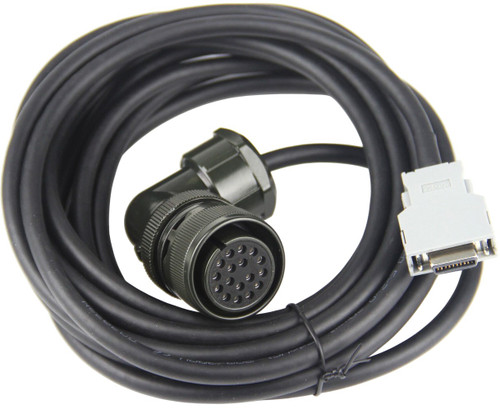

| Recommended Cable | A860-0360-T201 or A860-0360-V906 |
| Overall Size | ≈ 63 mm Ø × 50 mm H |
| Weight | ≈ 0.38 kg / 0.83 lb |
☑ OEM Fanuc αA64 encoder—plug-and-play replacement for α-series servo motors
☑ High-resolution 64 kPPR feedback for ultra-precise CNC positioning
☑ 15-pin quick-connect compatible with factory harnesses
☑ IP67 sealed aluminum housing resists dust, coolant, and vibration
☑ Supplied fully tested and ready for installation—no core exchange required
