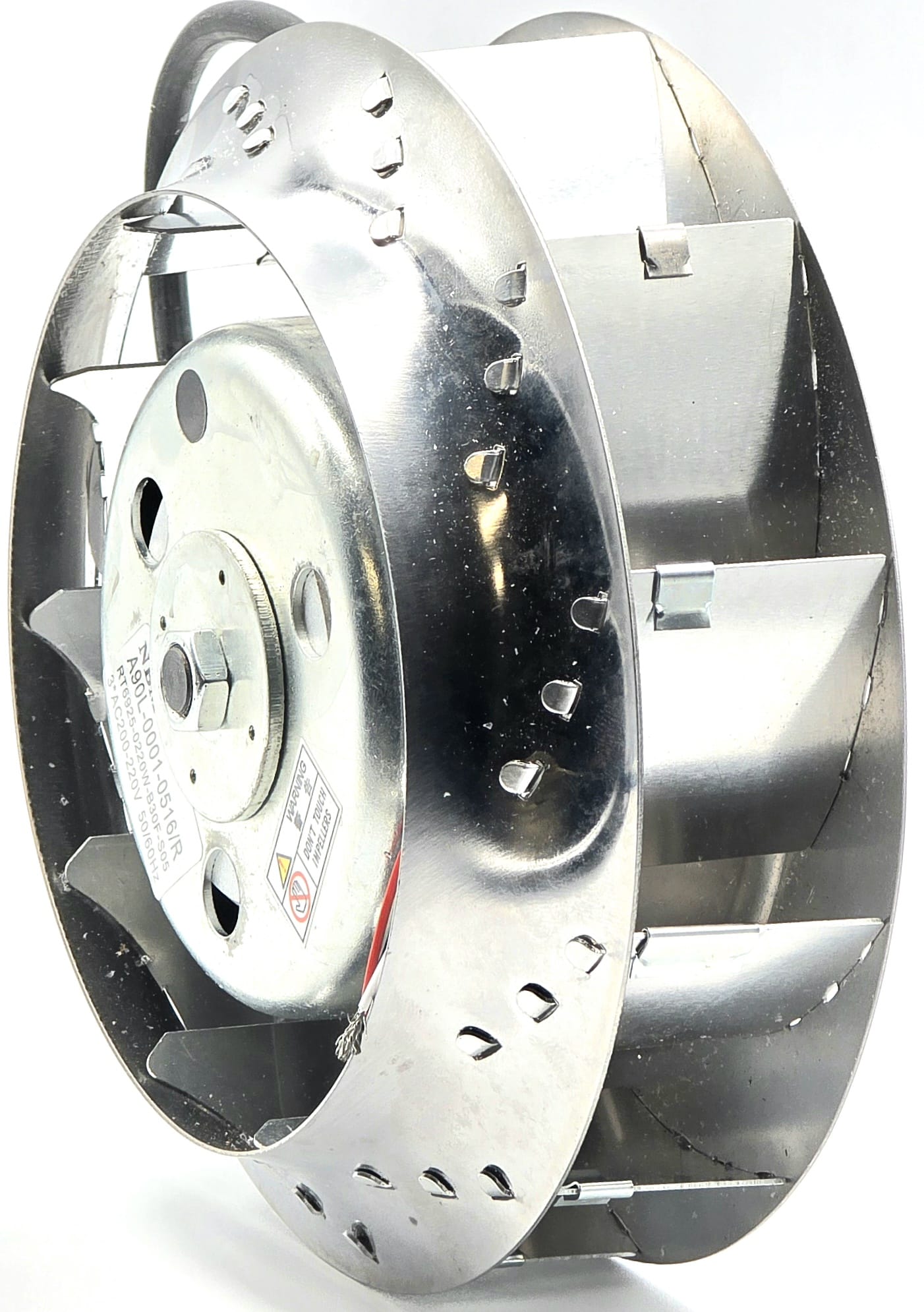

A90L-0001-0516 - 175mm x 60mm 3-Phase AC200V-220V 50/60Hz 70/100w Spindle Motor Cooling Fan

175mm x 60mm 3-Phase AC200V-220V 50/60Hz 70/100w Spindle Motor Cooling Fan

Spindle motor cooling fan assembly used on CNC equipment. This unit is identified by part number A90L-0001-0548#R and is commonly used as a replacement for A90L-0001-0516#R when the electrical rating and mounting match.

Technical Specifications

• Type: Spindle motor cooling fan assembly (round fan)
• Input Power: 3-Phase AC200V-220V
• Frequency: 50/60Hz
• Rated Power: 70W (50Hz) / 100W (60Hz)

• Reference Dimensions:

  Outer Diameter (OD): 175 mm
• Mounting Hole Spacing: 60 mm (reference)
• Lead Wires: 3-phase leads (Fu / Fv / Fw) + ground (wire colors can vary - verify before install)

Interchangeable / Replacement Part Numbers

• A90L-0001-0548#R
• A90L-0001-0548/R
• A90L-0001-0516#R
• RT6925-0220W-B30F-S11
• PT6925-0220W-B30F-S11

✅ Confirmed Compatibility

Please note that the following list is not exhaustive. Compatibility depends on your system's specific configuration. It's essential to verify compatibility with your system or enclosure manufacturer prior to installation.

✔️ Compatible Applications: Systems/equipment that specify any of the following fan assemblies: A90L-0001-0548#R, A90L-0001-0516#R (and/or the RT6925-0220W-B30F-S11 / PT6925-0220W-B30F-S11 identifier) with the same 3-phase AC200V-220V 70/100W rating and matching 175 mm OD / 60 mm mounting reference.

☑️ Key Features

• ☑️ 3-phase AC spindle motor cooling fan assembly
• ☑️ 50/60Hz compatible (70W @ 50Hz / 100W @ 60Hz)
• ☑️ 175 mm OD round form factor (reference)
• ☑️ 60 mm mounting hole spacing (reference)
• ☑️ Pigtail lead wiring for direct connection
