Adlink 92-99060-7010 - 64GB Half Slim SATA MO-297 SSD for Laptops Embedded Industrial CNC POS Medical Slot Machines

64GB Half Slim SATA 6Gbps MO-297 SSD for Embedded Industrial CNC POS Medical Slot Machines

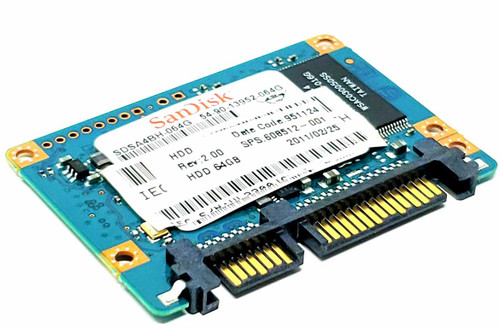

This is a 64GB Half-Slim SATA SSD built to the JEDEC MO-297 form factor (also commonly called Half-Slim / Slim SATA MO-297). These compact SSD modules are widely used in space-limited systems where a full 2.5" drive will not fit, including industrial automation, CNC/PLC controllers, robotics, casino/slot machines, arcade systems, kiosks/POS terminals, medical equipment, embedded PCs, and select enterprise platforms that support MO-297 Half-Slim SATA storage.

It connects through a standard SATA (7+15 pin) interface and typically supports SATA III 6Gb/s (backwards compatible with SATA II/I). Controller, NAND type (MLC/TLC), endurance features, and temperature rating can vary by exact model/part number, but all listed equivalents share the same 64GB capacity and MO-297 Half-Slim SATA physical/interface standard.

Technical Specifications

• Capacity: 64GB
• Form Factor: Half-Slim SATA (JEDEC MO-297)
• Interface: SATA III 6Gb/s (backwards compatible with SATA II/I)
• Connector: 7+15 pin SATA
• Typical Module Dimensions: 54.0 mm x 39.8 mm x ~4 mm (clearance varies by design)
• Flash Type (varies by model): MLC / 3D TLC / SLC / pSLC depending on the specific part number
• Typical Operating Voltage: 3.3V (host/platform dependent)
• Common Reliability Features (model dependent): Wear leveling, ECC, SMART, TRIM, block management, power-saving modes

✅ Confirmed Compatibility

Please note that the following list is not exhaustive. Compatibility depends on your system's specific configuration. It's essential to verify compatibility with your system or enclosure manufacturer prior to installation.

✔️ Embedded & Industrial: Industrial PCs, embedded motherboards, IPCs, data loggers, factory automation controllers, robotics controllers, machine vision PCs
✔️ CNC / PLC / Automation: CNC controllers, PLC systems, motion controllers, HMI terminals, industrial control panels (MO-297 Half-Slim SATA equipped systems)
✔️ Casino / Arcade / Entertainment: Slot machines, casino logic units, arcade boards, redemption systems, kiosk systems (MO-297 storage platforms)
✔️ Medical Equipment: Imaging peripherals, diagnostic systems, medical carts, lab analyzers, monitoring systems (MO-297 storage platforms)
✔️ POS / Retail / Kiosk: POS terminals, payment systems, ticketing kiosks, self-service stations, digital signage controllers
✔️ Servers & Workstations: Systems that specifically support MO-297 Half-Slim SATA storage (varies by chassis/backplane design)
✔️ Dell: Platforms that use a MO-297 Half-Slim SATA SSD bay/adapter (select models only)
✔️ HP: Platforms that use a MO-297 Half-Slim SATA SSD bay/adapter (select models only)
✔️ Lenovo / IBM: Platforms that use a MO-297 Half-Slim SATA SSD bay/adapter (select models only)

☑️ Key Features

☑️ JEDEC MO-297 Half-Slim form factor for space-limited systems
☑️ SATA III 6Gb/s interface (backwards compatible with SATA II/I)
☑️ 7+15 pin SATA connector for standard SATA data/power integration
☑️ Commonly used in embedded, industrial, medical, POS, casino, and automation equipment
☑️ Low power draw and fast access times vs mechanical drives
☑️ Reliability features such as wear leveling / ECC / SMART / TRIM (model dependent)
☑️ Wide-temperature options available on select industrial models (model dependent)

⚙️ Fit Notes

• Confirm your system supports Half-Slim SATA (JEDEC MO-297) — this is not the same as mSATA or M.2.
• Verify physical clearance and mounting: MO-297 modules are compact, but thickness/height can vary slightly by design.
• If your platform uses a carrier, bracket, or adapter, confirm the adapter is specifically for MO-297 Half-Slim SATA.
• For imaging/OS migration, clone your existing drive before replacement and confirm BIOS storage mode (AHCI/RAID) as required by the platform.
