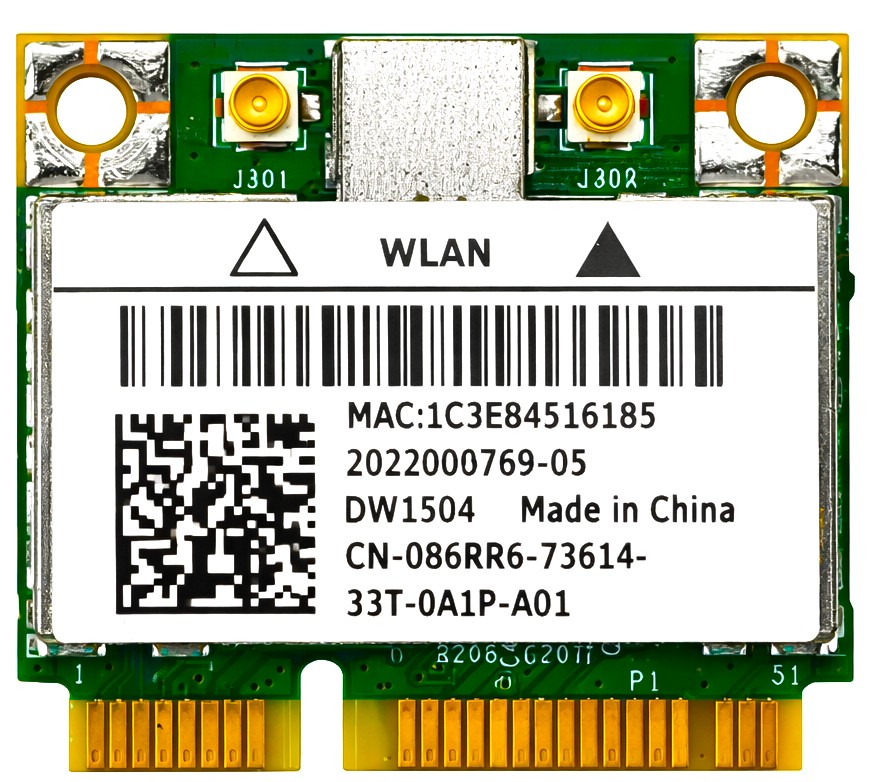

86RR6 - DW1504 BCM94313HMG2L BCM4313 802.11b/g/n Half Mini PCI-Express WLAN WiFi Card

This half-size Mini PCI-Express wireless LAN card is based on the Broadcom BCM4313 (1x1) platform and is commonly identified by model BCM94313HMG2L and “DW1504” naming. It’s a WiFi-only WLAN module (no Bluetooth function on this specific card) designed for systems that use a Half Mini PCIe wireless slot and support the Broadcom 4313 family.

Technical Specifications

• Broadcom Model: BCM94313HMG2L
• Chipset Family: Broadcom BCM4313
• Wireless: 802.11b/g/n (1x1)
• Form Factor: Half Mini PCI-Express (Half MiniCard)
• Interface: Mini PCIe
• Antenna Connectors: 2 (MAIN / AUX)
• Function: WiFi / WLAN only (Bluetooth is separate on many systems)

Interchangeable / Replacement Part Numbers

• Primary Identifiers
• 86RR6
• DW1504
• BCM94313HMG2L
• HP Spare / Assembly Numbers (same Broadcom 4313 half-mini WLAN family)
• 593836-001
• 593732-001
• Lenovo Identifiers (same Broadcom 4313 half-mini WLAN family)
• FRU 04W3750
• P/N 20200102 (also commonly shown as 11S20200102)

✅ Confirmed Compatibility

Please note that the following list is not exhaustive. Compatibility depends on your system's specific configuration. It's essential to verify compatibility with your system or enclosure manufacturer prior to installation.

✔️ Latitude: E5430, E5530, E6230, E6330, E6430, E6530
✔️ Precision Mobile Workstations: M4700, M6700
✔️ HP ProBook: 5320m, 6560b
✔️ HP EliteBook: 8560p
✔️ Lenovo IdeaPad: G400s (Type 80AC), G400s Touch (Type 80AU), Z400 Touch (Type 80C2)
✔️ Lenovo ThinkCentre: Edge 72 (Type 3484 / 3493), M72e (Type 3662), M82 (Type 2697), M92 (Type 3207), M92z (Type 3326)
✔️ Lenovo B Series: B490 (Type 3772)

☑️ Key Features

☑️ Broadcom BCM4313-based 802.11b/g/n WiFi connectivity
☑️ Half Mini PCIe form factor for older business-class laptops/desktops
☑️ Dual-antenna terminals (MAIN/AUX) for better reception
☑️ Ideal replacement when your original card matches DW1504 / BCM94313HMG2L identifiers

⚙️ Fit Notes

• This is a Half Mini PCIe WLAN card (not M.2 / NGFF).
• Some systems (especially certain HP/Lenovo models) may enforce an approved wireless-card list. The safest approach is to match your original spare/FRU/part number exactly when possible.
• If your system uses a separate Bluetooth module, replacing the WLAN card will not add Bluetooth.
