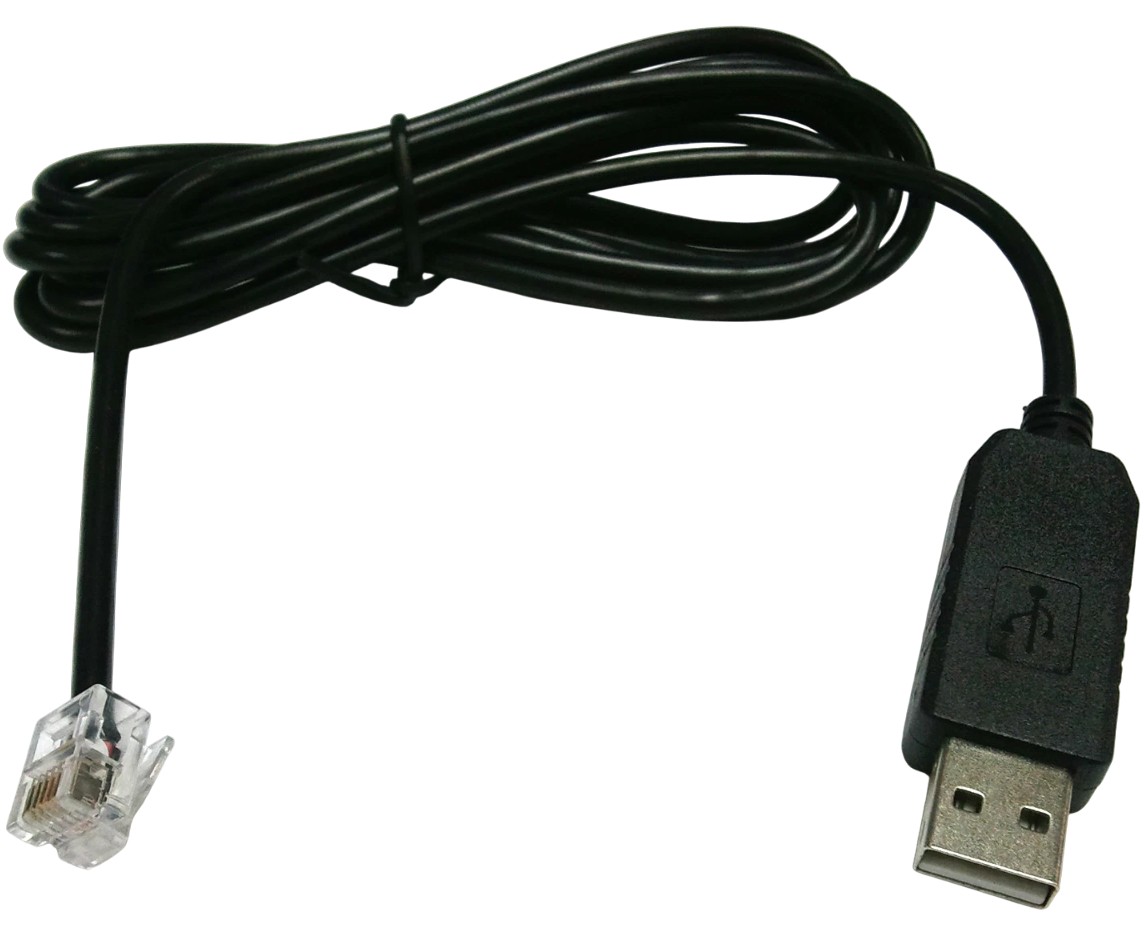

D2-DSCBL - 6ft USB To RJ12 Programming Cable For Automation Direct CLICK DirectLOGIC Do-more

D2-DSCBL USB - 6ft USB To RJ12 Programming Cable For Automation Direct CLICK DirectLOGIC Do-more

This USB programming cable provides a direct PC connection to Automation Direct PLCs and C-more Micro panels using RJ12 programming ports. It uses an FTDI USB-to-serial chipset to emulate a standard COM port, giving you the functionality of the original D2-DSCBL serial cable from a modern USB port. Ideal for commissioning, monitoring, and maintaining DirectLOGIC, CLICK, and Do-more H2 systems without needing a separate USB-to-RS232 adapter.

Technical Specifications

• Cable type: USB to RS-232 programming cable assembly
• Function: USB-to-serial conversion for Automation Direct PLC/HMI programming ports
• Connector 1: USB Type A male (PC side)
• Connector 2: 6-pin RJ12 male (6P6C, PLC/HMI side)
• Length: 6 ft (approx. 1.8 m)
• Chipset: FTDI USB-UART (Virtual COM Port)
• Data interface: USB 2.0 full-speed, emulated RS-232 over VCP
• Compatible drivers: FTDI VCP (Virtual COM Port) drivers
• Operating systems: Windows 7, 8, 10, 11 (typically auto-installs), plus Linux and macOS with FTDI VCP drivers
• Application: Programming and monitoring Automation Direct PLCs and C-more Micro HMIs with RJ12 programming ports
• Construction: Molded connectors, flexible round cable

Interchangeable / Replacement Part Numbers

• D2-DSCBL
• EA-MG-PGM-CBL

✅ Confirmed Compatibility

Please note that the following list is not exhaustive. Compatibility depends on firmware, CPU model, and port configuration. It is essential to verify compatibility with your PLC or HMI manufacturer prior to installation.

✔ Automation Direct DirectLOGIC PLCs: DL05, DL06, DL105, DL205, D3-350, D4-450, D4-454 (with RJ12 programming ports)
✔ Automation Direct Do-more PLCs: H2 series CPUs, T1H series CPUs with RJ12 programming port
✔ Automation Direct CLICK PLCs: CLICK CPUs with RJ12 programming/program port (legacy CLICK units)
✔ Automation Direct C-more Micro panels: EA1-series C-more Micro HMIs with RJ12 programming port

☑️ Key Features
☑️ USB to RJ12 6P6C programming cable for Automation Direct PLCs and C-more Micro panels
☑️ Designed as a USB replacement for factory D2-DSCBL and EA-MG-PGM-CBL style programming cables
☑️ FTDI chipset for stable Virtual COM Port operation and broad OS compatibility
☑️ Eliminates separate USB-to-serial adapter and DB9-to-RJ12 cable combinations
☑️ Compact 6 ft length keeps programming setups tidy and reduces cable clutter
☑️ Ideal for field service, panel shops, and lab environments needing a simple USB programming lead

⚙️ Fit Notes

• Driver information (important): This cable uses an FTDI USB-UART chipset and requires FTDI VCP (Virtual COM Port) drivers.
• Most Windows 7–11 systems will install the FTDI VCP driver automatically via Windows Update.
• For offline PCs, Linux, or macOS systems, install the latest FTDI VCP drivers directly from FTDI before use.
