2VD0G - 360W Power Supply for OptiPlex 7080 MT G5 5090 XE3 XPS 8940

360W Power Supply for OptiPlex 7080 MT 7090 MT 5080 MT G5 5090 XPS 8940 Inspiron 3891

This 360W power supply is a direct-fit replacement for select OptiPlex and XPS tower systems that use the compact 83mm x 63mm x 220mm PSU chassis and the matching multi-connector harness.

✔️ Grade A, Clean & Fully Tested!
✔️ Warranty Included

Ideal when you need a reliable OEM replacement to restore stable power delivery for office desktops and performance configurations (including systems with discrete graphics that require the correct auxiliary power leads).

Technical Specifications

• Max Output Power: 360W
• AC Input: 100-240V~ / 5.0A, 50/60Hz



• DC Output:

• +12VA2DC: 18A Max
• +12VA1DC: 18A Max
• +12VBDC: 18A Max
• +12VCDC: 12A Max
• (+12VA1DC) + (+12VA2DC): 18A Max (combined)



• Dimensions: 83mm x 63mm x 220mm

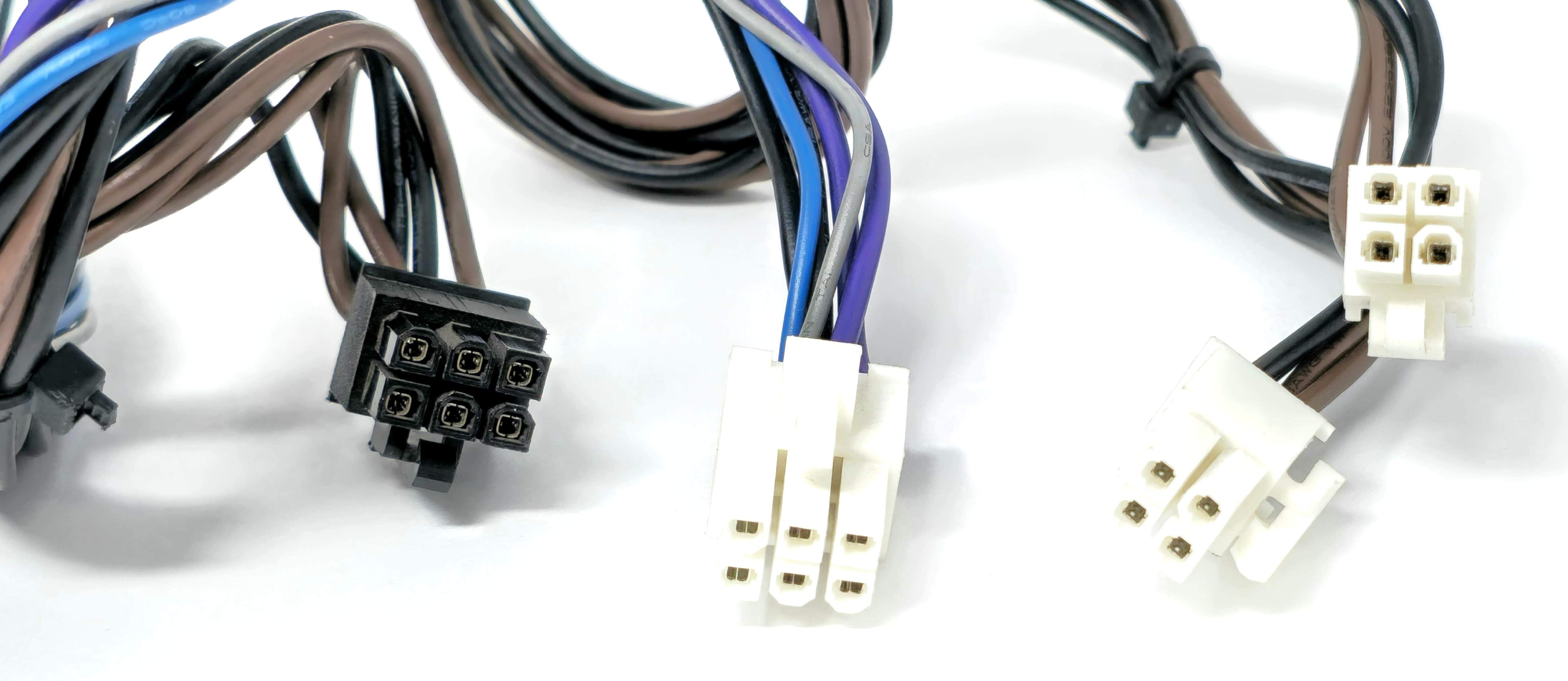

Connectors

• (1) 6-Pin Connector (P1) (12")
• (1) 6-Pin Connector (P3) (9.5")
• (2) +12V 4-Pin Power Connectors (22" each)

Interchangeable / Replacement Part Numbers

• HU360EBM-00, H360EBM-00, L360EBM-00, H360EGM-00, D360E003P, D360E001L, PA-3361-2DB, PCFT5, YCRD7, 2VD0G, VM8KR, 19YR3, HK460-81PP

✅ Confirmed Compatibility

Please note that the following list is not exhaustive. Compatibility depends on your system's specific configuration. It's essential to verify compatibility with your system or enclosure manufacturer prior to installation.

✔ OptiPlex: 5080 MT, 7080 MT, 7090 MT
✔ XPS: 8940
✔ G5: 5090
✔ Inspiron: 3891 Desktop

☑️ Key Features

☑️ 360W OEM-style replacement power supply
☑️ Compact chassis sizing for select tower desktops (83mm x 63mm x 220mm)
☑️ Correct multi-lead connector set for supported platforms (dual 4-pin + dual 6-pin)
☑️ Tested for stable output and dependable daily operation

⚙️ Fit Notes

• This is not a standard ATX power supply. Please match the physical dimensions and connector layout before ordering.
• Verify your existing PSU label and harness type (this unit uses (2) 4-pin +12V leads and (2) 6-pin leads).
• If your build uses a discrete GPU, confirm your system’s required auxiliary power connector type matches your current harness.
