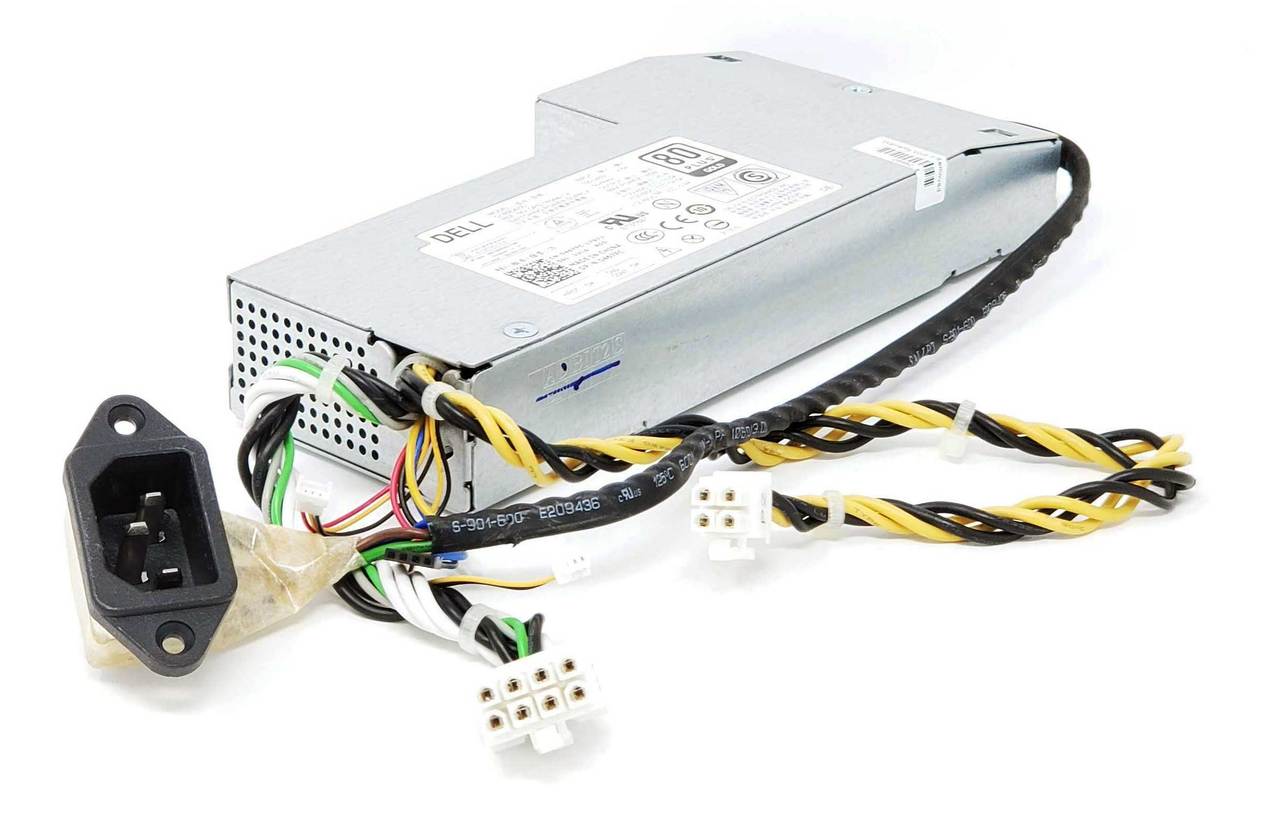

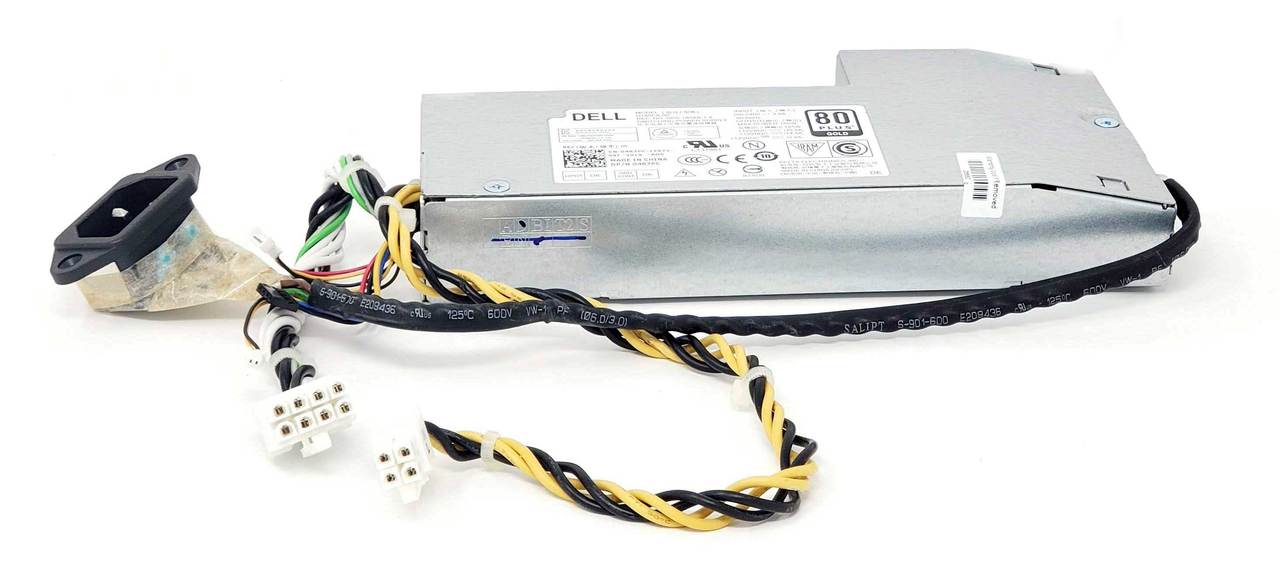

D185EA-00 - 185W Power Supply 8-Pin + 4-Pin for Inspiron 23 5348 AIO OptiPlex 9030 AIO

This 185W internal power supply is a direct replacement for select all-in-one systems that use the 8-pin main power connector and 4-pin 12V CPU power connector. It provides stable 12V rails for the AIO motherboard, display, and internal components, and includes the additional low-voltage leads used for the button board and auxiliary connections found in these models.

Technical Specifications

• Max power: 185W
• AC input: 100-240V ~ 2.6A
• DC output:
• +12VADC / 10.5A
• +12VBDC / 14.5A
• Connector set:
• (1) 8-Pin power connector
• (1) 4-Pin 12V power connector
• (1) C13 power connector input
• (1) 4-Pin inline connector (button board)
• (1) 3-Pin connector (2 wires: yellow, black)
• (1) 3-Pin connector (3 wires: yellow, black, red)

Interchangeable / Replacement Part Numbers

467PC, B185EA-00, D185E001L, D185E002L, D185EA-00, D6V04, DE-ZD18FTGF-G, DPS-185AB-1A, H185EA-00, HPXJG, N28RM

✅ Confirmed Compatibility

Please note that the following list is not exhaustive. Compatibility depends on your system's specific configuration. It's essential to verify compatibility with your system or enclosure manufacturer prior to installation.

✔️ Inspiron 23 5348 AIO: Inspiron 23 5348 All-in-One
✔️ OptiPlex 9030 AIO: OptiPlex 9030 All-in-One

☑️ Key Features

☑️ Correct 185W output and dual 12V rails for supported AIO systems
☑️ Includes the required 8-pin + 4-pin internal power connectors
☑️ Button-board and auxiliary leads included for proper AIO integration
☑️ Grade A, cleaned, and fully tested for reliable operation
☑️ Ideal replacement for weak/no-power symptoms caused by a failing PSU

⚙️ Fit Notes

• This is an internal AIO power supply (not an external power brick).
• Match connector layout before ordering: 8-pin + 4-pin 12V plus the listed auxiliary/button-board connectors.
