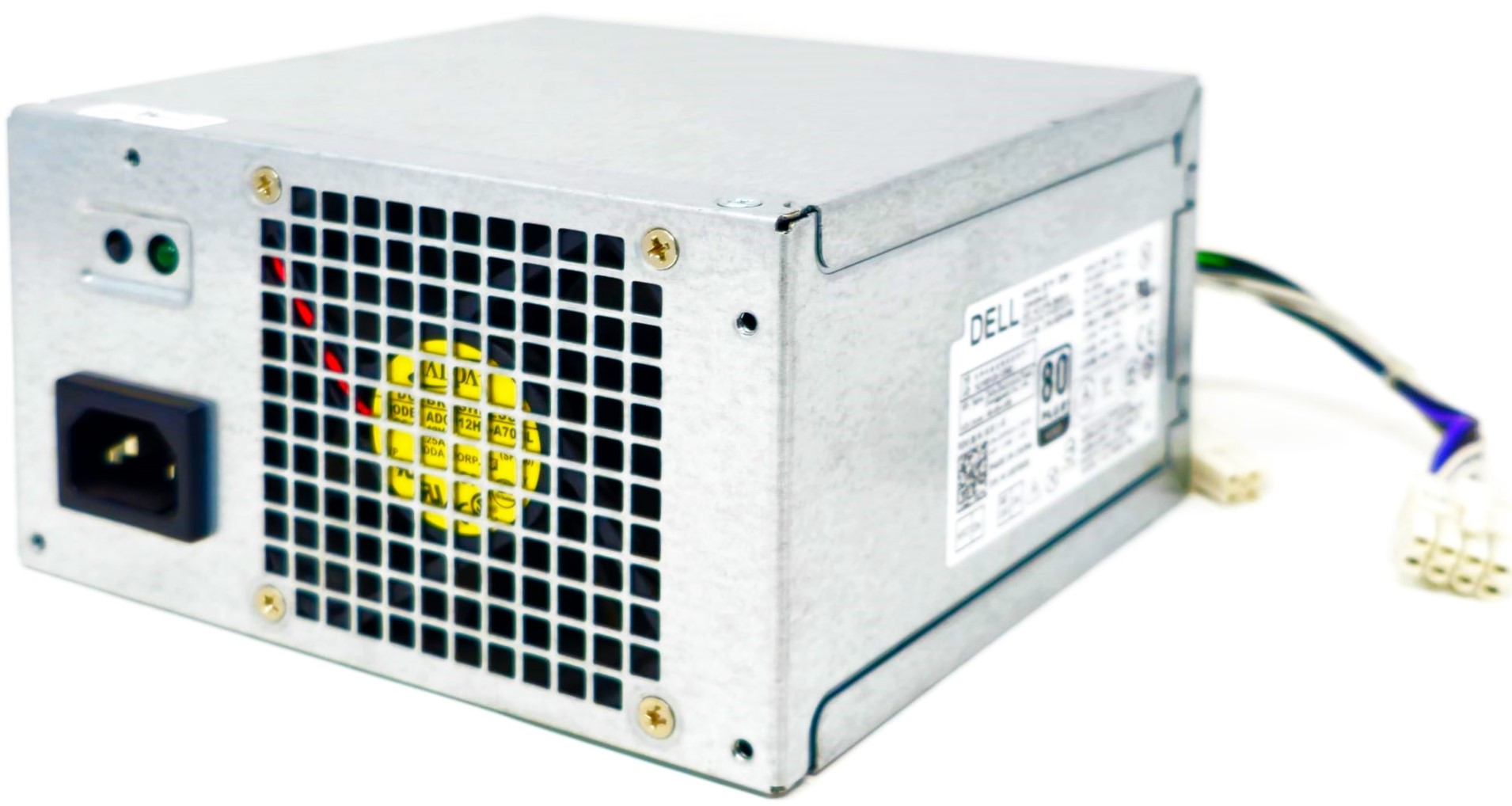

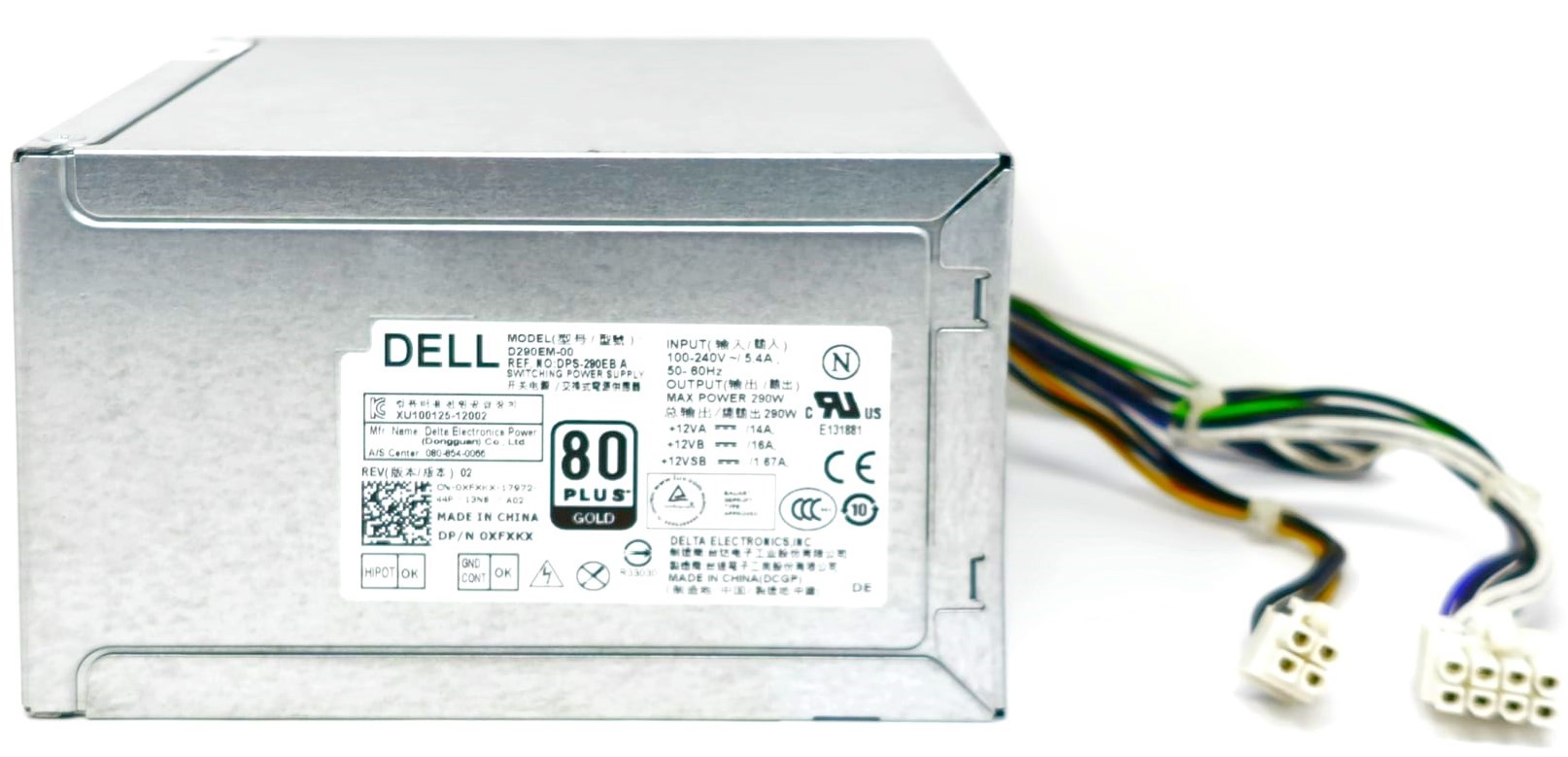

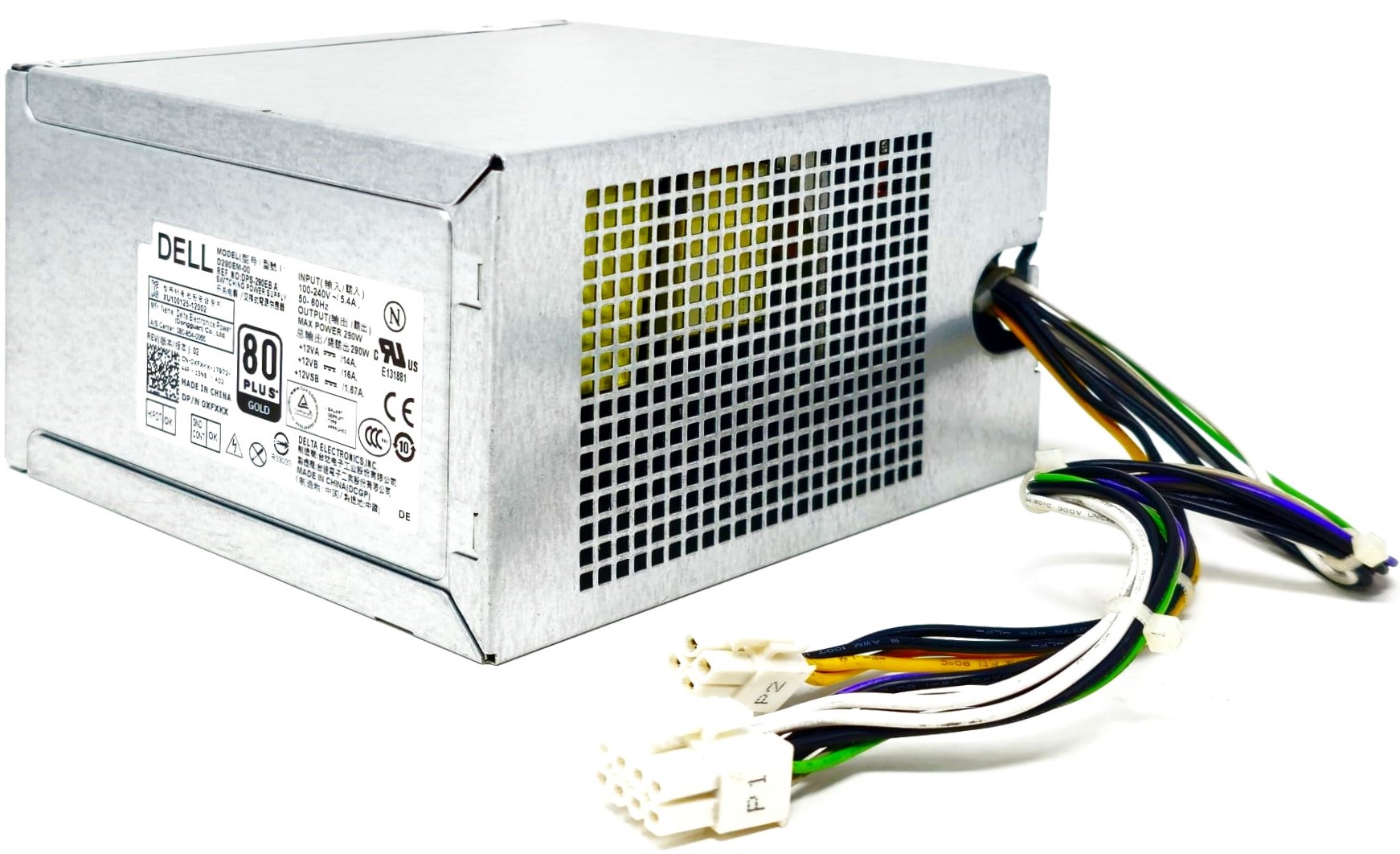

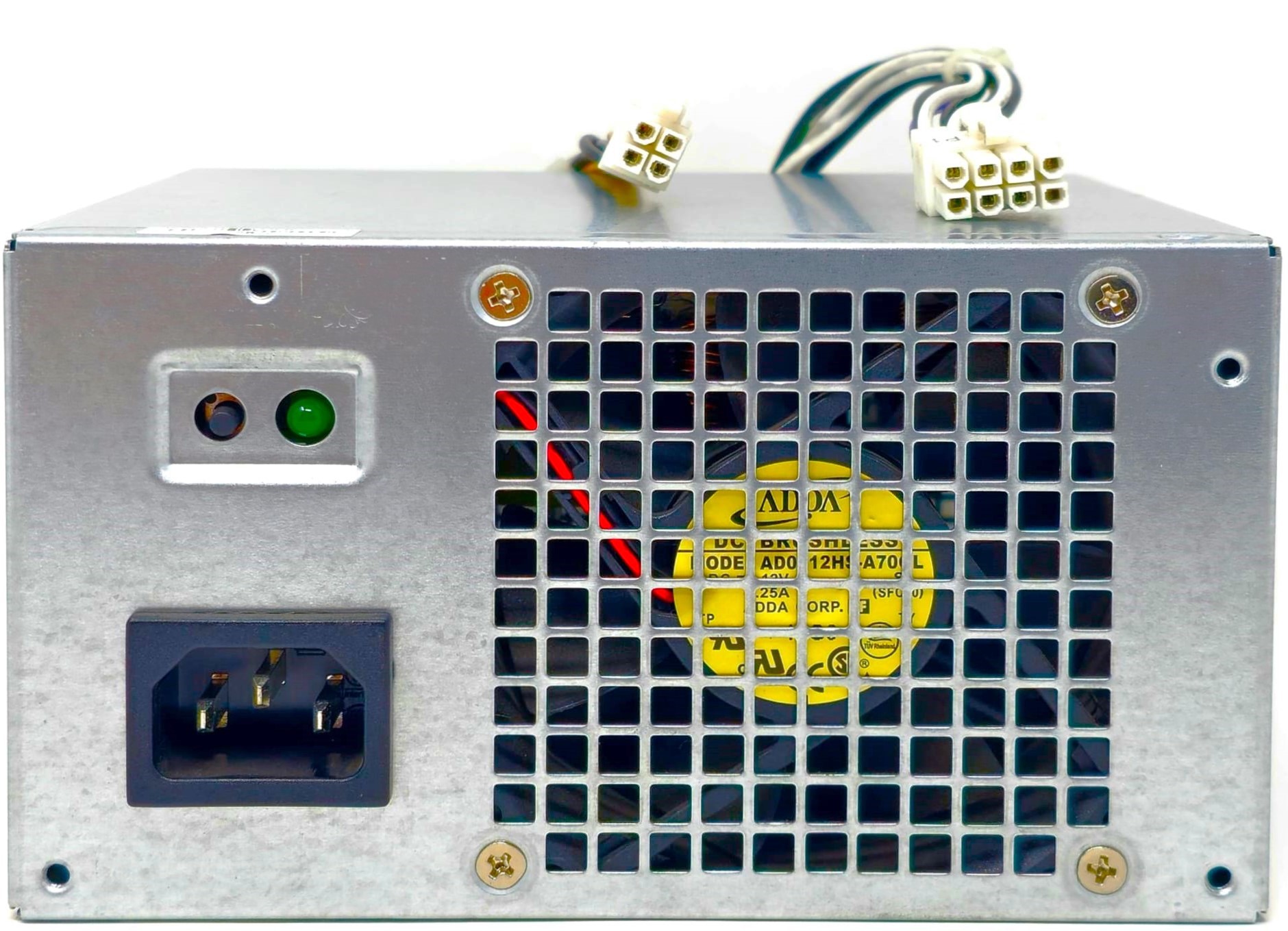

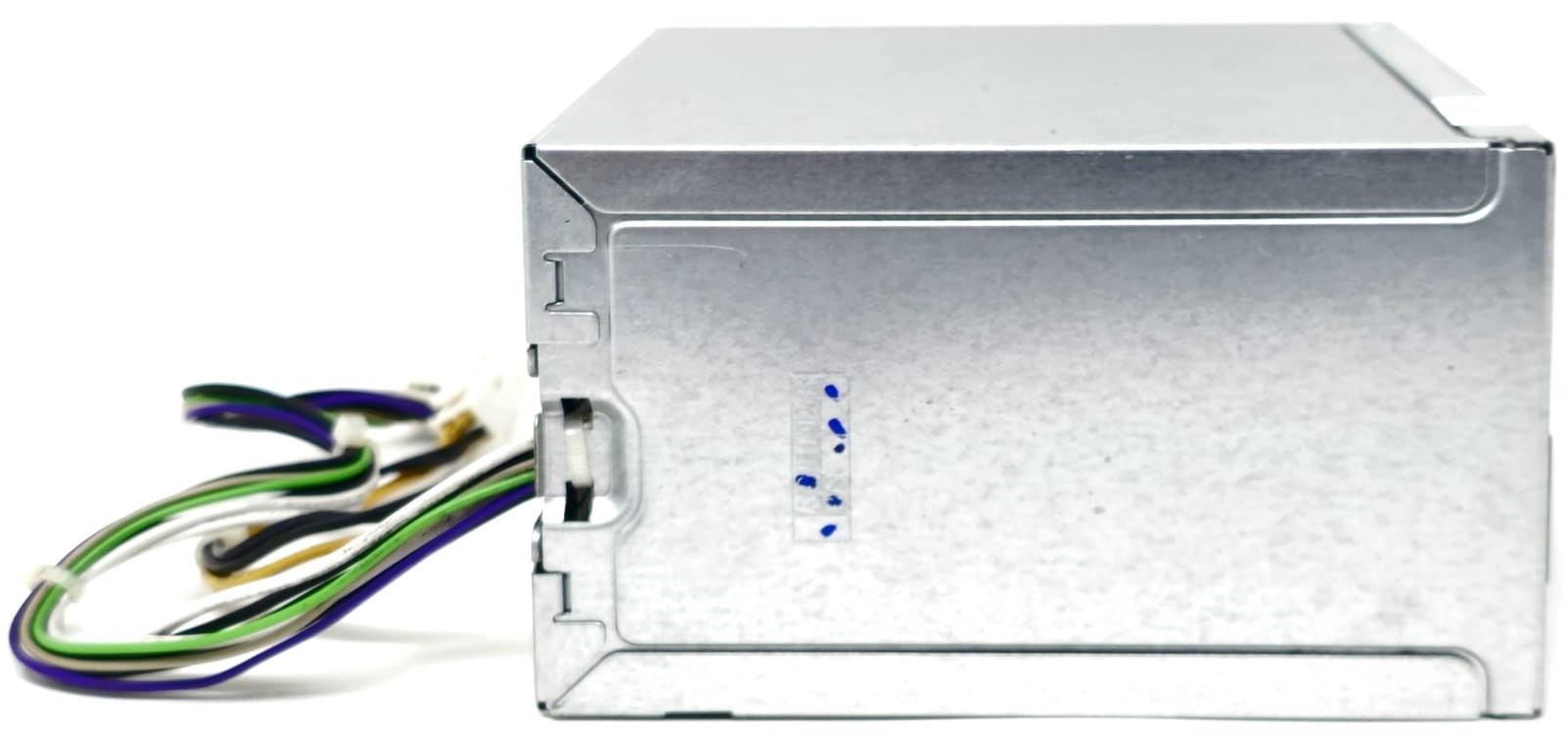

290W Power Supply for OptiPlex 3020 7020 9020 MT PowerEdge T20 Precision T1700
Genuine OEM 290W internal power supply for compatible mini-tower desktop, workstation, and entry tower server systems using an 8-pin main motherboard power connector and 4-pin 12V CPU power connector. This Grade A cleaned and fully tested replacement PSU is designed for matching tower systems that require the same wattage, connector layout, cable routing, dimensions, mounting style, and rear AC plug position.
What’s Included
- Included Item: 1x 290W internal power supply
- Condition: Genuine OEM, Grade A, cleaned and fully tested
- Power Cord: Not included
Technical Specifications
- Primary Part Number: 4FGD7
- Part Type: Internal desktop / workstation power supply
- Maximum Output Power: 290W
- Form Factor: Mini tower internal PSU
- Dimensions: 150mm x 86mm x 140mm
- AC Input Voltage: 100-240V~
- AC Input Current: 5.0A / 5.4A depending on supplied OEM variant
- Frequency: 50-60Hz
- DC Output +12VA: 14A
- DC Output +12VB: 16A
- DC Output +12VSB: 1.67A
- Connector Layout: 8-pin main board power + 4-pin CPU power
- Installation Type: Internal screw-mounted tower PSU
- Application Type: Mini tower desktop, workstation, and entry server power supply replacement

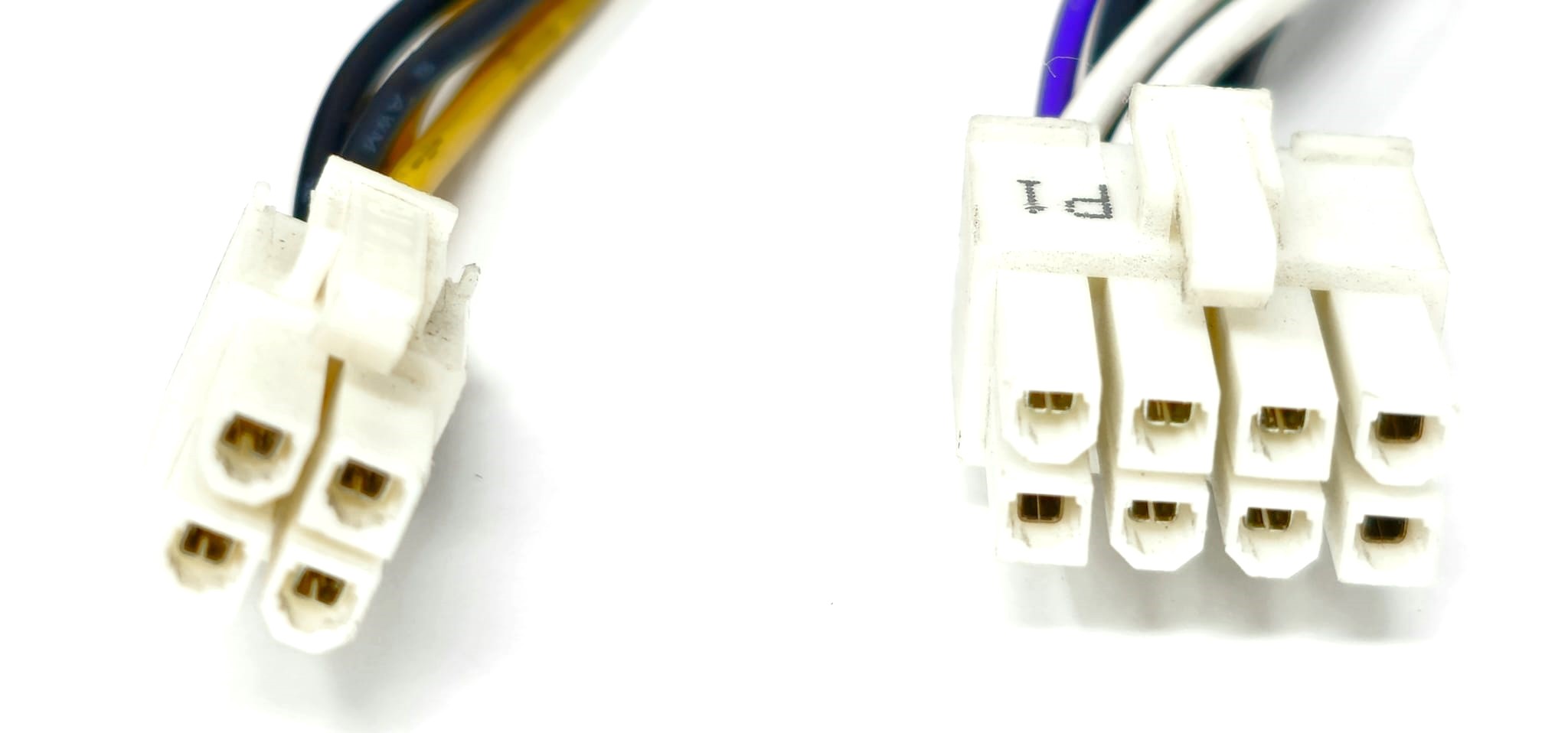

Connector & Cable Layout
- P1 Main Connector: 8-pin motherboard power connector
- P1 Cable Length: Approx. 11"
- P2 CPU Connector: 4-pin 12V CPU power connector
- P2 Cable Length: Approx. 6.5"
- AC Power Input: Standard C13 AC power cable required, sold separately
- Important Connector Note: This power supply uses an 8-pin motherboard connector and 4-pin CPU connector. It does not use a standard 24-pin ATX motherboard connector.
Interchangeable / Replacement Part Numbers
4FGD7, 776VT, AC290AM-00, AC290EM-00, AC290EM-01, D-0290ADU00-201, D290A001L, D290EM-00, F290EM-00, H290AM-00, H290EM-00, HK390-11FP, HK390-11PP, HU290AM-00, HU290EM-01, HYV3H, KGF74, KPRG9, L290AM-00, L290EM-00, L290EM-01, N0KPM, NFX6T, P0KFV, P2W4R, PCB045, PS-3291-1DA, PS-3291-1DB, PS-3291-1DF, RVTHD, WHN49, XFXKX
Required Power Cable Sold Separately
This power supply requires a standard C13 AC power cable, sold separately: M2PNC 3 ft C13 Power Cable
✅ Confirmed Compatibility
Please note that the following list is not exhaustive. Compatibility depends on your system’s chassis style, original power supply part number, connector layout, wattage, rear AC plug location, mounting points, and internal cable routing. It’s essential to verify compatibility with your system model and original PSU label before installation.
✔ OptiPlex Mini Tower Models: OptiPlex 3020 MT, OptiPlex 7020 MT, OptiPlex 9020 MT
✔ PowerEdge Tower Models: PowerEdge T20
✔ Precision Mini Tower Models: Precision T1700 MT
✔ Additional Matching Tower Configurations: Select Precision Tower 3620 MT systems that originally shipped with the same 290W 8-pin + 4-pin PSU family and match one of the listed interchangeable part numbers, such as AC290EM-01 or PCB045
☑️ Key Features
☑️ Genuine OEM power supply
☑️ Grade A, cleaned, and fully tested
☑️ Includes warranty
☑️ Correct 290W rating for supported mini tower systems
☑️ Uses 8-pin main motherboard power connector
☑️ Includes 4-pin 12V CPU power connector
☑️ Designed for systems that do not use a standard 24-pin ATX main connector
☑️ Supports 100-240V AC input
☑️ 150mm x 86mm x 140mm tower PSU dimensions for matching chassis layouts
☑️ Useful replacement for failed, noisy, intermittent, no-boot, or no-power power supplies
☑️ Direct-fit replacement when the original PSU part number, connector layout, wattage, and chassis style match
⚙️ Fit Notes
- Match your original power supply part number whenever possible
- Confirm your original PSU is a 290W unit with the same connector layout
- Confirm your system uses an 8-pin P1 main power connector and 4-pin P2 12V CPU connector
- This PSU is intended for compatible MT / mini tower systems
- This is not intended for small form factor, ultra-small form factor, micro, all-in-one, or slim chassis systems
- This is not a standard 24-pin ATX desktop power supply
- Compare the physical dimensions, rear AC plug location, fan orientation, mounting screw points, and cable routing before ordering
- Some later tower systems use different 300W, 365W, 460W, 6-pin, 10-pin, or different proprietary PSU families and are not interchangeable unless the original part number matches
- This power supply requires a standard C13 AC power cable, sold separately
- This unit does not include an AC power cord unless shown
- Always disconnect the AC power cable and allow the system to fully discharge before replacing a power supply
- Do not install in systems requiring higher wattage, a different chassis-specific PSU, different mounting points, or a different power connector layout
