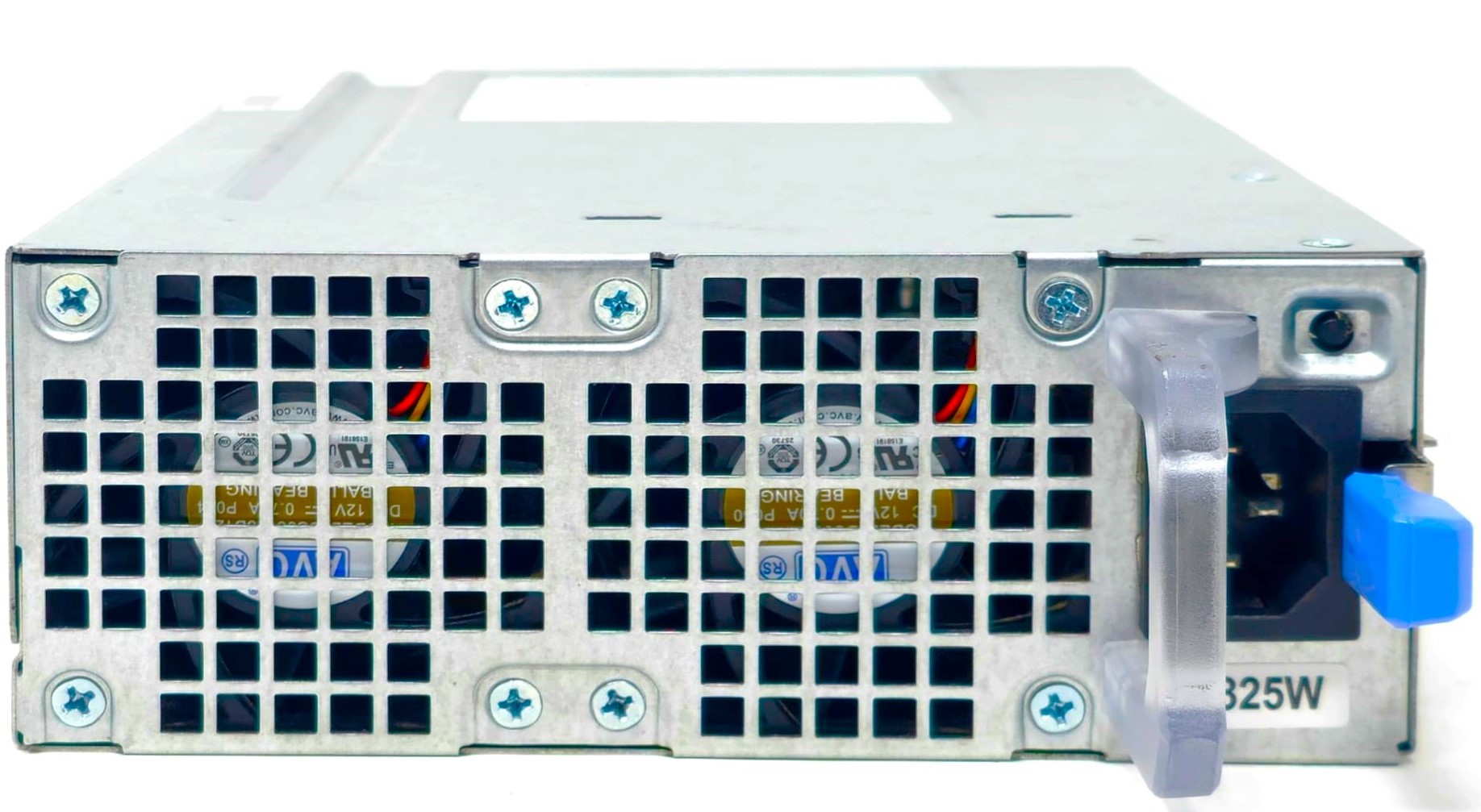

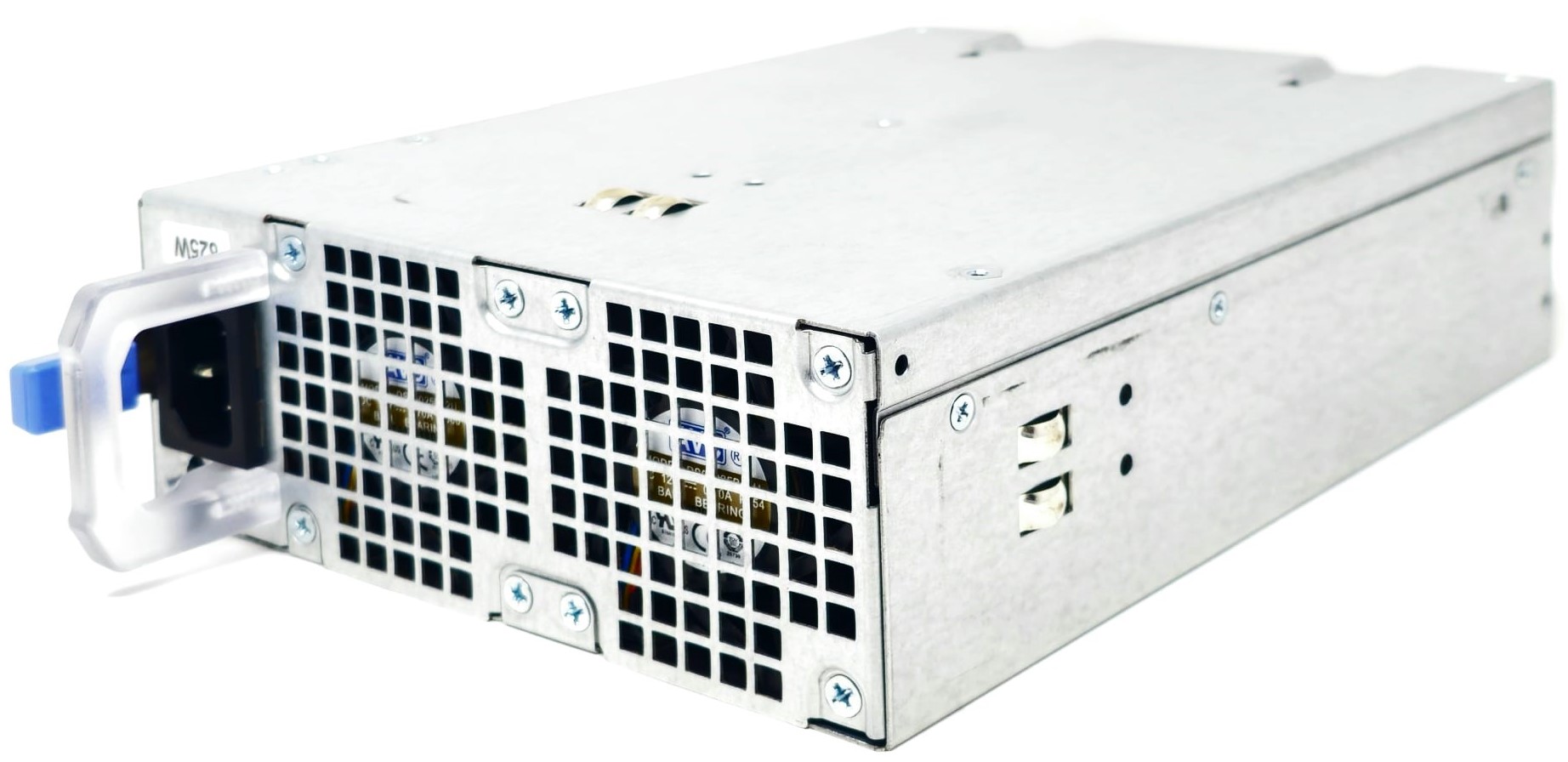

D825EF-01 / H825EF-01 - 825W 100-240V Hot-Plug 80 Plus Gold Power Supply for Precision T5600 T5610

Replacement 825W hot-plug power supply module for Precision Tower systems. This unit is Grade A, cleaned, and fully tested—ideal for restoring stable power delivery or keeping a spare on hand for critical workstations.

Technical Specifications

• Max Output Power: 825W
• Efficiency Rating: 80 Plus Gold
• Condition: Refurbished (Grade A, Cleaned, Fully Tested)

• AC Input: 100-240V~ / 12A Max (50-60Hz)

• Dimensions: 160mm x 63mm x 225mm
• Connector / Form Factor: (1) Hot-Plug module

• DC Output Rails:

• +12VA: 18A
• +12VB: 18A
• +12VC: 18A
• +12VD: 18A
• +12VE: 18A
• +12VF: 18A
• +12VG: 18A
• Auxiliary rail: 0.5A
• +5VSB (Standby): 4A

Interchangeable / Replacement Part Numbers

• D825EF-01, D825E002L, H825EF-01, RHHKV, G57YP, DPS-825BB A

✅ Confirmed Compatibility

Please note that the following list is not exhaustive. Compatibility depends on your system's specific configuration. It's essential to verify compatibility with your system or enclosure manufacturer prior to installation.

✔️ Precision Tower Series: T5600, T5610

☑️ Key Features

⚙️ Fit Notes

• Match your existing power supply part number to one of the interchangeable PNs above for the safest confirmation.
• This is a hot-plug module meant to slide into the workstation’s PSU bay/cage—verify the handle/latch style and bay compatibility before ordering.
• If replacing due to instability, also inspect the PSU bay contacts and ensure the workstation is on a good surge protector/UPS.
