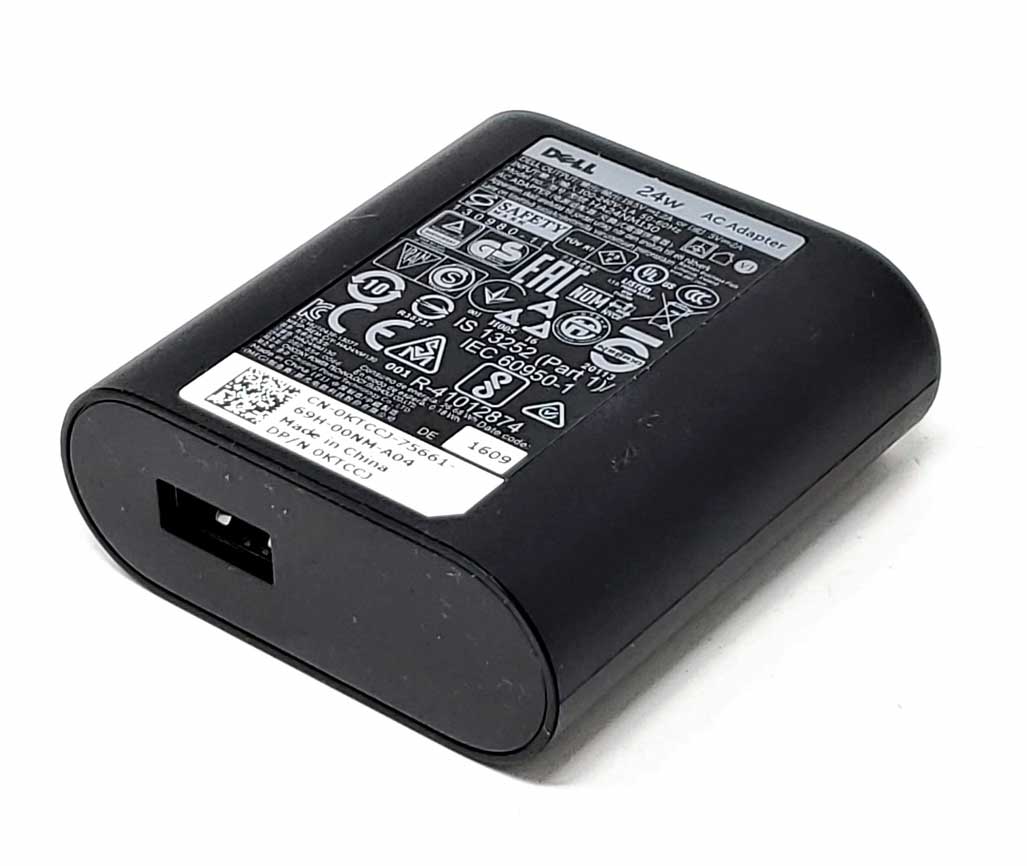

24W 19.5V 1.2A / 5V 2A AC Adapter Charger Kit for Venue 7 8 11 Pro Tablets

This complete tablet charging kit includes the 24W dual-output AC adapter, a grounded three-prong AC power cable, and a USB-A to Micro-USB charging/data cable.

The adapter supports high-power 19.5V charging for compatible Venue 11 Pro tablets and 5V charging for supported Venue 7 and Venue 8 models. Output selection depends on the connected device and correct charging cable.

Technical Specifications

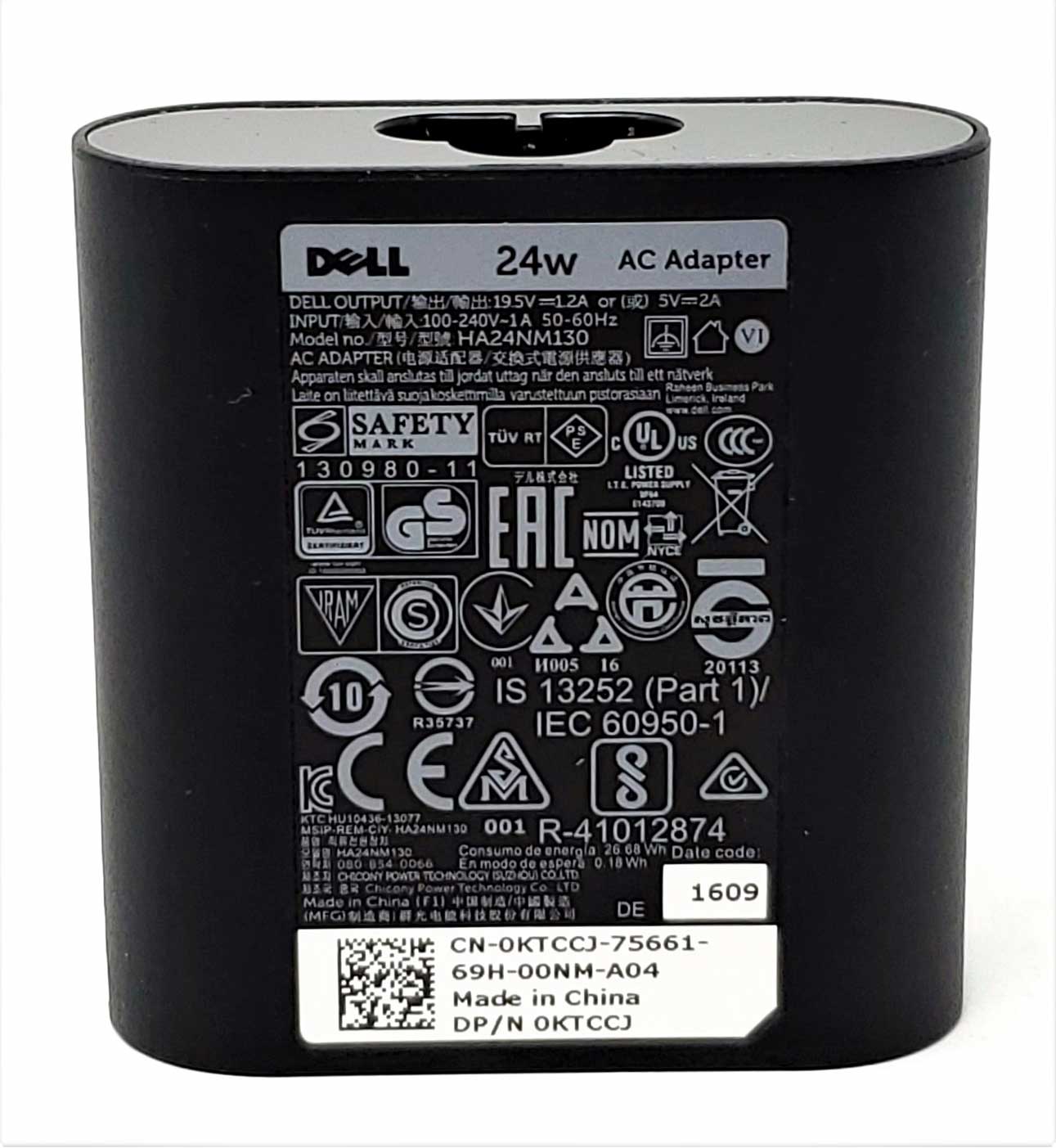

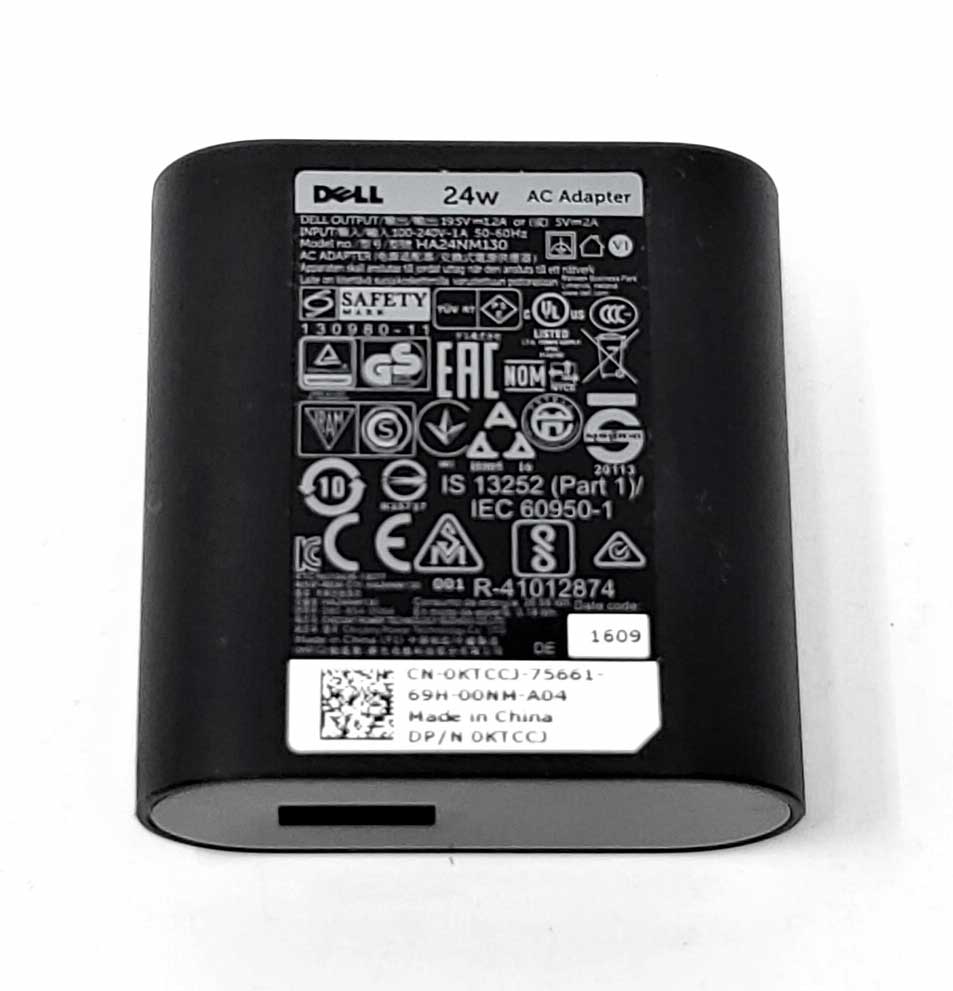

• Primary Part Number: HA24NM130
• Product Type: External tablet AC adapter and cable kit
• Maximum Output Class: 24W
• Nominal High-Power Output: 19.5V DC at 1.2A
• Nominal High-Power Wattage: 23.4W
• Secondary Output Mode: 5V DC at 2A
• Secondary Output Wattage: 10W
• AC Input Voltage: 100–240V AC
• AC Input Current: Up to 1A
• AC Input Frequency: 50–60Hz
• Adapter AC Inlet: IEC 60320 C6 three-prong inlet
• Required AC Cord Connector: IEC 60320 C5 female
• Adapter Output Port: USB Type-A receptacle
• Device Connector: Micro-USB Type B through the included cable
• USB Cable Length: Approximately 3 feet
• Operating Temperature: 0°C to 40°C
• Non-Operating Temperature: -40°C to 70°C
• Color: Black
• Package Quantity: One complete charging kit

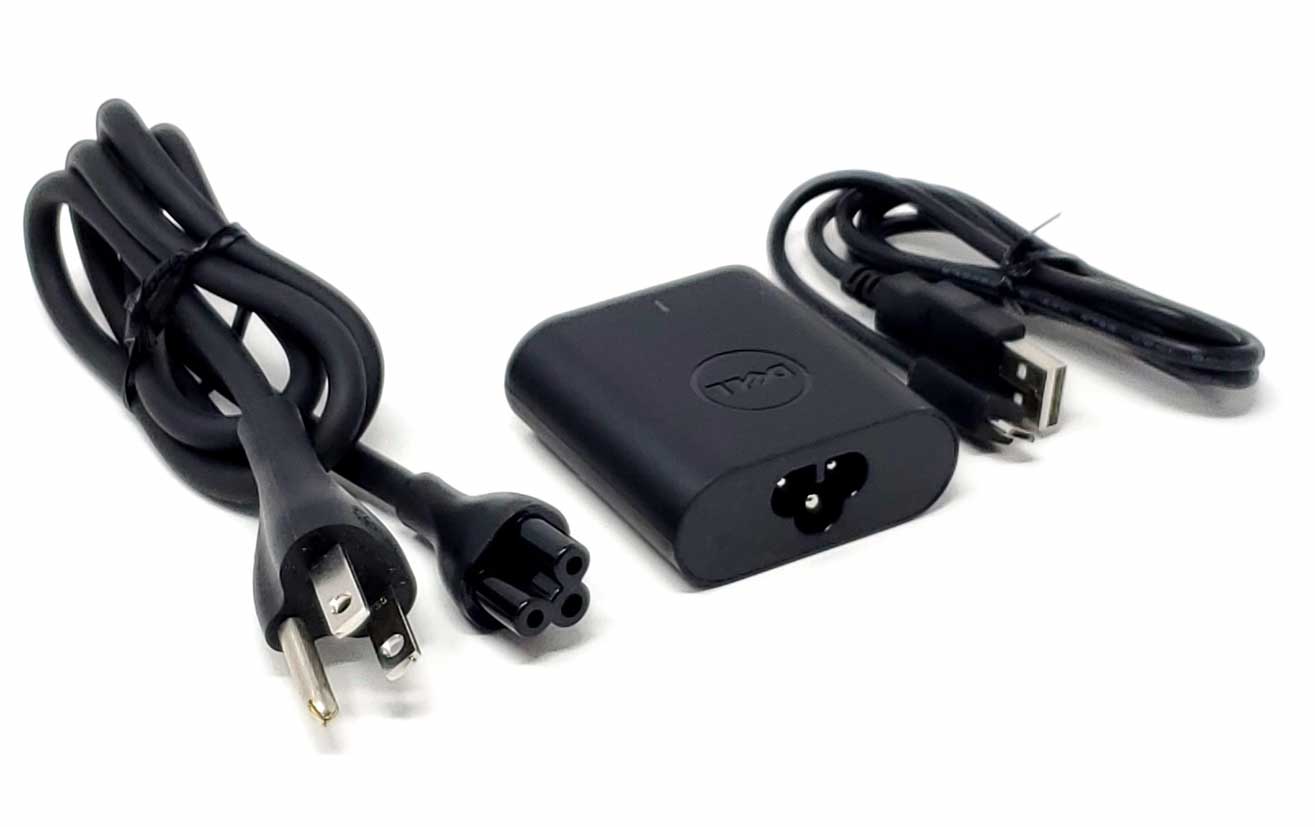

What’s Included

• (1) 24W AC Adapter: HA24NM130 or compatible substitute
• (1) AC Power Cable: Grounded North American wall plug to IEC C5
• (1) Device Cable: USB-A male to Micro-USB Type B male

Interchangeable / Replacement Part Numbers

HA24NM130, DA24NM130, KTCCJ, 77GR6, ADP-24SB BA, 1FMRP, XDYHF

Service and inventory labels may display leading-zero versions such as 0KTCCJ, 077GR6, 01FMRP, and 0XDYHF. These identify the corresponding base part numbers rather than different electrical specifications.

Included Cable / Subassembly Part Numbers

• FX429: Three-prong IEC C5 AC input power cable
• JH28M: Approximately 3-foot USB-A to Micro-USB charging/data cable
• C1R5R: Interchangeable reference for the JH28M USB-A to Micro-USB cable

FX429, JH28M, and C1R5R are cable or subassembly numbers. They are not replacements for the complete HA24NM130 adapter.

⭐ Related Parts and Cross-Sell

➕ JH28M / C1R5R - 3 FT Micro USB to USB-A Cable — spare or replacement device cable; one compatible cable is included with this kit

➕ 2JVNJ - 3 FT 3-Prong IEC C5 Power Cable — spare or replacement AC input cable; one compatible AC cable is included with this kit

✅ Confirmed Compatibility

Compatibility depends on the tablet’s charging port, the connected cable, and the adapter’s supported output mode. Use the correct Micro-USB cable supplied with the charging kit. This adapter is not intended for USB-C-only models.

19.5V 1.2A High-Power Charging

✔️ Venue 11 Pro 5000 Series: Venue 11 Pro 5130
✔️ Venue 11 Pro 7000 Series: Venue 11 Pro 7130, Venue 11 Pro 7139, Venue 11 Pro 7140
✔️ Venue 11i Pro Series: Supported 7130 and 7139 configurations requiring the 23.4W Micro-USB charging system

5V 2A Micro-USB Charging

✔️ Venue 7 Series: Venue 7 3730
✔️ Venue 8 Series: Venue 8 3830
✔️ Venue 8 Pro Series: Venue 8 Pro 5830

☑️ Key Features

☑️ Complete adapter, AC power cable, and USB charging cable kit
☑️ 24W-class output for supported Venue 11 Pro tablets
☑️ Supports 19.5V 1.2A and 5V 2A operating modes
☑️ Universal 100–240V AC input for worldwide voltage compatibility
☑️ Grounded IEC C5 AC power connection
☑️ Detachable USB-A to Micro-USB device cable
☑️ Multiple interchangeable adapter and service part numbers
☑️ Suitable for replacement, repair, travel, and spare-adapter applications

⚙️ Fit Notes

• The advertised 24W rating represents the product class. The calculated continuous high-power output is 23.4W at 19.5V and 1.2A.
• The 5V output mode provides up to 10W at 2A.
• This is a legacy dual-output Micro-USB charging system. It is not USB Power Delivery, USB-C, or Quick Charge.
• High-power charging requires the correct cable and device recognition. A generic Micro-USB cable may provide only 5V charging, charge slowly, or fail to identify the adapter correctly.
• Do not use this adapter with unrelated phones, tablets, or accessories unless the device and cable are specifically confirmed compatible.
• The adapter requires an IEC C5 three-prong AC cable. It does not accept IEC C7 two-prong or IEC C13 equipment cords.
• Models equipped with USB-C charging ports require a different adapter and cable.
• Regional packages may include a different wall-plug cable while retaining the same IEC C5 adapter connection.
• The separate cable links above are provided for replacement or spare-cable purchases; both cables are included with this complete kit.
