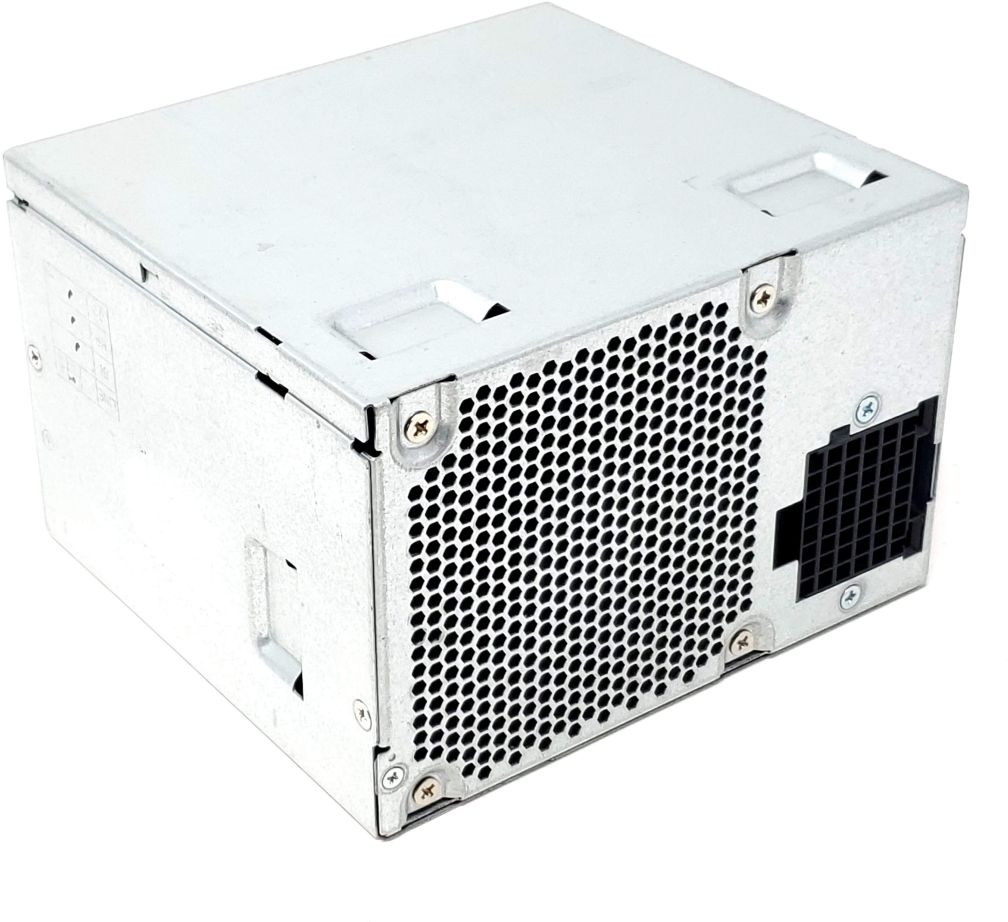

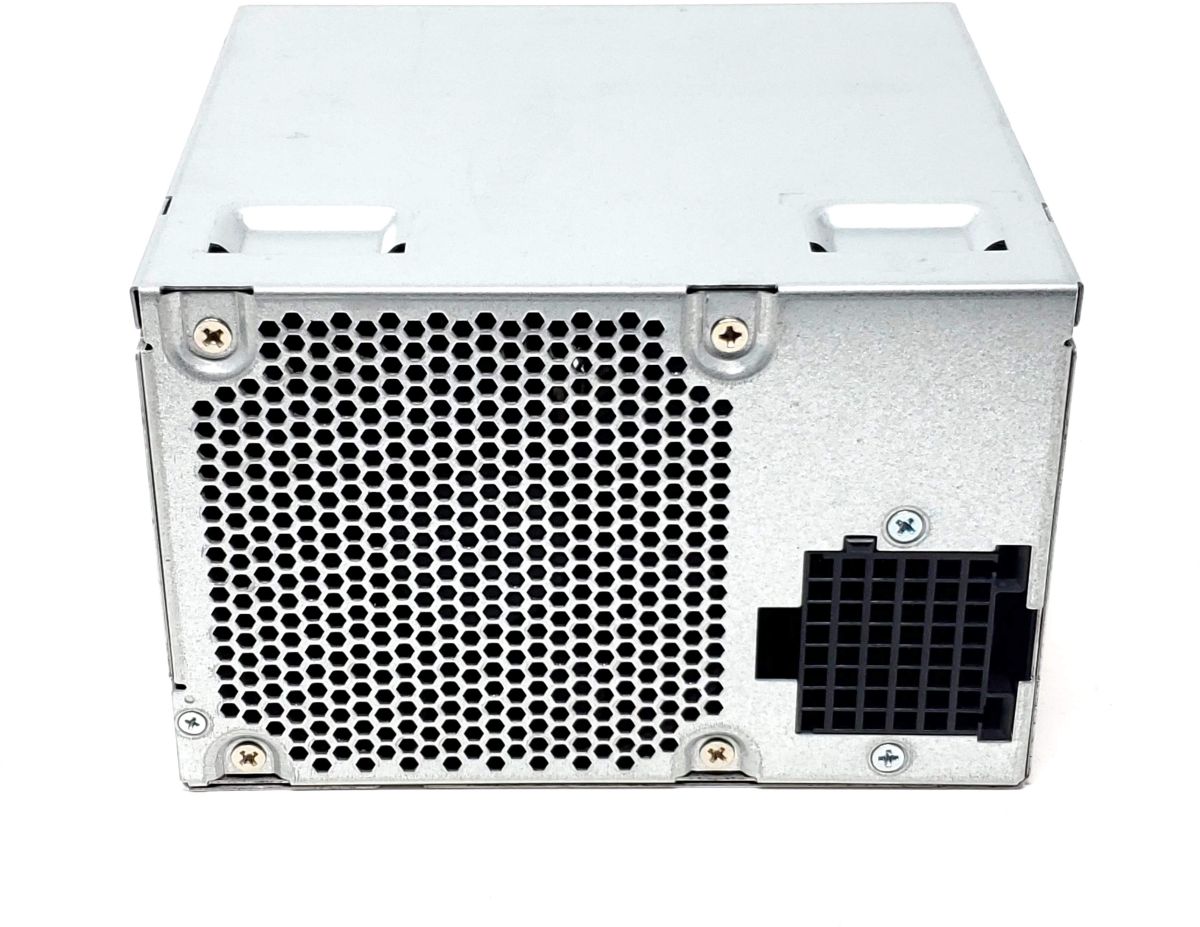

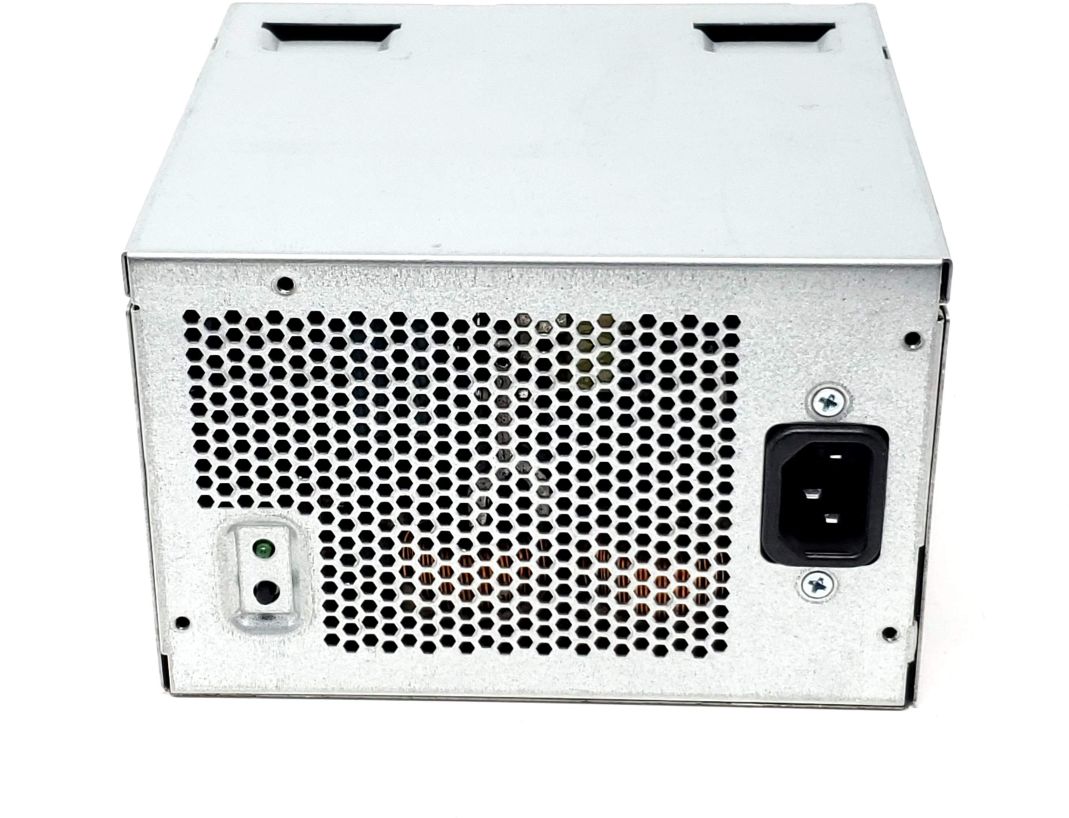

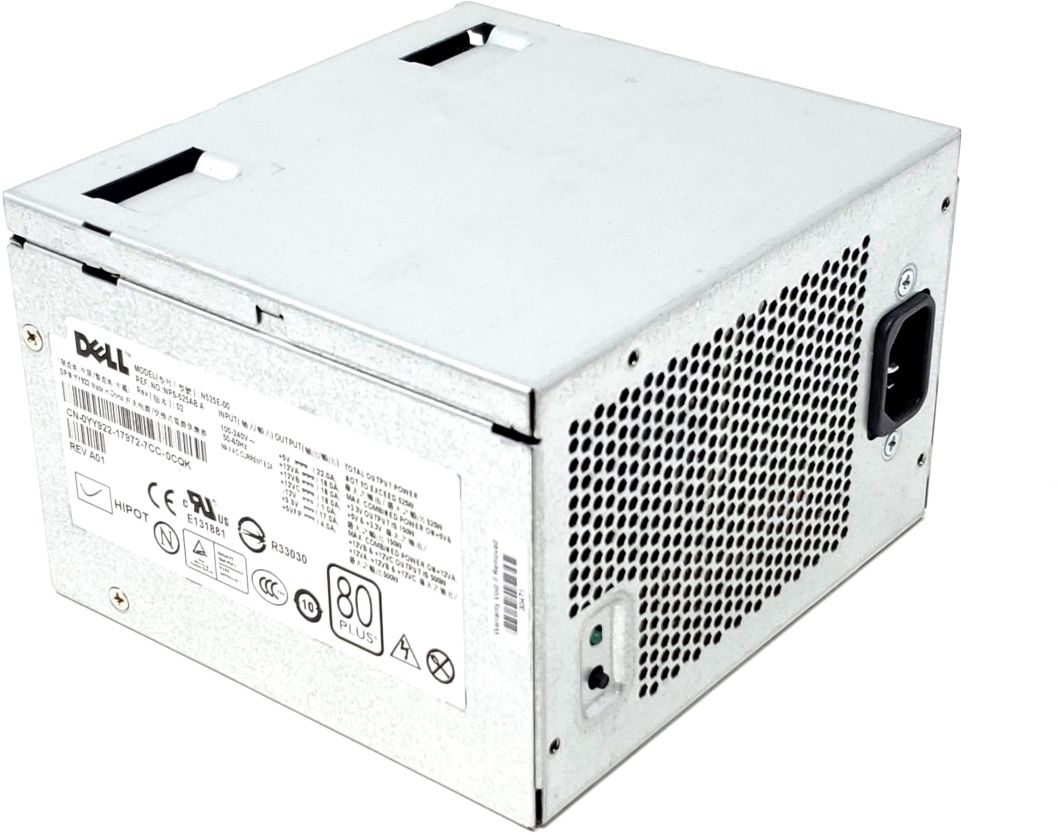

525W Power Supply for Precision T3400 400SC 380 390 PowerEdge T410

This 525W power supply unit (PSU) is a direct replacement option for select Precision workstations and tower servers that use the KP500 wiring harness. Designed for stable multi-rail power delivery and reliable operation in supported systems.

Technical Specifications

• Max Output Power: 525W
• AC Input: 100-240V, 50-60Hz ~ 8.2A
• Dimensions: 150mm x 98mm x 140mm
• DC Output:
• +5V: 22.0A
• +12VA: 18.0A
• +12VB: 18.0A
• +12VC: 18.0A
• -12V: 1.0A
• +3.3V: 17.0A
• +5VFP: 4.0A

Interchangeable / Replacement Part Numbers

N525E-00, HP-D5251A001, H525E-00, NPS-525ABA, M327J, YY922, YN637

✅ Confirmed Compatibility

Please note that the following list is not exhaustive. Compatibility depends on your system's specific configuration. It's essential to verify compatibility with your system or enclosure manufacturer prior to installation.

✔️ Precision: 380, 390, 400SC, T3400
✔️ PowerEdge: T410

☑️ Key Features

☑️ Grade A, cleaned, fully tested
☑️ 525W output for supported workstation and tower server builds
☑️ Wide-range 100-240V input
☑️ Multi-rail +12V design for stable power delivery
☑️ Includes warranty

⚙️ Fit Notes

• Uses wiring harness KP500 (not included)
• Match your existing PSU and harness style before ordering (fitment and harness compatibility are required).
