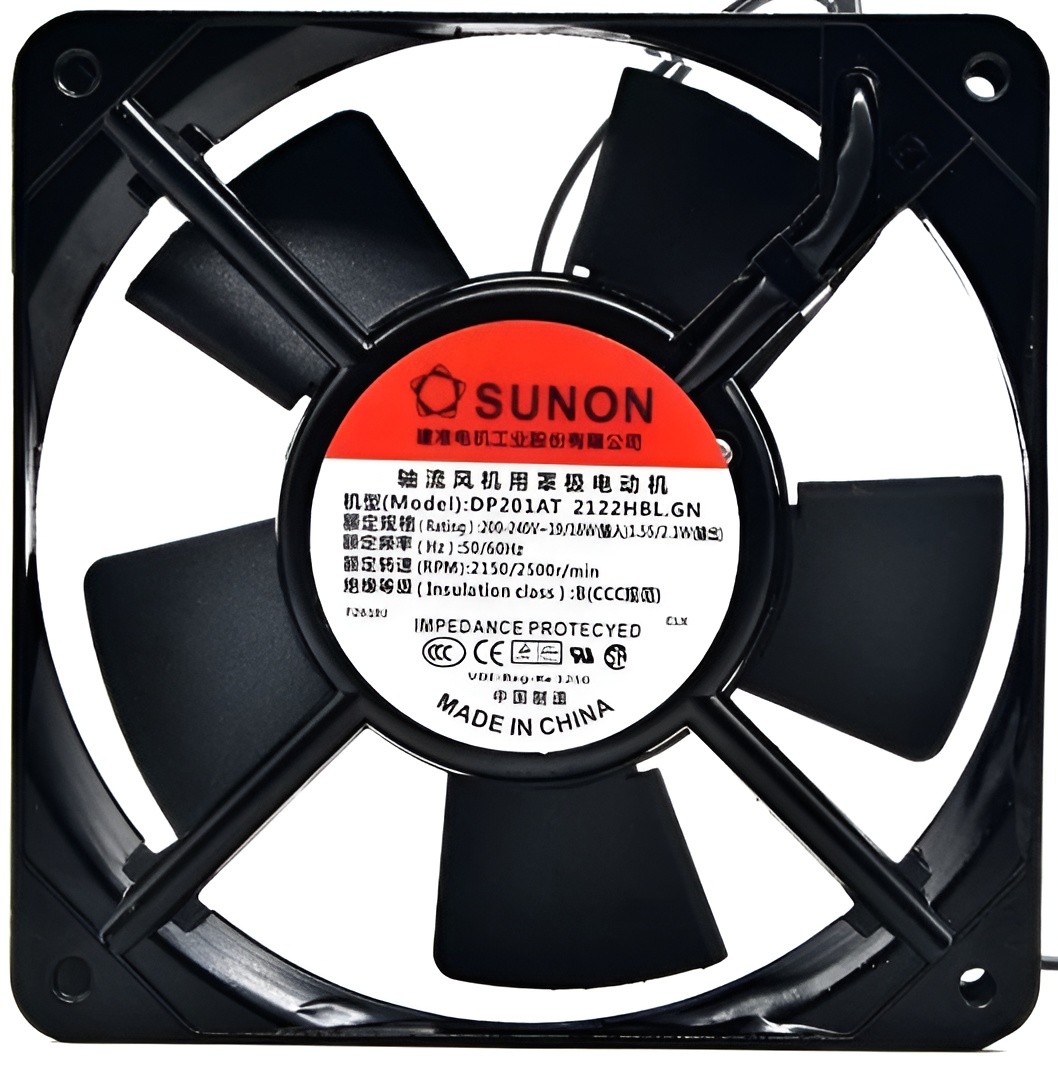

DP201AT - 120x120x25mm 12025 220-240V 50/60Hz 2-Lead Wires Cooling Fan

DP201AT 2122HBL - 120x120x25mm 220-240V 50-60Hz 2-Wire AC Cooling Fan 80CFM

High-performance 120x120x25mm 220-240V AC axial cooling fan designed for industrial equipment, control cabinets, telecom racks, power supplies, and other electronics that require a full-size 12025 AC fan.
This 2-wire ball-bearing fan delivers around 80 CFM of airflow at 220–240VAC, providing reliable cooling in demanding continuous-duty applications.

Technical Specifications

• Form Factor: 120mm x 120mm x 25mm (12025)
• Fan Type: AC axial (tubeaxial) chassis / enclosure fan
• Voltage Rating: 220–240V AC
• Frequency: 50/60Hz
• Current: ≈ 0.09A (at 230VAC, typical)
• Power Consumption: Up to 19W (typ. 18–19W)
• Airflow: ≈ 80 CFM (≈ 136 m³/h)
• Fan Speed: ≈ 2500 RPM
• Static Pressure: ≈ 0.17 in H₂O (≈ 42 Pa)
• Noise Level: ≈ 48 dBA
• Bearing Type: Ball bearing
• Frame Material: Metal (square 120mm frame)
• Impeller Material: Plastic
• Connection: 2-wire leads (no connector, line-voltage AC)
• Orientation: Standard 120mm square mount, airflow from open side toward label side
• Mounting: Corner screw holes, 105mm center-to-center (standard 120mm fan pattern)

Interchangeable / Replacement Part Numbers
DP201AT, 2122HBL, DP201AT-2122HBL.GN, DP201AT/2122HBL.GN, DP201AT2122HBL.GN, 2122HBL.GN, DP20LAT-2L22HBL.GN, DP2O1AT-2122HBL.GN, 259-1935

✅ Confirmed Compatibility

Please note that the following list is not exhaustive. Compatibility depends on your system's specific configuration. It's essential to verify compatibility with your system or enclosure manufacturer prior to installation.

✔ Industrial control cabinets and automation enclosures designed for 120x120x25mm 220–240V AC axial fans
✔ Telecom and networking racks, power supplies, and rectifier shelves using 12025 220–240V AC chassis fans
✔ UPS units, audio amplifiers, laboratory equipment, and test instruments requiring an 80 CFM 220–240V AC 120mm fan
✔ Custom equipment, CNC and 3D printer enclosures (only where line-voltage 220–240V AC fans are specified, not DC 12V/24V fans)
✔ General-purpose replacement for any device that specifies a 120x120x25mm 220–240V 2-wire AC axial fan with similar airflow and power ratings

☑️ Key Features
☑️ Full-size 120x120x25mm 220–240V AC axial fan for industrial and OEM equipment
☑️ Ball-bearing design for long service life in continuous-duty environments
☑️ High airflow output around 80 CFM for effective enclosure and cabinet ventilation
☑️ 2-wire AC lead connection for simple drop-in replacement where a bare-lead line-voltage fan is required
☑️ Standard 120mm mounting pattern for easy retrofit into existing fan cutouts and brackets
☑️ Suitable for high-duty-cycle applications such as control panels, telecom racks, UPS, and power systems
