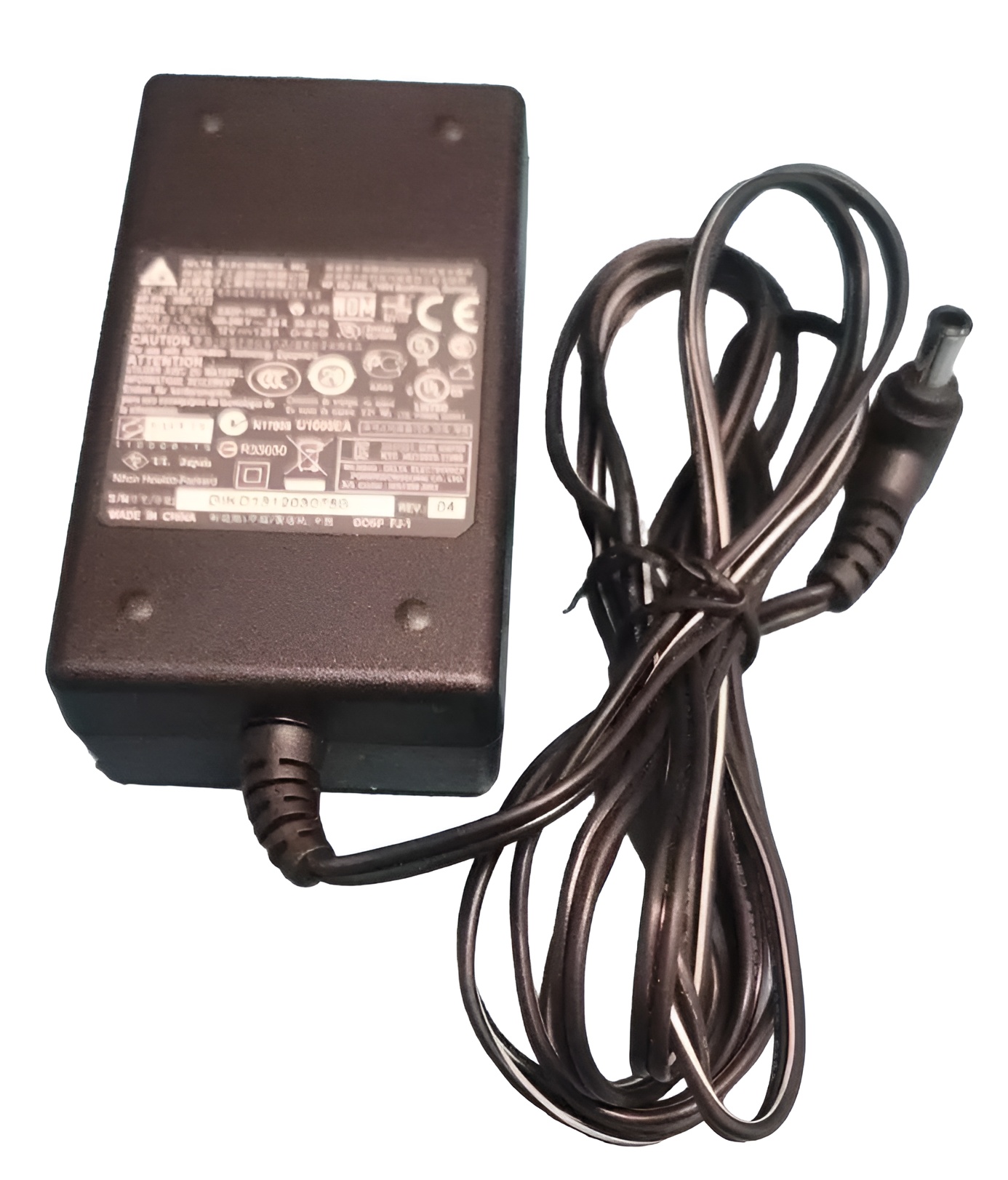

EADP-15DC - Universal Power Adapter EADP-15DC

12V 1.25A Small-Pin AC Adapter

The EADP-15DC AC Adapter is a compact, efficient 12V 1.25A power supply designed for networking equipment, small electronics, and select HP ProCurve devices. Featuring a round barrel connector with a small inner pin, this adapter ensures proper connectivity and stable output for devices requiring this exact fit.

This listing applies to the following part numbers, which are 100% cross-compatible:
EADP-15DC A, EADP-15DCA, EADP-15DB, EADP-15DBA, 5188-6700, 51886700, 5066-1122, 5066-5563

Technical Specifications

• Output Voltage: 12V DC
• Output Current: 1.25A
• Power: 15W
• Connector: Round barrel with small inner pin (center pin required)
• Input: 100–240V AC, 50/60 Hz (worldwide)
• Form Factor: External AC Adapter

✅ Confirmed Compatibility

Please note that the following list is not exhaustive. Compatibility depends on your system’s specific requirements. It is essential to verify voltage, current, and connector type before installation.

✔ HP ProCurve Switches (8-port models requiring external 12V brick):
1400-8G (J9077A), 1700-8 (J9079A), 1800-8G (J9029A)

✔ HP OfficeConnect / ProCurve:
1410-8G (J9559A), 1410-16G (J9560A), 1810-8 (J9449A), 1810-8G (J9449A, J9833A)

✔ HP ProCurve 2530-8G:
J9783A (uses 5066-1122 adapter, directly interchangeable)

✔ HP PS1810 Series (8-port variants):
PS1810-8G (J9833A)

Key Features

• Stable 12V DC, 1.25A regulated output
• Correct small-pin barrel connector for precise fit
• OEM-level replacement for Delta / HP power supplies
• Cross-referenced to multiple part numbers for easier sourcing

Fit Notes

• If your original brick label shows 5188-6700 or 5066-1122, this adapter is a direct one-for-one replacement.
• Connector is the 5.5 mm × 3.0 mm barrel with center pin (sometimes described as “small-pin”) used on these desktop switches.
• Some models (16-port or 24-port versions) may have internal power supplies instead. Check the rear panel: if it has an IEC power inlet, no external adapter is required.
