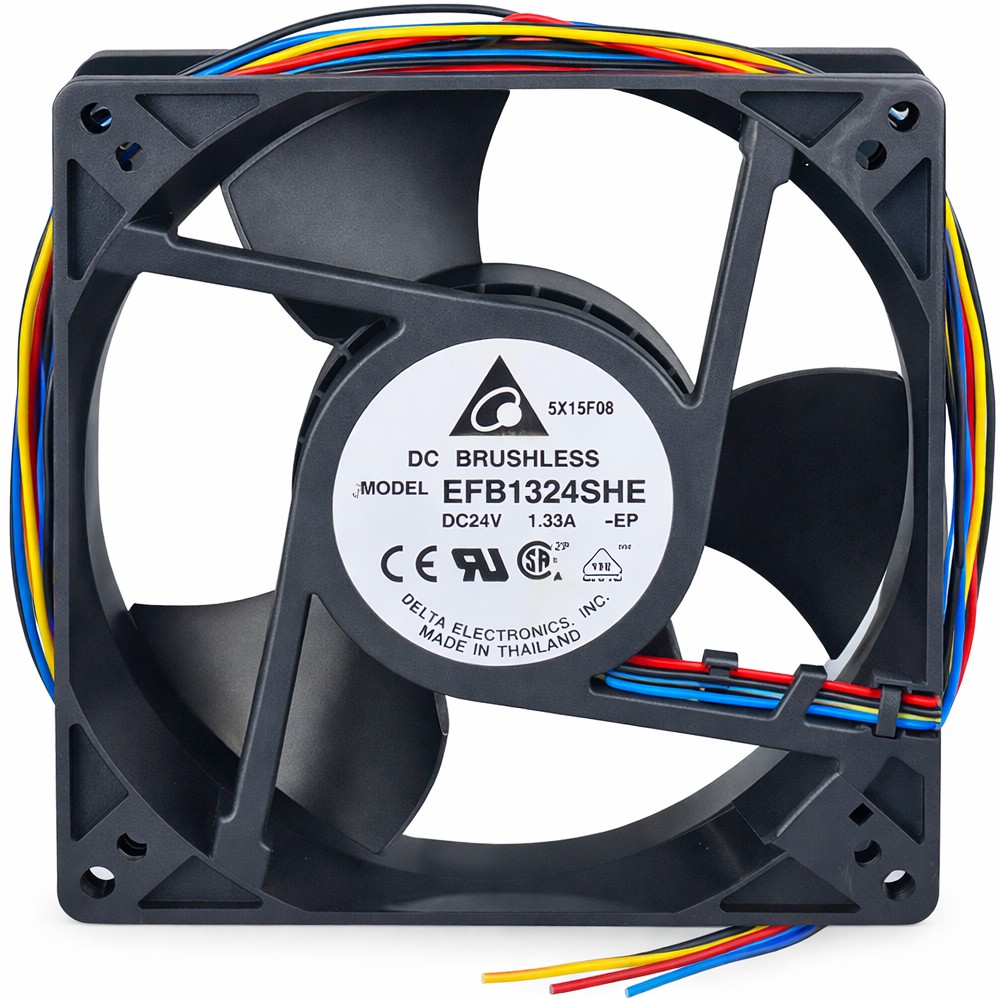

EFB1324SHE-EP - 127x127x38mm 12738 DC24V 1.38A Axial 4-Wire Lead with PWM and Speed Signal Cooling Fan

The EFB1324SHE-EP is a high-performance 24V DC axial cooling fan in a 127mm x 38mm form factor. It uses a 4-wire lead (power, ground, speed signal, and PWM control) for applications that need strong airflow, high static pressure, and speed control—commonly found in automation cabinets, robotics systems, CNC electronics, industrial power supplies, and networking equipment.

Technical Specifications

• Part Number: EFB1324SHE-EP
• Fan Type: DC Axial Fan (square frame)
• Size: 127mm x 127mm x 38mm
• Rated Voltage: 24VDC
• Operating Voltage Range: 18VDC to 28VDC
• Rated Speed: 4600 RPM (±10%)
• Airflow (Max): 200 CFM (min. 180.1 CFM)
• Static Pressure (Max): 0.757 in-H₂O (min. 0.681 in-H₂O)
• Rated Current (at 100% duty): 0.75A (max 1.38A)
• Rated Power (at 100% duty): 18.0W (max 33.12W)
• Noise Level: 58.5 dBA
• Ingress Protection: IP56
• Salt Fog Protection: 30 days (GR-487)
• Life Expectancy (L10): 70,000 hours @ 40°C (15–65% RH)
• Lead Type: 4-wire lead (no plug)
• Wire Gauge: UL1007 AWG24
• Wire Functions (per typical wiring on this model):
• Red: +V
• Black: GND
• Blue: FG (speed / tach signal)
• Yellow: PWM (speed control)

Interchangeable / Replacement Part Numbers

• EFB1324SHE-EP, EFB1324SHE-F00

✅ Confirmed Compatibility

Please note that the following list is not exhaustive. Compatibility depends on your system's specific configuration. It's essential to verify compatibility with your system or enclosure manufacturer prior to installation.

✔️ Industrial Automation: control cabinets, PLC panels, automation enclosures
✔️ Robotics: robot controllers, controller cabinets, drive racks (when a 127x127x38mm 24VDC 4-wire fan is required)
✔️ CNC Electronics: CNC control cabinets, spindle/drive enclosures, industrial PC cooling
✔️ Power Equipment: industrial power supplies, inverter/VFD cabinets, DC power systems
✔️ Network / Telecom: switches, routers, power shelves, communications racks
✔️ Server / Storage / Embedded: chassis and equipment using a 127mm x 38mm 24VDC 4-wire axial fan with PWM + speed feedback

☑️ Key Features

☑️ High airflow + high static pressure design for demanding cooling needs
☑️ 4-wire control: PWM speed control + FG speed signal for monitoring
☑️ Wide operating range (18–28VDC) for industrial power environments
☑️ IP56 rating for harsher environments where dust/water exposure is a concern
☑️ Ideal for robotics, automation, CNC, and industrial cabinet cooling
