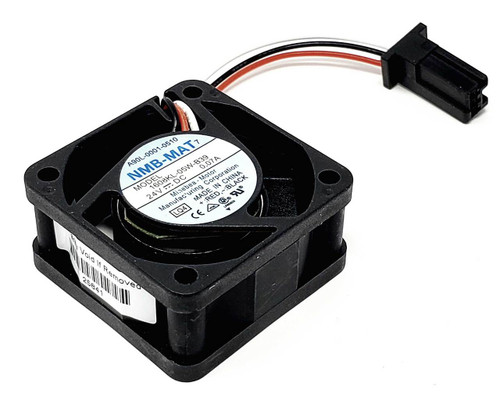

Fanuc 04020VA-24M-CL - 24V 0.08A 3-Wire 40x40x20mm Cooling Fan for Fanuc A90L-0001-0510

24V 0.08A 3-Wire 40x40x20mm Cooling Fan for Fanuc A90L-0001-0510

The A90L-0001-0510 is a compact 24V DC 40mm x 40mm x 20mm (4020) cooling fan commonly used in Fanuc control and drive assemblies where a small 3-wire fan with a monitoring output is required.

Because these part numbers are commonly used as equivalents, you may receive any of the interchangeable models listed below depending on availability (all are the same 24V 4020 3-wire class).

Technical Specifications

• Type: DC brushless axial cooling fan
• Size: 40mm x 40mm x 20mm (4020)
• Rated voltage: 24V DC
• Rated current: typically 0.05A to 0.08A (varies by interchangeable model)
• Wiring: 3-wire lead (power + monitoring output)
• Bearing: ball bearing (common among equivalents)
• Typical performance range across common equivalents (varies by model):
• Speed: ~6500 to 7500 RPM
• Airflow: ~6.5 to 8.8 CFM
• Noise: ~25.5 to 29 dBA
• Monitoring output (3rd wire): may be tach output or locked-rotor style output depending on the equivalent model

Interchangeable / Replacement Part Numbers

• A90L-0001-0510
• 04020VA-24M-CL
• 1608KL-05W-B39
• 109P0424H6D03
• 9WF0424F6D04

✅ Confirmed Compatibility

Please note that the following list is not exhaustive. Compatibility depends on your system's specific configuration. It's essential to verify compatibility with your system or enclosure manufacturer prior to installation.
✔️ Fanuc: A90L-0001-0510
✔️ NMB: 04020VA-24M-CL, 1608KL-05W-B39
✔️ Sanyo Denki: 109P0424H6D03, 9WF0424F6D04

☑️ Key Features

☑️ 24V DC 4020 form factor for compact industrial electronics cooling
☑️ 3-wire design supports fan monitoring (signal type varies by model)
☑️ Ball bearing construction commonly used for long service life
☑️ Interchangeable part number coverage to keep Fanuc systems running with less downtime
