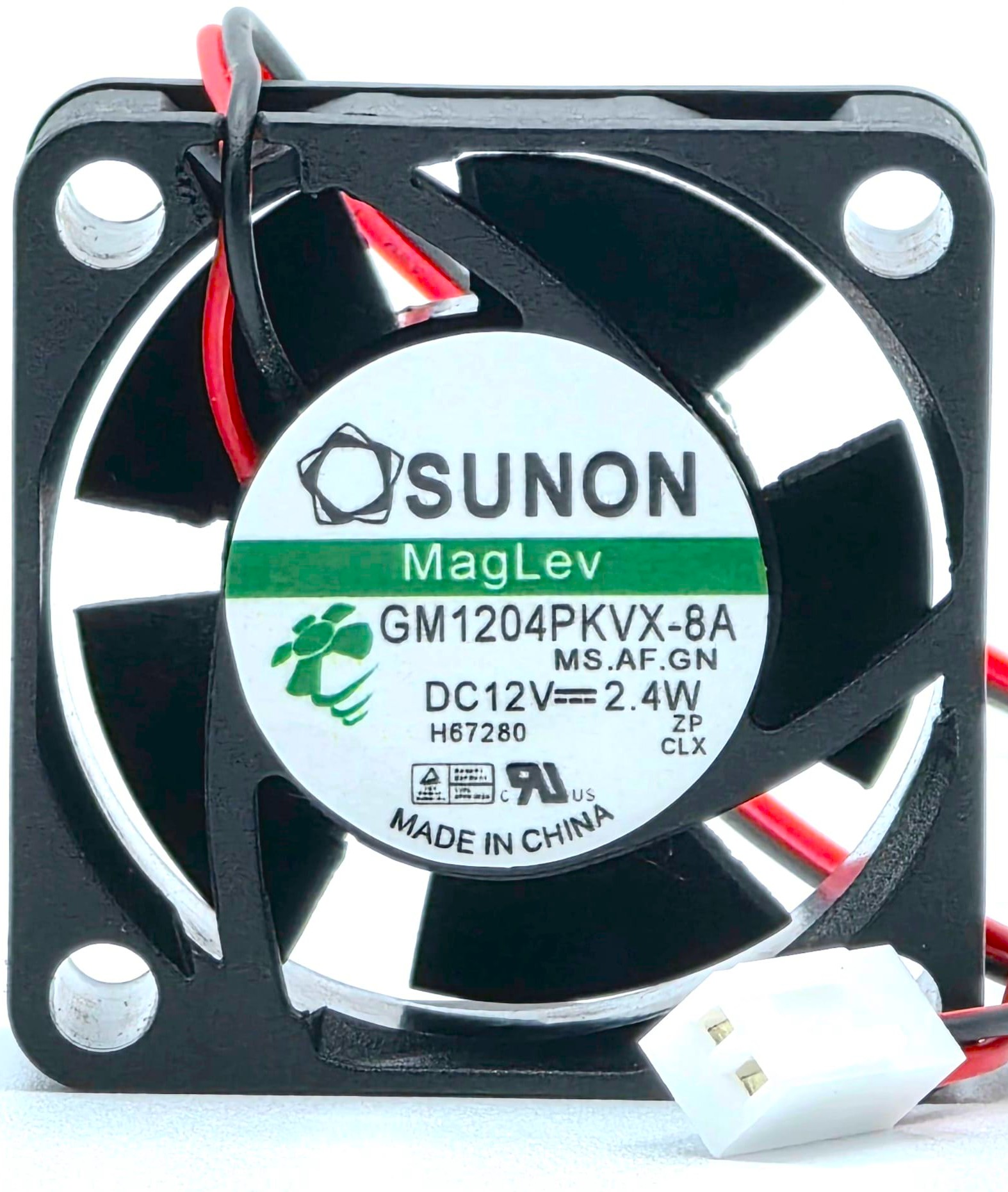

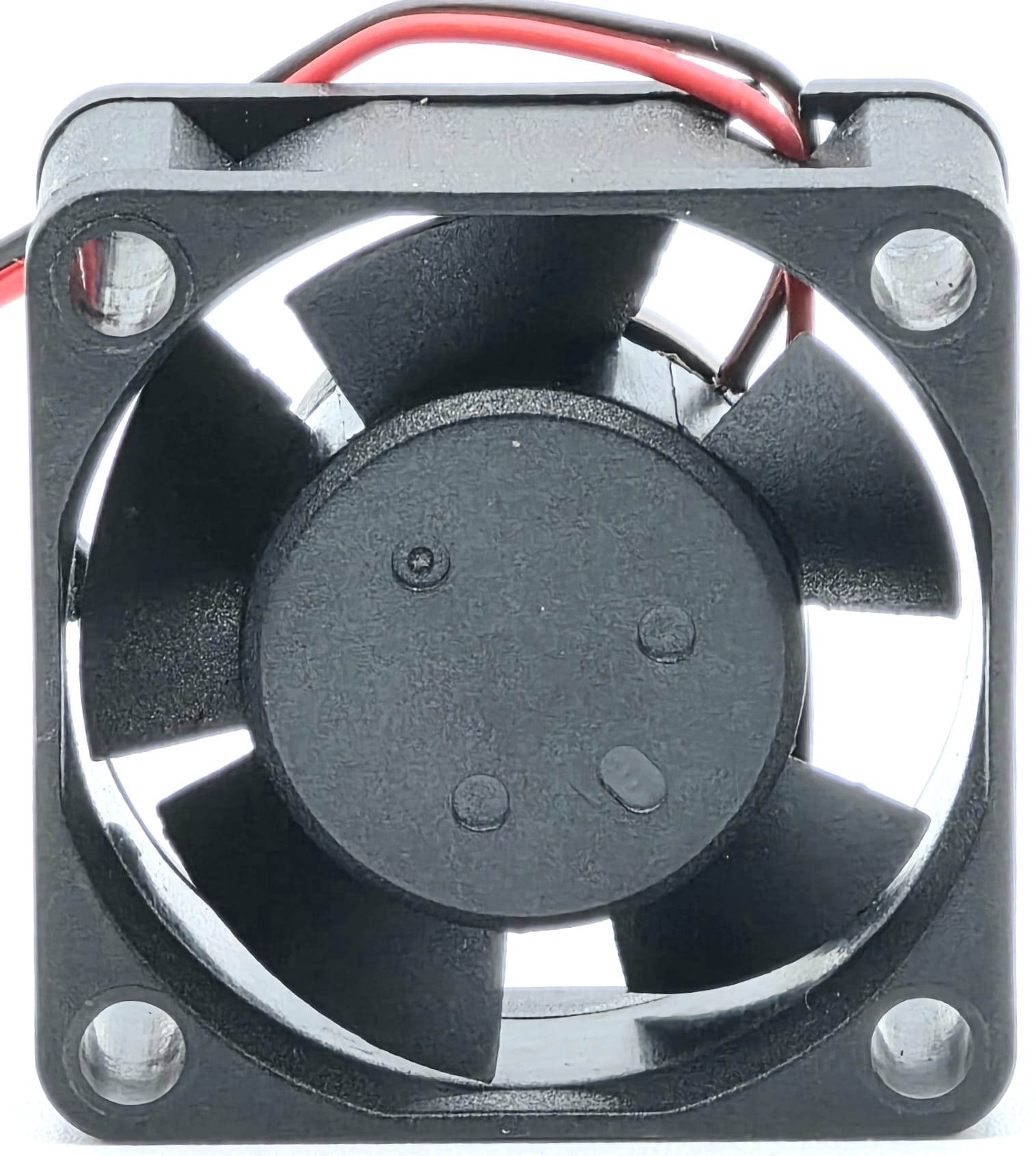

GM1204PKVX-8A - 40x40x20mm 4020 DC12V 2.4W 2-Pin Connector DC Brushless Cooling Fan
Description
Compact 40mm x 20mm DC brushless cooling fan for inverter bays, control modules, and electronics enclosures. Operates at 12V DC with a simple 2-lead wire harness and 2-pin connector for quick drop-in replacement.
Technical Specifications
- Dimensions: 40 x 40 x 20 mm 4020
- Rated Voltage: DC 12V
- Rated Power: 2.4W
- Approx. Rated Current: ~0.20A (derived from 2.4W ÷ 12V)
- Interface: 2-lead wires with 2-pin connector (+V / GND)
- Fan Type: DC brushless axial
- Mounting: Standard 40mm square pattern
- Housing: Flame-retardant thermoplastic, UL94V-0 class
- Indicators: Molded arrows for airflow and rotation
Interchangeable / Replacement Part Numbers
✅ Confirmed Compatibility
Please note that the following list is not exhaustive. Compatibility depends on your system's specific configuration. It's essential to verify compatibility with your system or enclosure manufacturer prior to installation.
✔ Inverter and VFD cooling bays
✔ PLC and automation control panels
✔ Embedded electronics and networking gear
✔ Compact power supplies and small equipment housings
☑️ Key Features
- ☑️ 40x40x20mm footprint for space-constrained installs
- ☑️ 12V DC operation with low 2.4W power draw
- ☑️ Simple 2-pin hookup for fast field replacement
- ☑️ Brushless design for stable continuous duty
- ☑️ Standard 40mm mounting for broad mechanical fit
⚙️ Fit Notes
- Verify your device requires a 40x40x20mm 12V DC 2-wire fan and that the connector type and pinout match your harness.
- Typical wiring: Red = +12V, Black = Ground. Always confirm on your controller.
- Align airflow and rotation using the molded arrows on the frame; keep intake and exhaust paths unobstructed.
- This 2-wire model does not provide tach feedback or PWM control and will run at native speed when powered.
