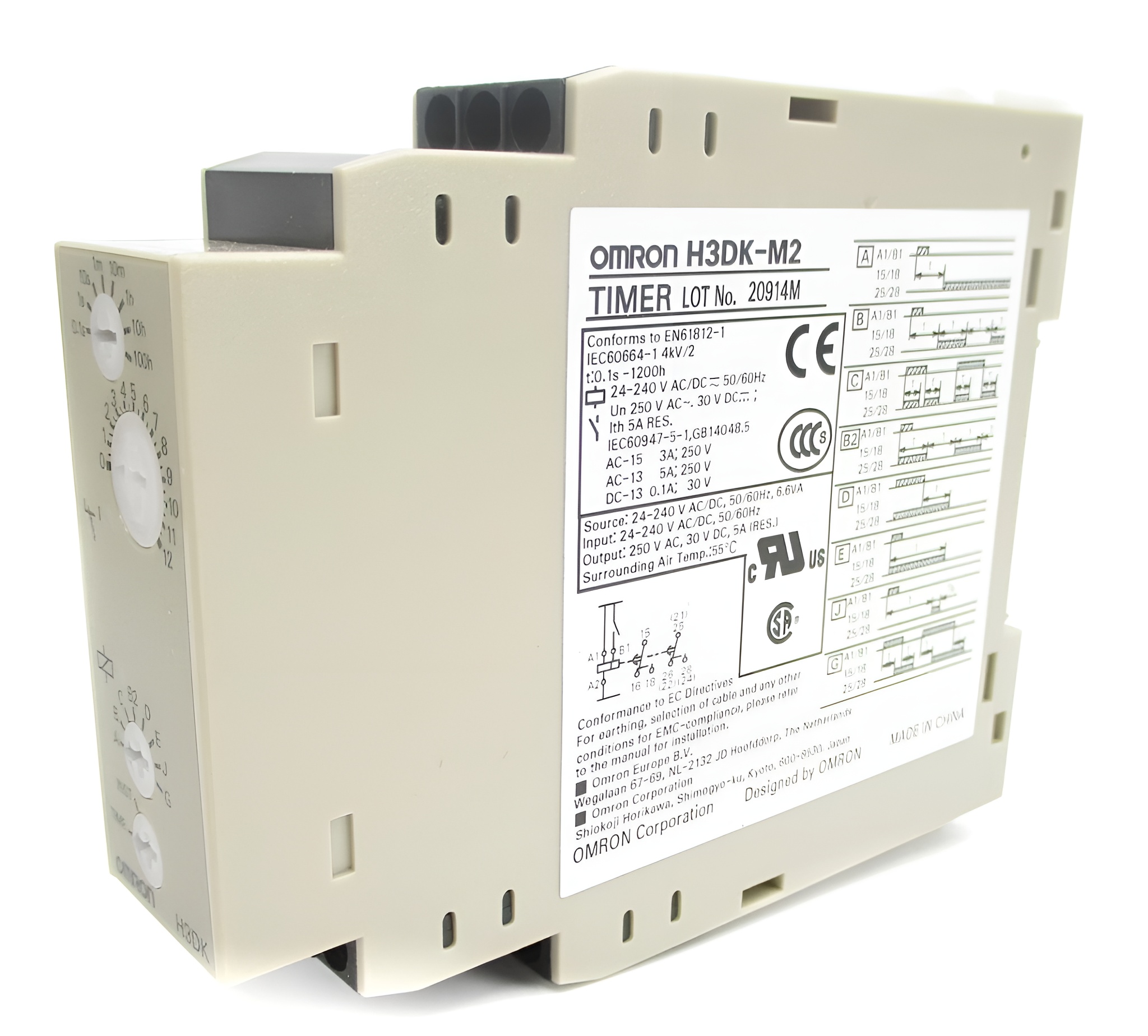

H3DK-M2 – 24–240V AC/DC Multi-Range Analog Timer Relay
Description
The H3DK-M2 is a multi-range analog timer relay designed for precise control in industrial automation, process timing, and sequential operations. Supporting both AC and DC input voltages (24–240V), this Omron relay provides adjustable time ranges, dual-mode operation, and a compact DIN-rail mount design for easy panel integration. It’s ideal for controlling motor starts, lighting systems, conveyors, and PLC-based timing logic.
Technical Specifications
- Part Number: H3DK-M2
- Timer Type: Analog multi-range timer relay
- Supply Voltage: 24–240V AC / 24–240V DC (universal input)
- Time Ranges: 0.1 sec to 1200 hrs (selectable)
- Operating Modes: ON-delay / Flicker-OFF start
- Output Contacts: SPDT (1 Form C)
- Contact Rating: 250V AC, 5A (resistive load)
- Power Consumption: Approx. 1.7 VA (AC) / 0.9 W (DC)
- Accuracy: ±1% of full scale
- Repeat Accuracy: ±0.2%
- Reset Time: 100 ms max
- Mounting Type: DIN-rail (35 mm standard)
- Indicators: Power (green LED), Output (orange LED)
- Operating Temperature: –10 °C to +55 °C
- Storage Temperature: –25 °C to +65 °C
- Dimensions (W×H×D): 22.5 × 90 × 84 mm
- Weight: Approx. 120 g
- Certifications: UL, CSA, CE, RoHS compliant
Interchangeable / Replacement Part Numbers
- H3DK-M1 (single-mode version)
- H3DK-M2 AC/DC24-240 (same specification with alternate labeling)
- H3CR-A8 (legacy Omron equivalent with similar timing ranges)
✅ Confirmed Compatibility
- ✔ Control panels and industrial automation systems using universal AC/DC timers
- ✔ PLC-controlled machinery requiring delay-on or flicker timing functions
- ✔ Conveyor systems, pumps, lighting circuits, and process controllers
- ✔ Replacement for legacy H3DK-M and H3CR-A timer models in DIN-rail setups
☑️ Key Features
- ☑️ Wide operating voltage (24–240V AC/DC) for flexible global use
- ☑️ Selectable time ranges from seconds to hours for universal timing control
- ☑️ ON-delay and flicker modes in a single compact unit
- ☑️ High accuracy and repeatability ensure consistent control timing
- ☑️ DIN-rail mount for fast installation and maintenance
- ☑️ LED indicators provide clear status feedback at a glance
⚙️ Fit Notes
- Ensure the input voltage matches the configured 24–240V AC/DC range.
- When replacing an older timer, match both the pin layout and timing mode to ensure proper circuit operation.
- Leave at least 10 mm clearance for air circulation to avoid heat buildup.
- Compatible with Omron P2CF-08 or PFP-100N mounting accessories.
