408658-001 / 409124-001 - 16-Pin 11.5-Inch BBWC Battery Cable for Smart Array P400

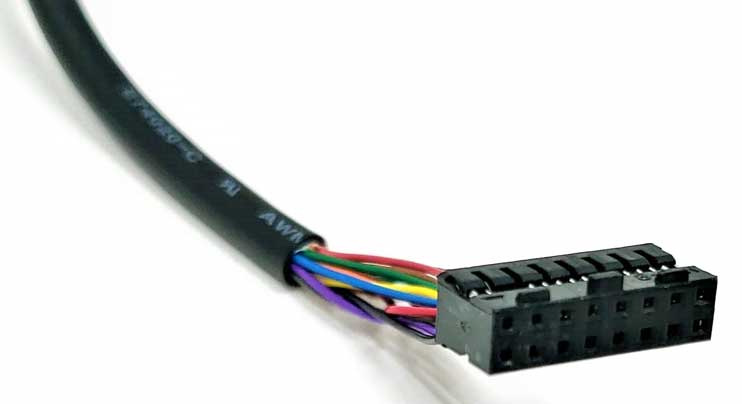

This 16-pin battery-to-cache cable connects a compatible 4.8V Ni-MH BBWC battery pack to the cache memory module on Smart Array P400 and selected P400i controller installations. It is the 292mm or 11.5-inch cable identified by assembly number 408658-001 and service spare number 409124-001.
Technical Specifications
- Product Type: BBWC battery-to-cache cable
- Cable Length: 292mm (11.5 inches)
- Wire Gauge: 28 AWG
- Connector: 16-pin battery/cache interface
- Controller Support: Smart Array P400 and selected P400i installations
- Cache Support: 256MB and 512MB BBWC modules
- Battery Support: Compatible 4.8V Ni-MH RAID controller battery packs
- Function: Connects the battery pack to the controller cache memory module
- Included: Cable only; controller, cache module, battery and mounting hardware are not included
Interchangeable / Replacement Part Numbers
- 408658-001: Cable assembly number
- 409124-001: Direct service-spare number
Related Part Numbers
- Compatible Battery: 398648-001, 381573-001, 012695-001, HSTNM-B011
- Battery Option Kit: 383280-B21
- 512MB Cache Module: 405835-001, 012764-003, 013126-000, 405148-B21
- 256MB Cache Module: 405836-001, 012764-004, 013125-000, 405139-B21
- P400 Controller Boards: 405831-001, 405832-001, 447029-001, 504022-001, 504023-001
- Complete Controller Kits: 405162-B21, 411064-B21
- Related Controller Options: 405132-B21, 405133-B21, 405160-B21, 405161-B21
- Alternate 24-Inch Cable: 408658-002, 409125-001
- 24-Inch Battery Attach Kit: 417836-B21
- Related SAS Data Cable: 361316-011
Related Parts and Cross-Sell
✅ Confirmed Compatibility
Compatibility requires an installed Smart Array P400 or supported P400i controller, a compatible BBWC cache module and a battery location that uses the 11.5-inch cable. Some configurations of the same system require the longer 24-inch cable.
✔️ Controller Applications: Smart Array P400 and selected P400i installations using 408658-001 or 409124-001
✔️ ProLiant Blade Systems: BL460c G7, BL480c, BL620c G7, BL680c G5, BL680c G7
✔️ ProLiant DL100 Series: DL180, DL180 G5, DL185 G5
✔️ ProLiant DL300 Series: DL360 G5, DL365, DL365 G5, DL380 G5, DL380 G5 Storage Server, DL385 G2, DL385 G5
✔️ ProLiant DL500 Series: DL580 G5, DL580 G7
✔️ ProLiant DL700 and DL900 Series: DL785 G5, DL785 G6, DL980 G7
✔️ ProLiant ML Series: ML310 G5, ML310 G5p, ML350 G5, ML370 G5, ML570 G4
✔️ Integrity Systems: BL860c, BL890c i2, rx2660, rx3600, Superdome 2
✔️ Storage Systems: P4000 G2 SAN Solutions, SB40c Storage Blade, X1800sb G2 Network Storage System, 4400 Scalable NAS File Services, All-in-One SB600c Storage Blade and Enterprise Virtual Array File Services
✔️ Additional Storage Applications: Selected High Availability Storage Server and StoreOnce configurations equipped with a compatible P400 or P400i BBWC installation
☑️ Key Features
☑️ Direct replacement for both 408658-001 and 409124-001
☑️ 292mm or 11.5-inch cable for short battery-mounting routes
☑️ 28-AWG construction with a 16-pin battery/cache interface
☑️ Connects the BBWC battery pack directly to the cache memory module
☑️ Supports compatible 256MB and 512MB BBWC configurations
☑️ Replaces a damaged or missing cable without purchasing a complete controller kit
⚙️ Fit Notes
- Confirm that the original cable is marked 408658-001 or 409124-001.
- Verify the required cable length before ordering. 408658-002 / 409125-001 is the 24-inch version and is not the same physical-length replacement.
- Controller compatibility alone does not determine cable fit. Battery mounting location and chassis routing determine whether the 11.5-inch or 24-inch cable is required.
- This is a battery-to-cache cable and does not replace the SAS drive data cable.
- Use only with the appropriate 4.8V Ni-MH battery pack and compatible BBWC cache module.
- Power down the system and disconnect external power before replacing the cable or battery.
- A failed or missing battery may cause the controller to disable write-back cache even when the cable is functioning correctly.
