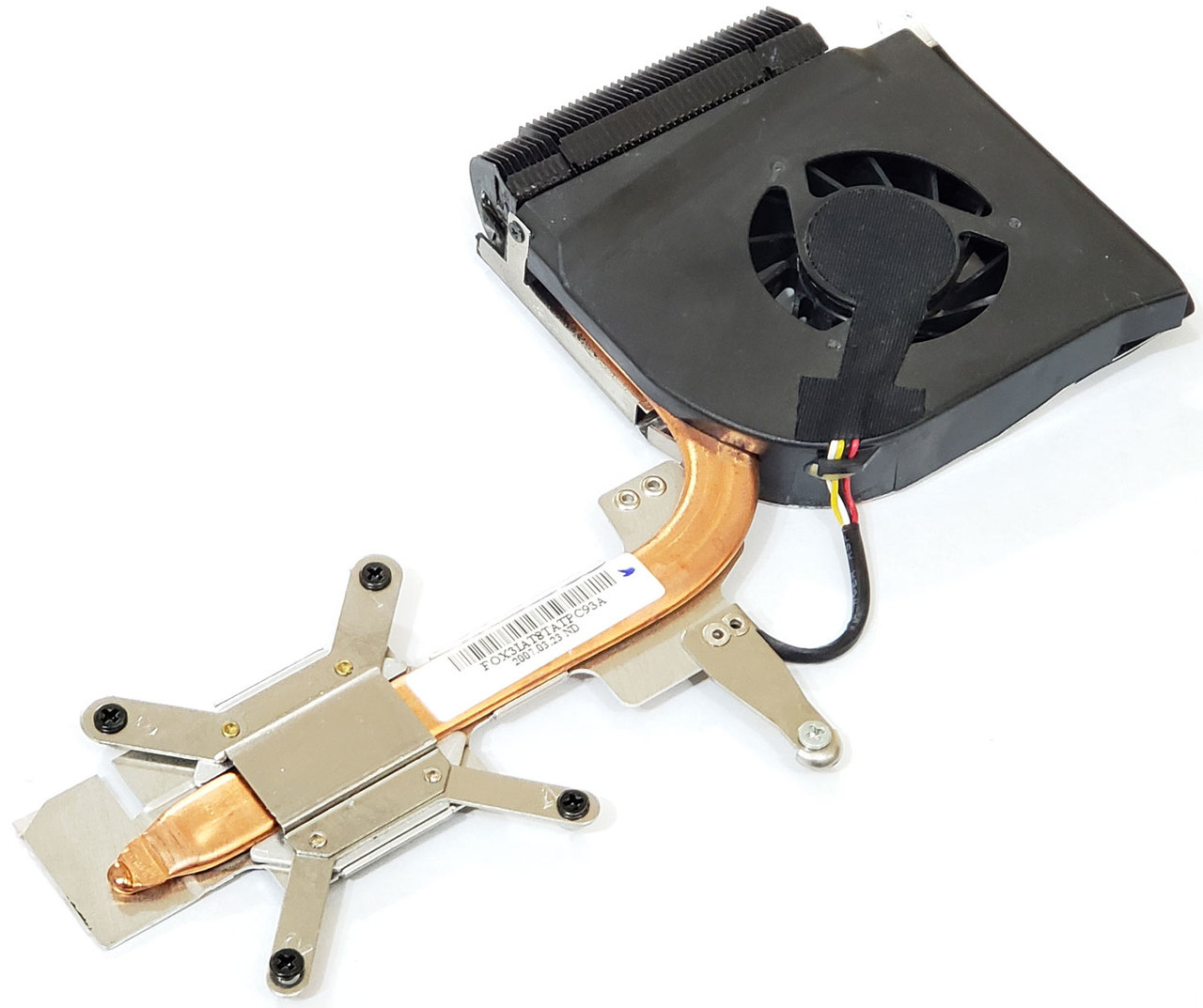

431448-001 - HP Pavilion DV6000 Series CPU Fan Heatsink Assembly
Complete OEM-style cooling module (blower fan + copper heatpipe/fin stack) designed for specific HP Pavilion dv6000 family laptops built on the AMD platform. Ideal replacement for noisy/failed fans, overheating, or thermal throttling.
Description
This assembly combines a low-profile blower and copper heatpipe that routes heat to the fin stack and out the side exhaust. Replace the unit as a whole and apply fresh thermal compound during install to restore proper cooling performance.
Technical Specifications
- Manufacturer: HP
- Spare Part Number (SPN): 431448-001
- Platform: AMD-based dv6000 series (not for Intel variants)
- Fan Connector: 4-pin PWM
- Rated Voltage/Current: 5V DC, ~0.36A
- Typical Fan Models Seen: GC055515VH-A, KSB0605HB
- Assembly Type: Blower fan + copper heatpipe + aluminum fin stack
- Service Tip: Remove old thermal paste and apply new compound on reassembly
Compatibility
Please note that the following list is not exhaustive. Compatibility depends on your system’s specific configuration. It’s essential to verify compatibility with your system or enclosure manufacturer prior to installation.
✔ HP Pavilion dv6000 Series (AMD configurations):
dv6000, dv6100, dv6200, dv6300, dv6400
Key Features
- ☑ Direct spare for HP 431448-001
- ☑ 4-pin PWM control for proper fan speed management
- ☑ Copper heatpipe + fin stack for efficient heat dissipation
- ☑ Restores cooling performance; helps prevent throttling/shutdowns
- ☑ Drop-in fit for listed dv6000-series AMD models
Cross-Reference & Technician Notes
- This assembly is for AMD boards only in the dv6000 family; Intel-board heatsinks differ in routing and bracket geometry.
- Confirm your exact dv6000 sub-model and CPU platform (AMD vs Intel) before ordering.
- Replace as a complete module; do not separate the factory-aligned fan from the heatsink.
What’s Included
- Heatsink + blower fan assembly (431448-001)
- Thermal paste not included (apply fresh compound during installation)
