HP 467811-001 - 60GB 4200RPM 5mm 1.8" Slim ZIF PATA Hard Drive for HP Mini 1000 Latitude XT D420 D430

60GB 4200 RPM 5 mm 1.8" Slim ZIF PATA Hard Drive for HP Mini 1000, Latitude XT, D420, D430

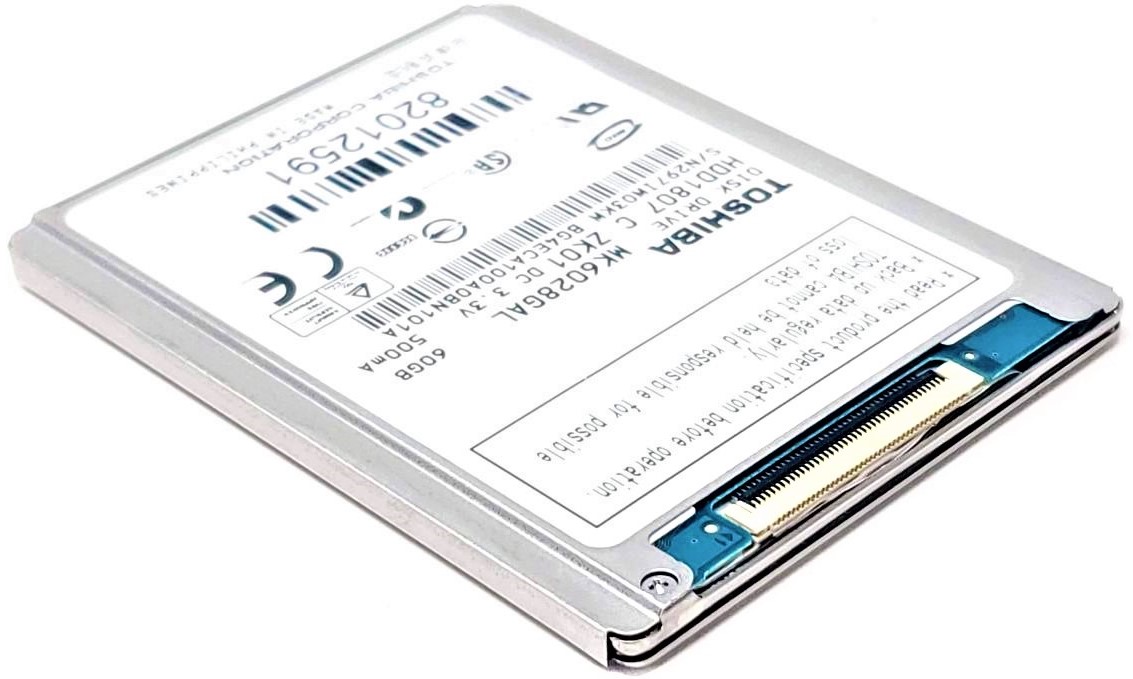

The HP 467811-001 is a 60 GB 1.8-inch Slim ZIF PATA hard drive with a 5 mm chassis height, designed for ultra-compact notebooks and portable devices. Operating at 4200 RPM, it provides reliable performance for systems originally equipped with ZIF 40-pin PATA drives.

Technical Specifications

• Primary PN: 467811-001
• Capacity: 60 GB
• Form Factor: 1.8" slim, 5 mm height
• Interface: ZIF 40-pin PATA (ATA/ATAPI)
• Spindle Speed: 4200 RPM
• Sector Size: 512 bytes (LBA)
• Use Case: Subnotebooks, netbooks, embedded systems, media devices

Interchangeable Part Numbers (exact 60 GB, 5 mm, 1.8" ZIF PATA)

• HP Spare/Assembly: 467811-001, 504601-001
• Toshiba Assembly Codes: HDD1807
• Drive Model: MK6028GAL

✅ Confirmed Compatibility

Please note that the following list is not exhaustive. Compatibility depends on your system’s specific configuration. Always verify ZIF interface and height requirements prior to installation.

✔️ Apple: MacBook Air A1237
✔️ Dell: Latitude XT, Latitude D420, Latitude D430, Inspiron Mini 12 (1210)
✔️ HP: Mini 1000 PC series, Mini 1000 Vivienne Tam Edition, Mini 1100 PC series, Mini 1100 Vivienne Tam Edition
✔️ Compaq: Mini 700 PC series, Mini 730 PC series
✔️ Microsoft: Zune portable media players

❌ Not Compatible With: Apple MacBook Air A1304 (different storage interface)

Key Features

☑️ 1.8" ultra-slim 5 mm ZIF design for netbooks and ultraportables
☑️ 60 GB capacity with 4200 RPM operation for low power and heat
☑️ Reliable Toshiba-based design with ZIF 40-pin PATA interface
☑️ Fully tested replacement, ideal for legacy systems and embedded use
☑️ Drop-in replacement for OEM part 467811-001 and equivalents

Replaces the Following ZIF Hard Drives

This 60 GB ZIF PATA drive can replace the following models (different capacities, but identical interface and fit):

GJ692, 655-1398, MK2008GAL, MK3008GAL, MK4009GAL, MK6014GAL, MK6015GAL, MK6008GAH, MK6036GAL, MK8009GAH, MK8010GAH, MK8014GAL, MK8025GAL, MK8034GAL, MK1214GAH, MK1231GAL, MK1234GAL, MK1224GAH, MK1634GAL, MK2431GAH

Fit Notes

• This is a ZIF 40-pin PATA drive. Not compatible with SATA, mSATA, or micro SATA.
• Height: 5 mm slim design. Replaces some 8 mm ZIF drives where clearance allows. A spacer may be needed in certain bays.
• Ensure ZIF ribbon orientation is installed exactly as in the original drive.
• Ideal for cloning, imaging, or restoring legacy operating systems on supported netbooks and portable devices.
