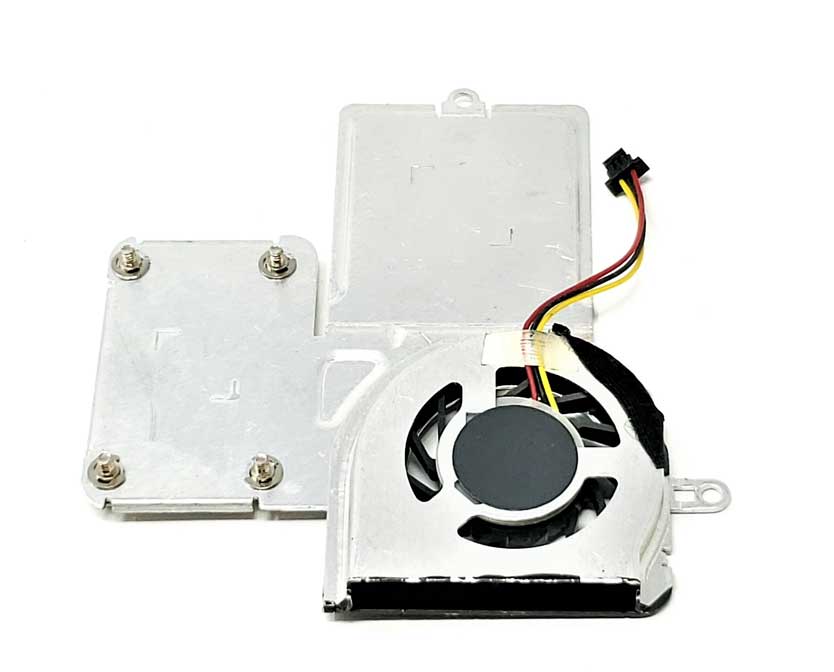

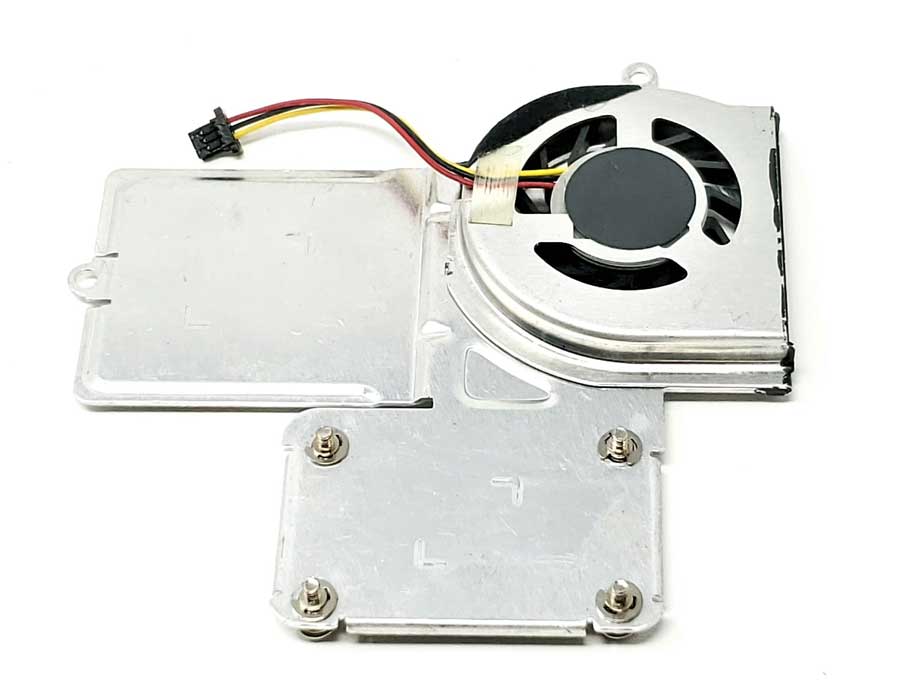

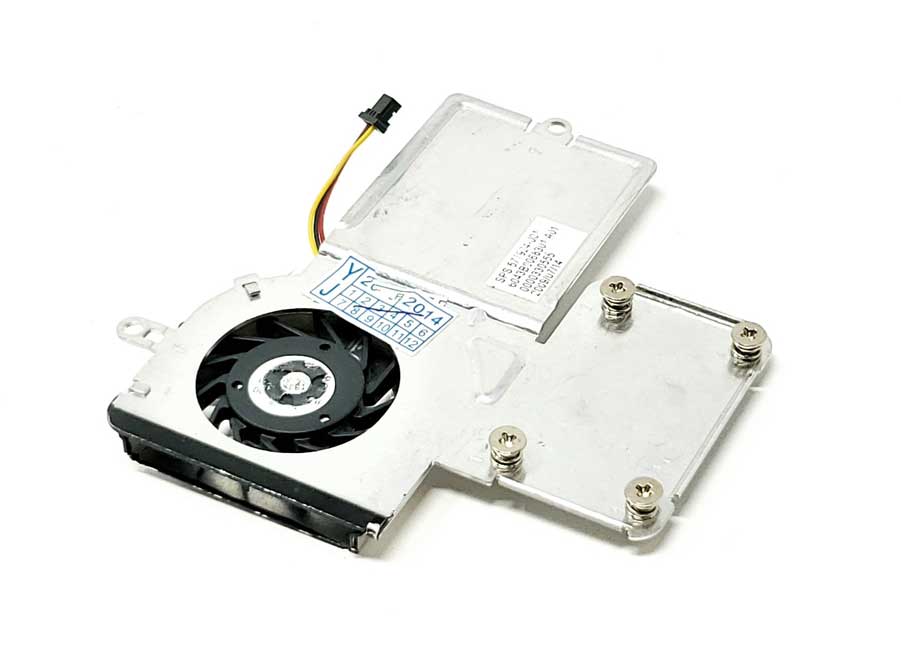

577924-001 - HP Mini 5101 Heatsink with Fan CPU Cooling Module
Compact thermal module (heatsink + fan) designed for the HP Mini 5101. This assembly draws heat off the CPU and exhausts it out the left side vent. Ideal as a like-for-like replacement to resolve fan noise, overheating, or thermal throttling.
This genuine HP thermal solution combines the copper heatsink and blower-style fan in one assembly for the HP Mini 5101. The unit routes airflow through the left chassis vent. When servicing, apply fresh thermal paste before reinstallation to ensure proper heat transfer.
Technical Specifications
- Manufacturer: HP
- Spare Part Number (SPN): 577924-001
- Assembly Code: 6043B0068301 (may vary by production batch)
- Form Factor: Low-profile blower with copper heat spreader

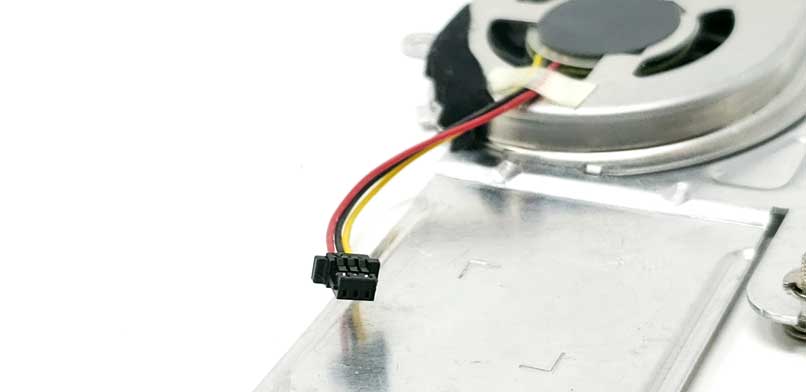

- Fan Connector: 3-pin header
- Exhaust Direction: Left-side chassis vent
- Service Tip: Remove old thermal compound and apply new paste during reassembly
Compatibility
Please note that the following list is not exhaustive. Compatibility depends on your system’s specific configuration. It’s essential to verify compatibility with your system manufacturer prior to installation.
✔ HP Notebooks: Mini 5101
Key Features
- ☑ OEM fit and design for Mini 5101 laptops
- ☑ Integrated blower and heatsink for optimal cooling
- ☑ Direct spare for part number 577924-001
- ☑ Helps restore proper airflow and prevent thermal throttling
Cross-Reference & Technician Notes
- 577924-001 is specific to HP Mini 5101 systems.
- HP Mini 5102 and 5103 typically use different assemblies and should not be interchanged.
- Always clean and reapply thermal paste when replacing the heatsink and fan module.
