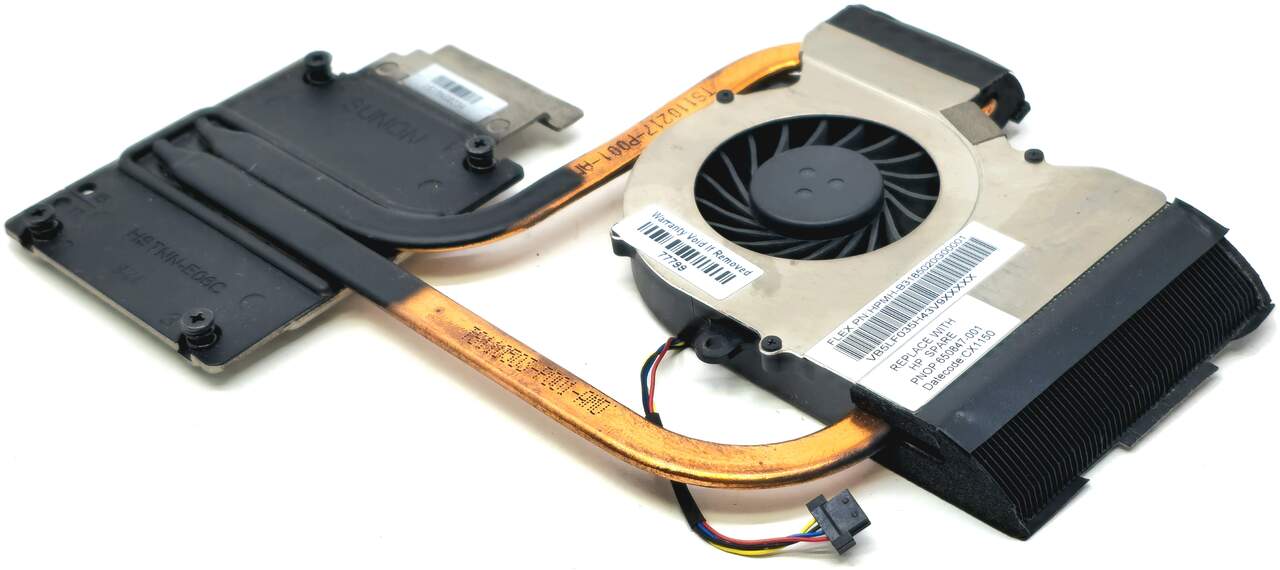

HP Pavilion DV6-6000 DV7-6000 CPU Fan Heatsink Assembly
OEM cooling module (blower fan + copper/aluminum heatsink) for Pavilion DV6-6000 and DV7-6000 series. Replace the full unit to restore proper airflow and prevent overheating or thermal throttling.
Description
This part is the entire fan/heatsink assembly for the DV6-6000/DV7-6000 platform. The radial blower moves air through the fin stack and out the side vent. Install as a single module and apply fresh thermal compound during reassembly.
For fan-only, see 650847-001-FAN.
Technical Specifications
- Manufacturer: HP
- Spare Part Number (SPN): 650847-001
- Board/Heatsink Code: HPMH-B3185020G00001
- Fan Model Codes: AD6505HX-EEB, KSB0505HB, MF60120V1-C181-S9A
- Electrical: DC 5V, 0.50A
- Connector: 4-wire / 4-pin
- Assembly: Radial blower + copper heatpipe + aluminum fin array
- Service Tip: Remove old thermal paste and apply new high-quality compound before reassembly
Compatibility
Please note that the following list is not exhaustive. Compatibility depends on your system’s specific configuration. It’s essential to verify compatibility with your system manufacturer prior to installation.
✔ HP Pavilion DV6 Series: DV6, DV6-6000, DV6-1149WM, DV6-6108US, DV6-6115, DV6-6145DX
✔ HP Pavilion DV7 Series: DV7-6000, DV7-6xxx, dv7-6b00 Entertainment Notebook PC series, dv7-6c00 Entertainment Notebook PC series
Key Features
- ☑️ Direct OEM replacement for DV6-6000/DV7-6000 thermal module
- ☑️ 4-pin blower engineered for the original motherboard header and airflow path
- ☑️ Matched shroud and mounting geometry for drop-in fit
- ☑️ Helps eliminate overheating, throttling, and loud fan operation
Cross-Reference & Technician Notes
- Replace as a complete unit; do not separate fan from heatsink
- Discrete-GPU variants may use different heatpipe layouts—confirm exact sub-model and board revision
- Clean dust from vents and fan channels during installation
Recommended Thermal Paste (Not Included)
Use Shin-Etsu G751 High-Performance OEM-Grade Thermal Paste—not included but required for proper installation. Buy Here
What’s Included
- Complete CPU fan + heatsink assembly (650847-001)
- Thermal paste not included (see recommendation above)
