HP 768753-001 - Cooling Fan for ProLiant DL120 DL160 G9

Cooling Fan Module for HPE ProLiant DL120 Gen9 / DL160 Gen9 / DL60 Gen9

Description

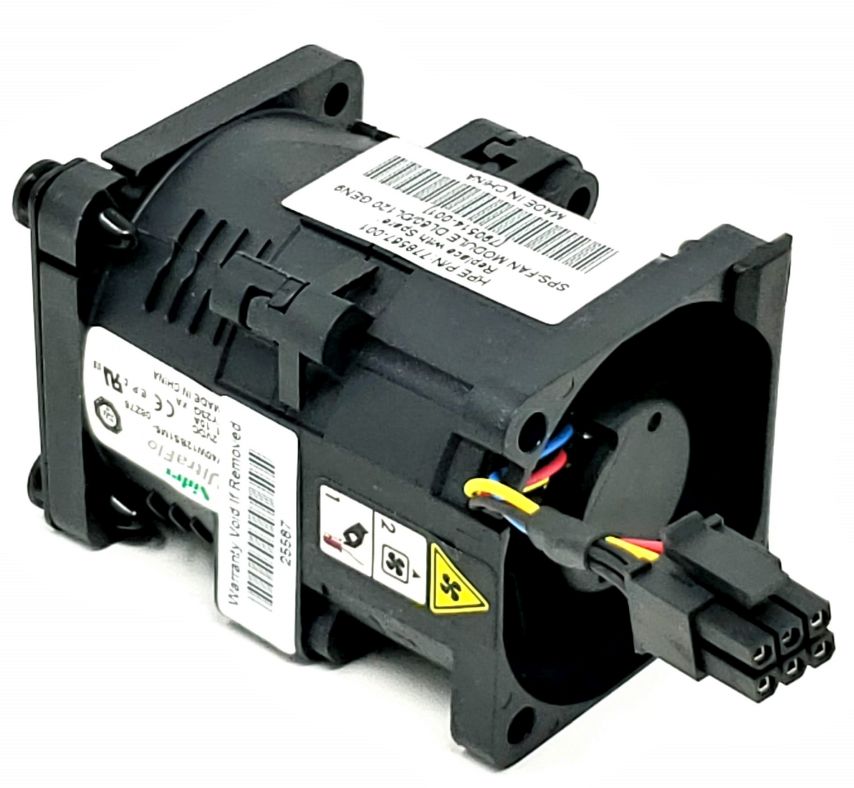

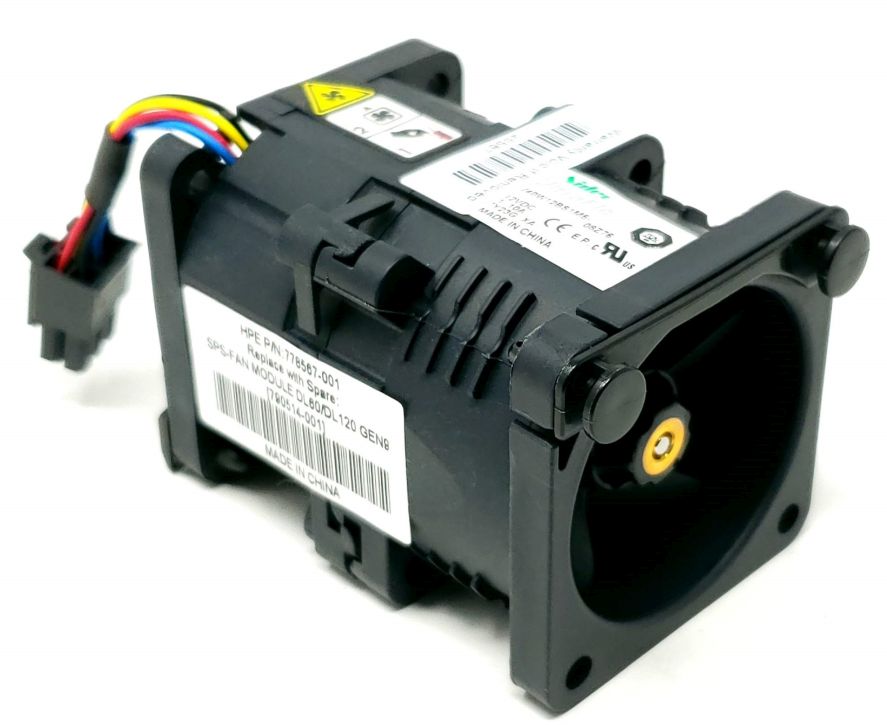

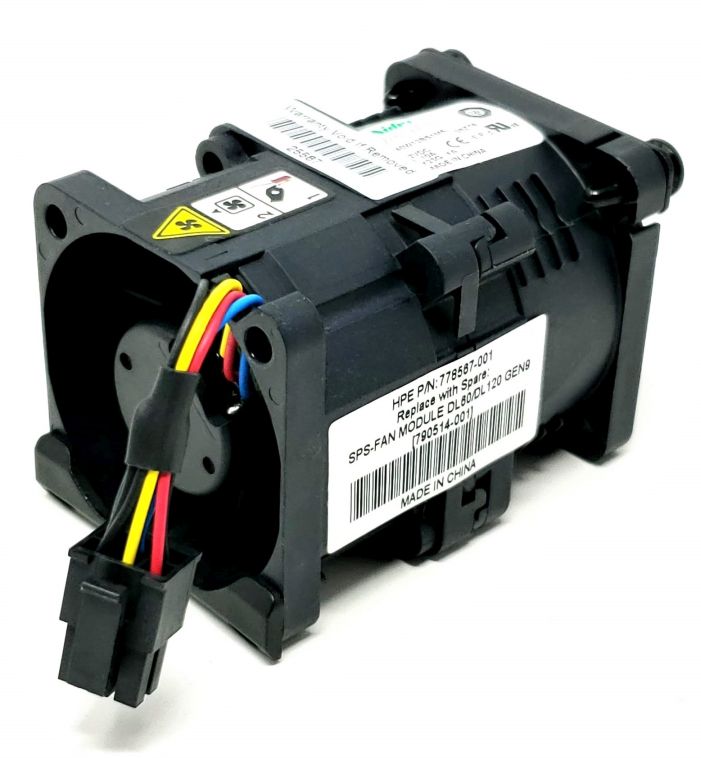

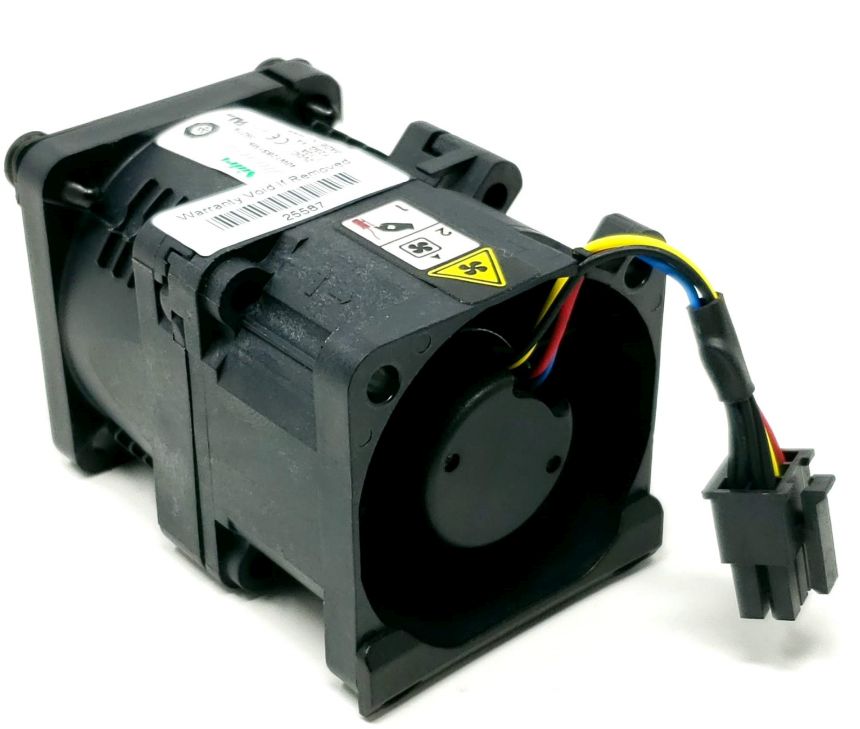

Hot-plug 40 mm dual-rotor server fan module built to HPE spec for Gen9 1U platforms. Provides very high static pressure to move air across CPU, memory, and VRM zones in dense chassis. Pre-wired in the correct Gen9 carrier with a locking 6-pin module connector for drop-in replacement and system-managed PWM/tach control.

Technical Specifications

• Form factor / size: 40 mm × 40 mm × 56 mm dual-rotor (“4056”) module
• Voltage / control: 12 V DC; 4-wire PWM with tach feedback (to 6-pin module connector)

• Current (typical by motor):

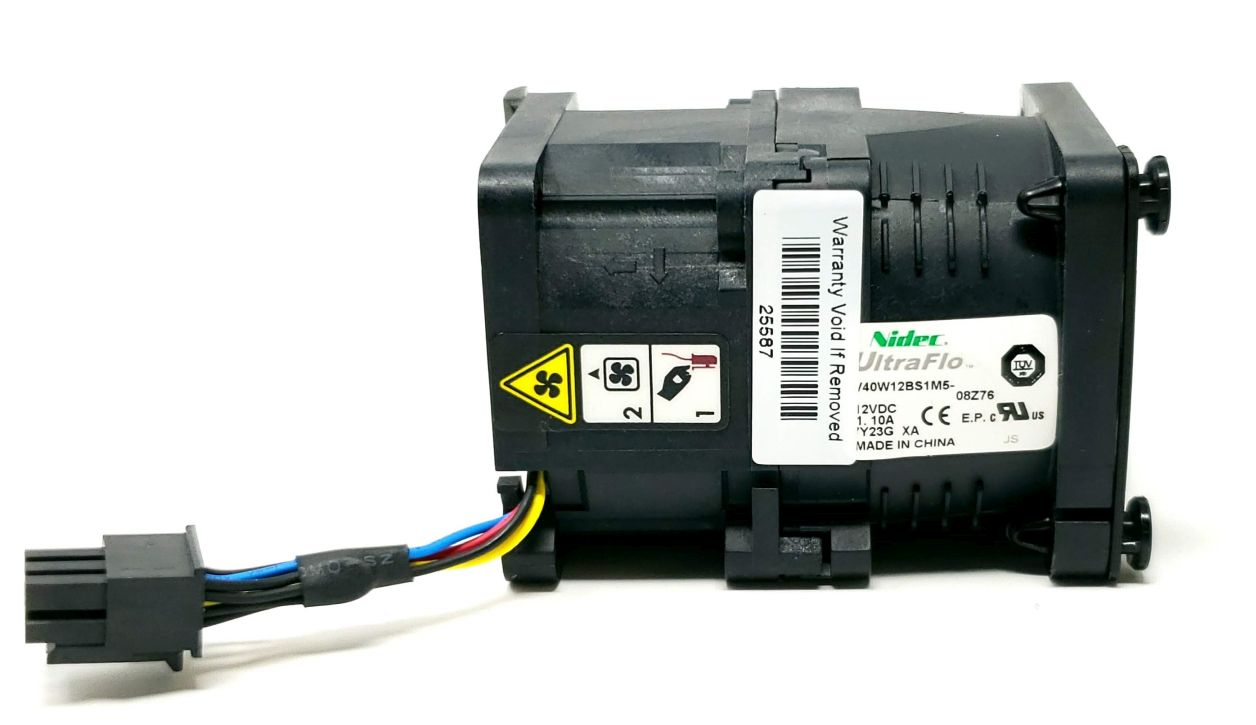

  V40W12BS1M5-08T02 (Nidec): ~1.10 A
• PFM0412HS-DG57 (Delta): ~1.50 A
• Harness: 6-pin locking module plug; 5-wire lead (module standard)
• Bearing: Server-grade ball bearing
• Serviceability: Hot-plug carrier; tool-less swap

Please note that the following list is not exhaustive. Compatibility depends on the device’s design and cooling requirements. It’s essential to verify compatibility with the device manufacturer.

✅ Confirmed Compatibility

✔ HPE ProLiant: DL120 Gen9, DL160 Gen9, DL60 Gen9

Interchangeable / Equivalent Part Numbers

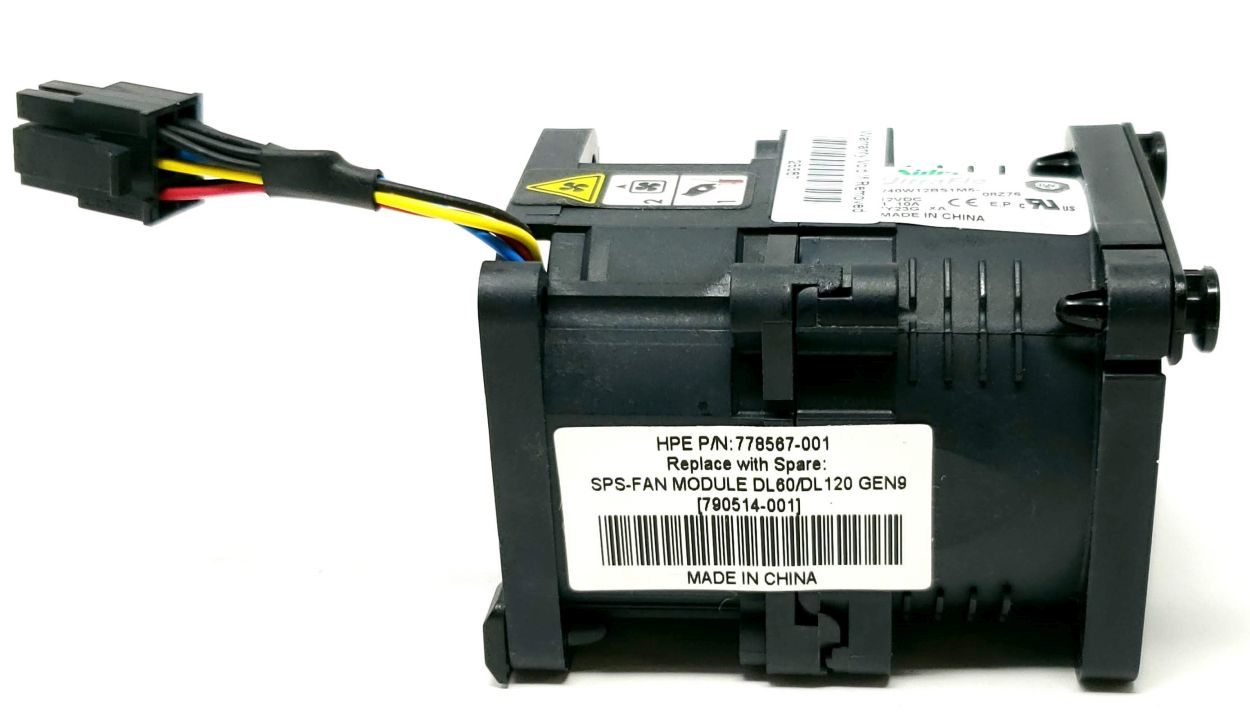

• 778567-001, 768753-001, 790514-001, 779103-001 (fan module spares/options used across DL60/120/160 Gen9)
• V40W12BS1M5-08T02 (Nidec motor code inside module)
• PFM0412HS-DG57 (Delta motor code inside module)

What’s Included

• 1× 40×56 mm hot-plug cooling fan module in Gen9 carrier (pre-wired, ready to install)

Key Features

• ☑ High static-pressure dual-rotor design for dense 1U airflow paths
• ☑ PWM + tach feedback for precise, system-managed thermals
• ☑ Hot-plug, tool-less carrier minimizes downtime
• ☑ Built with server-grade ball bearings for reliable 24×7 duty
• ☑ Drop-in fit for HPE ProLiant DL60/120/160 Gen9 fan banks
