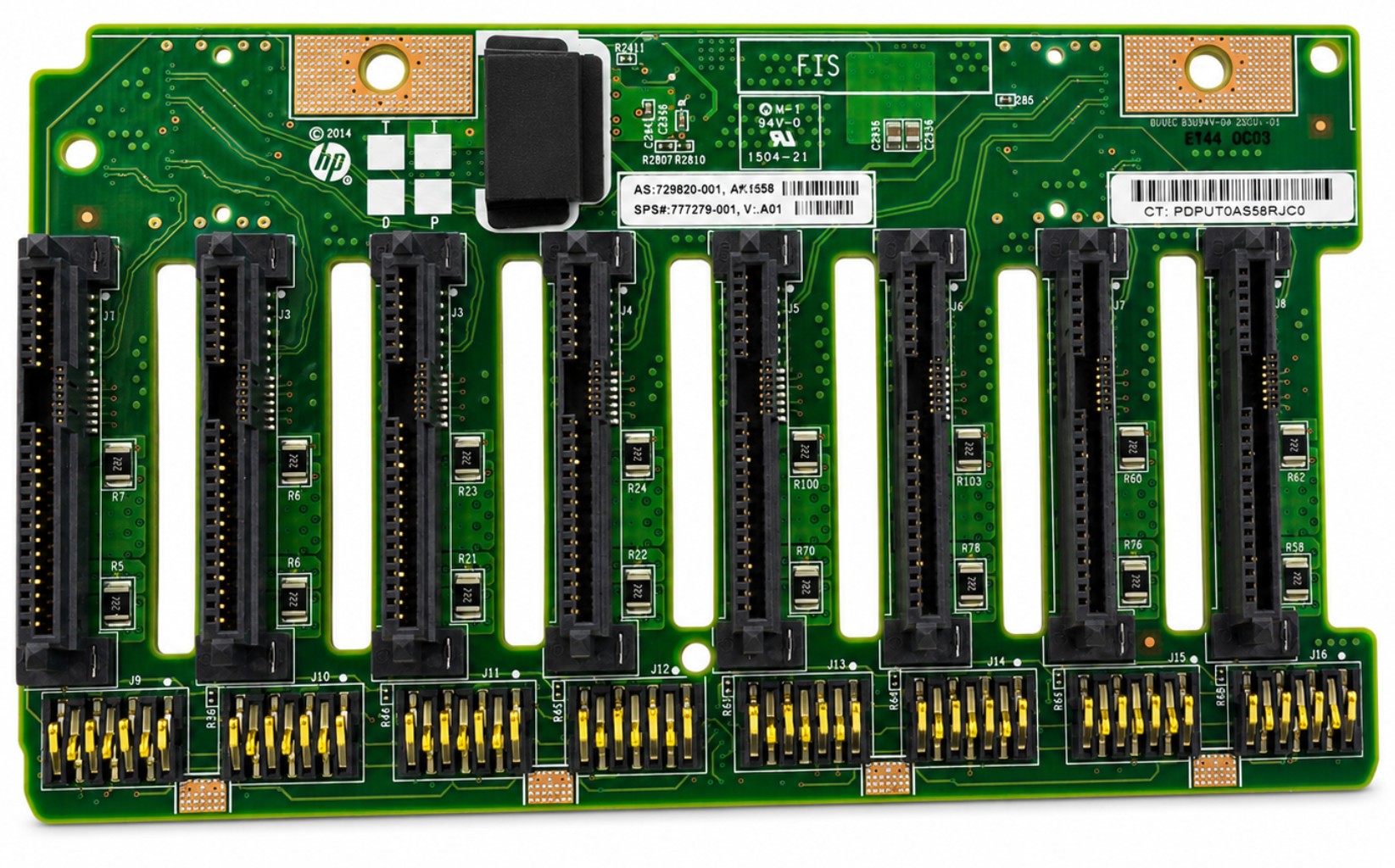

777279-001 - 8-SFF 2.5 12G SAS SATA Backplane Board for ProLiant DL380 Gen9 DL180 Gen9 ML350 Gen9

Description

777279-001 is an 8-bay small form factor 2.5" SAS/SATA backplane board designed for select ProLiant Gen9 server systems using an 8-SFF hot-swap drive cage. This backplane mounts to the rear of the 8-bay SFF drive cage and provides the internal drive interface for up to eight 2.5" SAS or SATA hard drives and solid-state drives.

This is a 12Gb/s SAS-capable backplane for systems configured with 2.5" SFF Smart Carrier drive bays. It is commonly used in DL380 Gen9, DL180 Gen9, and ML350 Gen9 8-SFF configurations and may also cross-reference with certain compatible 8-SFF ProLiant storage cage assemblies.

This listing is for the backplane board only. SAS data cables, backplane power cable, drive cage, RAID controller, drives, and drive trays are sold separately unless specifically stated otherwise.

What’s Included

HP 777279-001 8-SFF 2.5" SAS/SATA 12Gb/s Backplane Board

Technical Specifications

Product Type: 8-Bay SFF Drive Backplane Board
HP Spare Part Number: 777279-001
Assembly / Alternate Part Numbers: 729820-001, 832305-001, 832305-002
Drive Bay Support: 8 x 2.5" SFF hot-swap drive bays
Drive Interface: SAS / SATA
SAS Speed Support: Up to 12Gb/s SAS
Supported Drive Types: 2.5" SAS HDD, 2.5" SATA HDD, 2.5" SAS SSD, 2.5" SATA SSD
Backplane Connector Type: Internal Mini-SAS SFF-8087
Data Connectors: 2 x SFF-8087 internal SAS connectors
Drive Carrier Type: 2.5" SFF Smart Carrier style trays
Backplane Type: Passive SAS/SATA backplane
Expander: No onboard SAS expander
NVMe Support: No
Form Factor: Rear-mounted 8-SFF backplane PCB
Installation Location: Rear of the 8-bay 2.5" SFF drive cage
Condition: Used / Tested Working

Confirmed Compatibility

This backplane is designed for systems configured with an 8-bay 2.5" SFF SAS/SATA hot-swap drive cage.

ProLiant DL380 Gen9

Compatible with DL380 Gen9 servers configured with 8 x 2.5" SFF SAS/SATA front drive bays. This includes standard 8-SFF configurations and systems using the matching 8-SFF drive cage/backplane assembly.

Common related cage / option references:

719067-B21 - 8-SFF Bay 1 cage/backplane kit for DL380 Gen9
768857-B21 - Additional 8-SFF Bay 2 cage/backplane kit for expanded DL380 Gen9 configurations

ProLiant DL180 Gen9

Compatible with DL180 Gen9 systems configured with the 8-bay 2.5" SFF SAS/SATA drive cage. The backplane mounts behind the SFF drive cage and connects to the system RAID controller or SAS HBA using internal Mini-SAS cabling.

ProLiant ML350 Gen9

Compatible with ML350 Gen9 systems configured with an 8 x 2.5" SFF SAS/SATA hot-swap drive cage. This backplane is used with SFF Smart Carrier drive trays and internal SAS cabling.

Additional Compatible / Cross-Referenced Server Models

The following models are commonly associated with this 8-SFF 12Gb/s SAS backplane family, depending on the exact chassis configuration and installed drive cage:

ProLiant DL385 Gen9 - 8-SFF 2.5" SAS/SATA configurations
ProLiant DL560 Gen9 - 8-SFF 2.5" SAS/SATA configurations
ProLiant DL380 Gen10 - Some suppliers cross-reference this family with Gen10 8-SFF SAS configurations, but Gen10 systems commonly use 878543-001 as the dedicated 8-SFF 12Gb/s SAS backplane. Please verify the original installed part number before ordering for Gen10 systems.

Important Compatibility Notes

• This backplane is for 2.5" SFF drive bays only.
• This backplane is not compatible with 3.5" LFF drive cages.
• This backplane does not support NVMe drives.
• This backplane does not include a SAS expander.
• Systems using more than one 8-SFF drive cage may require additional SAS cabling, a compatible Smart Array controller, and/or a SAS expander depending on the server configuration.
• Drive trays must be compatible 2.5" SFF Smart Carrier style trays.
• For best compatibility, match the replacement backplane to the part number currently installed in the server.

Cable Cross References - Sold Separately

This backplane requires compatible internal SAS data cables and a backplane power cable. These cables are not included unless specifically stated in the listing.

SAS Data Cables

747568-001 - Internal Mini-SAS SFF-8087 cable used with 8-SFF SAS backplane configurations
747559-001 - Internal Mini-SAS SFF-8087 cable used as the second data cable in 8-SFF backplane configurations
784621-001 - DL380 Gen9 SFF SAS cable kit commonly associated with 747568-001 and 747559-001 cable references

The backplane uses two internal SFF-8087 SAS connections. In a standard 8-drive configuration, both SAS data paths must be connected for all eight bays to function properly.

Backplane Power Cables

747560-001 - Backplane power cable, 20cm
784622-001 - Alternate backplane power cable reference, 20cm

The backplane power cable is required to provide power to the drive backplane and drive bay electronics. If this cable is missing or damaged, drives may not power on or may not be detected properly.

Related Parts Sold Separately

719067-B21 - 8-SFF Bay 1 cage/backplane kit for DL380 Gen9
768857-B21 - Additional 8-SFF Bay 2 cage/backplane kit for DL380 Gen9
727250-B21 - SAS expander option commonly used in expanded multi-cage Gen9 storage configurations
878543-001 - 8-SFF 12Gb/s SAS backplane commonly used in DL380 Gen10 configurations
874933-001 - 8-SFF 6 SAS / 2 NVMe backplane for select Gen10 configurations, not interchangeable with this SAS-only backplane

Interchangeable / Alternate Part Numbers

777279-001, 729820-001, 832305-001, 832305-002, 777279-001-SUB, 832305-001-SUB,

Fit Notes

• Fits select 8-bay 2.5" SFF SAS/SATA ProLiant server configurations.
• Mounts to the rear of the 8-SFF hot-swap drive cage.
• Uses two internal Mini-SAS SFF-8087 data connections.
• Requires compatible SAS data cables and a backplane power cable, sold separately.
• Supports SAS and SATA drives, but does not support NVMe.
• Not for 3.5" LFF chassis configurations.
• Not a complete drive cage assembly.
• Not a RAID controller or SAS expander.
• Server firmware, Smart Array firmware, and storage controller firmware should be updated for proper 12Gb/s SAS operation.
• Please verify your current backplane part number, drive cage type, and cable configuration before ordering.

Key Features

☑️ Supports up to eight 2.5" SFF SAS/SATA drives
☑️ 12Gb/s SAS-capable backplane
☑️ Designed for hot-swap SFF drive bay configurations
☑️ Compatible with select ProLiant Gen9 8-SFF servers
☑️ Uses standard internal Mini-SAS SFF-8087 connections
☑️ Works with compatible Smart Array controllers and SAS HBAs
☑️ Ideal replacement for failed or damaged 8-SFF backplane boards
☑️ Cross-references with 729820-001, 832305-001, and 832305-002
