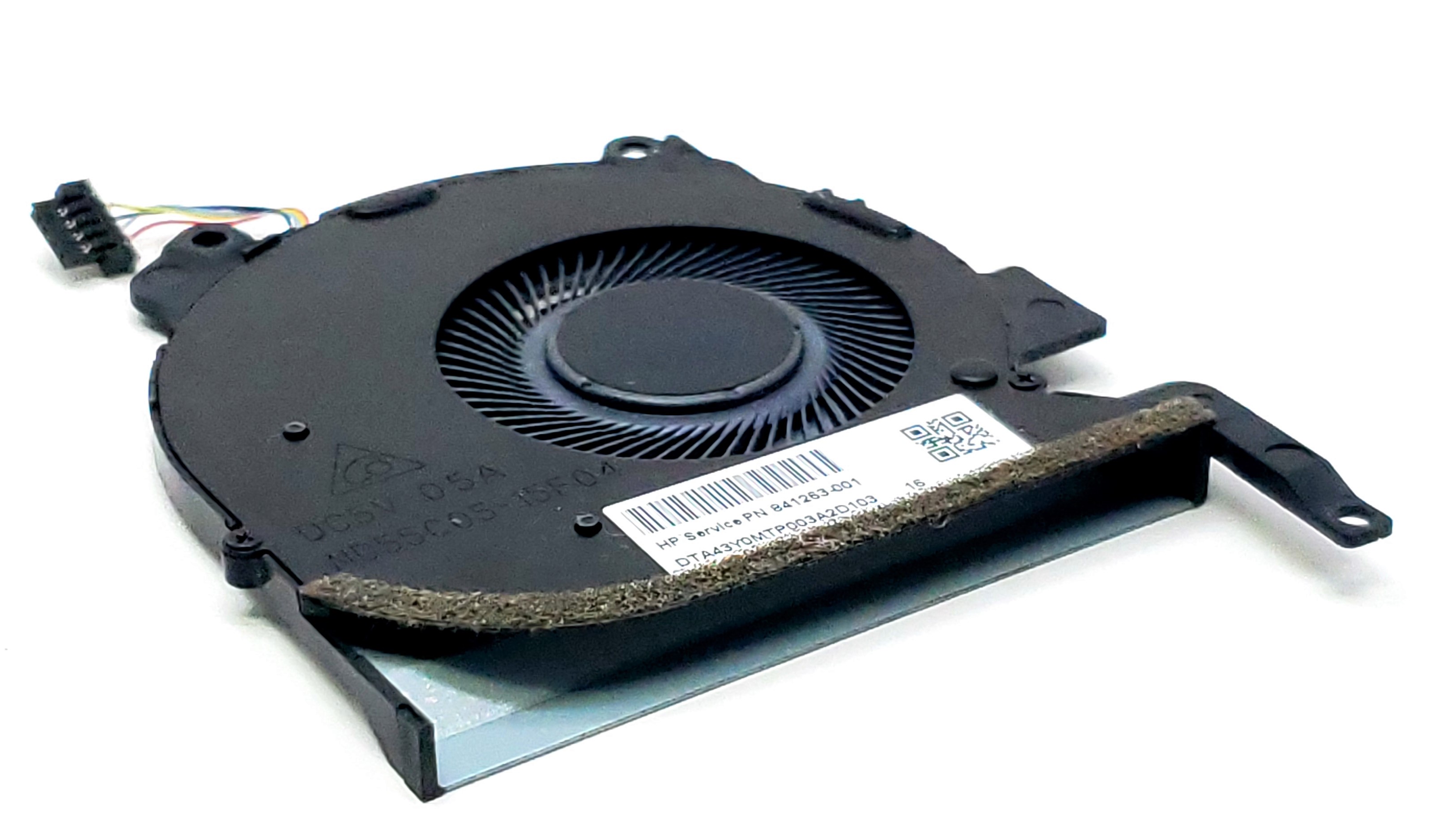

841263-001 - CPU Cooling Fan for Spectre x360 15-ap000 15-ap012dx 15-ap010ca 15-ap018ca

Internal 5V CPU cooling fan for compatible Spectre x360 15-ap000 and 15t-ap000 convertible laptops. This low-profile blower fan uses a 4-pin connection and is designed to replace a failed, noisy, intermittent, or seized fan while retaining the system’s existing heatsink and thermal module.

Technical Specifications

• Primary Part Number: 841263-001
• Part Type: Internal CPU cooling fan
• Fan Design: Low-profile centrifugal blower
• Voltage: DC 5V
• Current: 0.50A
• Connector: 4-pin connector
• Wiring: 4-wire
• Dimensions: Approximately 69mm x 67mm x 4.5mm
• Cable Length: Approximately 16mm
• Mounting Style: Three-point internal screw mounting
• Fan Manufacturer Model Numbers: ND55C05-15F04, EG50040S1-C640-S9A
• System Regulatory Model: TPN-Q168
• Compatible Product Family: Spectre x360 15-ap000 / 15t-ap000
• Associated Heatsink Reference: 847231-001 — separate thermal component and not an interchangeable fan number
• Installation Type: Internal laptop cooling fan replacement

Interchangeable / Replacement Part Numbers

841263-001, 841263001, ND55C05-15F04, EG50040S1-C640-S9A

⭐ Recommended Thermal Paste

If the heatsink or thermal module will be removed during installation, replace the existing thermal compound with Shin-Etsu G751 High-Performance Thermal Grease / Thermal Paste before reassembly.

Thermal paste is normally unnecessary when replacing only the fan and leaving the existing heatsink seated against the processor.

✅ Confirmed Compatibility

Please note that the following list is not exhaustive. Compatibility depends on your system’s specific configuration. Verify the original fan part number, manufacturer model number, connector, housing shape, dimensions, cable orientation, and mounting points before installation.

✔️ Spectre x360 15-ap000 Core Series: Spectre x360 15-ap000
✔️ United States and Canadian Models: Spectre x360 15-ap010ca, Spectre x360 15-ap011dx, Spectre x360 15-ap012dx, Spectre x360 15-ap018ca, Spectre x360 15-ap052nr, Spectre x360 15-ap062nr, Spectre x360 15-ap063nr
✔️ European and Regional Models: Spectre x360 15-ap000na, 15-ap000nf, 15-ap000nx, 15-ap001nf, 15-ap001nx, 15-ap002nf, 15-ap002ng, 15-ap003nf, 15-ap003ng, 15-ap004na, 15-ap004nf, 15-ap004ng, 15-ap005na, 15-ap005nf, 15-ap006ng, 15-ap007na, 15-ap007nd, 15-ap010na, 15-ap012na, 15-ap070nz, 15-ap090nz
✔️ Configurable Model: Spectre x360 15t-ap000 CTO
✔️ Regulatory Model: TPN-Q168

☑️ Key Features

☑️ Direct-fit internal cooling fan for compatible Spectre x360 15-ap000 and 15t-ap000 systems
☑️ DC 5V 0.50A electrical rating
☑️ Four-wire 4-pin motherboard connection
☑️ Compact low-profile blower housing for the original internal mounting location
☑️ Supports ND55C05-15F04 and EG50040S1-C640-S9A manufacturer-labeled fan revisions
☑️ Useful replacement for a noisy, seized, slow-running, intermittent, or nonfunctional fan
☑️ Restores active airflow through the existing heatsink and exhaust vent
☑️ Fan-only design allows the original heatsink and thermal module to be retained

⚙️ Fit Notes

• Match 841263-001, ND55C05-15F04, or EG50040S1-C640-S9A to the original fan whenever possible
• Different production batches may carry either manufacturer fan model number while using the same electrical and physical configuration
• Confirm the original fan uses a DC 5V 0.50A 4-pin 4-wire connection
• Compare the blower housing, mounting tabs, cable exit position, connector orientation, and overall dimensions before ordering
• This fan is intended for the 15-ap000 and 15t-ap000 generations; it is not intended for later 15-bl, 15-ch, 15-df, or 15-eb systems
• 847231-001 identifies an associated heatsink or thermal module and is not an interchangeable fan number
• 841264-001 is not a fan reference for this item
• The heatsink, thermal module, mounting screws, and thermal paste are not included unless specifically shown
• Disconnect the AC adapter and internal battery before removing or installing the fan
• If replacing only the fan, the heatsink can normally remain installed
• If the heatsink is removed, clean away the old thermal compound and apply fresh thermal paste before reassembly
• Clean accumulated dust from the heatsink fins and exhaust opening before installing the replacement fan
