HP 870935-001 - 60mm High Performance Fan for ProLiant DL380 DL560 Gen10 G10

60mm High Performance Fan Module for HPE ProLiant DL380 Gen10 / DL560 Gen10

Description

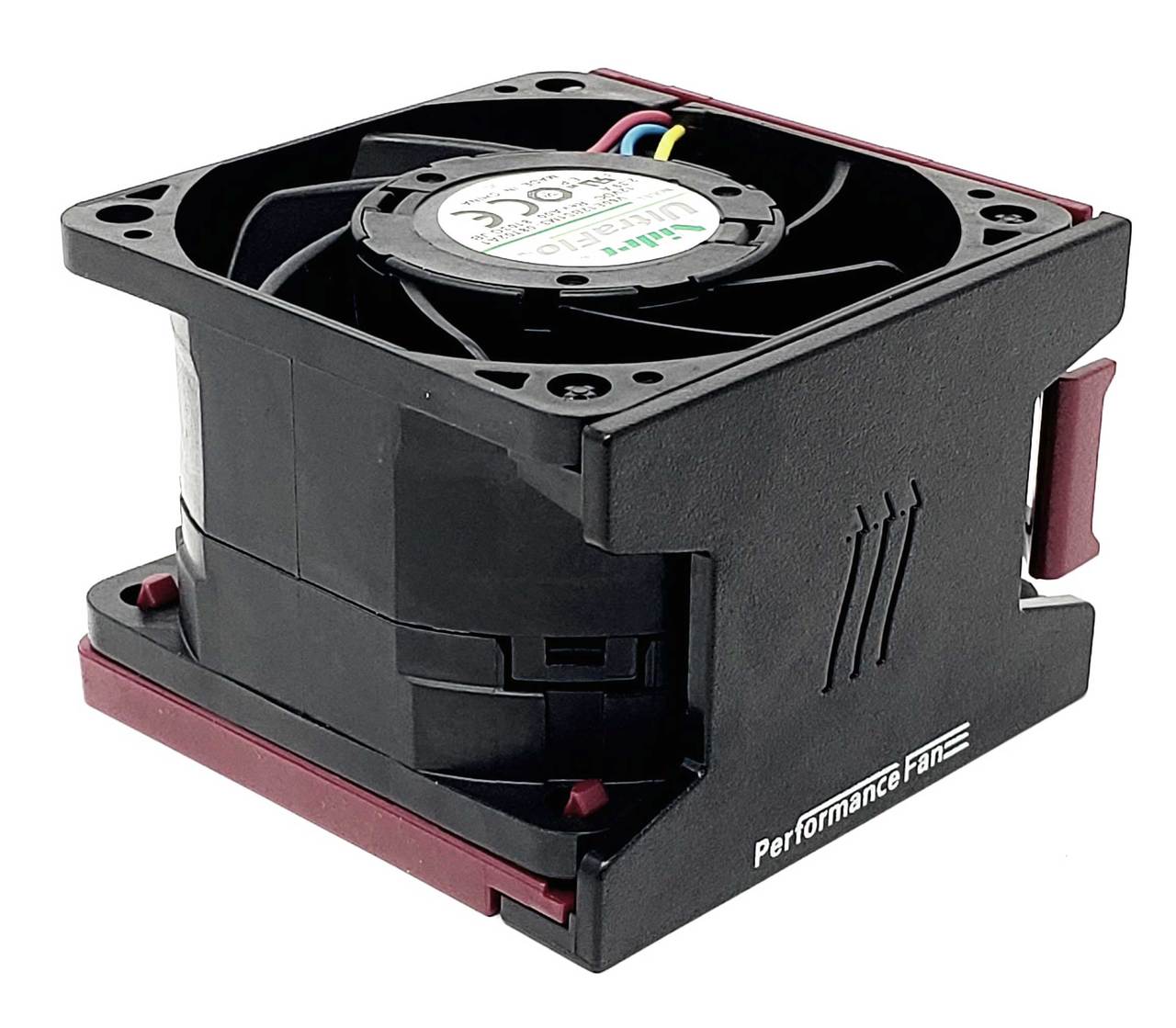

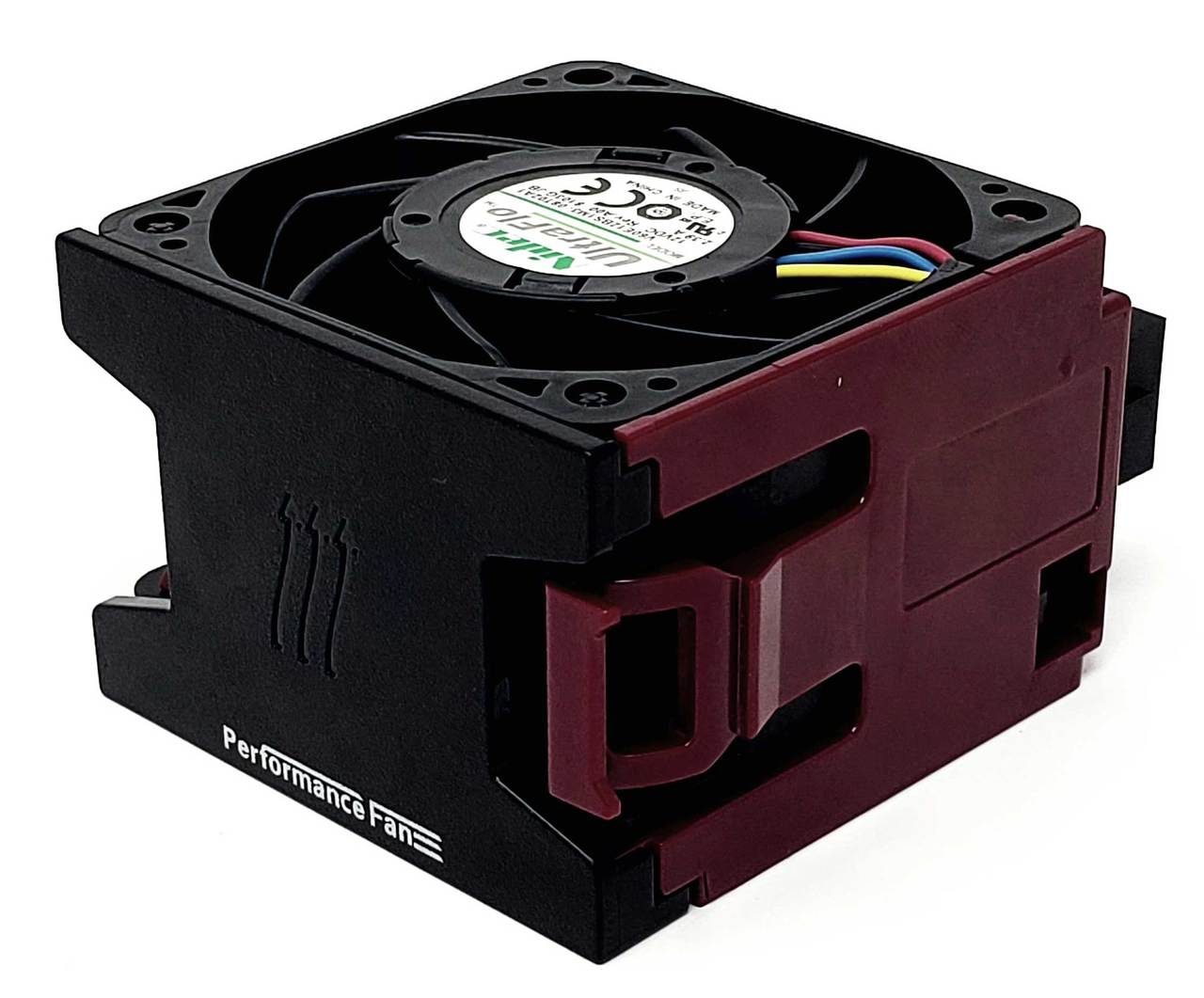

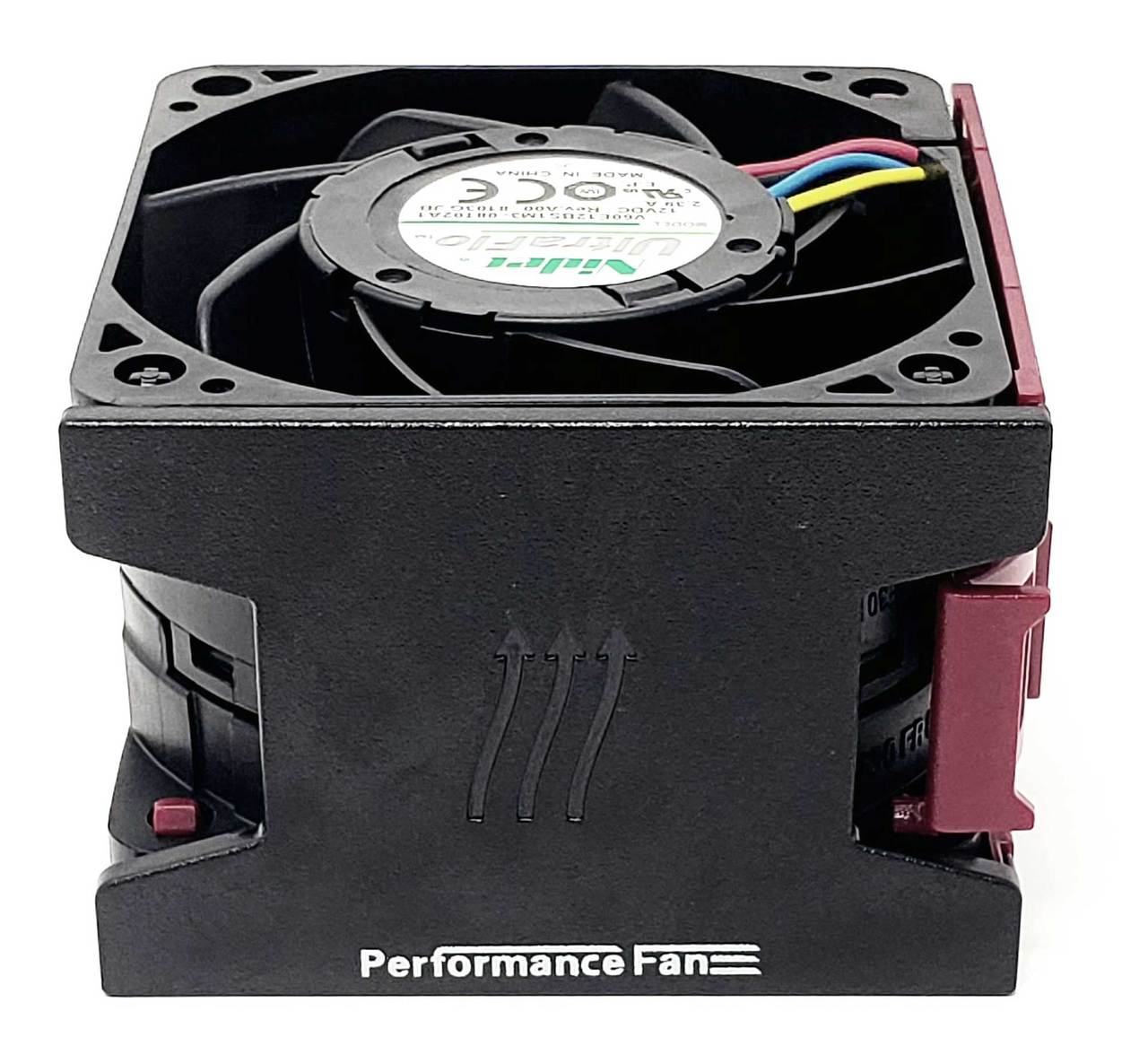

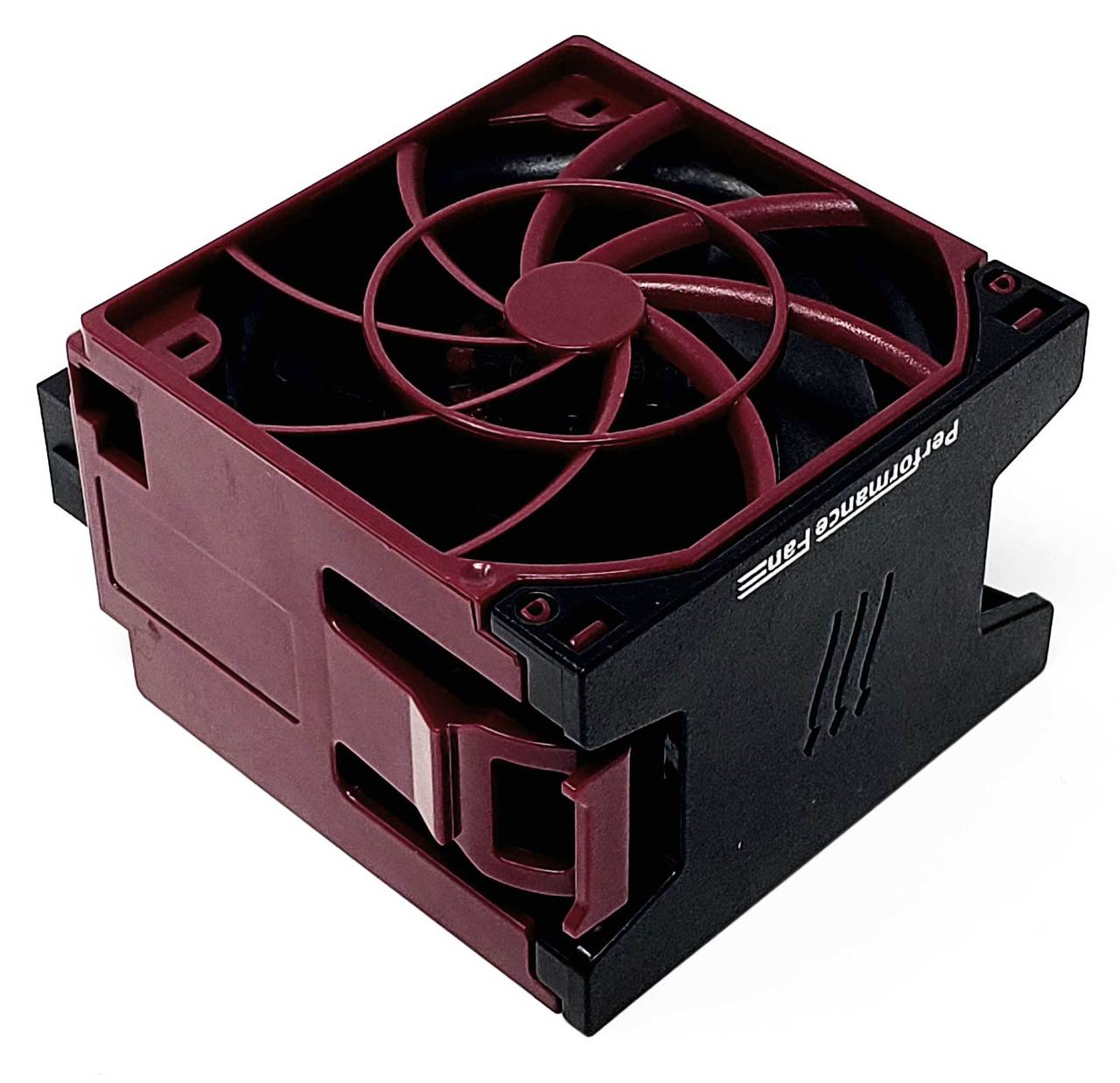

Genuine HPE hot-plug fan module for Gen10 2U servers. This 60 mm high-static-pressure unit actively cools the CPU, memory, and VRM zones under heavy load. It uses PWM speed control with tach feedback and seats into the Gen10 fan cage with a locking module connector for precise, system-managed thermals.

Technical Specifications

• Form factor / size: 60 mm × 60 mm × 38 mm hot-plug module (6038)
• Voltage / control: 12 V DC; 4-wire PWM with tach feedback
• Current / power (typical): ~1.9–2.4 A (varies by motor vendor/suffix)

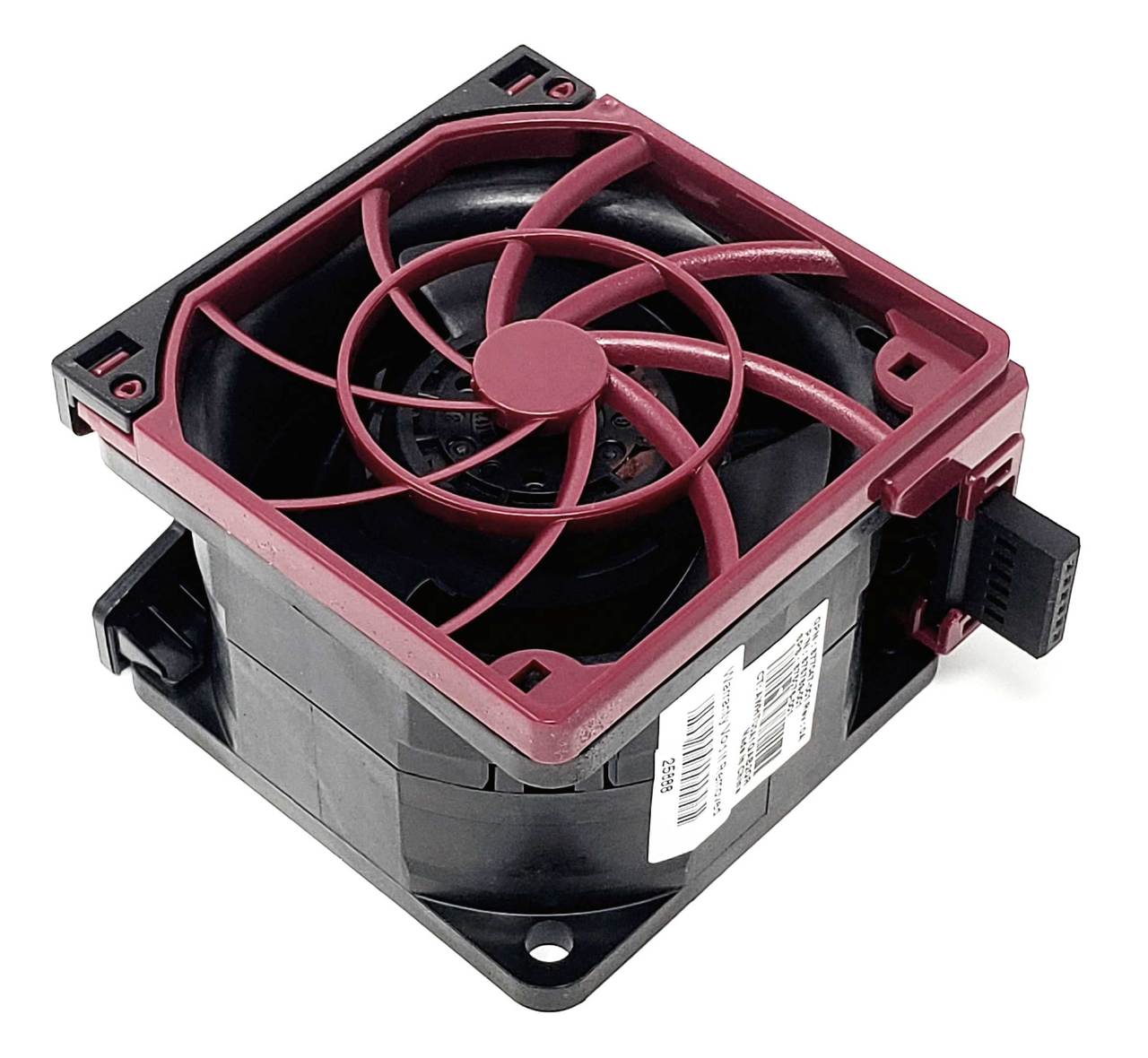

• Connector: HPE locking 6-pin module interface (to fan cage/backplane)
• Motor families used in this module:

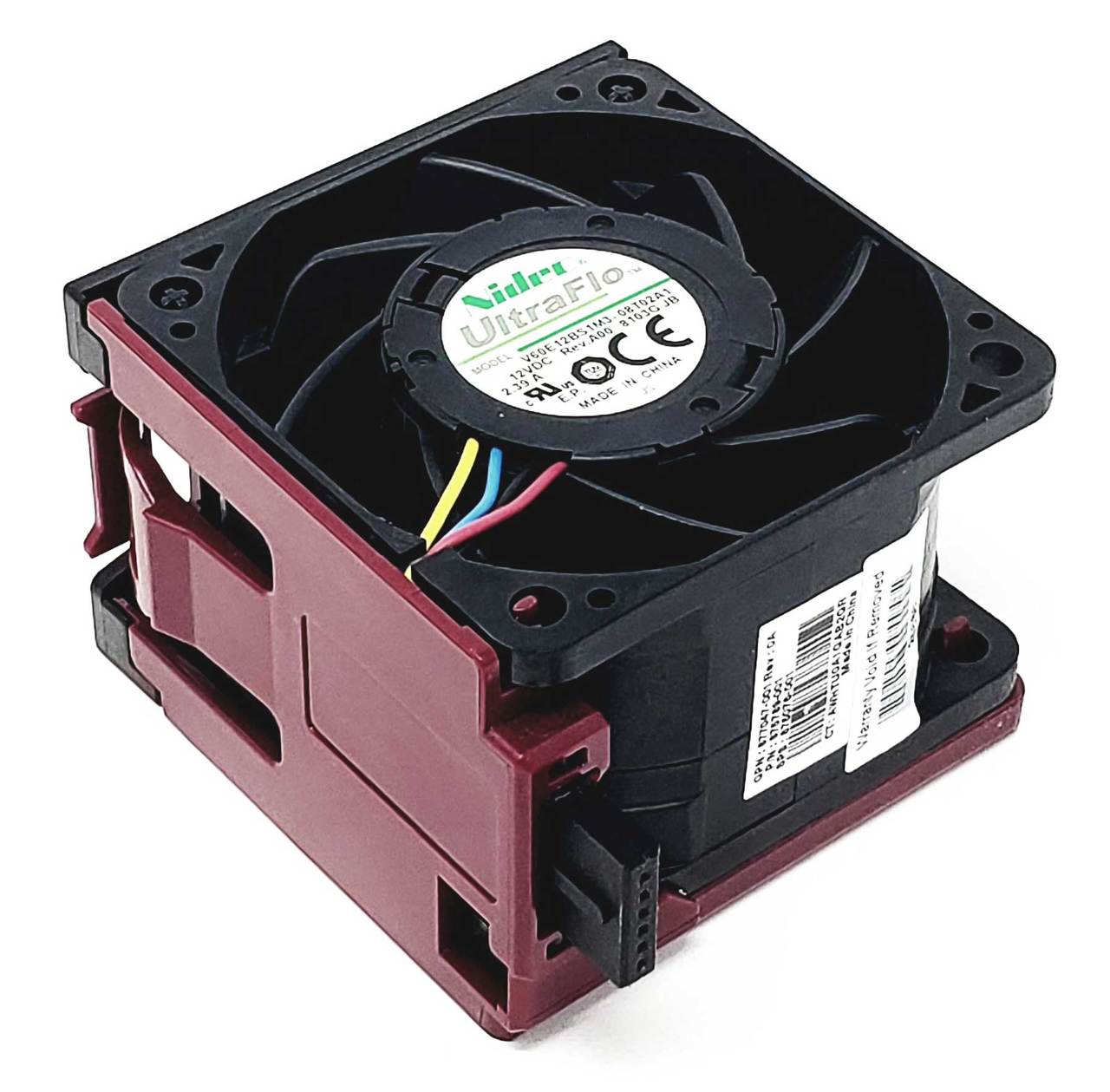

• Nidec V60E12BS1M3-08T02A1 (6038, ~2.39 A typical)
• Sunon VF60381BX-Q08U-Q9I (6038, ~22.8 W typical)
• Delta PFM0612XHE (6038, high-pressure series)
• Serviceability: Tool-less hot-plug swap in Gen10 fan banks
• Bearing: Server-grade ball bearing (continuous 24×7 duty)

Please note that the following list is not exhaustive. Compatibility depends on the device’s design and cooling requirements. It’s essential to verify compatibility with the device manufacturer.

✅ Confirmed Compatibility

✔ HPE ProLiant: DL380 Gen10, DL560 Gen10

Interchangeable / Equivalent Part Numbers

• 875076-001 (high-performance fan – Gen10 spare)

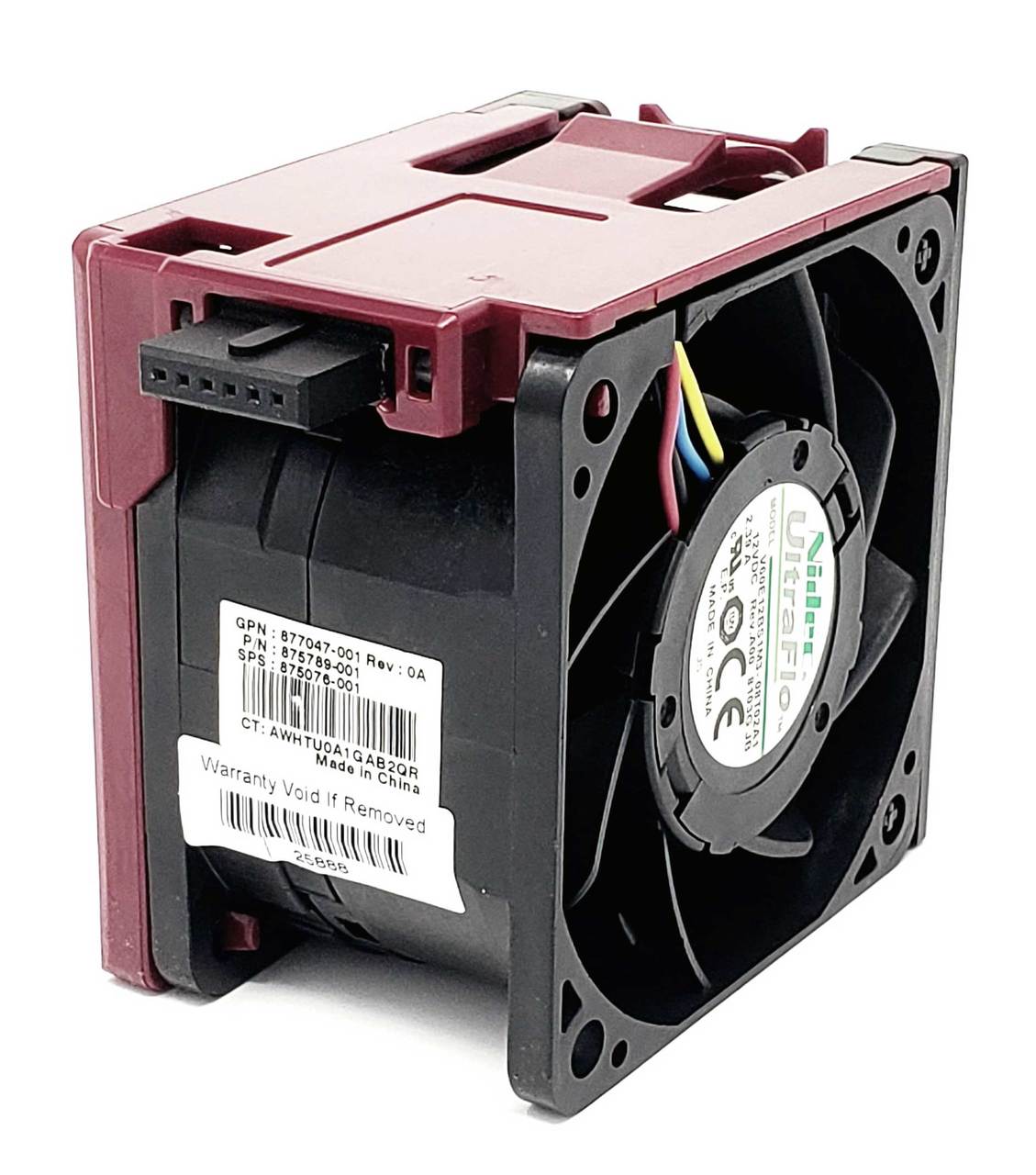

• 870935-001, 875788-001, 875789-001, 877047-001 (high-performance fan module variants for Gen10 DL38x/DL56x)
• V60E12BS1M3-08T02A1 (Nidec motor code used inside this module)
• VF60381BX-Q08U-Q9I (Sunon motor code used inside this module)
• PFM0612XHE (Delta motor code used inside this module)

Related Parts (Not Interchangeable)

• 875075-001 – Standard fan module for DL380 Gen10 (lower-flow, different spec)

What’s Included

• 1× 60 mm high-performance hot-plug fan module (pre-wired in HPE Gen10 carrier)

Key Features

☑️ High static-pressure design for dense 2U airflow paths
☑️ PWM + tach feedback for tight, system-managed thermals
☑️ Hot-plug, tool-less carrier minimizes downtime
☑️ Ball-bearing construction for reliable 24×7 operation
☑️ Built to HPE spec for DL380/DL560 Gen10 fan banks
