USB-C Dock G4 Docking Station Kit with 90W Adapter for EliteBook 840 G5 850 G5 ProBook 640 G4 650 G4

HP USB-C Dock G4 complete kit designed to expand ports, add wired networking, and connect external displays through a single USB-C connection (host system support required).

What's Included?

• (1) L13898-002 - USB-C Dock G4 Docking Station
• (1) 710413-001 - 90W AC Adapter
• (1) 213349-013 - 3-Prong Power Cable
• (1) 930475-001 - USB-C to USB-C Gen1 3A 1.0m Cable

Resources

• Customer Support / Knowledge Base
• Software and Drivers Download
• USB-C Dock G4 Data Sheet
• User Guide

Technical Specifications

• HP Option Kit P/N: 3FF69AA
• Dock Dimensions (H x W x D): 7.79 in x 2.71 in x 0.87 in (198 x 69 x 22 mm)
• Weight: 0.769 lb (0.355 kg)

• Video Resolution Support:

• Single display: up to 3840 x 1440 @ 60Hz
• Dual display: up to 1920 x 1200 @ 60Hz
• Triple display: up to 1680 x 1050 @ 60Hz

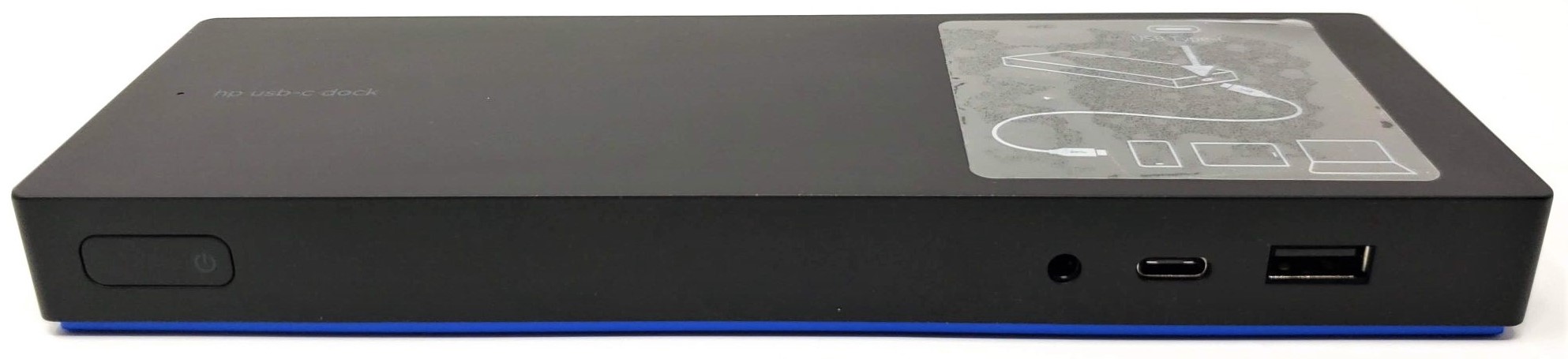

• Front Ports / Controls:

  (1) USB 3.0
• (1) USB-C port (data + power out only)
• (1) Combo audio jack (headset)
• Power button (power / wake host system)

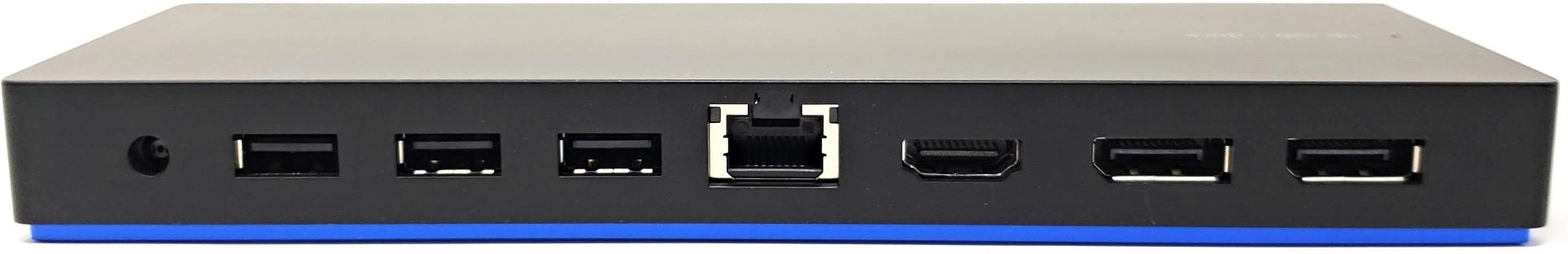

• Side / Rear Ports:

  Smart AC adapter input
• (1) Powered USB 3.0
• (2) USB 2.0
• (1) Gigabit Ethernet (RJ-45)
• (1) HDMI 2.0
• (2) DisplayPort
• (1) USB-C port to host computer
• Kensington lock slot



• Power:

• Normal Operating Power: 90W
• Average Operating Power: 65W
• Max Operating Power: 100W


• USB-C Power Delivery (PD): PD 3.0 supporting 5V/3A, 9V/3A, 10V/3A, 12V/3A, 15V/3A, 20V/3A
• Supported Operating Systems: Windows 10, Windows 10 Mobile
• Kit Contents (per HP): Dock, AC power cable, 90W AC adapter, USB-C (1m) cable

Interchangeable / Replacement Part Numbers

924850-001, 3FF69AA, 3FF69AA#ABA, 3FF69UT#ABA, HSTNH-U601, L16133-001, L13898-002

✅ Confirmed Compatibility

Please note that the following list is not exhaustive. Compatibility depends on your system's specific configuration. It's essential to verify compatibility with your system or enclosure manufacturer prior to installation.

✔ HP ProBook: 430 G5, 440 G5, 450 G5, 455 G5, 470 G5, 640 G4, 645 G4, 650 G4
✔ HP EliteBook: 735 G5, 745 G5, 755 G5, 830 G5, 840 G5, 840r G4, 850 G5, 1040 G4, EliteBook Folio G1
✔ HP EliteBook x360: 1020 G2, 1030 G2
✔ HP Elite x2: Elite x2 1012 G1, Elite x2 1012 G2
✔ HP Pro x2: Pro x2 612 G2
✔ HP Chromebook: Chromebook x360, Chromebook 13
✔ HP Spectre: Spectre Pro 13 G1 Notebook PC

☑️ Key Features

☑️ Single-cable USB-C docking for power + data + display (host support required)
☑️ Triple video outputs (2x DisplayPort + 1x HDMI) for flexible monitor setups
☑️ Gigabit Ethernet (RJ-45) for stable wired networking
☑️ Multiple USB ports for peripherals (USB 3.0 + USB 2.0)
☑️ 90W adapter included for powered dock operation
☑️ Includes USB-C cable and power cable in the kit

⚙️ Fit Notes

• Your computer must support USB-C with video output (DisplayPort Alt Mode) for external display functionality.
• Max display capability varies by system GPU, OS, and display configuration (single/dual/triple).
• The included 710413-001 - 90W AC Adapter powers the dock; host charging is handled through USB-C Power Delivery when supported.
• For best results, use the included 930475-001 - USB-C to USB-C Cable and confirm your laptop’s USB-C port supports docking/charging.
