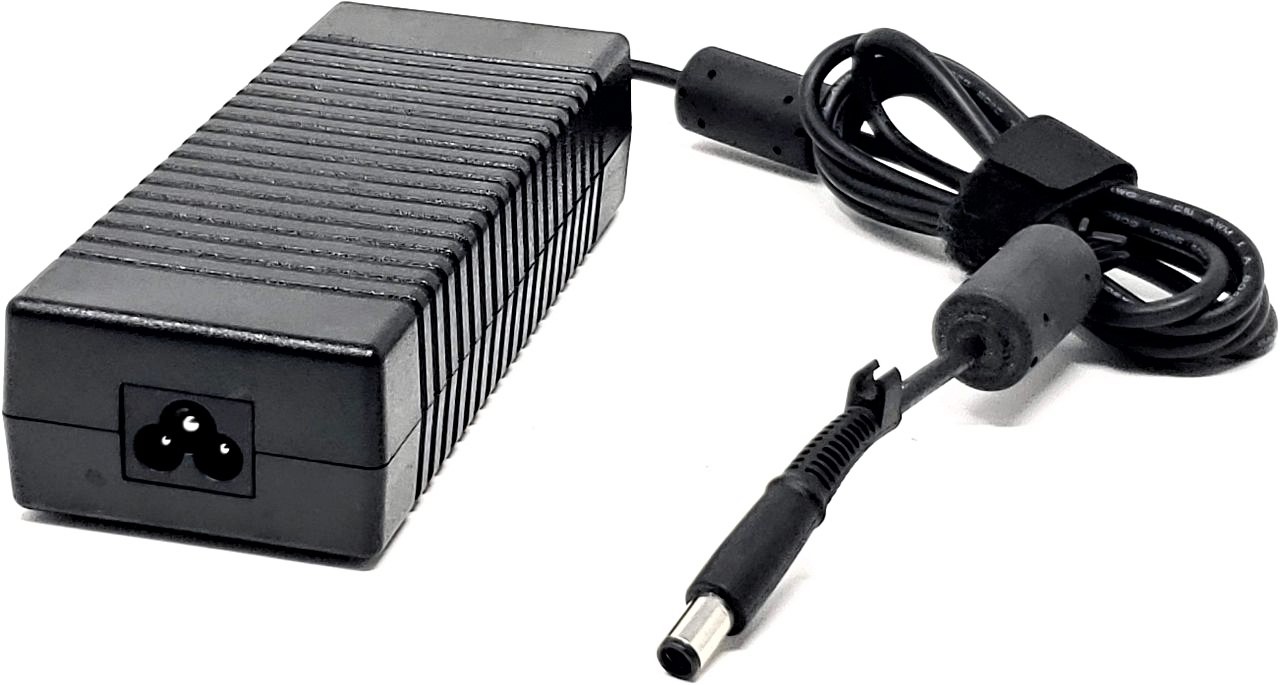

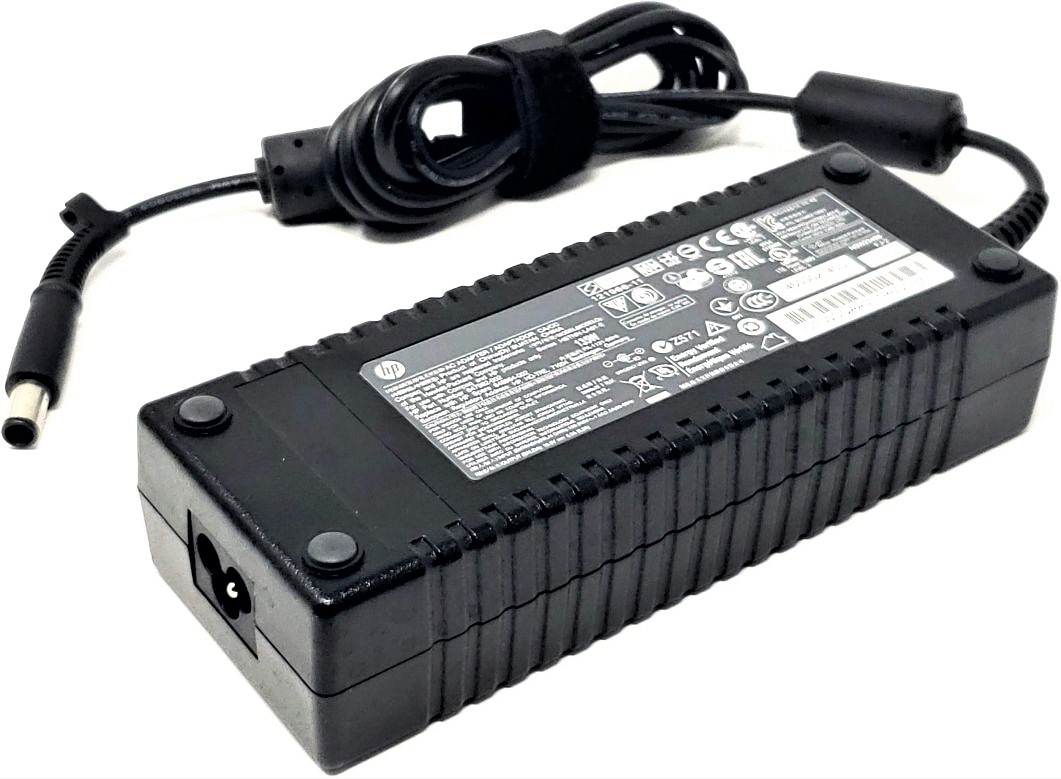

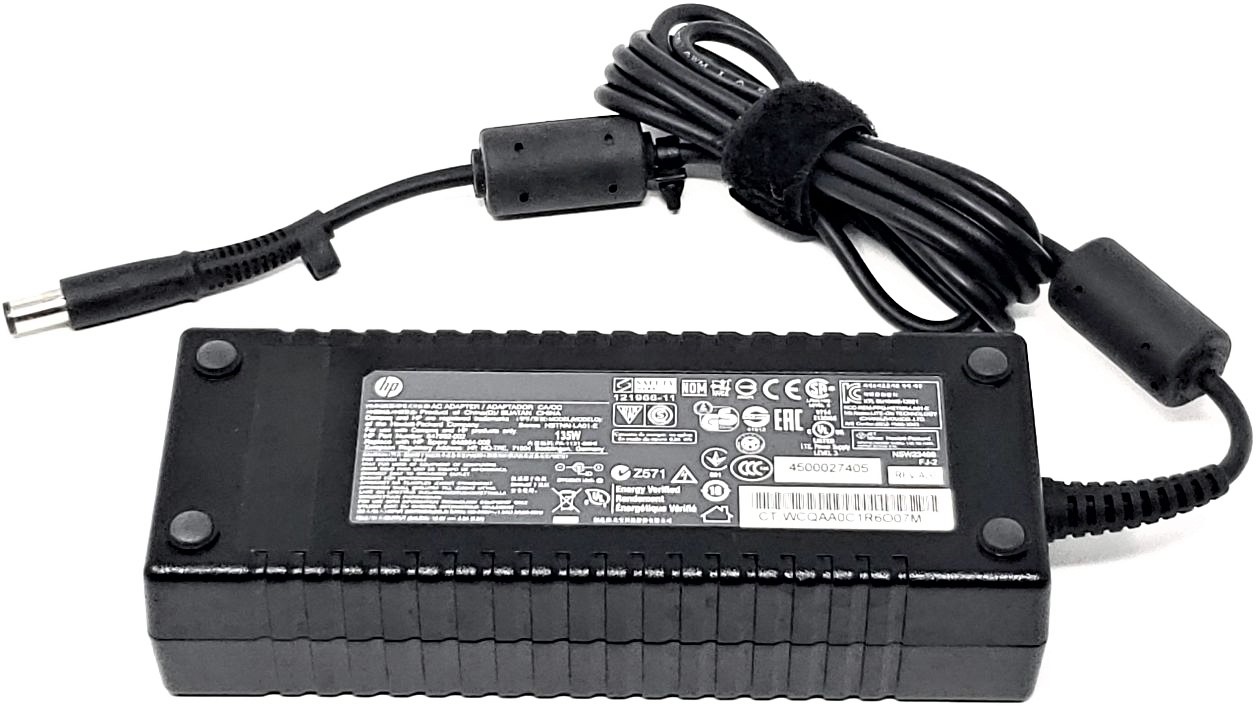

135W 19.5V 6.9A 7.4mm-5.0mm Smart Pin AC Adapter Charger for HP Compaq 8510p 6910p TC4400 DC7800 DC7900

This 135W AC adapter is designed for compatible HP Compaq notebooks, mobile workstations, and select Ultra-Slim Desktop / TouchSmart systems that require 19.5V input and the 7.4mm x 5.0mm smart-pin (center pin) barrel connector. Includes the AC power cable (wall cord).

Technical Specifications

Interchangeable / Replacement Part Numbers

397747-001, 397747-002, 397747-003, 397803-001, 397803-003, 437343-001, 437796-001, 463557-001, 481420-001, 481420-002, 482133-001, 592491-001, 608427-001, 613155-001, 647982-001, 647982-002, 648964-001, 648964-002, 740707-001, 741344-001, ED519AA, ED519AA-ABA, HP-OW135F13LF, HSTNN-DA01, HSTNN-HA01, HSTNN-LA01, HSTNN-LA01-E, HSTNN-LA01-H, HSTNN-SA01, PA-1131-06HF, PA-1131-06HG, PA-1131-06HI, PA-1131-08HC, PA-1131-09HA, PA-1181-08, TPC-LA59

☑️ Key Features

☑️ 135W 19.5V 6.9A output for supported notebooks, workstations, and select desktop systems
☑️ 7.4mm x 5.0mm smart-pin (center pin) barrel connector
☑️ Wide-range AC input (100V-240V) for worldwide use
☑️ Includes AC power cable (wall cord)
☑️ Supports multiple HP spare/option part number cross-references listed above

⚙️ Fit Notes

• This adapter uses the 7.4mm x 5.0mm smart-pin (center pin) connector (not the smaller 4.5mm x 3.0mm “blue tip” and not USB-C).
• Your device must be designed for 19V-19.5V input.
• Replacement option: This 135W adapter can be replaced by a higher-powered 150W adapter with the same 7.4mm x 5.0mm smart-pin tip (same voltage), as higher wattage is fine as long as the voltage and connector match.

✅ Confirmed Compatibility

Please note that the following list is not exhaustive. Compatibility depends on your system's specific configuration. It's essential to verify compatibility with your system or enclosure manufacturer prior to installation.

✔️ HP Compaq Notebook PC: 6050b, 6515b, 6710b, 6710b Notebook PC, 6710s, 6710s Notebook PC, 6715b, 6715b Notebook PC, 6715s Notebook PC, 6910p, 6910p Notebook PC, 8510p, 8510p Notebook PC, 8510w, 8510w Mobile Workstation, 8710p, 8710p Notebook PC, 8710w, 8710w Mobile Workstation, nc2400, nc2400 Notebook PC, nc4400, nc4400 Notebook PC, nc6110, nc6110 Notebook PC, nc6120, nc6230 Notebook PC, nc6320, nc6320 Notebook PC, nc6400, nc8430, nc8430 Notebook PC, nw8440, nw8440 Mobile Workstation, nw9440, nw9440 Mobile Workstation, nx6110, nx6110 Notebook PC, nx6115, nx6115 Notebook PC, nx6120, nx6120 Notebook PC, nx6125, nx6125 Notebook PC, nx6130, nx6130 Notebook PC, nx6310, nx6310 Notebook PC, nx6315, nx6315 Notebook PC, nx6320, nx6320 Notebook PC, nx6325, nx6330, nx6330 Notebook PC, nx7300, nx7300 Notebook PC, nx7400, nx8420 Notebook PC, nx9420, nx9420 Notebook PC

✔️ HP Compaq Tablet PC: TC4400 Tablet PC, Tablet tc4400 Series

✔️ HP Compaq Elite Desktop PC: 7800, 7900, 8000, 8200, 8300

✔️ HP Elite Desktop PC: 7800, 7900, 8000, 8200, 8300, 800 G1 Ultra-Slim Desktop

✔️ HP DC Ultra Slim Desktop: DC7800 Ultra Slim Desktop, DC7900 Ultra Slim Desktop

✔️ HP Pavilion dv7: DV7-2022tx, DV7-2030sa, DV7-2040us, DV7-2045ea, DV7-2050, DV7-2070, DV7-2108tx, DV7-2111tx, DV7-2120sa, DV7-2135eo, DV7-2177cl, DV7-2180us, DV7-2190us, DV7-2270us, Dv7-3060us, Dv7-3061nr, Dv7-3080us

✔️ HP TouchSmart 600 Series: 600-1000, 600-1000t CTO, 600-1000t CTO AW023AV, 600-1005xt CTO, 600-1005xt CTO AZ469AV, 600-1015kr NY715AA, 600-1031d BK289AA, 600-1036d AU926AA, 600-1037d NY783AA, 600-1038d NY784AA, 600-1039tw AU778AA, 600-1047, 600-1050, 600-1050a NY760AA, NY760AAR, 600-1050be VN309AA, 600-1050de VS248AA, VS248AAR, 600-1050gr VS235AA, 600-1050it VS217AA, VS217AAR, 600-1050pt VN317AA, VN317AAR, 600-1050sc VS249AA, VS249AAR, 600-1052, 600-1055, 600-1060in AU793AA, 600-1068cn NY691AA, 600-1070a NY761AA, NY761AAR, 600-1088cn NY692AA, 600-1105xt CTO AZ226AV, 600-1150qd CTO BK544AV, 600-1200, 600-1200t CTO, 600-1205t CTO, 600-1205xt CTO, 600-1215, 600-1215xt CTO, 600-1220ch, 600-1240jp, 600-1255qd CTO, 600-1260jp, 600-1265qd CTO, 600-1268hk, 600-1270d, 600-1270jp, 600-1280in, 600-1288hk, 600-1290jp, 600-1300, 600-1305t CTO, 600-1315xt CTO, 600-1350, 600-1352, 600-1365qd CTO, 600-1370, 600-1371, 600-1390, TouchSmart600-1020la NY528AA, NY528AAR, TouchSmart600-1050fr VN420AA, VN420AAR, TouchSmart600-1050uk VN421AA, VN421AAR, TouchSmart600-1060jp NY662AA, TouchSmart600-1070d AU845AA, TouchSmart600-1070jp NY661AA, TouchSmart600-1090jp NY663AA

✔️ HP TouchSmart 610 Series: 610-1000, 610-1000z CTO, 610-1010t CTO, 610-1015xt CTO, 610-1030f, 610-1030y, 610-1031f, 610-1032f, 610-1050f, 610-1050y, 610-1065qd CTO, 610-1095, 610-1100, 610-1100z CTO, 610-1110t CTO, 610-1130f, 610-1130y, 610-1147c, 610-1150f, 610-1150xt CTO, 610-1150y, 610-1151f, 610-1180qd CTO, 610-1190f, 610-1200, 610-1250xt CTO, 610-1280qd CTO

✔️ HP TouchSmart 620 3D Edition: 620-1000, 620-1080, 620-1100, 620-1110 CTO, 620-1170

✔️ HP TouchSmart IQ Series: IQ520br FQ651AA, FQ651AAR, IQ520fr NQ926AA, IQ520gr KY857AA, IQ520la FQ668AA, IQ520nl NF435AA, NF435AAR, IQ520sc NF583AA, IQ520tr NM673AA, NM673AAR, IQ520uk NC043AA, NC043AAR, IQ521jp FT946AA, IQ522af NF368AA, IQ522ch NC129AA, NC129AAR, IQ522cs NF365AA, NF365AAR, IQ522de NC095AA, NC095AAR, IQ522ea NM674AA, IQ522es NC003AA, NC003AAR, IQ522fr NF420AA, NF420AAR, IQ522gr VG188AA, VG188AAR, IQ522hk NC731AA, IQ522is NF367AA, NF367AAR, IQ522it NC062AA, NC062AAR, IQ522jp FT947AA, IQ522me NC143AA, IQ522pl NF369AA, NF369AAR, IQ522pt NF422AA, NF422AAR, IQ522sc NC196AA, NC196AAR, IQ522tr VG205AA, IQ522uk NC044AA, NC044AAR, IQ524 NC701AA, NC701AAR, IQ525 FQ573AA, FQ573AAR, IQ525a FT951AA, FT951AAR, IQ525be NC086AA, NC086AAR, IQ525fr NB939AA, NB939AAR, IQ525gr NF366AA, NF366AAR, IQ525nl NC118AA, NC118AAR, IQ525tr NF370AA, NF370AAR, IQ525uk NC045AA, NC045AAR, IQ526 NC700AA, NC700AAR, IQ526cn FT954AA, IQ526t NE481AV, IQ527 FQ584AA, FQ584AAR, IQ527d NC740AA, IQ527jp FT948AA, IQ527kr FT980AA, IQ528a FT952AA, FT952AAR, IQ528cn FT955AA, IQ528d NC741AA, IQ528hk FT957AA, IQ528tw NC690AA, IQ530kr NP088AA, IQ531jp NP154AA, IQ532af NM731AA, IQ532be NM763AA, IQ532ch NM798AA, NM798AAR, IQ532de NM782AA, IQ532es NM895AA, IQ532fr NM836AA, NM836AAR, IQ532gr VG189AA, IQ532hk NC910AA, IQ532is NM712AA, NM712AAR, IQ532it NQ821AA, NQ821AAR, IQ532jp NC901AA, IQ532nl NM797AA, NM797AAR, IQ532pl NM738AA, IQ532sc NM949AA, NM949AAR, IQ535a NC850AA, IQ535es NQ873AA, IQ535fr NM837AA, IQ535gr NM707AA, IQ535jp NC902AA, IQ535pt NR027AA, IQ535uk NM926AA, NM926AAR, IQ537jp NC903AA, IQ538a NC851AA, NC851AAR, IQ538hk NC911AA, IQ538tw NC925AA, IQ539tw NP165AA, IQ540fr VC904AA, VC904AAR, IQ540tr VG130AA, IQ540uk VC920AA, VC920AAR, IQ541jp KY856AA, IQ542af VC799AA, IQ542fr VC905AA, VC905AAR, IQ542nl VC876AA, IQ542tr VC878AA, IQ542uk VG152AA, VG152AAR, IQ543hk KY835AA, IQ544jp KY809AA, IQ545a NY456AA, NY456AAR, IQ545gr VC785AA, IQ545pt VC822AA, IQ545uk VC919AA, VC919AAR, IQ546cn KY838AA, IQ546t CTO VA284AV, IQ548a AU776AA, AU776AAR, IQ548cn KY839AA, IQ548hk KY836AA

✔️ HP Compaq Elite Ultra Slim Desktop: Elite 7800 Ultra Slim Desktop, Elite 7900 Ultra Slim Desktop, Elite 8000 Ultra Slim Desktop, Elite 8200 Ultra Slim Desktop, Elite 8300 Ultra Slim Desktop
