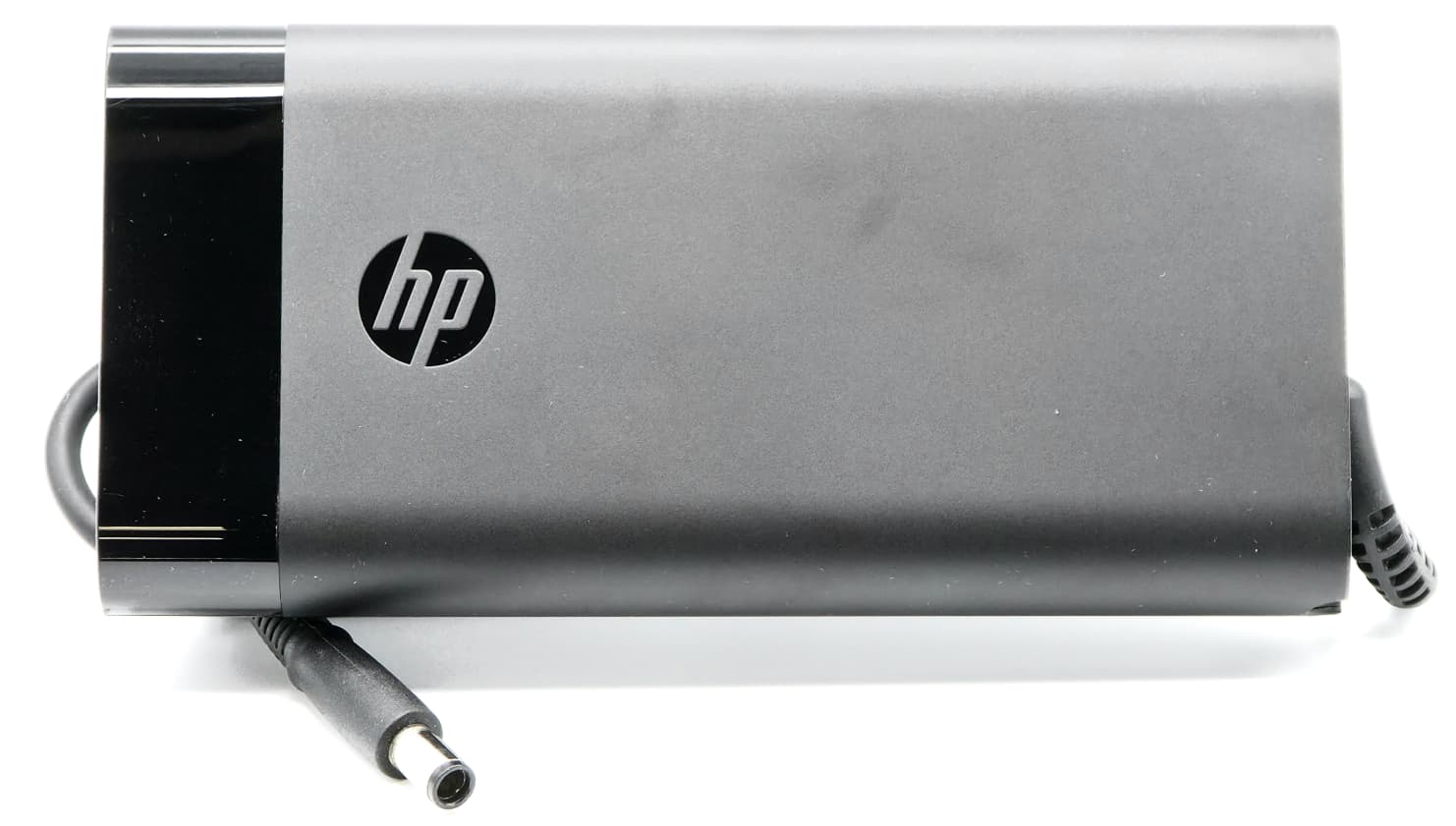

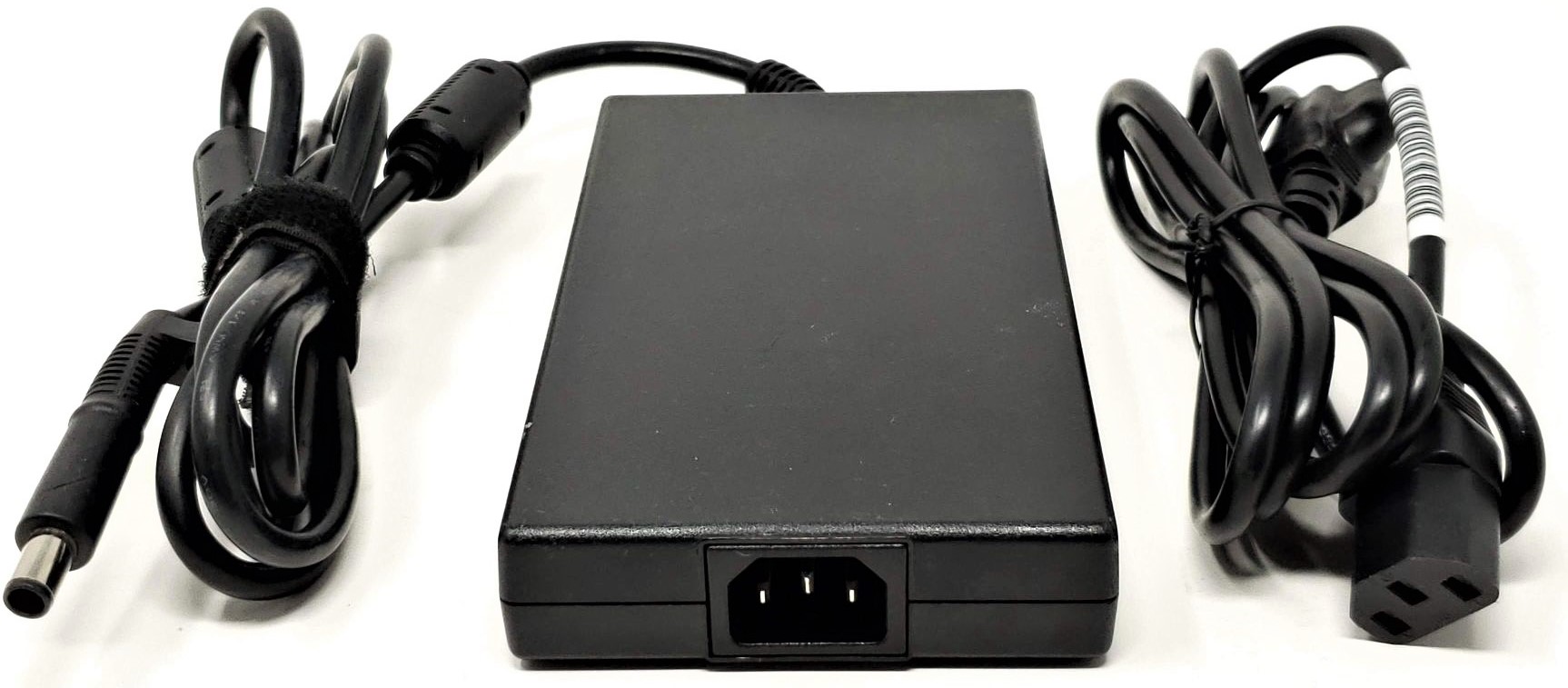

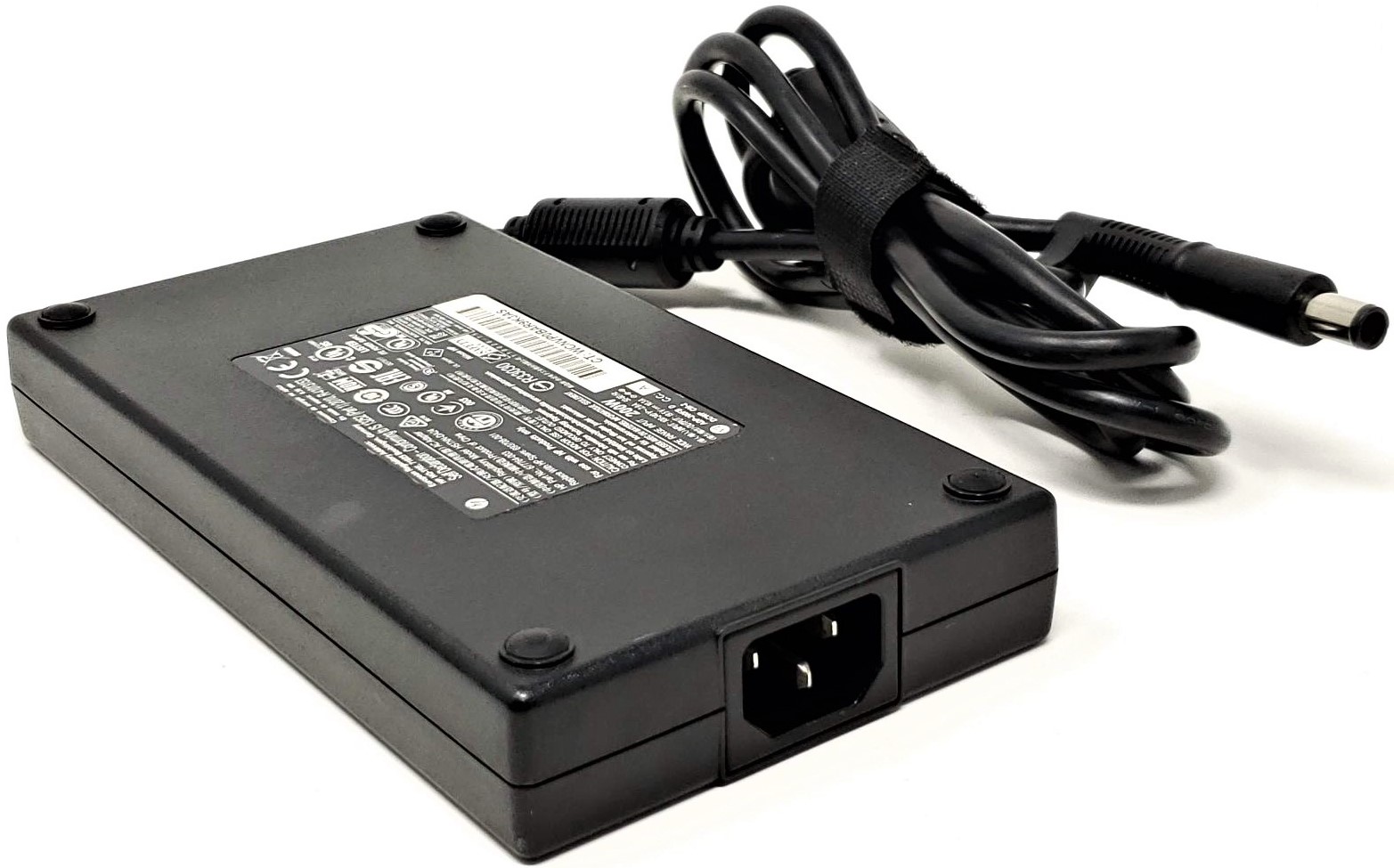

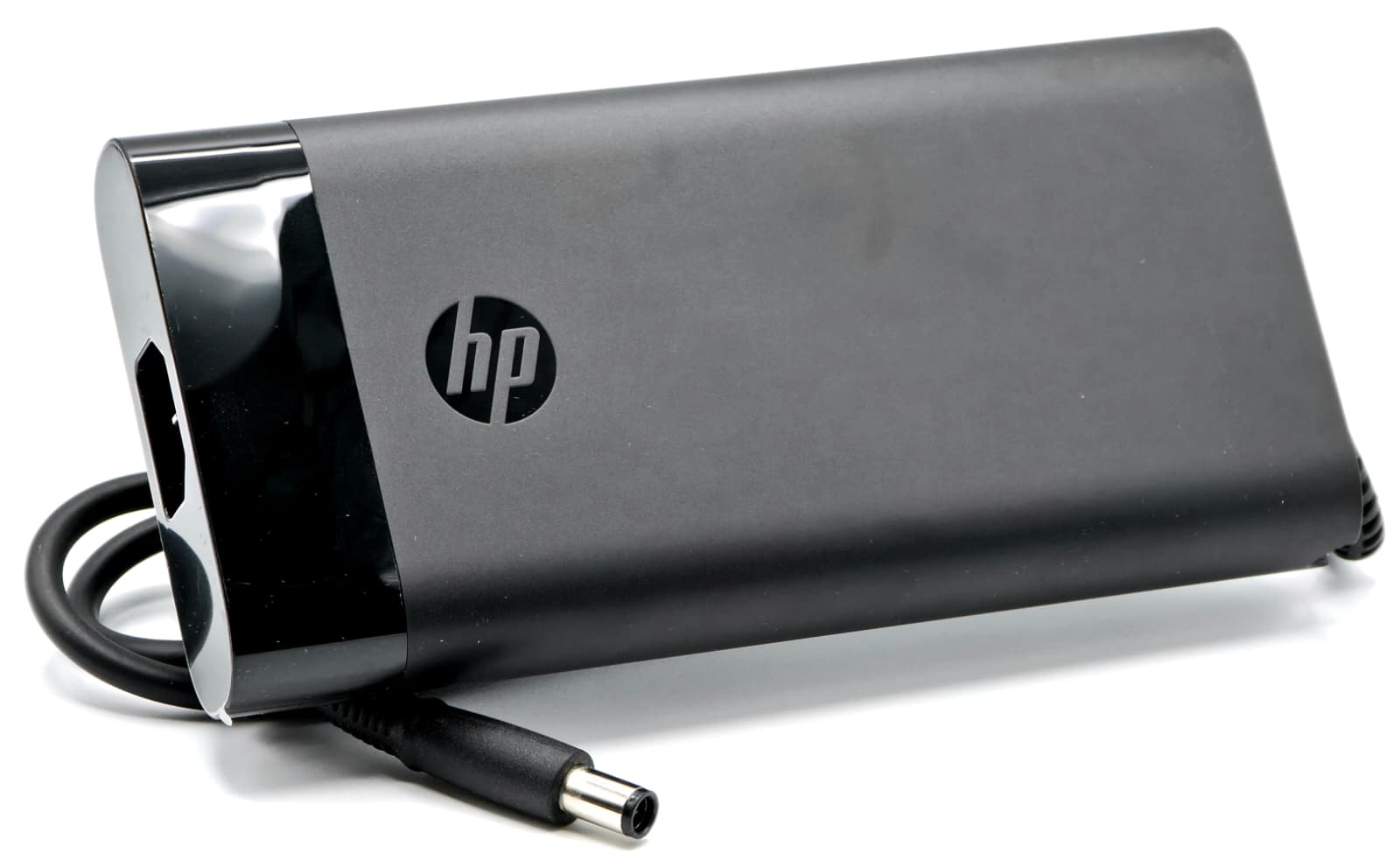

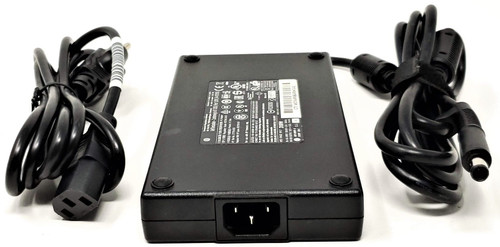

Genuine HP 230W 19.5V 11.8A 7.4x5.0mm AC Adapter Charger for ZBook 15 G2 17 G2 EliteBook 8760w 8770w
High-power genuine HP 230W AC adapter designed for mobile workstations and performance desktops that require a 19.5V 11.8A power brick with the large 7.4x5.0mm barrel tip. Ideal for HP ZBook and EliteBook mobile workstations, as well as select TouchSmart and ENVY All-in-One systems that shipped with a 230W big-tip adapter.
Technical Specifications
Interchangeable / Replacement Part Numbers
HP Spare / SPS / Option / Assembly PNs and OEM adapter models that are functionally equivalent to this 230W 19.5V 11.8A 7.4x5.0mm big-tip adapter include (not limited to):
609946-001, 609946-002, 609836-001, 609921-001, 608432-001, 608432-002, 608432-003, 611533-001, 535592-001, 677765-001, 677765-003, 677766-001, 677766-003, 693706-001, 693714-001, 693706-002, 693714-002, 693714-003, 693714-004, 693714-005, 693714-006, 693714-007, 693714-008, 693714-009, 693714-010, 693714-011, 693714-012, 693714-013, 693714-014, 693714-015, 811594-003, 817912-001, 924942-001, 925141-850, L38011-001, L38011-003, PA-1231-66HJ, PA-1231-66HH, PA-1231-66HP, PA-1231-08HG, PA-1231-08HF, PA-1231-08HT, PA-1231-66HJ-ROHS, ADP-230CB B, ADP-230DBB, ADP-230DBD, ADP-230DB B, ADP-230DB D, HSTNN-DA12S, HSTNN-CA12, HSTNN-LA12, TPN-DA12, TPN-LA10
(Only 230W 19.5V 11.8A adapters with the 7.4x5.0mm big-tip barrel connector are included.)
✅ Confirmed Compatibility
Please note that the following list is not exhaustive. Compatibility depends on your system’s specific configuration. It’s essential to verify compatibility with your system manufacturer prior to installation.
Workstation Laptops – HP ZBook Series
- ✔ HP ZBook 15 G1, ZBook 15 G2
- ✔ HP ZBook 17 G1, ZBook 17 G2
- ✔ HP ZBook 17 G3, ZBook 17 G4 (select higher-GPU configurations that shipped with 230W big-tip adapter)
- ✔ HP ZBook 15u G2 (select configs requiring 230W)
- ✔ HP ZBook Studio G3 / G4 (workstation configurations that specify 230W 7.4x5.0mm adapter)
EliteBook Mobile Workstations
- ✔ HP EliteBook 8540w, 8560w, 8570w
- ✔ HP EliteBook 8740w, 8760w, 8770w
TouchSmart / ENVY All-in-One PCs
- ✔ HP TouchSmart 300 series (select models originally shipped with 230W AC adapter)
- ✔ HP ENVY 27-b200 / 27-b300 All-in-One series (select configurations using 230W big-tip adapter)
Performance and Gaming Notebooks (selected configs that shipped with 230W big-tip adapter)
- ✔ OMEN by HP 17-w000 / 17-w100 / 17-w200 series
- ✔ OMEN by HP 17-an000 / 17-an100 series (GTX 1070 / high-end GPU configurations that require 230W)
Business and Specialty Systems
- ✔ HP Elite 8000 / 8200 / 8300 USDT systems that ship with external 230W power brick
- ✔ Other HP notebooks and mobile workstations that specify a 230W 19.5V 11.8A 7.4x5.0mm adapter in their service manual or on the original power brick label
☑️ Key Features
- High-power 230W output to properly support ZBook and EliteBook mobile workstations under heavy GPU/CPU load
- Large 7.4x5.0mm blue-tip connector for systems that require the classic HP big-barrel adapter
- Wide-range 100–240V input for worldwide use (with appropriate AC cord)
- Integrated protection circuitry to help safeguard your notebook from power surges and faults
- Backward-compatible with many HP systems that originally shipped with a 200W 7.4x5.0mm adapter (when a 230W brick is allowed by HP specifications)
⚙️ Fit Notes
- This adapter is only for HP systems that use the 7.4x5.0mm “big-tip” blue barrel connector and require a 230W 19.5V 11.8A adapter. It will not fit models that use the smaller 4.5x3.0mm blue-tip connector or USB-C charging.
- Always match voltage (19.5V), connector type (7.4x5.0mm big-tip), and equal or higher wattage (230W vs your original). Amperage can be higher than the original adapter but should not be lower.
- For systems originally shipped with a lower-wattage 7.4x5.0mm adapter (for example 150W or 200W big tip), this 230W adapter is often an approved upgrade when the connector and voltage match; if unsure, contact us.
