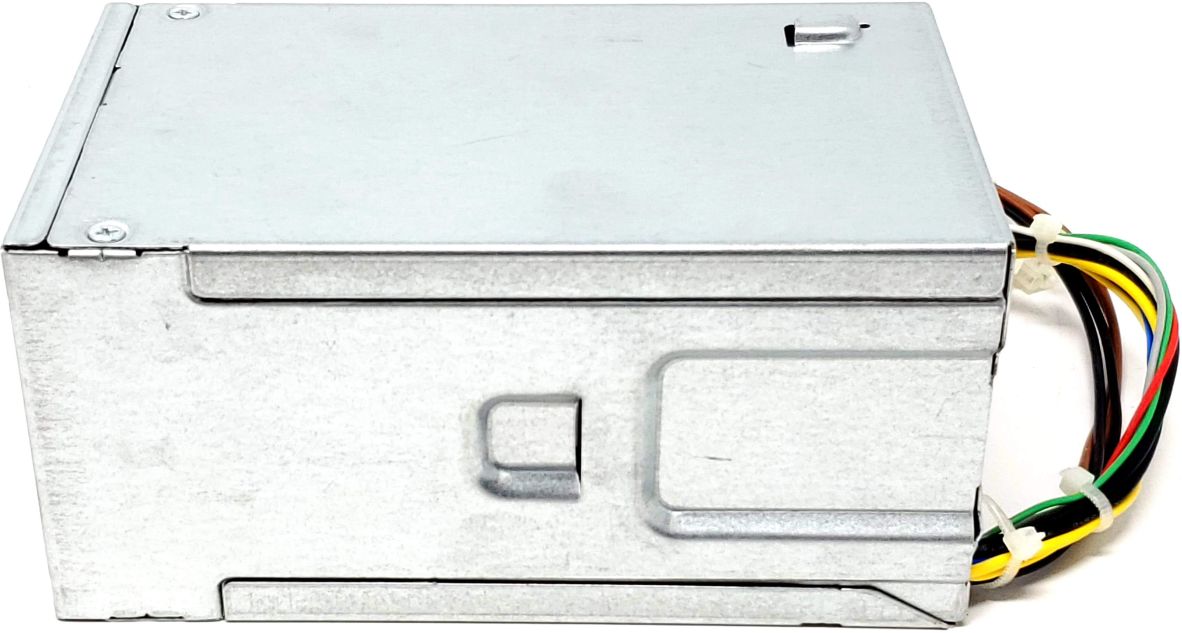

240W Power Supply for ProDesk 400 600 G1 EliteDesk 600 705 800 Z230 SFF

This 240W small form factor (SFF) power supply is designed for select ProDesk, EliteDesk, and Z230 SFF systems that use the matching HP 6-pin P1 + 6-pin P2 motherboard power connections plus a 12V 4-pin lead. It’s a direct replacement option when your original PSU is failing, unstable, or no longer powering on.

Technical Specifications

• Power output: 240W
• Form factor: SFF (Small Form Factor)
• Dimensions: 95mm x 73mm x 154mm

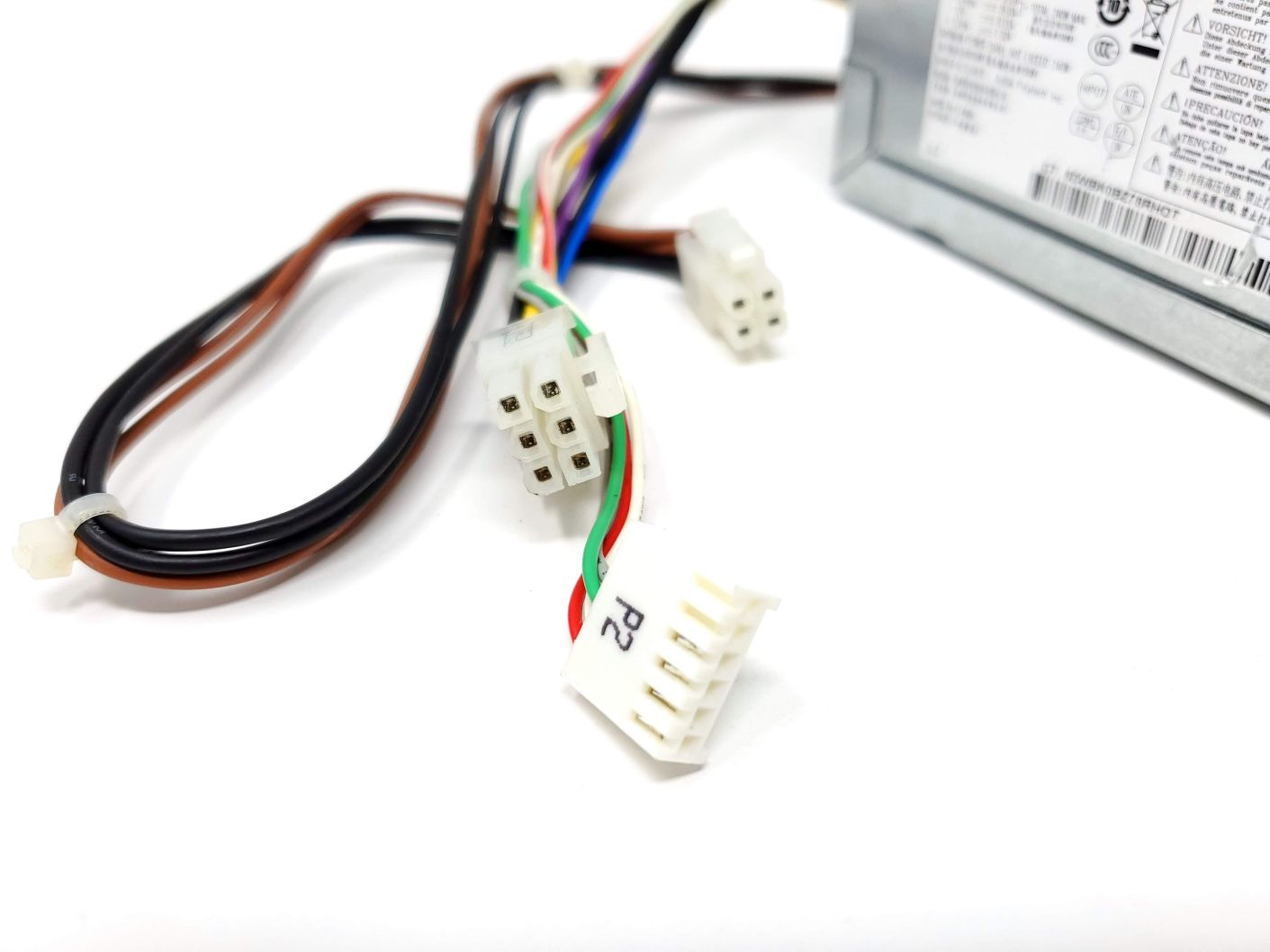

• Connectors:

• (1) 6-Pin (3x3) P1 connector
• (1) 6-Pin (straight) P2 connector
• (1) 12V 4-Pin connector

Interchangeable / Replacement Part Numbers

702457-001, 702455-001, 702308-002, 702307-002, 702307-001, 702309-002, 702309-001, 722299-001, 722536-001, 751865-001, 751884-001, 751885-001, 751886-001, D240E005H, D240E007L7, D240P2A, D12-240P1A, D12-240P1A-006, D12-240P2A, D12-240P2A-009, D12-240P3A, D12-240P3B, DPS-240AB-3B, FH-ZD241MYF, PCC002, PCC004, PS-4241-1HC, PS-4241-1HD, PS-4241-2HF, PS-4241-2HF1

✅ Confirmed Compatibility

Please note that the following list is not exhaustive. Compatibility depends on your system's specific configuration. It's essential to verify compatibility with your system or enclosure manufacturer prior to installation.

✔️ EliteDesk 600 Series: 600 G1 SFF
✔️ EliteDesk 705 Series: 705 G1 SFF
✔️ EliteDesk 800 Series: 800 G1 SFF
✔️ ProDesk 400 Series: 400 G1 SFF
✔️ ProDesk 490 Series: 490 G1 SFF
✔️ ProDesk 600 Series: 600 G1 SFF, 600 G2 SFF
✔️ ProDesk 690 Series: 690 G1 SFF
✔️ Z230 Series: Z230 SFF Workstation

☑️ Key Features

☑️ 240W SFF replacement power supply for supported ProDesk / EliteDesk / Z230 systems
☑️ Correct motherboard power layout with P1 (6-pin 3x3) + P2 (6-pin straight) connectors
☑️ Includes dedicated 12V 4-pin lead for supported platforms
☑️ Ideal fix for no-power, random shutdowns, and unstable boot issues caused by a failing PSU
☑️ Drop-in replacement for listed interchangeable part numbers

⚙️ Fit Notes

• Confirm your system is SFF (small form factor). This is not the same as Mini-Tower power supplies.
• Match your original PSU connector layout: P1 6-pin (3x3) and P2 6-pin (straight) must both be present on your motherboard harness.
• Always verify the part number on your existing PSU label (or one of the interchangeable part numbers listed above) before ordering.
