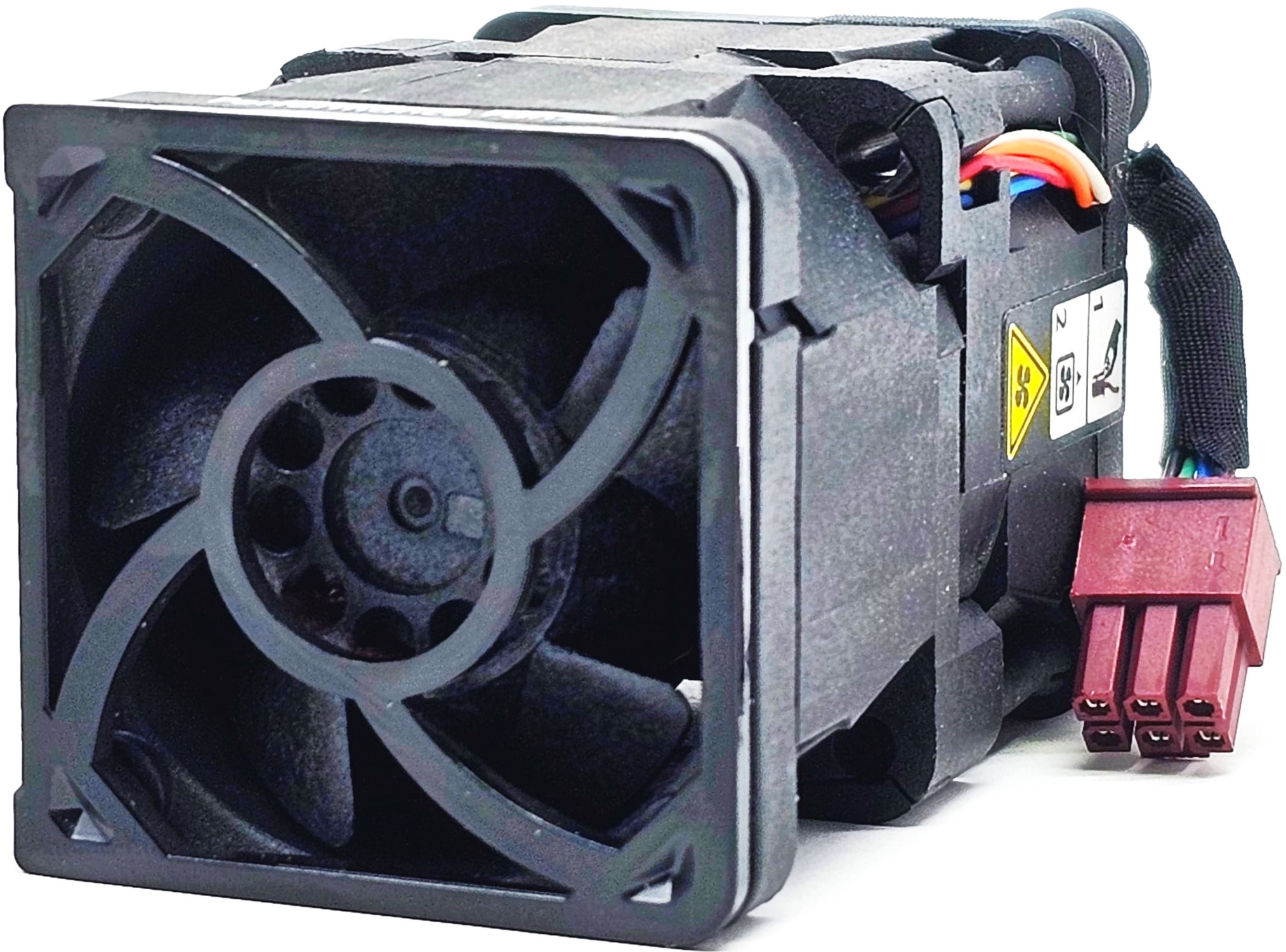

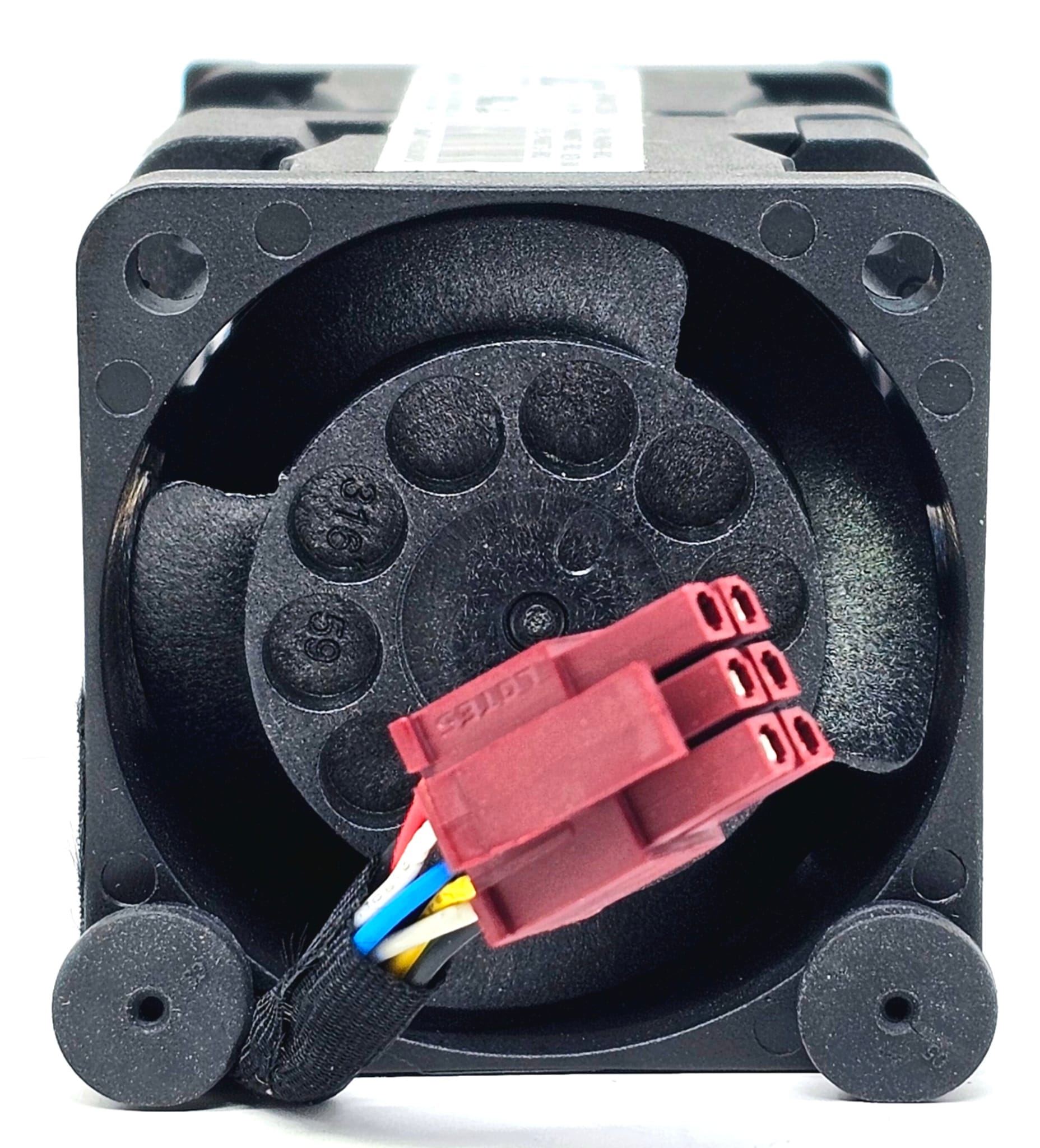

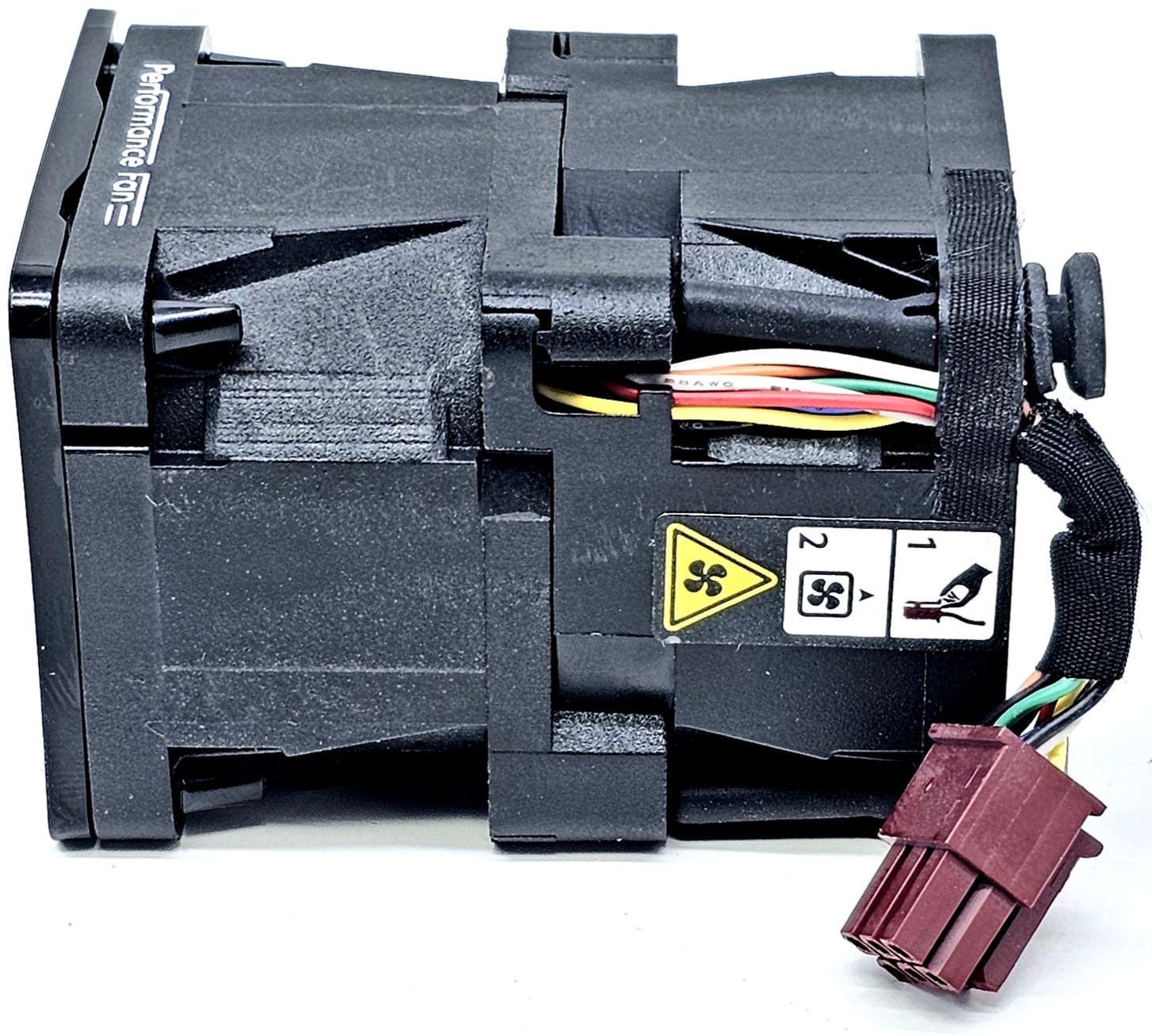

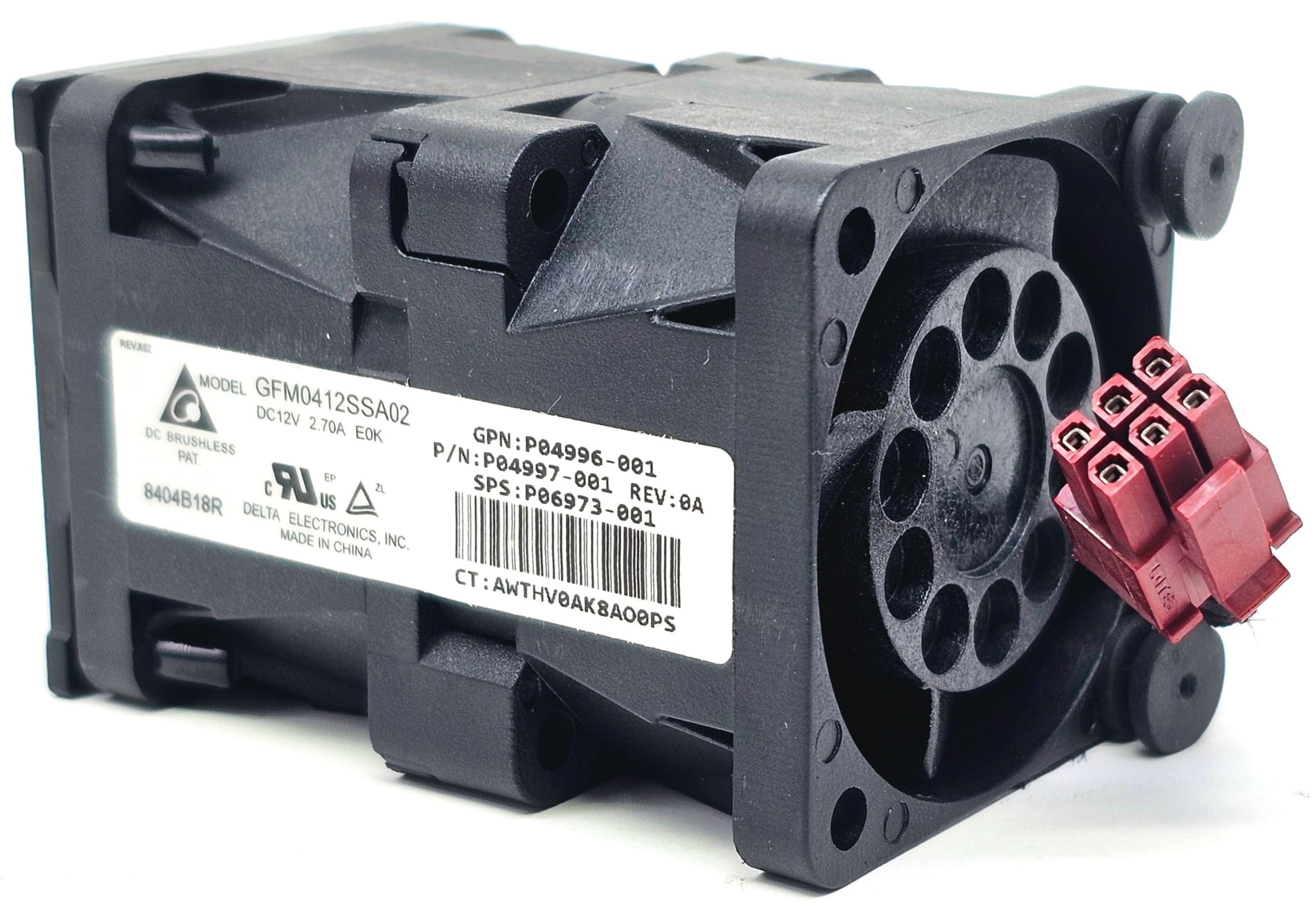

Cooling Fan Module for HPE ProLiant DL325 Gen10
Description
Genuine HPE hot-plug system fan module engineered for the ProLiant DL325 Gen10. This 40 mm-class module delivers high static pressure to cool CPU, memory, and I/O zones. It uses a server-grade 4-wire PWM motor with tach feedback and seats into the DL325 Gen10 fan cage via the HPE 6-pin module connector for precise, system-managed thermals.
Technical Specifications
- Form factor / size: 40 mm class hot-plug fan module
- Voltage / control: 12 V DC, PWM speed control with tach feedback
- Connector: HPE 6-pin module interface (to fan cage/backplane)
- Motor family (vendor code): Nidec R40W12BHNA9-08T064 (used in this assembly)
- Design: High static-pressure, server-grade dual-rotor impeller (module)
- Serviceability: Tool-less hot-plug swap in DL325 Gen10 fan cage
Please note that the following list is not exhaustive. Compatibility depends on the device’s design and cooling requirements. It’s essential to verify compatibility with the device manufacturer.
✅ Confirmed Compatibility
✔ HPE ProLiant: DL325 Gen10
Interchangeable / Equivalent Part Numbers
- P06973-001 (fan module – DL325 Gen10)
- P04998-001, P04996-001 (module variants for DL325 Gen10)
- R40W12BHNA9-08T064 (Nidec motor code used within the module)
What’s Included
Key Features
- ☑ Genuine HPE-spec module matched to DL325 Gen10 thermals
- ☑ PWM + tach feedback for stable, system-managed cooling
- ☑ High static-pressure design for dense server airflow paths
- ☑ Tool-less, hot-plug serviceability minimizes downtime
- ☑ Built with server-grade components for reliable 24×7 duty
Includes CPU Medics Standard 30-Day Warranty - Additional Warranty Options Are Available On Item Page.
