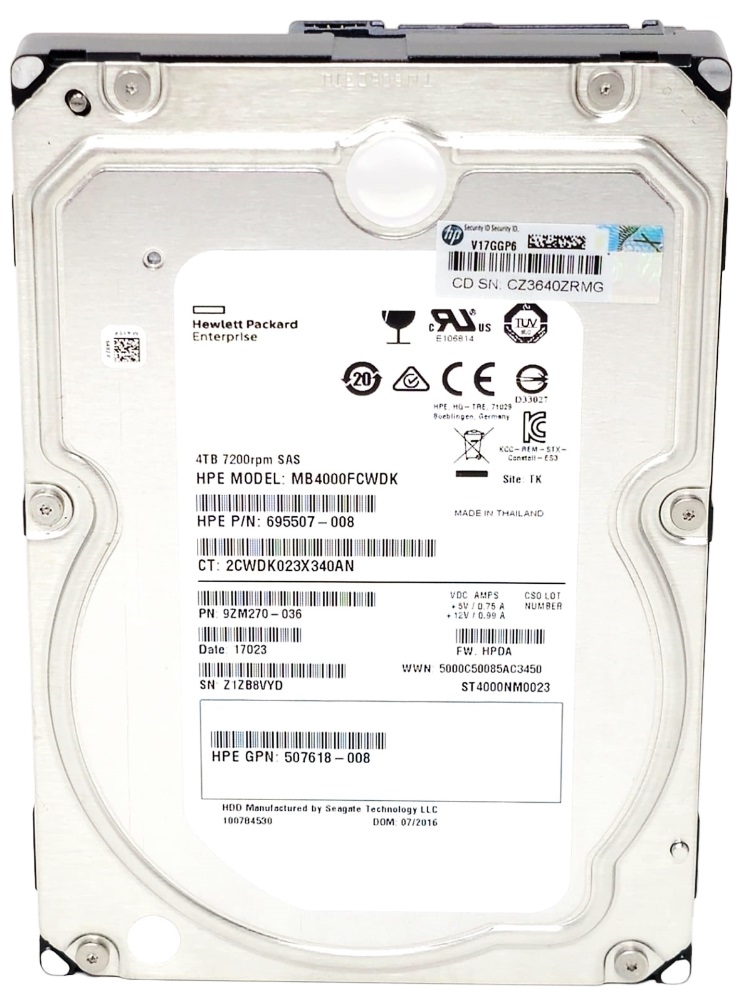

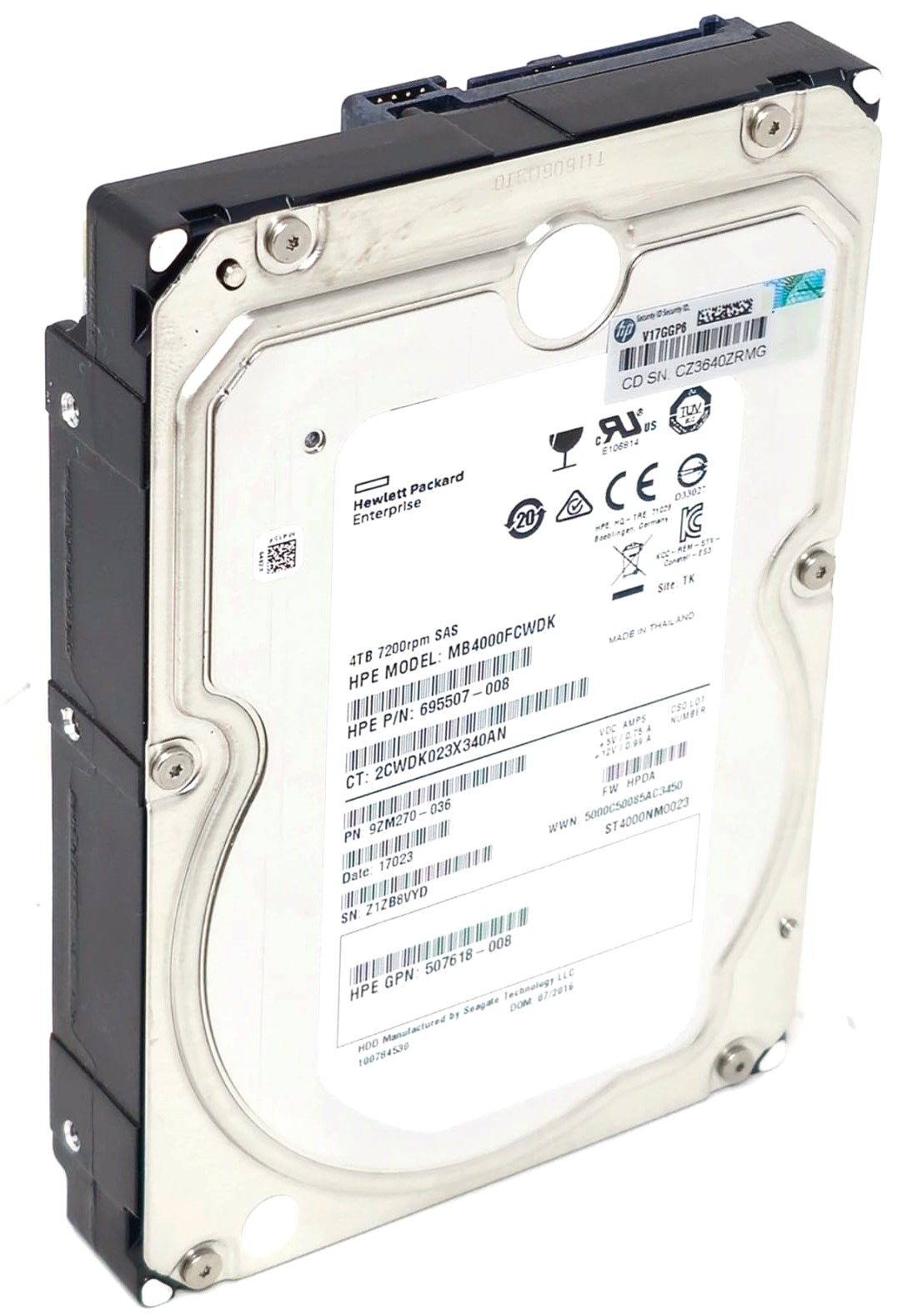

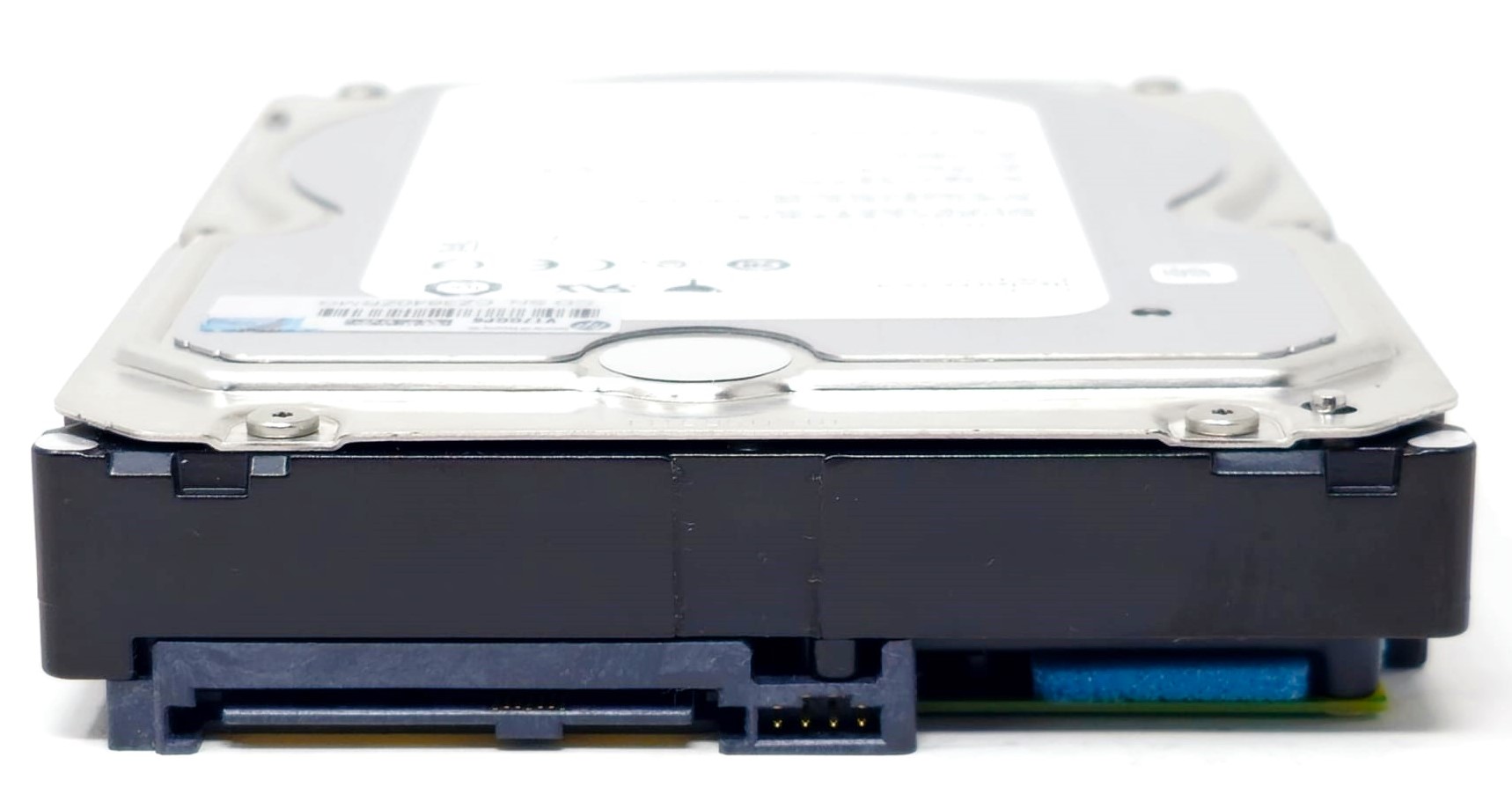

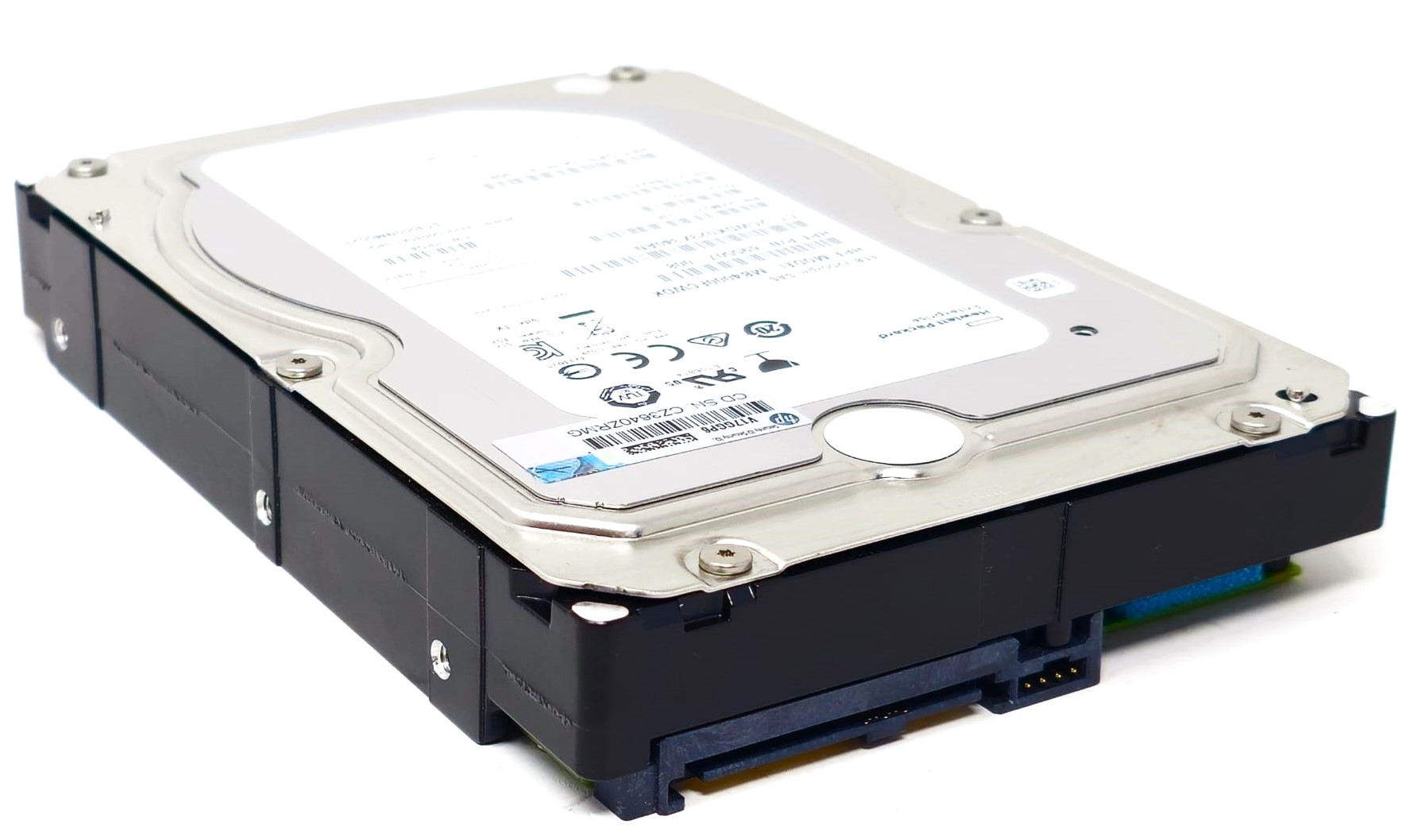

HPE ST4000NM0023 - 4TB 7200RPM 6Gb/s SAS DP LFF 3.5" Hard Drive

4TB 7200RPM 6Gb/s SAS 3.5" Enterprise Hard Drive

This 4TB 3.5-inch enterprise-class SAS hard drive is engineered for dependable 24×7 operation in workstations, servers, and storage systems. With 7200RPM speed and a dual-port 6Gb/s SAS interface, it provides the performance and reliability required for business-critical workloads.

Technical Specifications

• Capacity: 4TB
• Spindle Speed: 7200 RPM
• Interface: SAS 6Gb/s (Dual Port)
• Form Factor: 3.5" LFF (Large Form Factor)
• Cache: 128MB
• Sector Format: 512n / 512e (varies by revision)
• Average Latency: 4.16 ms
• Hot-Swap Support: Yes
• Firmware: Enterprise firmware (varies by batch)
• Power Requirements: +5V 0.75A / +12V 0.99A

Interchangeable Part Numbers

695507-008, MB4000FCWDK, ST4000NM0023, 9ZM270-036, 797455-003, 695842-001, 695842-B21, 695842-S21, 695510-S21, 695510-B21, 743405-001, 743432-004, 861759-008, 846523-004, 872290-001, 797267-B21, 797520-001, 710490-003, 713938-001, 742076-001, 693689-B21, 693721-001, 695507-004, 507618-007, 507618-008, 9ZM270-035, MB004000JWFVK, MB4000FCZGL, HUS724040ALS640, DK7SSF400, MG04SCA40EE, HDEPF12CGA51, SMEG4000S5xnN7.2, 0B26896

(All listed part numbers represent fully interchangeable 4TB 7200RPM 6Gb/s SAS 3.5" enterprise hard drives from the same performance and specification class.)

✅ Confirmed Compatibility

Please note that the following list is not exhaustive. Compatibility depends on system configuration, controller type, and firmware. Always confirm your interface and drive bay type before installation.

✔️ Enterprise Servers (G6–G10):
DL360 G6, DL360 G7, DL380 G6, DL380 G7, DL580 G7, ML350 G6, ML350 G7

✔️ Blade Servers:
BL420c G8 G9, BL460c G8 G9, BL465c G8 G9

✔️ DL-Series Systems:
DL20 G9, DL60 G9 G10, DL80 G9 G10, DL120 G8 G9, DL160 G8 G9 G10, DL180 G8 G9 G10, DL320e G8 G9 G10, DL360e G8 G9 G10, DL360p G8 G9 G10, DL380e G8 G9 G10, DL380p G8 G9 G10, DL388 G9 G10, DL560 G8 G9 G10

✔️ ML-Series Systems:
ML110 G8 G9 G10, ML150 G8 G9 G10, ML310e G8 G9 G10, ML350 G8 G9 G10, ML350e G8 G9

✔️ SL-Series & Enterprise Storage:
SL200t G8 G9, SL230s G8 G9, SL250s G8 G9, SL2500, SL4550 G8 G9, SL4545 G8 G9, SL454x

✔️ Storage Arrays & NAS Systems:
D2700, D2600, D3600, D3700, StoreEasy 1430, StoreEasy 1440, StoreEasy 1530, StoreEasy 1540, StoreEasy 1630, StoreEasy 1640

✔️ Workstations:
Z400, Z420, Z440, Z600, Z800, Z820, Z840

Key Features

☑️ 4TB enterprise capacity ideal for high-demand servers and storage systems
☑️ Dual-port SAS interface for redundant, high-availability operation
☑️ 7200RPM performance with enhanced durability for 24×7 workloads
☑️ Backward compatible with 3Gb/s SAS controllers
☑️ Fully interchangeable with all listed enterprise part numbers

Fit Notes

• Designed for systems using 3.5" SAS hot-swap bays.
• Not compatible with SATA-only controllers or consumer PCs.
• Requires a standard LFF caddy/tray for installation.
• Suitable for enterprise-class servers, workstations, and storage enclosures.

✔ Compatible Caddies (sold separately)

• Caddy PN 651314-001 – link here
• Caddy PN 774026-001 – link here
• Caddy PN 373211-001 – link here
