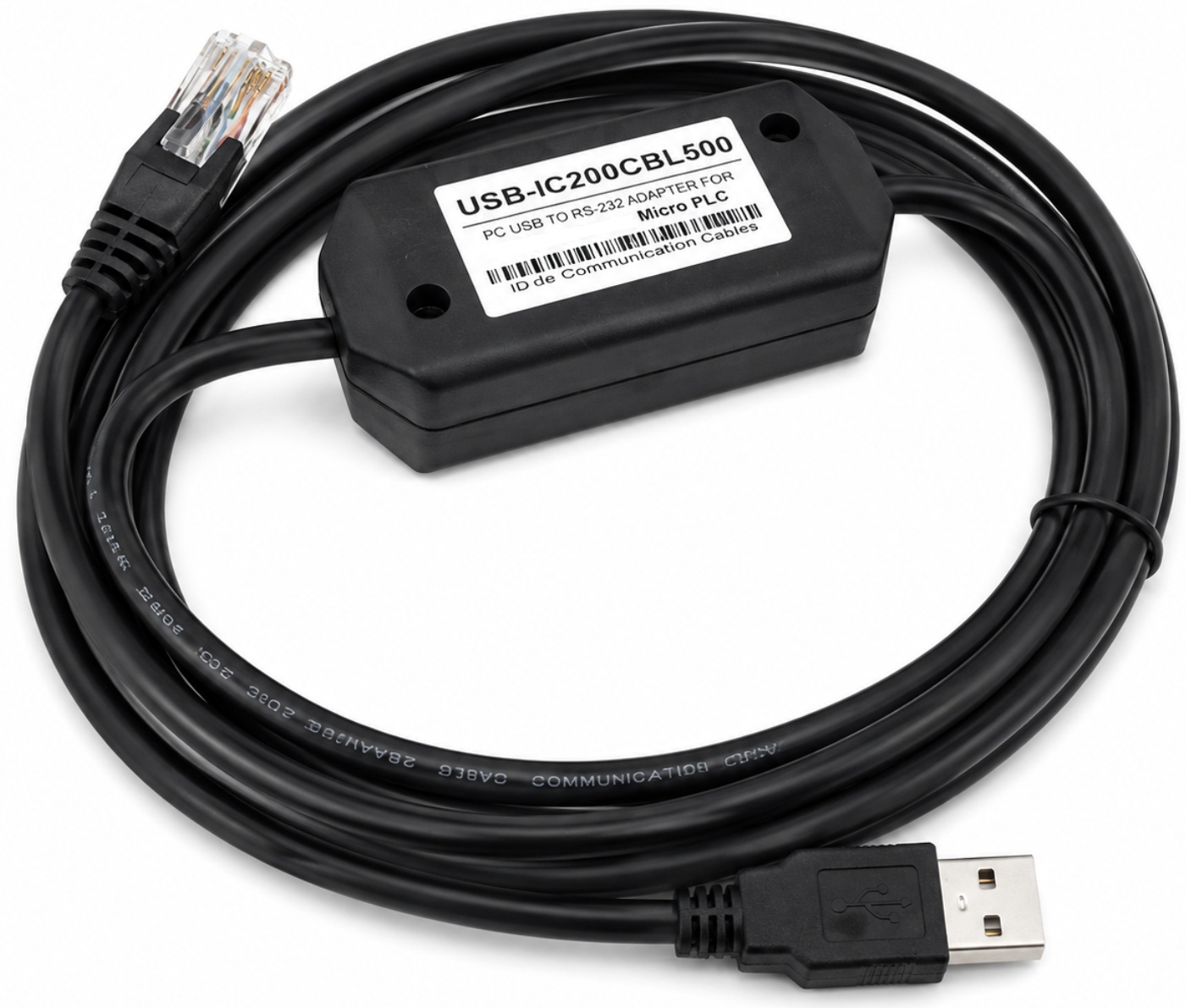

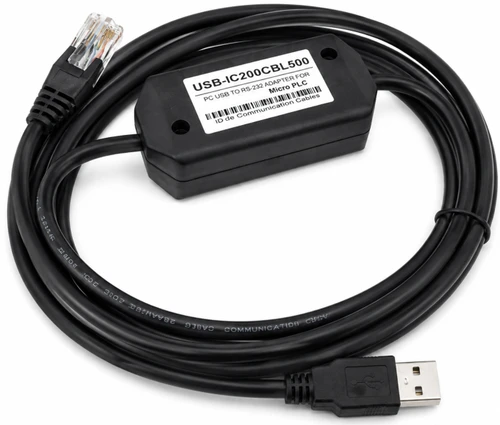

IC200CBL500A USB - Programming Cable RJ45 to USB For VersaMax PLC
USB programming/download cable that replaces the legacy serial lead for VersaMax controllers. Recognized as a virtual COM port for use with standard VersaMax programming software.
Description
Direct USB cable for connecting a PC to the VersaMax CPU serial port without a separate RS-232 adapter. The cable presents a virtual COM port to Windows for seamless use with VersaPro / Proficy Machine Edition. Ideal for laptops without native serial ports and for on-site maintenance.
Technical Specifications
- Interface: USB to RS-232 (virtual COM)
- Connectors: USB-A (PC) to RJ45 8-pin (PLC CPU port)
- Function: Programming / upload / download / diagnostics
- Drivers: Standard USB-serial drivers (installs as COM port)
- OS support: Modern Windows 32/64-bit (use latest drivers)
- Use with: VersaPro / Proficy Machine Edition (set COM port appropriately)
- Cable type: Shielded USB lead with integrated interface
- What’s included: Cable only
Interchangeable / Replacement Part Numbers
✅ Confirmed Compatibility
Please note that the following list is not exhaustive. Compatibility depends on your system's specific configuration. It’s essential to verify compatibility with your system or enclosure manufacturer prior to installation.
✔ VersaMax PLC family: Modular CPU serial port (RJ45), Micro, Nano models with RJ45 serial programming port
☑️ Key Features
- ☑️ Direct USB connection—no separate RS-232 adapter required
- ☑️ Virtual COM port for seamless use with VersaPro / Proficy ME
- ☑️ RJ45 8-pin CPU port termination for VersaMax controllers
- ☑️ Laptop-friendly solution for field service and commissioning
- ☑️ Plug-and-play drivers with simple COM port selection
⚙️ Fit Notes
- Install the USB driver first if prompted, then confirm the assigned COM port number in Device Manager.
- In your programming software, select the matching COM port and communication settings for your PLC project.
- Route the cable away from high-noise power wiring; use strain relief at the controller end.
- Verify your existing lead is labeled IC200CBL500A/IC200CBL500 if you’re replacing a serial cable with this USB version.
