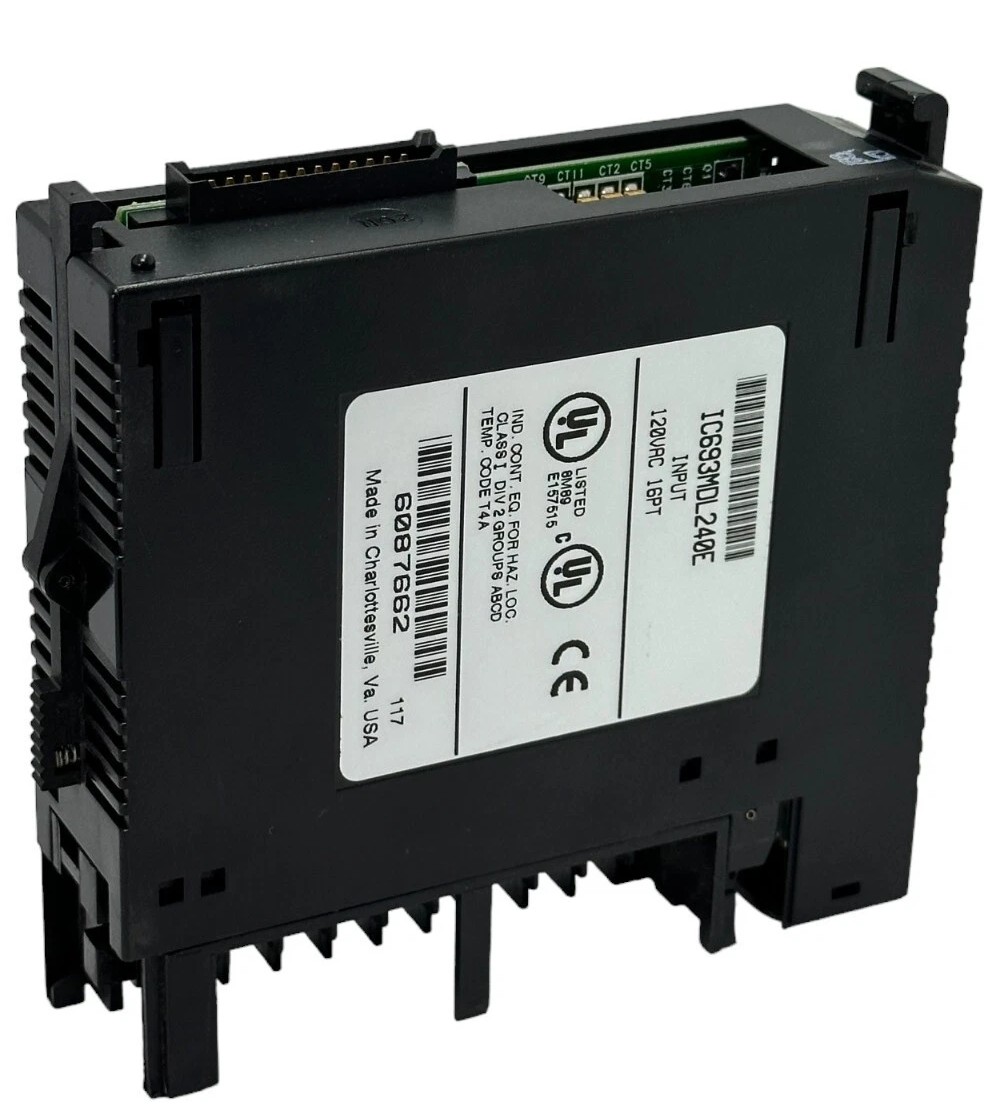

IC693MDL240E - 120 VAC Input, 16-Point Discrete Module - Series 90-30 PLC
Description
120 VAC discrete input module with 16 points (single common) for Series 90-30 PLC systems. Each channel is a reactive AC input with LED status indication. Drop-in replacement when your existing module label reads IC693MDL240E.
Technical Specifications
- Points / Grouping: 16 inputs, 1 group, single common
- Rated / Range: 120 VAC nominal; 0–132 VAC, 50/60 Hz
- Input type: Reactive (RC) AC input; logic “1” written to %I on current present
- Thresholds (typ.): On-state 74–132 VAC; Off-state 0–20 VAC
- Input current: 12 mA (typ.) at 120 VAC; On-state ≥6 mA, Off-state ≤2.2 mA
- Response time (max): ON 30 ms, OFF 45 ms
- Backplane load: 90 mA @ +5 V (all inputs on)
- Isolation: 1500 VAC RMS (field ↔ logic)
- Indicators: 16 green LEDs (A1–A8, B1–B8) at top of module
- Installation: Any I/O slot in a 5- or 10-slot baseplate; high-voltage (red-coded insert)
- Wiring: Hinged door insert with terminal map; user-supplied AC power for field devices
- Environmental note: Number of simultaneously ON inputs may be temperature dependent (per curve)
Interchangeable / Replacement Part Numbers
✅ Confirmed Compatibility
Please note that the following list is not exhaustive. Compatibility depends on the rack/baseplate and CPU firmware. It’s essential to verify by matching the module part number and electrical specs to your system.
✔ Series 90-30 PLC systems: Installs in any standard 5-slot or 10-slot 90-30 baseplate
✔ I/O racks configured for 120 VAC input modules with a single common
☑️ Key Features
- 16-point 120 VAC input module with clear LED status for each channel
- Robust 1500 VAC field-to-logic isolation for plant environments
- Defined on/off thresholds for reliable detection across 0–132 VAC range
- Conservative input timing (30/45 ms) for noise immunity on AC lines
- Single-common design simplifies wiring for grouped field devices
