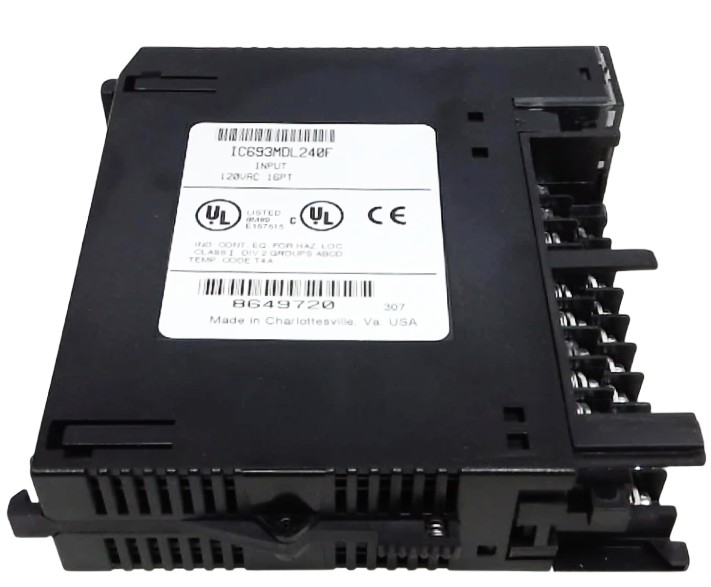

IC693MDL240F - 120 VAC Input, 16-Point Discrete Module - Series 90-30 PLC
Description
120 VAC discrete input module with 16 points (single common) for Series 90-30 PLC systems. Each channel is a reactive AC input with individual LED status indication. Use this page when your existing module label reads IC693MDL240F.
Technical Specifications
- Points / Grouping: 16 inputs, 1 group, single common
- Rated / Range: 120 VAC nominal; 0-132 VAC, 50/60 Hz
- Input type: Reactive (RC) AC input
- Logic thresholds (typ.): ON 74-132 VAC; OFF 0-20 VAC
- Input current (typ.): 12 mA at 120 VAC
- Response time (max): ON 30 ms, OFF 45 ms
- Backplane load: 90 mA @ +5 V
- Isolation: 1500 VAC RMS (field to logic)
- Status indicators: 16 green LEDs (A1-A8, B1-B8)
- Installation: Any I/O slot in a standard 5- or 10-slot baseplate
- Field wiring: Hinged door insert with terminal map; user-supplied AC for field devices
- Environmental note: Simultaneous ON-channel count may be temperature dependent
Interchangeable / Replacement Part Numbers
✅ Confirmed Compatibility
Please note that the following list is not exhaustive. Compatibility depends on rack/baseplate and CPU configuration. Always match the module part number and electrical specs to your system.
✔ Series 90-30 PLC systems: Installs in standard 5-slot or 10-slot baseplates
✔ I/O racks configured for 120 VAC input modules with a single common
☑️ Key Features
- 16-point 120 VAC input with clear per-channel LED indication
- 1500 VAC isolation for robust field-to-logic protection
- Defined AC thresholds for reliable detection across 0-132 VAC
- Noise-immune input timing (30/45 ms) suited to industrial AC lines
- Single-common layout simplifies grouped field wiring
