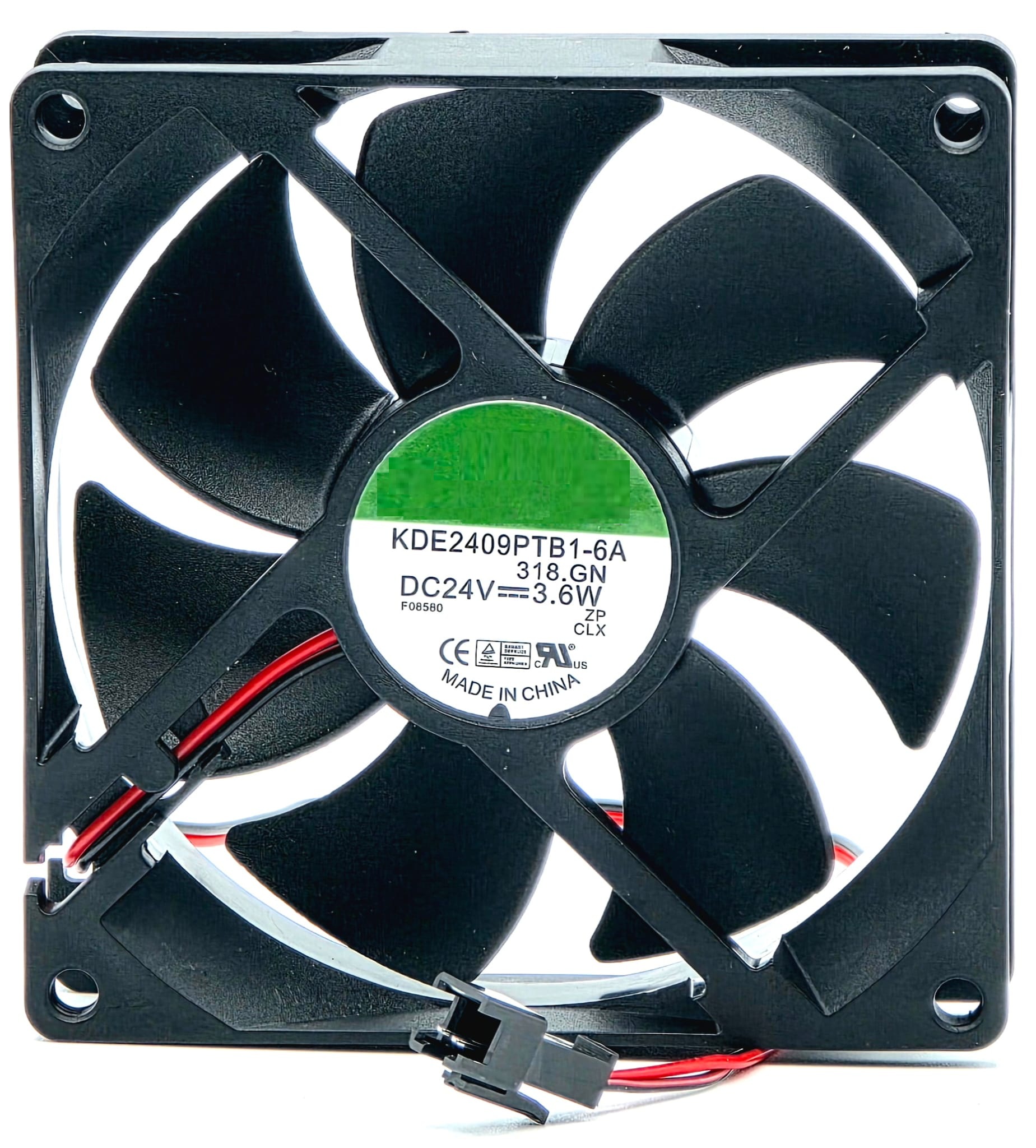

KDE2409PTB1-6A - 92x92x25mm 24V 3.6W 2-Wire Ball Bearing Case Fan
Description
High-reliability 92mm DC brushless cooling fan designed for enclosures, power supplies, and general electronics airflow. Operates on 24V DC with strong airflow and low noise, using a durable ball-bearing system for extended service life.
Technical Specifications
- Dimensions: 92 x 92 x 25 mm
- Rated Voltage: 24V DC
- Operating Voltage Range: 20.4–27.6V DC
- Rated Current: 0.15A
- Rated Power: 3.6W
- Rated Speed: 3600 RPM ± 250 RPM
- Airflow: 51 CFM
- Static Pressure: 0.25 in-H2O
- Noise Level: 40 dBA
- Bearing Type: Ball bearing
- Rotation: CCW viewed from front of fan blade
- Operating Temperature: -10°C to +70°C
- Storage Temperature: -40°C to +70°C
- Weight: 123 g
- Leads: 2-wire
- Frame Type: Square 92mm, 25mm thickness
Interchangeable / Replacement Part Numbers
☑️ Key Features
- ☑️ Strong 51 CFM airflow in a compact 92mm frame
- ☑️ Ball-bearing construction for long service life
- ☑️ Wide 24V operating range for industrial applications
- ☑️ Low acoustic profile at 40 dBA
- ☑️ Simple 2-wire hookup for easy integration
⚙️ Fit Notes
- Confirm your device requires a 24V 92x25mm fan and supports a 2-wire connection before ordering.
- Airflow direction is from open blade side to frame strut side; arrow indicators on the housing show airflow and rotation.
- Standard 92mm fan mounting pattern; reuse existing screws or vibration-dampening mounts as needed.
