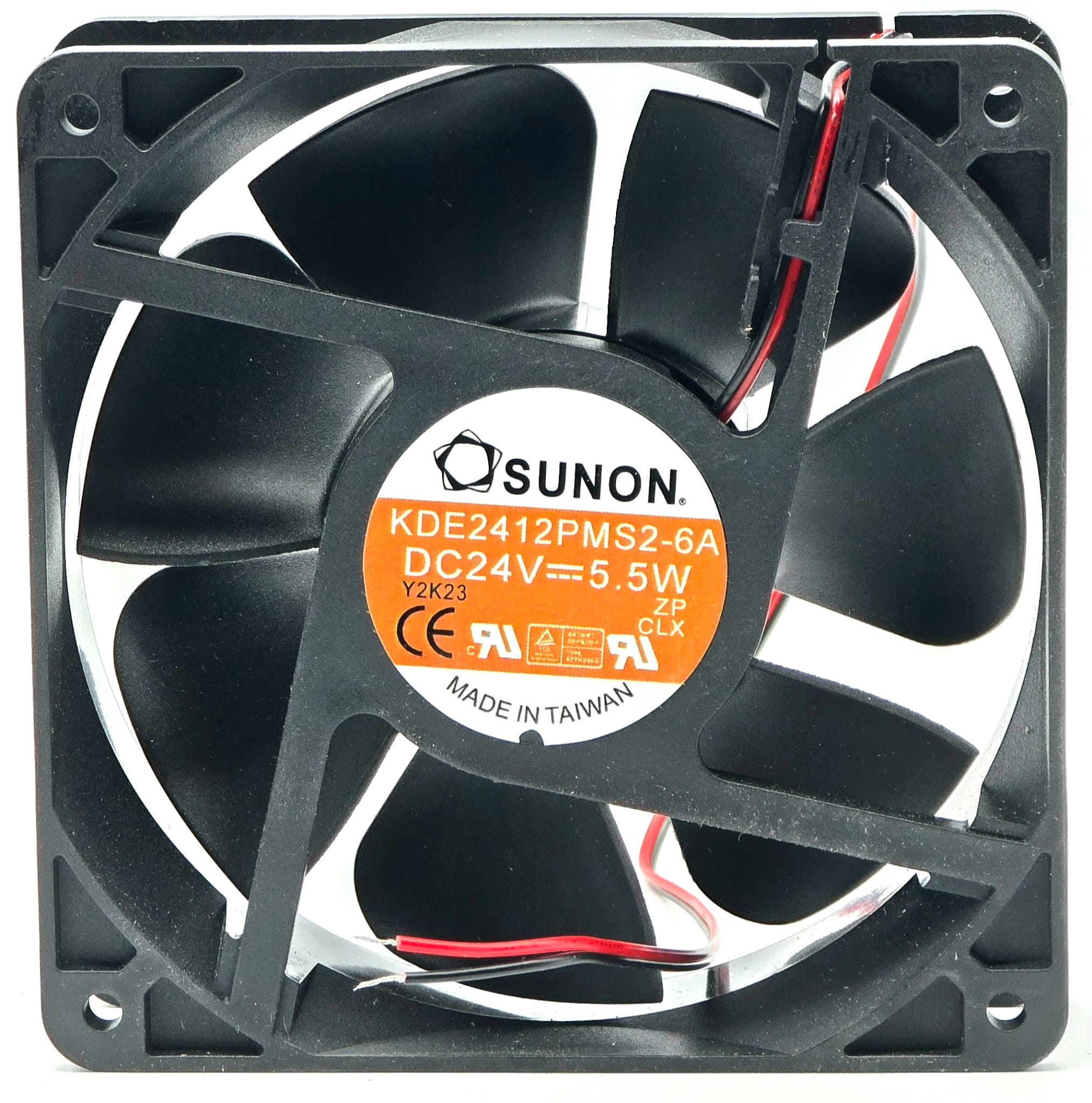

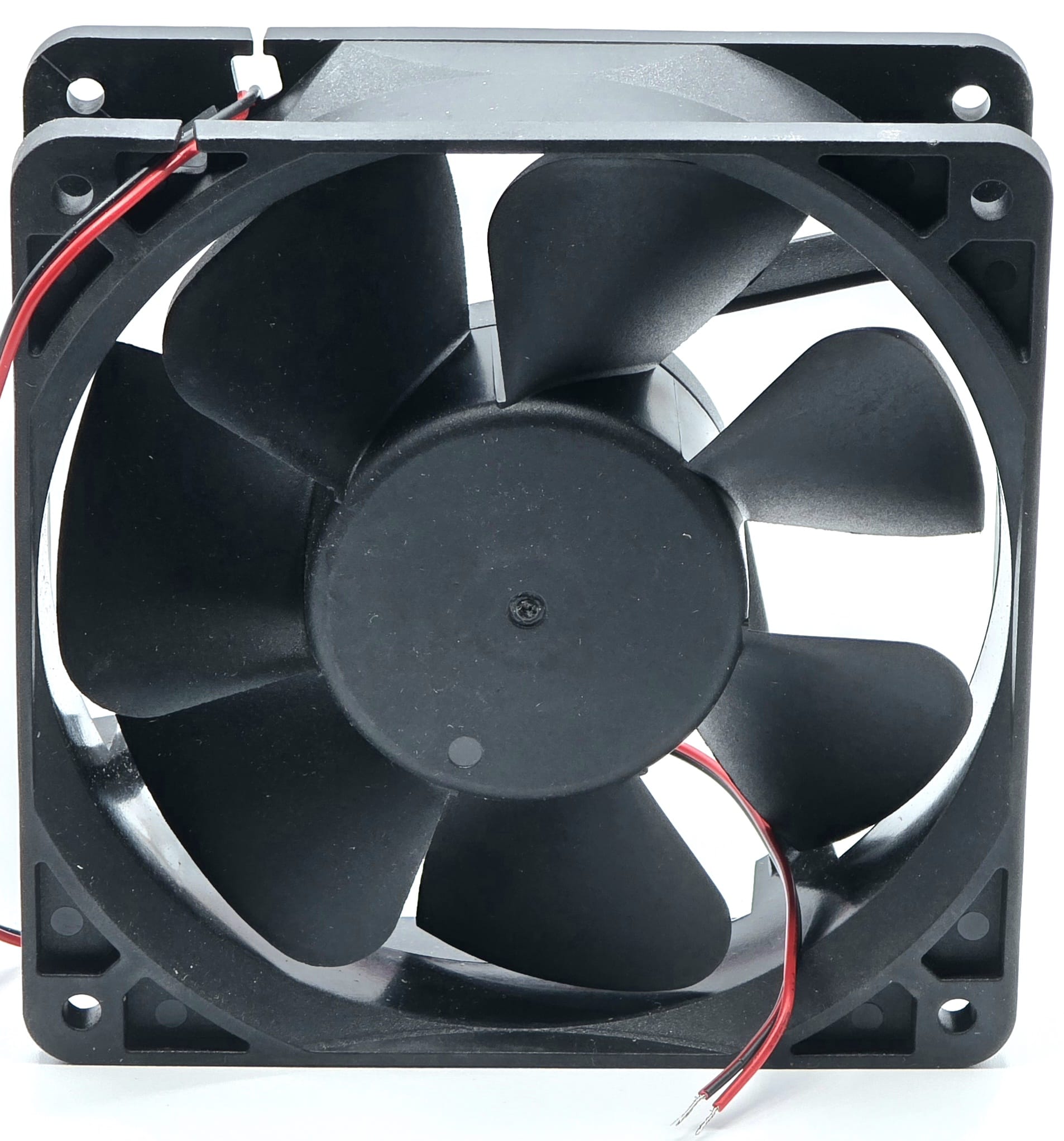

KDE2412PMS2-6A - 120x120x38mm 12038 DC24V 5.5W 2-Lead Wires Inverter Cooling Fan
Description
Industrial 120mm x 38mm DC brushless axial fan designed for inverter bays, VFDs, control panels, rectifiers, and telecom enclosures. Delivers reliable 24V performance with a simple 2-wire lead for continuous-duty cooling in demanding environments.
Technical Specifications
- Dimensions: 120 x 120 x 38 mm (12038)
- Rated Voltage: DC 24V
- Rated Power: 5.5W
- Approx. Rated Current: ~0.23A (derived from 5.5W ÷ 24V)
- Leads: 2-wire pigtail (+V / GND), no tach/PWM
- Fan Type: DC brushless axial
- Bearing: Ball bearing (long-life)
- Frame/Impeller: Flame-retardant thermoplastic, UL94V-0 class
- Mounting: Standard 120mm square pattern
- Orientation Aids: Molded arrows for rotation and airflow
Interchangeable / Replacement Part Numbers
KDE2412PMS2-6A
✅ Confirmed Compatibility
Please note that the following list is not exhaustive. Compatibility depends on your system's specific configuration. It's essential to verify compatibility with your system or enclosure manufacturer prior to installation.
✔ Inverter cabinets and VFD enclosures
✔ PLC and automation control panels
✔ Industrial power supplies and rectifiers
✔ Telecommunications and networking racks
✔ General electronics bays requiring a 120x120x38mm 24V 2-wire fan
☑️ Key Features
- ☑️ 24V DC 5.5W drive for stable, continuous airflow
- ☑️ 38mm thickness enhances static pressure for dense enclosures
- ☑️ Long-life ball bearings for 24/7 operation
- ☑️ Simple 2-wire hookup for fast field replacement
- ☑️ Standard 120mm mounting for broad mechanical compatibility
⚙️ Fit Notes
- Verify your device requires a 120x120x38mm 24V DC 2-wire fan and that polarity matches your harness (typical: Red = +24V, Black = GND).
- If replacing a 3- or 4-wire fan, note this model does not provide tach or PWM control and will run at native speed when powered.
- Align airflow and rotation with the molded arrows; keep intake/exhaust paths unobstructed for best performance.
- Ensure 38mm depth clearance in door/panel cutouts and behind grills or filters.
