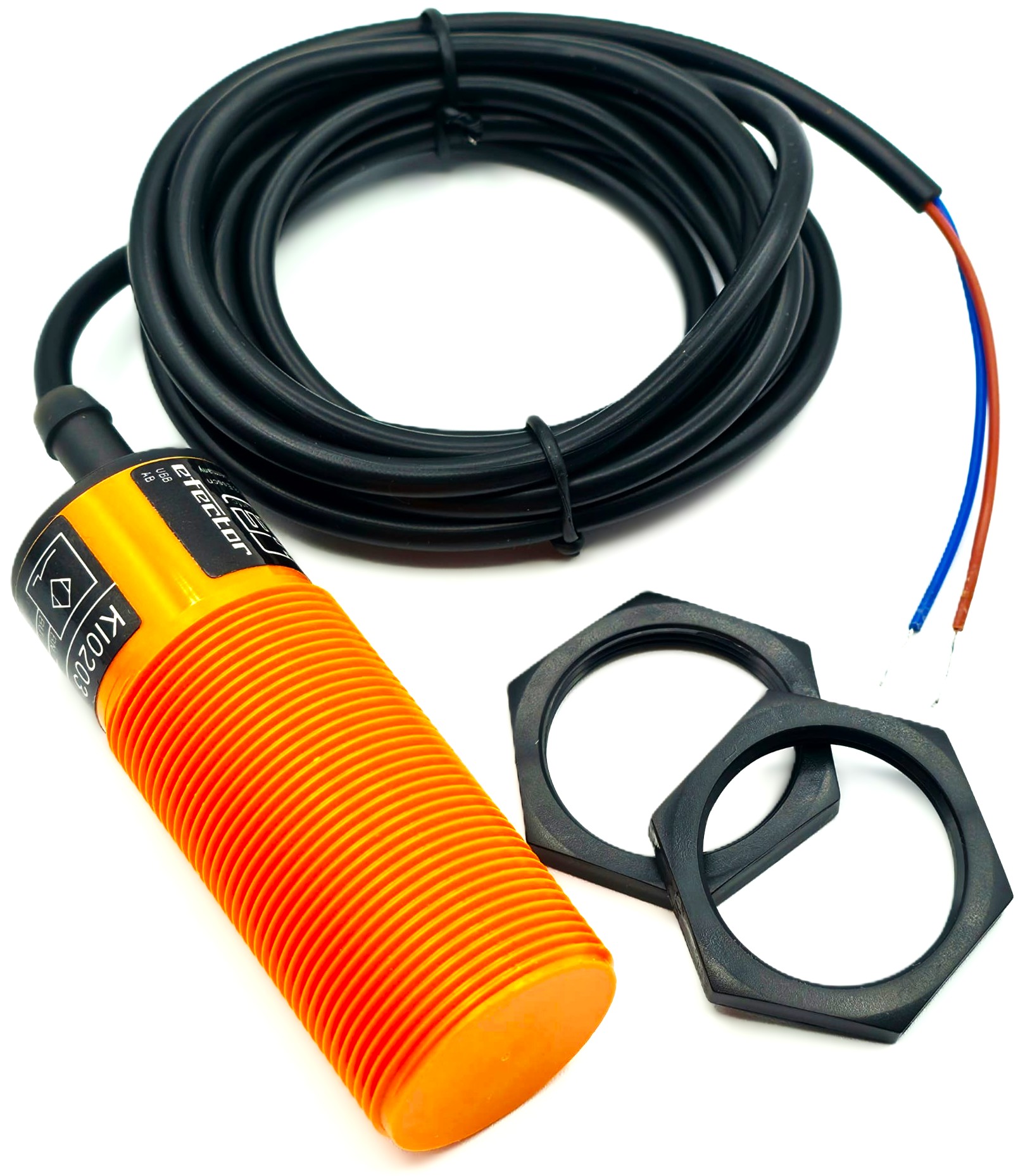

KI0203 KI-2015-BBOA/NI - Capacitive Proximity Sensor 15mm M30 20-250VAC/DC 2-Wire NC - For Industrial Automation
Reliable capacitive proximity sensor with adjustable 3–15 mm sensing range and an M30 x 1.5 threaded body. Dual-voltage two-wire AC/DC design simplifies field wiring in control panels and on-machine installations.
Description
Capacitive sensor for detecting non-metallic and metallic objects through direct contact or thin non-metallic barriers. Non-flush M30 housing supports longer sensing distance, with on-sensor potentiometer for quick range tuning. Two-wire NC output allows simple series wiring with the load for either AC or DC systems.
Technical Specifications
- Model: KI0203
- Alternate marking: KI-2015-BBOA/NI
- Sensor type: Capacitive proximity
- Sensing range: 3–15 mm adjustable (factory set approx. 15 mm)
- Mounting: Non-flush, cylindrical M30 x 1.5
- Housing material: PBT (plastic)
- Output: Normally Closed (NC), 2-wire AC/DC
- Operating voltage: 20–250 VAC/DC
- Max load current: up to 250 mA
- Switching frequency (DC): up to 40 Hz
- Indicators: Status LED
- Connection: Prewired 2 m PVC cable, bare wire leads
- Protection rating: IP65
- Operating temperature: −25 °C to +70 °C
- Includes: Lock nuts (pair)
Interchangeable / Replacement Part Numbers
☑️ Key Features
- ☑️ Wide 20–250 VAC/DC operating range with simple two-wire hookup
- ☑️ Adjustable 3–15 mm range for flexible setup across materials
- ☑️ M30 threaded body with non-flush mounting for stable detection
- ☑️ NC output for straightforward series wiring with loads
- ☑️ Bright status LED for quick visual confirmation
- ☑️ Durable PBT housing with IP65 environmental protection
⚙️ Fit Notes
- Non-flush installation: maintain recommended clearance around the sensing face to avoid false triggering.
- Wire in series with the load (two-wire AC/DC). Observe minimum load current requirements.
- Start with the factory 15 mm setting, then fine-tune using the on-sensor potentiometer.
- Verify your existing sensor’s label matches KI0203 or KI-2015-BBOA/NI before ordering.
