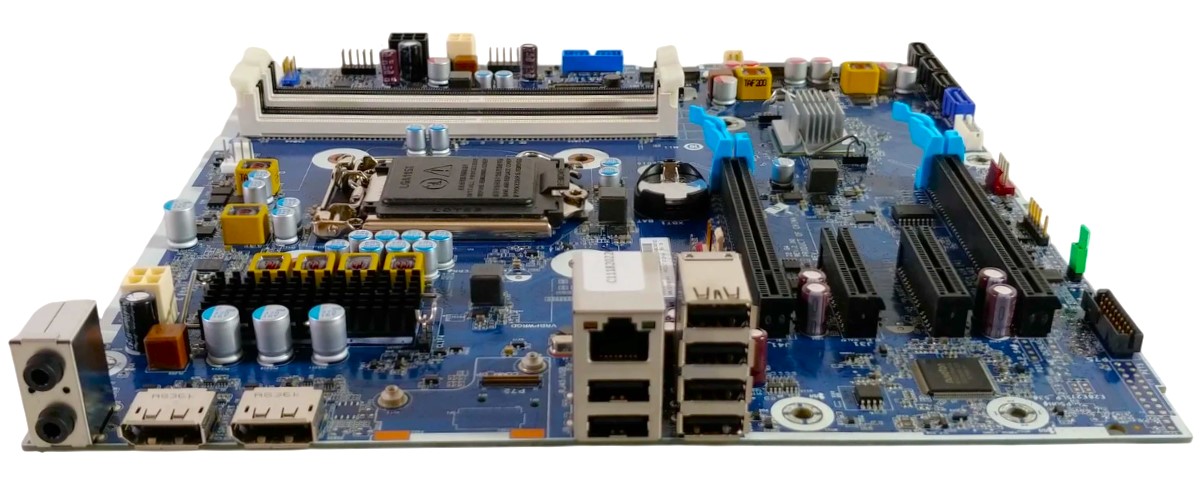

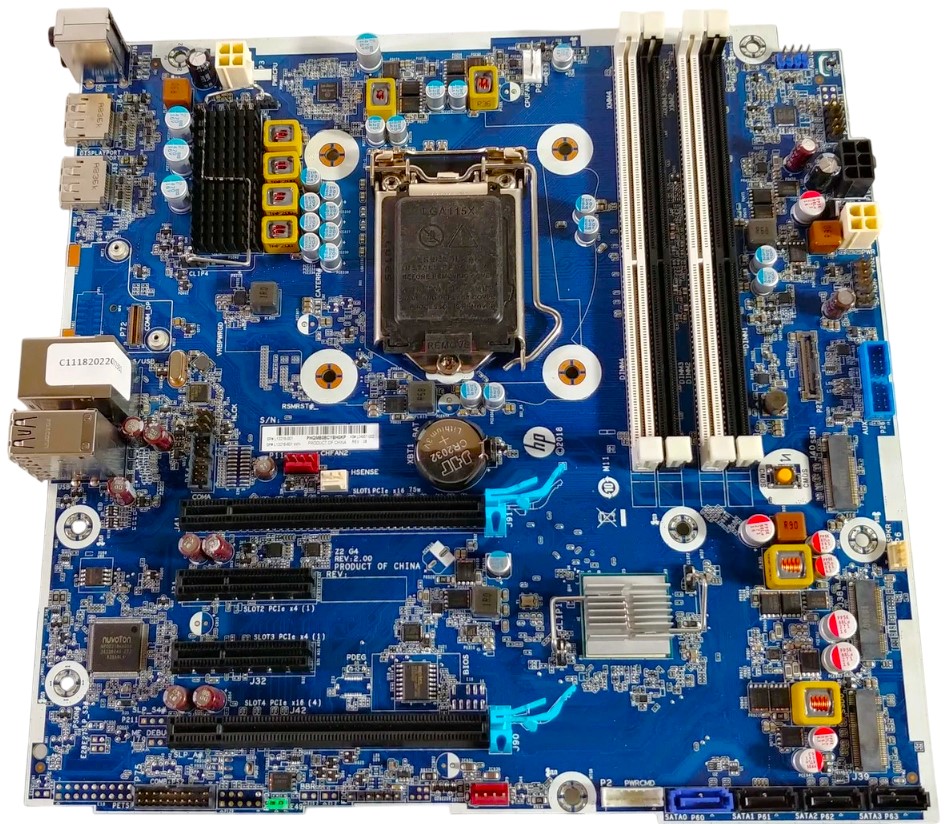

L04857-003 - HP Z2 G4 SFF Workstation Motherboard – LGA 1151 / DDR4 / Intel C246 Chipset

 HP Z2 G4 SFF Workstation Motherboard – LGA 1151, DDR4, Intel C246 Chipset

 Product Overview

This original HP motherboard is designed for the Z2 G4 Small Form Factor (SFF) Workstation, supporting a wide range of 8th and 9th Gen Intel Core and Xeon processors. With a professional-grade Intel C246 chipset, support for ECC and non-ECC DDR4 memory, and multiple PCIe expansion options, this board is ideal for creative, engineering, and enterprise applications.

 Technical Specifications

• Form Factor: MicroATX

• Chipset: Intel C246

• CPU Socket: LGA 1151 (Socket H4)

• Supported Processors:

  • 8th / 9th Gen Intel Core i3, i5, i7, i9

  • Intel Xeon E-Series (E-2100, E-2200)

• TDP Support: Up to 95W

• Memory Support:

  • 4 x DDR4 DIMM slots

  • Up to 64GB total

  • Supports ECC (Xeon only) and non-ECC UDIMM

  • Speeds up to 2666 MHz

• Expansion Slots:

  • 1 x PCIe 3.0 x16

  • 1 x PCIe 3.0 x4 (open-ended)

  • 1 x PCIe 3.0 x1

• Storage Support:

  • 4 x SATA III 6 Gb/s ports

  • 1 x M.2 2280 (PCIe NVMe)

• Integrated Graphics: Dependent on CPU (Intel UHD Graphics 630 or P630)

• LAN: Integrated Intel I219LM Gigabit Ethernet

• Audio: Integrated High Definition Audio

• USB Support:

  • Front and rear USB 3.1 Gen 1

  • USB 2.0 internal headers

✅ Confirmed Compatibility

This motherboard is compatible with the HP Z2 G4 SFF Workstation. It supports 8th and 9th Generation Intel Core i3/i5/i7/i9 processors, as well as Intel Xeon E-series processors. The board is designed to accommodate various professional workloads, making it suitable for tasks ranging from graphic design to data analysis.

 Interchangeable Part Numbers

L13216-001, L13216-601, L04857-002, L04857-001, L04857-003, M10385-001

 Key Features

•  Intel C246 workstation chipset for stability and performance
•  Onboard Gigabit LAN for fast network connectivity
•  Supports both ECC (Xeon) and non-ECC memory
•  Multiple PCIe slots for GPU, RAID, and I/O expansion
•  M.2 SSD slot for high-speed NVMe storage
•  Fully tested and workstation-grade reliability

 What’s Included

• 1 x HP Z2 G4 SFF Workstation Motherboard
